Bitmap Fonts

by Bruce_Jawn
Bitmap Fonts
July 4, 2011
Bruce Jawn
http://bruce-lab.blogspot.com
Ref: http://lazyfoo.net/SDL_tutorials/lesson30/index.php
Font: http://lazyfoo.net
♥2 | Line 167 | Modified 2011-07-04 20:40:19 | MIT License | (replaced)
play

Related images

ActionScript3 source code

/**
 * Copyright Bruce_Jawn ( http://wonderfl.net/user/Bruce_Jawn )
 * MIT License ( http://www.opensource.org/licenses/mit-license.php )
 * Downloaded from: http://wonderfl.net/c/zONx
 */

/**
*Bitmap Fonts
*July 4, 2011
*Bruce Jawn
*http://bruce-lab.blogspot.com
*Ref: http://lazyfoo.net/SDL_tutorials/lesson30/index.php
*Font: http://lazyfoo.net
*
*Copyright (c) <2011> <Bruce Jawn>
*This software is released under the MIT License
*<http://www.opensource.org/licenses/mit-license.php>
**/
package {
    import flash.display.*;
    import flash.events.*;
    import flash.geom.*;
    import flash.net.*;
    import flash.system.* ;
    import flash.text.*;
    import flash.ui.*;
    [SWF(width="512", height="512", backgroundColor="#ffffff")]
    public class BitmapFont extends Sprite
    {

        public function BitmapFont():void
        {
            Loadimage();
        }//end of function BitmapFont

        private var out:BitmapData = new BitmapData(640, 480, false, 0x0);
        private var InputData:BitmapData;
        private var nImageHeight:int;
        private var nImageWidth:int;
        private var InfoText:TextField = new TextField();
        //====================================

        private function Loadimage():void
        {
            addChild(InfoText);
            myLoader.contentLoaderInfo.addEventListener(ProgressEvent.PROGRESS, loadProgress);
            function loadProgress(event:ProgressEvent):void
            {
            var percentLoaded:Number = event.bytesLoaded/event.bytesTotal;
            percentLoaded = Math.round(percentLoaded * 100);
            InfoText.text = percentLoaded + "% Loaded!";//trace("Loading: "+percentLoaded+"%");
            }
            myLoader.contentLoaderInfo.addEventListener(Event.COMPLETE, onLoaderReady);
            myLoader.load(new URLRequest("http://assets.wonderfl.net/images/related_images/c/c9/c9f8/c9f8476eb00f6168bb76b5794a9f86297e81e4fe"));
            function onLoaderReady(evt:Event):void
            {
                removeChild(InfoText);
                InputData = Bitmap ( evt.target.content ).bitmapData;
                nImageHeight= InputData.height;
                nImageWidth = InputData.width;
                //trace(nImageHeight);
                //trace(nImageWidth);
                out = new BitmapData(nImageWidth, nImageHeight);
                addChild(new Bitmap(out));
                init();

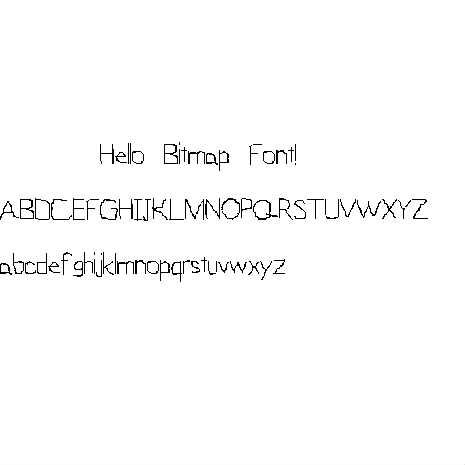

                show_text(100, 128, "Hello Bitmap Font!\nABDCEFGHIJKLMNOPQRSTUVWXYZ\nabcdefghijklmnopqrstuvwxyz\n0123456789");
            }//end of function onLoaderReady
        }//end of function Loadimage
        //====================================

                //cell dimensions
                private var cellW:int ;
                private var cellH:int;
                //New line variables
                private var top:int;
                private var baseA:int;
                //The current character we're setting
                private var currentChar:int = 0;
                private var chars:Array = [];
                private var newLine:int;
                private var space:int;
                //====================================

                private function init():void
                {
                        //Set the cell dimensions
                        cellW =InputData.width / 16;
                        cellH = InputData.height / 16;

                        //New line variables
                        top = cellH;
                        baseA = cellH;

                        //Go through the cell rows
                        for( var rows:int = 0; rows < 16; rows++ )
                        {
                                //Go through the cell columns
                                for( var cols:int = 0; cols < 16; cols++ )
                                {
                                        chars[ currentChar ]={};
                                        //Set the character offset
                                        chars[ currentChar ].x = cellW * cols;
                                        chars[ currentChar ].y = cellH * rows;

                                        //Set the dimensions of the character
                                        chars[ currentChar ].w = cellW;
                                        chars[ currentChar ].h = cellH;

                                        var bgColor:int=0x00ffff;
                                        //Find Left Side
                                        //Go through pixel columns
                                        for( var pCol:int = 0; pCol < cellW; pCol++ )
                                        {
                                                //Go through pixel rows
                                                for( var pRow:int = 0; pRow < cellH; pRow++ )
                                                {
                                                        //Get the pixel offsets
                                                        var pX:int = ( cellW * cols ) + pCol;
                                                        var pY:int = ( cellH * rows ) + pRow;
                                                        //If a non colorkey pixel is found
                                                        if( InputData.getPixel( pX, pY) != bgColor )
                                                        {
                                                                //Set the x offset
                                                                chars[ currentChar ].x = pX;

                                                                //Break the loops
                                                                pCol = cellW;
                                                                pRow = cellH;
                                                        }//end of if
                                                }//end of for pRow
                                        }//end of for  pCol

                                        //Find Right Side
                                        //Go through pixel columns
                                        for( var pCol_w:int = cellW - 1; pCol_w >= 0; pCol_w-- )
                                        //Go through pixel rows
                                        {
                                                for( var pRow_w:int = 0; pRow_w < cellH; pRow_w++ )
                                                {
                                                        //Get the pixel offsets
                                                        var pX:int = ( cellW * cols ) + pCol_w;
                                                        var pY:int = ( cellH * rows ) + pRow_w;

                                                        //If a non colorkey pixel is found
                                                        if( InputData.getPixel( pX, pY)!= bgColor )
                                                        {
                                                                //Set the width
                                                                chars[ currentChar ].w = ( pX - chars[ currentChar ].x ) + 1;

                                                                //Break the loops
                                                                pCol_w = -1;
                                                                pRow_w = cellH;
                                                        }
                                                }// pRow_w
                                        }//pCol_w

                                        //Find Top
                                        //Go through pixel rows
                                        for( var pRow:int = 0; pRow < cellH; pRow++ )
                                        {
                                                //Go through pixel columns
                                                for( var pCol:int = 0; pCol < cellW; pCol++ )
                                                {
                                                        //Get the pixel offsets
                                                        var pX:int = ( cellW * cols ) + pCol;
                                                        var pY:int = ( cellH * rows ) + pRow;

                                                        //If a non colorkey pixel is found
                                                        if( InputData.getPixel( pX, pY)!= bgColor )
                                                        {
                                                                //If new top is found
                                                                if( pRow < top )
                                                                {
                                                                        top = pRow;
                                                                }

                                                                //Break the loops
                                                                pCol = cellW;
                                                                pRow = cellH;
                                                        }
                                                }
                                        }

                                        //Find Bottom of A
                                        if( currentChar == int('A') )
                                        {
                                                //Go through pixel rows
                                                for( var pRow:int = cellH - 1; pRow >= 0; pRow-- )
                                                {
                                                        //Go through pixel columns
                                                        for( var pCol:int = 0; pCol < cellW; pCol++ )
                                                        {
                                                                //Get the pixel offsets
                                                                var pX:int = ( cellW * cols ) + pCol;
                                                                var pY:int = ( cellH * rows ) + pRow;

                                                                //If a non colorkey pixel is found
                                                                if( InputData.getPixel( pX, pY) != bgColor )
                                                                {
                                                                        //Bottom of a is found
                                                                        baseA = pRow;

                                                                        //Break the loops
                                                                        pCol = cellW;
                                                                        pRow = -1;
                                                                }
                                                        }
                                                }
                                        }

                                        //Go to the next character
                                        currentChar++;
                                }
                        }

                        //Calculate space
                        space = cellW / 2;

                        //Calculate new line
                        newLine = baseA - top;

                        //Lop off excess top pixels
                        for( var t:int = 0; t < 256; t++ )
                        {
                                chars[ t ].y += top;
                                chars[ t ].h -= top;
                        }//end of for t
                }//end function init
                //====================================================

                private function show_text(X:int, Y:int, string:String):void
                {
                        var text:Array = string.split('');

                        //Go through the text
                        for( var show:int = 0; text[ show ] != '\0'; show++ )
                        {
                                //If the current character is a space
                                if( text[ show ] == ' ' )
                                {
                                        //Move over
                                        X += space;
                                }//end of if
                                //If the current character is a newline
                                else if( text[ show ] == '\n' )
                                {
                                        //Move down
                                        Y += newLine;

                                        //Move back
                                        X = x;
                                }//end of else if
                                else
                                {
                                        //Get the ASCII value of the character
                                        var ascii:int = text[ show ].charCodeAt(0);

                                        //Show the character
                                        var myrect:Rectangle = new Rectangle(chars[ ascii ].x, chars[ ascii ].y, chars[ ascii ].w, chars[ ascii ].h);
                                        out.copyPixels(InputData, myrect, new Point(X,Y));
                                        //Move over the width of the character with one pixel of padding
                                        X += chars[ ascii ].w + 1;
                                }//end of else
                        }//end of for

                        out.threshold (out, out.rect,new Point(), "==", 0xff00ffff);

                }//end of function

    }//end of class
}//end of package
