* Copyright Mae_ITR ( http://wonderfl.net/user/Mae_ITR )
* MIT License ( http://www.opensource.org/licenses/mit-license.php )
* Downloaded from: http://wonderfl.net/c/yVcK
*/
// forked from clockmaker's Green Icon Generator
// forked from alumican_net's [Sample] BoundaryResizer Demo
//このデータを18枚x4セット作る課題
//手作業でやってたら半端無かったので作った
//急造なんでコード汚いです
package
{
import flash.display.Sprite;
import flash.display.BitmapData;
import flash.events.Event;
import flash.net.*;
import com.bit101.components.*;
import jp.progression.casts.*;
import mx.graphics.codec.*;
/**
* ...
* @author mae0510
*/
public class Main extends CastDocument
{
private var _fr:FileReference;
private var _loader:CastLoader;
private var _baseimage:BaseImage;
private var _ui:Sprite;
private var _count:uint = 1;
private var slider:HSlider;
public function Main():void
{
if (stage) init();
else addEventListener(Event.ADDED_TO_STAGE, init);
}
private function init(e:Event = null):void
{
removeEventListener(Event.ADDED_TO_STAGE, init);
// entry point
//BaseImage
_baseimage = new BaseImage();
_baseimage.scaleX = _baseimage.scaleY = 0.5;
addChildAt(_baseimage, 0);
//Loader
_fr = new FileReference();
_loader = new CastLoader();
_loader.contentLoaderInfo.addEventListener(Event.COMPLETE, loadComplateHandler);
//UI
_ui = new Sprite();
addChildAt(_ui, 1);

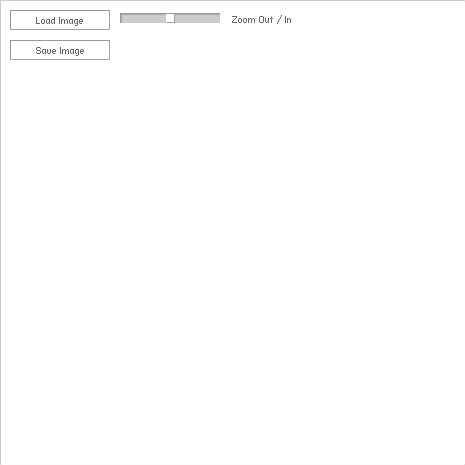

new PushButton(this._ui, 10, 10, "Load Image", FileBrowseHandler);
new PushButton(this._ui, 10, 40, "Save Image", FileSaveHandler);
slider = new HSlider(this._ui, 120, 12.5, scaleHandler);
new Label(this._ui, 230, 10, "Zoom Out / In");
slider.value = _baseimage.scaleX * 100;
//枠まわり
this.graphics.lineStyle(1, 0xCCCCCC);
this.graphics.beginFill(0xFFFFFF);
this.graphics.drawRect(0,0,620, 877);
this.graphics.endFill();
}
//エクスプローラーを開く
private function FileBrowseHandler(e:Event = null):void
{
_fr.browse();
_fr.addEventListener(Event.SELECT, FileSelectHandler );
}
//ファイルを選択する
private function FileSelectHandler(e:Event):void
{
_fr.addEventListener(Event.COMPLETE, FileLoadedHanler );
_fr.removeEventListener(Event.SELECT, FileSelectHandler );
_fr.load();
}
//ファイルデータのロードの完了
private function FileLoadedHanler(e:Event = null):void
{
_fr.removeEventListener(Event.COMPLETE, FileLoadedHanler);
_loader.loadBytes(_fr.data);
}
//_loaderのデータロードの完了&イメージを書き出す
private function loadComplateHandler(e:Event):void
{
trace("BitmapData Loaded");
var bmd:BitmapData = new BitmapData(_loader.width, _loader.height);
bmd.draw(_loader);
_baseimage.drawImage(bmd);
}
//イメージを保存する
private function FileSaveHandler(e:Event = null):void
{
if (!_loader.content) return;
var capture :BitmapData = new BitmapData(1240, 1754);
_baseimage.ui.removeAllChildren();
capture.draw(_baseimage);
_fr.save((new PNGEncoder()).encode(capture), "data" + _count + ".png");
_count++;
}
//BaseImageの拡大縮小 ※後付け 超適当
private function scaleHandler(e:Event = null):void
{
_baseimage.zoom = slider.value / 100;
this.graphics.clear();
this.graphics.lineStyle(1, 0xCCCCCC);
this.graphics.beginFill(0xFFFFFF);
this.graphics.drawRect(0, 0, 1240 * slider.value / 100, 1754 * slider.value / 100);
this.graphics.endFill();
}
}
}
import flash.display.*;
import flash.events.*;
import flash.ui.*;
import flash.geom.Rectangle;
import flash.text.*;
import frocessing.color.FColor;
import jp.progression.casts.CastSprite;
//import net.alumican.as3.geom.BoundaryResizer;
/**
* ...
* @author mae0510
*/
class BaseImage extends CastSprite
{
private var _scale:Number = 0.5;
public var ui:CastSprite;
private var _image:CastSprite;
private var _pickCursor:Sprite;
private var _picture:Bitmap;
private var eventbar:ColorBar;
private var editbars:Array;
public function BaseImage()
{
_image = new CastSprite();
ui = new CastSprite();
addChild(_image);
addChildAt(ui, 10);
drawTitle();
//カラーピック時のカーソルを描く
_pickCursor = new Sprite();
_pickCursor.graphics.beginFill(0x111111);
_pickCursor.graphics.drawRect(0,-10, 1.5, 20);
_pickCursor.graphics.drawRect( -10, 0, 20, 1.5);
_pickCursor.graphics.endFill();
}
//タイトル＆名前
private function drawTitle():void
{
var title:TextField = new TextField();
trace(title.type);
title.type = TextFieldType.INPUT;
trace(TextFieldType.INPUT);
title.defaultTextFormat = new TextFormat("_ゴシック", 20, 0x666666);
title.text = "タイトル/イメージ１ 学籍番号 名前";
title.x = 729;
title.y = 1676;
title.width = 400;
addChildAt(title,1);
}
//画像データのリサイズ＆表示
public function drawImage(bmd:BitmapData):void
{
_image.removeAllChildren();
ui.removeAllChildren();
_picture = new Bitmap(bmd);
var boundary:Rectangle = new Rectangle(204,113,830,560);
var target:Rectangle = _picture.bitmapData.rect;
var resized:Rectangle = BoundaryResizer.resize(target, boundary, BoundaryResizer.SHOW_ALL, BoundaryResizer.BOTTOM);
_picture.width = resized.width;
_picture.height = resized.height;
_picture.x = resized.x;
_picture.y = resized.y;
_image.addChild(_picture);
drawBars();
}
private function drawBars():void
{
editbars = new Array();
var dotcolor:Array = new Array();
for (var i:int = 0; i <= 2; i++) {
dotcolor[i]=_picture.bitmapData.getPixel(_picture.width*Math.random(),_picture.height*Math.random());
var colorbar:ColorBar = new ColorBar(dotcolor[i]);
colorbar.name = String(i);
colorbar.x = 204 + 276 * i;
colorbar.y = 768;
_image.addChild(colorbar);
colorbar.addEventListener(ColorBar.DOWN, mouswDownHandler);
var colorbar2:ColorBar = new ColorBar(dotcolor[i]);
colorbar2.name =String(i);
colorbar2.x = 204 + 276 * i;
colorbar2.y = 1020;
_image.addChild(colorbar2);
editbars[i] = colorbar2;
colorbar2.addEventListener(ColorBar.CLICK,colorEditHandler);
}
}
private function colorEditHandler(e:Event):void
{
var eventbar2:ColorBar = e.currentTarget as ColorBar;
eventbar2.removeEventListener(ColorBar.CLICK, colorEditHandler);
var editwindow:Editer = new Editer();
editwindow.target = eventbar2;
editwindow.window.title = "Color:HSV " + String(int(eventbar2.name)+1);
editwindow.slider1.value = (eventbar2.color.h>=0)?Math.round(eventbar2.color.h / 360 * 100):Math.round((360+eventbar2.color.h) / 360 * 100);
editwindow.slider2.value = Math.round(eventbar2.color.s * 100);
editwindow.slider3.value = Math.round(eventbar2.color.v * 100);
editwindow.x = stage.mouseX / _scale;
editwindow.y = stage.mouseY / _scale;
editwindow.width /= _scale;
editwindow.height /= _scale;
ui.addChild(editwindow);
editwindow.addEventListener(Editer.CHANGE, changevalueHandler);
editwindow.addEventListener(Editer.CLOSE, windowCloseHandler);
}
private function windowCloseHandler(e:Event):void
{
ui.removeChild(e.currentTarget as Editer);
e.currentTarget.target.addEventListener(ColorBar.CLICK,colorEditHandler);
}
private function changevalueHandler(e:Event):void
{
var tempColor:FColor = new FColor();
tempColor.hsv( e.currentTarget.slider1.value * 360 / 100,
e.currentTarget.slider2.value /100,
e.currentTarget.slider3.value /100
);
e.currentTarget.target.draw(tempColor.value);
}
private function mouswDownHandler(e:Event):void
{
Mouse.hide();
addChild(_pickCursor);
eventbar = e.currentTarget as ColorBar;
_pickCursor.x = stage.mouseX / _scale;
_pickCursor.y = stage.mouseY / _scale;
addEventListener(MouseEvent.MOUSE_UP, mouseupHandler);
stage.addEventListener(MouseEvent.MOUSE_MOVE, colorpickHandler);
}
private function colorpickHandler(e:MouseEvent):void
{
var color:uint = _picture.bitmapData.getPixel(_picture.mouseX,_picture.mouseY);
eventbar.draw(color);
editbars[int(eventbar.name)].draw(color);
_pickCursor.x = stage.mouseX / _scale;
_pickCursor.y = stage.mouseY / _scale;
}
private function mouseupHandler(e:MouseEvent):void
{
Mouse.show();
removeChild(_pickCursor);
removeEventListener(MouseEvent.MOUSE_UP, mouseupHandler);
stage.removeEventListener(MouseEvent.MOUSE_MOVE,colorpickHandler);
}
public function set zoom(scale:Number):void {
this._scale = this.scaleX = this.scaleY = scale;
for each(var target:Sprite in this.ui.children) {
target.scaleX = target.scaleY = 1/scale;
}
}
}
import flash.display.Sprite;
import flash.text.TextField;
import flash.text.TextFormat;
import frocessing.color.*;
import flash.events.Event;
import flash.events.MouseEvent;
/**
* ...
* @author mae0510
*/
class ColorBar extends Sprite
{
public var colorbar:Sprite;
public var color:FColor;
private var _tfHSBs:Array;
private var _tfRGBs:Array;
private var th:Array = ["H", "S", "B" ];
private var tr:Array = ["R", "G", "B" ];
static public const CLICK:String = "barclick";
static public const DOWN:String = "bardown";
public function ColorBar(color:uint)
{
init(color);
}
private function init(color:uint):void
{
colorbar = new Sprite();
colorbar.addEventListener(MouseEvent.CLICK, mouseclickHandler);
colorbar.addEventListener(MouseEvent.MOUSE_DOWN,mousedownHandler);
addChild(colorbar);
_tfHSBs = new Array();
_tfRGBs = new Array();
var tformat:TextFormat = new TextFormat("_sans", 20, 0x666666);
for (var i:int = 0; i <= 2; i++ ) {
var tfHSB:TextField = new TextField();
tfHSB.defaultTextFormat = tformat;
tfHSB.x = 11 + i * 87;
tfHSB.y = 63;
addChild(tfHSB);
_tfHSBs.push(tfHSB);
var tfRGB:TextField = new TextField();
tfRGB.defaultTextFormat = tformat;
tfRGB.x = 11 + i * 87;
tfRGB.y = 119;
addChild(tfRGB);
_tfRGBs.push(tfRGB);
}
draw(color);
}
public function draw(color:uint):void {
drawBar(color);
drawParam(color);
}
private function drawBar(value:uint):void
{
colorbar.graphics.clear();
colorbar.graphics.beginFill(value);
colorbar.graphics.drawRect(0, 0, 276, 14);
colorbar.graphics.endFill();
}
private function drawParam(value:uint):void
{
color = new FColor();
color.value = value;
for (var i:int = 0; i <= 2; i++ ) {
switch(i) {
case 0: (color.h >= 0)?_tfHSBs[i].text = th[i] + ": " + Math.round(color.h):_tfHSBs[i].text = th[i] + ": " + Math.round(360 + color.h);
_tfRGBs[i].text = tr[i] + ": " + color.r;
break;
case 1: _tfHSBs[i].text = th[i] + ": " + Math.round(color.s * 100);
_tfRGBs[i].text = tr[i] + ": " + color.g;
break;
case 2: _tfHSBs[i].text = th[i] + ": " + Math.round(color.v * 100);
_tfRGBs[i].text = tr[i] + ": " + color.b;
break;
default : break;
}
}
}
private function mousedownHandler(e:MouseEvent):void
{
dispatchEvent(new Event(ColorBar.DOWN));
}
private function mouseclickHandler(e:MouseEvent):void
{
dispatchEvent(new Event(ColorBar.CLICK));
}
}
import com.bit101.components.*;
import flash.display.Sprite;
import flash.events.Event;
import flash.events.EventDispatcher;
/**
* ...
* @author Mae0510
* */
class Editer extends Sprite
{
public var target:ColorBar;
public var window:Window;
public var slider1:HSlider;
public var slider2:HSlider;
public var slider3:HSlider;
private var btn:PushButton;
static public const CHANGE:String = "change";
static public const CLOSE:String = "close";
public function Editer()
{
init();
}
private function init():void
{
window = new Window(this, 0, 0);
window.width = 215;
window.height = 120;
slider1 = new HSlider(window.content, 20, 10);
slider1.addEventListener(Event.CHANGE,changevalueHandler);
slider1.width = 180;
slider2 = new HSlider(window.content, 20, 30);
slider2.addEventListener(Event.CHANGE,changevalueHandler);
slider2.width = 180;
slider3 = new HSlider(window.content, 20, 50);
slider3.addEventListener(Event.CHANGE,changevalueHandler);
slider3.width = 180;
btn = new PushButton(window.content, 100, 70, "close", closeHandler);
new Label(window.content, 5, 7, "H");
new Label(window.content, 5, 27, "S");
new Label(window.content, 5, 47, "B");
}
private function closeHandler(e:Event = null):void
{
dispatchEvent(new Event(Editer.CLOSE));
//this.parent.removeChild(this);
}
private function changevalueHandler(e:Event):void
{
dispatchEvent(new Event(Editer.CHANGE));
}
}
import flash.display.StageAlign;
import flash.display.StageScaleMode;
import flash.geom.Rectangle;
/**
* BoundaryResizer
* 様々なリサイズをRectangleベースで実行するクラスです．
* @see http://blog.alumican.net/2009/10/07_225251
* @author alumican.net<Yukiya Okuda>
*/
class BoundaryResizer
{
//-------------------------------------
//CLASS CONSTANTS
/**
* scaleMode
* リサイズ方法を操作するscaleModeには以下の定数を指定できます．
*/
static public const EXACT_FIT:String = StageScaleMode.EXACT_FIT; // targetとboundaryが完全に一致するようにリサイズされます．多くの場合，targetの縦横比は保たれません．
static public const SHOW_ALL:String = StageScaleMode.SHOW_ALL; // targetが縦横比を保ち，かつtargetがboundaryの内側にフィットするようにリサイズされます．targetがトリミングされることはありませんが，上下または左右に隙間ができることがあります．
static public const NO_BORDER:String = StageScaleMode.NO_BORDER; // targetが縦横比を保ち，かつboundaryがtargetの内側にフィットするようにリサイズされます．targetとboundaryの間に隙間ができることはありませんが，targetがトリミングされることがあります．
static public const NO_SCALE:String = StageScaleMode.NO_SCALE; // リサイズがおこなわれず，alignによる基準点合わせのみがおこなわれます．
/**
* align
* リサイズ後のオブジェクトの基準点を操作するalignには以下の定数を指定できます．
*/
static public const TOP_LEFT:String = StageAlign.TOP_LEFT; // x軸方向:左 , y軸方向:上
static public const TOP:String = StageAlign.TOP; // x軸方向:中央, y軸方向:上
static public const TOP_RIGHT:String = StageAlign.TOP_RIGHT; // x軸方向:右 , y軸方向:上
static public const LEFT:String = StageAlign.LEFT; // x軸方向:左 , y軸方向:中央
static public const CENTER:String = ""; // x軸方向:中央, y軸方向:中央
static public const RIGHT:String = StageAlign.RIGHT; // x軸方向:右 , y軸方向:中央
static public const BOTTOM_LEFT:String = StageAlign.BOTTOM_LEFT; // x軸方向:左 , y軸方向:下
static public const BOTTOM:String = StageAlign.BOTTOM; // x軸方向:中央, y軸方向:下
static public const BOTTOM_RIGHT:String = StageAlign.BOTTOM_RIGHT; // x軸方向:右 , y軸方向:下
//-------------------------------------
//METHODS
/**
* targetをboundaryに合わせてリサイズした矩形を返します．
* リサイズ方法と基準点をscaleMode，alignで指定できます．
* @param target リサイズ対象オブジェクトの矩形を指定します．(例)リサイズしたい画像の矩形
* @param boundary リサイズの基準となる矩形を指定します．(例)リサイズ後の画像を収める枠
* @param scaleMode リサイズ時のスケールモードを指定します．このパラメータはStageScaleModeと互換性があります．このパラメータを省略した場合はBoundaryResizer.NO_SCALEとなり，リサイズはおこなわれません．
* @param align boundaryに対するtargetの基準位置を指定します．このパラメータはStageAlignと互換性があります．このパラメータを省略した場合はBoundaryResizer.CENTERとなり，縦横ともに中央揃えとなります．
* @return リサイズ後の矩形が返されます．target及びboundaryは変更しません．
*/
static public function resize(target:Rectangle, boundary:Rectangle, scaleMode:String = "noScale", align:String = ""):Rectangle
{
var tx:Number = target.x,
ty:Number = target.y,
tw:Number = target.width,
th:Number = target.height,
bx:Number = boundary.x,
by:Number = boundary.y,
bw:Number = boundary.width,
bh:Number = boundary.height;
switch (scaleMode)
{
case SHOW_ALL:
case NO_BORDER:
var ratioW:Number = bw / tw,
ratioH:Number = bh / th,
ratio:Number = (scaleMode == SHOW_ALL) ? ( (ratioW < ratioH) ? ratioW : ratioH ) :
( (ratioW > ratioH) ? ratioW : ratioH ) ;
tw *= ratio;
th *= ratio;
break;
case EXACT_FIT:
return new Rectangle(bx, by, bw, bh);
}
tx = bx + ( (align == TOP_LEFT || align == LEFT || align == BOTTOM_LEFT ) ? 0 :
(align == TOP_RIGHT || align == RIGHT || align == BOTTOM_RIGHT) ? (bw - tw) :
(bw - tw) / 2 ) ;
ty = by + ( (align == TOP_LEFT || align == TOP || align == TOP_RIGHT ) ? 0 :
(align == BOTTOM_LEFT || align == BOTTOM || align == BOTTOM_RIGHT) ? (bh - th) :
(bh - th) / 2 ) ;
return new Rectangle(tx, ty, tw, th);
}
}
