<?xml version="1.0" encoding="utf-8"?>
<s:Application xmlns:fx="http://ns.adobe.com/mxml/2009"
xmlns:s="library://ns.adobe.com/flex/spark"
xmlns:mx="library://ns.adobe.com/flex/mx"
width="465" height="465">
<s:VGroup left="10" top="10" right="10" bottom="10">
<s:Button click="onClick();" label="load" />
<s:TextArea id="t" width="100%" height="100%"/>
</s:VGroup>
<fx:Script>
<![CDATA[
/*
ライブラリは開発中。
しかし、デコードしたデータの文法が分からない…
* */
import mx.utils.Base64Decoder;
private const pbj_tutorial:String = ""+
"pQEAAACkCwBDaGVja2VyRmlsbKAMbmFtZXNwYWNlAGNvbS5hZG9iZS5leGFtcGxlAKAMdmVuZG9y" +
"AEFkb2JlIFN5c3RlbXMgSW5jLgCgCHZlcnNpb24AAQCgDGRlc2NyaXB0aW9uAEEgY2hlY2tlcmVk" +
"IGZpZWxkIGdlbmVyYXRvcgChAQIAAAxfT3V0Q29vcmQAoQIEAQAPZHN0AKEBAQAAAmNoZWNrZXJT" +
"aXplAKIBZGVmYXVsdFZhbHVlAEEgAACiAW1pblZhbHVlAD+AAACiAW1heFZhbHVlAEKWAAChAQQC" +
"AA9jb2xvckEAogRkZWZhdWx0VmFsdWUAAAAAAD+AAAA/gAAAP4AAAKEBBAMAD2NvbG9yQgCiBGRl" +
"ZmF1bHRWYWx1ZQAAAAAAAAAAAAAAAAA/gAAAHQQAwQAAEAAyAAAQQAAAAB0EACAAAIAAAwQAIAAA" +
"wAAdAAAQBAAAAAgAABAEAIAAHQQAIAAAwAAyAAAQQAAAAB0EABAAAIAAAwQAEAAAwAAdAAAQBABA" +
"AAgAABAEAMAAHQQAEAAAwAAqBAAgAACAAB0BgIAAgAAAKgQAEAAAgAAdAYBAAIAAAB0BgCABgAAA" +
"LwGAIAGAQAAzBQDwAYCAAAIAG8ADABvAHQEA8wUAGwA=" ;
private const pbj_myCode:String = ""+
"pQEAAACkDQBkZWZhdWx0RmlsdGVyoAxuYW1lc3BhY2UAemFoaXIxOTI5AKAMdmVuZG9yAHphaGly" +
"AKAIdmVyc2lvbgABAKAMZGVzY3JpcHRpb24AUGl4ZWxCZW5kZXIgZGVmYXVsdCAnbmV3IGtlcm5l" +
"bCcgAKEBAgAADF9PdXRDb29yZACjAARzcmMAoQIEAQAPZHN0ADACAPEAABAAHQEA8wIAGwA=";
//
private var fr:FileReference;
private function onClick():void{
fr = new FileReference();
fr.addEventListener(Event.SELECT, onSelect);
fr.browse([new FileFilter("Load PBJ File","*.pbj")]);
}
private function onSelect(e:Event):void{
fr.removeEventListener(Event.SELECT, onSelect);
fr.addEventListener(Event.COMPLETE, onLoadComp);
fr.load();
}
private function onLoadComp(e:Event):void{
t.text="";
decompile(fr.data);
}
private function init():void{
var dec:Base64Decoder = new Base64Decoder();
//dec.decode( pbj_tutorial );
dec.decode( pbj_myCode );
decompile( dec.toByteArray() );
}
private function littleToBig32( value:uint ):uint{
var a:int = value & 0xFF;
var b:int = (value >> 8) & 0xFF;
var c:int = (value >> 16) & 0xFF;
var d:int = (value >> 24) & 0xFF;
return (a <<24) | (b<<16) | (c<<8) | d;
}
private function littleToBig16(value:uint):uint{
return ((value>>8) & 0xFF) | ((value<<8) & 0xFF00);
}
private function readFloat( bytes:ByteArray ):Number{
var n:Number = 0;
bytes.endian = "bigEndian";
n = bytes.readFloat();
bytes.endian = "littleEndian";
return n;
}
private function isIntReg( value:uint ):Boolean{
return (value & 0x8000) ? true : false;
}
private function Swizzle( index:int, swizzle:int):int{
return (swizzle>>(6-index*2)) & 3;
}
private function BitCount( value:uint ):int{
value = (value & 0x55555555) + (value >> 1 & 0x55555555);
value = (value & 0x33333333) + (value >> 2 & 0x33333333);
value = (value & 0x0f0f0f0f) + (value >> 4 & 0x0f0f0f0f);
value = (value & 0x00ff00ff) + (value >> 8 & 0x00ff00ff);
return (value & 0x0000ffff) + (value >>16 & 0x0000ffff);
}
private function IndexToDstWithMask( index:int, mask:int):int{
return map[(mask<<2|index)];
}
private function printMask(mask:int, type:int):void{
if(mask != 0xF){
var str:String = ".";
for( var i:int = 0, len:int =typeSize[type]; i<len; i++){
_trace(str, channelName[IndexToDstWithMask(i,mask)]);
}
}
}
private function printDst(index:uint, mask:int, size:int):void{
var str:String = "";
if( index >= 32768){
str += String(index - 32768);
}else{
str += String(index);
}
if(mask != 0xF){
str += ".";
for( var i:int = 0; i< size; i++){
_trace(str, channelName[IndexToDstWithMask(i,mask)]);
}
}
}
private function printSrc( index:int, swizzle:int, size:int):void{
var str:String = "";
if( index >= 32768){
str += String(index - 32768);
}else{
str += String(index);
}
if(swizzle != 0x1B){
str += ".";
for( var i:int = 0; i< size; i++){
_trace(str, channelName[Swizzle(i,swizzle)]);
}
}
}
private function readString( bytes:ByteArray ):String{
var pos:int = bytes.position;
var len:int = 0;
while( bytes.readUnsignedByte() > 0 ) len++;
bytes.position = pos;
var str:String = bytes.readUTFBytes(len);
bytes.position++;
return str;
}
private function readMetaData( bytes:ByteArray, op:int ):void{
var type:int = bytes.readUnsignedByte();
var _name:String;
var _meta:String;
if( type == pbjTypeString ){
_name = readString( bytes );
_meta = readString( bytes );
if( op == pbjParameterMetaData){
_trace( "Param " + _name, _meta);
}else{
_trace( "Kernel " + _name, _meta);
}
}else{
_name = readString( bytes );
if( op == pbjParameterMetaData ){
var elm:int = 0;
var i:int;
switch(type){
case pbjTypeFloat4x4: elm +=7;
case pbjTypeFloat3x3: elm +=5;
case pbjTypeFloat2x2: case pbjTypeFloat4:
elm ++;
case pbjTypeFloat3:
elm ++;
case pbjTypeFloat2:
elm ++;
case pbjTypeFloat:
elm ++;
for(i=0; i<elm; i++)_trace(" " + _name, readFloat( bytes ));
break;
case pbjTypeBool4: case pbjTypeInt4:
elm++;
case pbjTypeBool3: case pbjTypeInt3:
elm++;
case pbjTypeBool2: case pbjTypeInt2:
elm++;
case pbjTypeBool: case pbjTypeInt:
elm++;
for(i=0; i<elm; i++)_trace("\t" + _name,bytes.readShort());
break;
}
}else{
switch(type){
case pbjTypeInt:
_trace("Kernel "+_name, bytes.readUnsignedShort());
break;
default : err(); break;
}
}
}
}
private function readParameter( bytes:ByteArray ):void{
var _qualifier:int = bytes.readUnsignedByte();
var _type:int = bytes.readUnsignedByte();
if( _type == pbjTypeString || _qualifier > 2 || _qualifier < 1){
err();
}else{
var dst:uint = bytes.readUnsignedShort();
var writeMask:int = bytes.readUnsignedByte();
var paramName:String = readString( bytes );

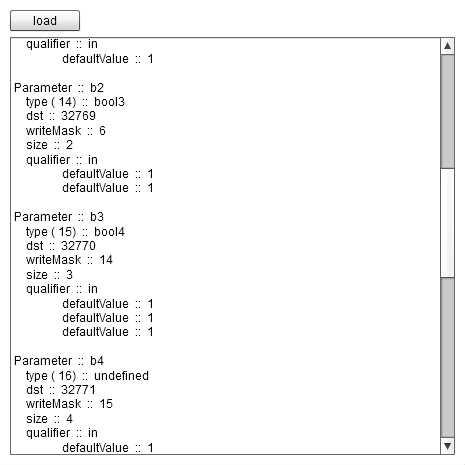

_trace("\nParameter", paramName )
_trace(" type ( " + _type +")", typeNames[ _type ]);
_trace(" dst",dst);
_trace(" writeMask",writeMask);
_trace(" size", typeSize[ _type ]);
_trace(" qualifier", qualifierName[_qualifier]);
}
}
private function readTexture( bytes:ByteArray ):void{
var _index:int = bytes.readUnsignedByte();
var _channels:int = bytes.readUnsignedByte();
_trace("\n" + "Input", readString(bytes) );
_trace(" index", _index);
_trace(" channel", _channels);
}
private function readArithmetic( bytes:ByteArray, op:int, matrixSize:int,
writeMask:int, readSize:int, dst:uint, src:uint, readSwizzle:int):void{
//
if(matrixSize){
if(writeMask != 0){
err();
}
switch( op ){
case pbjCopy: case pbjAdd: case pbjSubtract: case pbjMultiply:
case pbjReciprocal: case pbjMatrixMatrixMultiply:
_trace(namesLo[op], namesMatrix[matrixSize] );
_trace("dst",dst);
_trace("src",src);
break;
default:
_trace(namesLo[op],"operation now allowed on matrices");
err();
break;
}
}else{
var dstInt:Boolean = false;
var srcInt:Boolean = false;
switch( op ){
case pbjAdd: case pbjSubtract:
case pbjMultiply: case pbjDivide:
_dst();
break;
}if( op == pbjCopy ){
if( isIntReg(dst) != isIntReg(src) ){
err();
}
}else{
if( isIntReg(dst) != dstInt ){
err();
}
if( isIntReg(src) != srcInt ){
err();
}
_trace("", namesLo[op] );
if( String(namesLo[op]).length < 4 ){
}else{
}
printDst( dst, writeMask, readSize );
printSrc( src, readSwizzle, readSize);
}
}
function _dst():void{
if(isIntReg( dst ) ){
dstInt = true;
srcInt = true;
}
}
}
private function readBoolTo(op:int,mask:int, swizzle:int, size:int, src:uint, dst:uint):void{
if( !isIntReg(src) ){
err();
}
if( !isIntReg(dst) ){
err();
}
_trace(namesLo[op],"");
printDst(dst,mask,size);
printSrc(src,swizzle,size);
}
private function readAnyAll(op:int,mask:int, swizzle:int, size:int, src:uint, dst:uint):void{
if( !isIntReg(src) ){
err();
}
if( !isIntReg(dst) ){
err();
}
_trace(namesLo[op],"");
printDst(dst,mask,size);
printSrc(src,swizzle,size);
}
private function readVMM(op:int, m_size:int,mask:int, size:int, src:uint, dst:uint):void{
if(BitCount(mask) != (m_size + 1)){
err("readVMM");
}
_trace(namesLo[op],namesMatrix[m_size]);
printDst(dst,mask,size);
}
private function readMVM(op:int, m_size:int,mask:int, size:int, src:uint, dst:uint):void{
if(BitCount(mask) != (m_size + 1)){
err("readMVM");
}
_trace(namesLo[op],namesMatrix[m_size]);
printDst(dst,mask,size);
}
private function readNormalize(op:int,mask:int, swizzle:int, size:int, src:uint, dst:uint):void{
if( isIntReg(src) || isIntReg(dst) ){
err("readNormalize");
}
if(size == pbjSampleSizeScalar){
err("readNormalize :: scalar");
}else{
_trace(namesLo[op],"");
printDst(dst,mask,size);
printSrc(src,swizzle,size);
}
}
private function readDistans(op:int, m_size:int,mask:int,swizzle:int,size:int, src:uint, dst:uint):void{
if(m_size){
err("readDistans");
}
if( isIntReg(src) || isIntReg(dst) ){
err("readDistans");
}
if(size == pbjSampleSizeScalar){
err("readDistans :: scalar");
}else{
_trace(namesLo[op],"");
printDst(dst,mask,1);
printSrc(src,swizzle,size);
}
}
private function readDotProduct(op:int, m_size:int,mask:int,swizzle:int,size:int, src:uint, dst:uint):void{
if(m_size){
err("readDotProduct");
}
if( isIntReg(src) || isIntReg(dst) ){
err("readDotProduct");
}
_trace(namesLo[op],"");
printDst(dst,mask,1);
printSrc(src,swizzle,size);
}
private function readCrossProduct(op:int, m_size:int,mask:int, swizzle:int, size:int, src:uint, dst:uint):void{
if(m_size){
err();
}
if( isIntReg(src) || isIntReg(dst)){
err();
}
if(size != 3){
err();
}
_trace(namesLo[op],"");
printDst(dst,mask,size);
printSrc(src,swizzle,size);
}
private function readEqual(op:int, m_size:int,mask:int, swizzle:int, size:int, src:uint, dst:uint):void{
if(m_size){
_trace(namesLo[op],"mtr : " + namesMatrix[m_size] + "\ndst : " + dst + "\nsrc : " + src);
}else{
_trace(namesLo[op],"");
printDst(dst,mask,size);
printSrc(src,swizzle,size);
}
}
private function readEqual2(op:int, m_size:int,mask:int, swizzle:int, size:int, src:uint, dst:uint):void{
if(m_size){
err();
}
if( isIntReg(src) != isIntReg(dst)){
err();
}
_trace(namesLo[op],"");
if( String(namesLo[op]).length < 4){
}
printDst(dst,mask,size);
printSrc(src,swizzle,size);
}
private function readLogical(op:int, m_size:int,mask:int, swizzle:int, size:int, src:uint, dst:uint):void{
if(m_size) err();
if( !isIntReg(src) || !isIntReg(dst)) err();
if( size != pbjSampleSizeScalar ) err();
_trace(namesLo[op],"");
printDst(dst,mask,size);
printSrc(src,swizzle,size);
}
private function readSampling(op:int, op1:uint, mask:int, swizzle:int, size:int, src:uint, dst:uint):void{
if(isIntReg(dst)){
err();
}
_trace(namesLo[op],"");
printDst(dst,mask,size);
printSrc(src,swizzle,size);
_trace("id", op1 & 0xFF);
}
private function readLoadConstant( op1:uint, mask:int, size:int, dst:uint):void{
var valuei:uint = op1;
if( isIntReg(dst) ){
}else{
}
}
private function readSelect( bytes:ByteArray, op:uint, m_size:int, mask:int, swizzle:int, size:int,
src:uint, dst:uint ):void{
var op2:uint = littleToBig32( bytes.readUnsignedInt() );
var op3:uint = littleToBig32( bytes.readUnsignedInt() );
var src0:uint = Math.floor(op2 >> 16);
var src1:uint = Math.floor(op3 >> 16);
var size0:int = ((op2 >> 6 ) & 0x3) +1;
var swizzle0:int = (op2>>8) & 0xFF;
var size1:int = ((op3 >> 6 ) & 0x3) +1;
var swizzle1:int = (op3>>8) & 0xFF;
src0 = littleToBig16( src0 );
src1 = littleToBig16( src1 );
if(!isIntReg( src )){
err();
}
if( size0 != size1 ){
err();
}
if(m_size){
if( !isIntReg( src0 ) || !isIntReg( src1 ) ){
err();
}
// to do
}else{
if( !isIntReg( src0 ) != !isIntReg( src1 ) || isIntReg( src0 ) != isIntReg( dst ) ){
err();
}
//to do
}
}
private function decompile( input:IDataInput ):void{
var ba:ByteArray = new ByteArray();
input.readBytes(ba);
ba.position = 0;
ba.endian = "littleEndian"; // pbjはLittleEndian?
var firstins:Boolean = true;
while( ba.bytesAvailable ){
var op0:uint = littleToBig32( ba.readUnsignedInt() );
var op1:uint = littleToBig32( ba.readUnsignedInt() );
var op:int = (op0 >> 24) & 0xFF;
var dst:uint = (op0>>8) & 0xFFFF;
var mask:int =(op0 >> 4) & 0xF;
var matrixSize:int = (op0 >> 2) & 0x3;
var readSize:int = (op0 & 3) + 1;
var src:uint = (op1>>16) & 0xFFFF;
var swizzle:int = (op1 >> 8) & 0xFF;
var str:String = "";
dst = littleToBig16( dst );
src = littleToBig16( src );
//*
if(op <= pbjSelect){
if(matrixSize == 0){
if(op == pbjLoadConstant){
// ?
}else if(op == pbjLength){
}else if( op == pbjSampleNearest || op == pbjSampleBilinear){
if(readSize != pbjSampleSizeVector2){
err("readSize != pbjSampleSizeVector2");
}
}else if( op == pbjSelect){
if(readSize != 1){
err("readSize != 1");
}
}else{
if(BitCount(mask) != readSize){
str += "decmpl :: " + "(" + to16(op) + ")" + " -> " + BitCount(mask) + "!=" + readSize;
str += "\n" + "pos :: "+(ba.position-8)+ " / "+ba.length;
err(str);
}
}
}else{
if( isIntReg(src) || isIntReg(dst) ){
err(" isIntReg(src) || isIntReg(dst)");
}
}
}//*/
switch( op ){
case pbjNop:
_check();
_trace(namesLo[op],"");
break;
case pbjAdd: case pbjSubtract: case pbjMultiply:
case pbjDivide: case pbjMatrixMatrixMultiply: case pbjAtan2:
case pbjPow: case pbjMod: case pbjMin: case pbjMax:
case pbjStep: case pbjCopy: case pbjFloatToInt:
case pbjIntToFloat: case pbjReciprocal: case pbjSin:
case pbjCos: case pbjTan: case pbjASin: case pbjACos:
case pbjATan: case pbjExp: case pbjExp2: case pbjLog:
case pbjLog2: case pbjSqrt: case pbjRSqrt: case pbjAbs:
case pbjSign: case pbjFloor: case pbjCeil: case pbjFract:
case pbjFloatToBool: case pbjIntToBool:
_check();
readArithmetic( ba, op, matrixSize, mask, readSize, dst, src, swizzle);
break;
case pbjBoolToInt: case pbjBoolToFloat:
_check();
readBoolTo(op, mask, readSize, dst, src, swizzle);
break;
case pbjAny: case pbjAll:
_check();
readAnyAll(op, mask, readSize, dst, src, swizzle);
break;
case pbjVectorMatrixMultiply:
_check();
readVMM(op, matrixSize, mask, readSize, src, dst);
break;
case pbjMatrixVectorMultiply:
_check();
readVMM(op, matrixSize, mask, readSize, src, dst);
break;
case pbjNormalize:
_check();
readNormalize( op, mask, swizzle, readSize, src, dst );
break;
case pbjDistance: case pbjLength:
_check();
readDistans(op, matrixSize, mask, swizzle, readSize, src, dst);
break;
case pbjDotProduct:
_check();
readDotProduct(op, matrixSize, mask, swizzle, readSize, src, dst);
break;
case pbjCrossProduct:
_check();
readCrossProduct( op, matrixSize, mask, swizzle, readSize, src, dst);
break;
case pbjEqual: case pbjNotEqual:
_check();
readEqual( op, matrixSize, mask, swizzle, readSize, src, dst );
break;
case pbjVectorEqual: case pbjVectorNotEqual:
case pbjLessThan: case pbjLessThanEqual:
_check();
readEqual2( op, matrixSize, mask, swizzle, readSize, src, dst );
break;
case pbjLogicalOr: case pbjLogicalXor:
case pbjLogicalAnd: case pbjLogicalNot:
_check();
readLogical( op, matrixSize, mask, swizzle, readSize, src, dst );
break;
case pbjSampleBilinear: case pbjSampleNearest:
_check();
readSampling(op, op1, mask, swizzle, readSize, src, dst );
break;
case pbjLoadConstant:
_check();
readLoadConstant( op1, mask, readSize, dst );
break;
case pbjSelect:
_check();
readSelect(ba, op, matrixSize, mask, swizzle, readSize, src, dst);
break;
case pbjIf:
_check();
if( isIntReg(src)){
_trace(namesLo[op & 0x07], "source to be of type int");
err();
}
_trace("",namesLo[op]);
printSrc(src,swizzle,readSize);
break;
case pbjElse:
_check();
_trace("",namesLo[op]);
break;
case pbjEndif:
_check();
_trace("",namesLo[op]);
break;
case pbjKernelMetaData: case pbjParameterMetaData :
ba.position -= 7;
readMetaData( ba, op);
break;
case pbjParameterData:
ba.position -= 7;
readParameter( ba );
break;
case pbjTextureData:
ba.position -= 7;
readTexture( ba );
break;
case pbjKernelName:
ba.position -= 7;
_trace("Kernel Name", ba.readUTFBytes( ba.readUnsignedShort() ) );
break;
case pbjVersionData:
ba.position -= 7;
var _version:int = ba.readUnsignedInt();
if( _version != 1){
_trace("unsupport pbj byte code version", _version);
}else _trace("Kernel Version", _version);
break;
default:
err();
ba.position = ba.length;
break;
}
}
function _check():void{
if(firstins){
firstins = false;
comm();
}
}
}
private function _trace(type:String, value:* ):void{
t.text += type + " :: " + String( value ) + "\n";
}
private function comm( type:String = ""):void{
_trace("\n; " + type,"-----------------------------------------------------\n\n");
}
private function err( msg:String ="" ):void{
_trace("\n何これ","www\n" + msg);
}
private function to16( value:uint ):String{
var str:String = "0" + value.toString( 16 ).toLocaleUpperCase();
str = "0x" + str.substr(str.length-2,2);
return str;
}
// pbjEnum data
public const pbjNop:int = 0x00;
public const pbjAdd:int = 0x01;
public const pbjSubtract:int = 0x02;
public const pbjMultiply:int = 0x03;
public const pbjReciprocal:int = 0x04;
public const pbjDivide:int = 0x05;
public const pbjAtan2:int = 0x06;
public const pbjPow:int = 0x07;
public const pbjMod:int = 0x08;
public const pbjMin:int = 0x09;
public const pbjMax:int = 0x0A;
public const pbjStep:int = 0x0B;
public const pbjSin:int = 0x0C;
public const pbjCos:int = 0x0D;
public const pbjTan:int = 0x0E;
public const pbjASin:int = 0x0F;
public const pbjACos:int = 0x10;
public const pbjATan:int = 0x11;
public const pbjExp:int = 0x12;
public const pbjExp2:int = 0x13;
public const pbjLog:int = 0x14;
public const pbjLog2:int = 0x15;
public const pbjSqrt:int = 0x16;
public const pbjRSqrt:int = 0x17;
public const pbjAbs:int = 0x18;
public const pbjSign:int = 0x19;
public const pbjFloor:int = 0x1A;
public const pbjCeil:int = 0x1B;
public const pbjFract:int = 0x1C;
public const pbjCopy:int = 0x1D;
public const pbjFloatToInt:int = 0x1E;
public const pbjIntToFloat:int = 0x1F;
public const pbjMatrixMatrixMultiply:int = 0x20;
public const pbjVectorMatrixMultiply:int = 0x21;
public const pbjMatrixVectorMultiply:int = 0x22;
public const pbjNormalize:int = 0x23;
public const pbjLength:int = 0x24;
public const pbjDistance:int = 0x25;
public const pbjDotProduct:int = 0x26;
public const pbjCrossProduct:int = 0x27;
public const pbjEqual:int = 0x28;
public const pbjNotEqual:int = 0x29;
public const pbjLessThan:int = 0x2A;
public const pbjLessThanEqual:int = 0x2B;
public const pbjLogicalNot:int = 0x2C;
public const pbjLogicalAnd:int = 0x2D;
public const pbjLogicalOr:int = 0x2E;
public const pbjLogicalXor:int = 0x2F;
public const pbjSampleNearest:int = 0x30;
public const pbjSampleBilinear:int = 0x31;
public const pbjLoadConstant:int = 0x32;
public const pbjSelect:int = 0x33;
public const pbjIf:int = 0x34;
public const pbjElse:int = 0x35;
public const pbjEndif:int = 0x36;
public const pbjFloatToBool:int = 0x37;
public const pbjBoolToFloat:int = 0x38;
public const pbjIntToBool:int = 0x39;
public const pbjBoolToInt:int = 0x3A;
public const pbjVectorEqual:int = 0x3B;
public const pbjVectorNotEqual:int = 0x3C;
public const pbjAny:int = 0x3D;
public const pbjAll:int = 0x3E;
public const pbjKernelMetaData:int = 0xA0;
public const pbjParameterData:int = 0xA1;
public const pbjParameterMetaData:int = 0xA2;
public const pbjTextureData:int = 0xA3;
public const pbjKernelName:int = 0xA4;
public const pbjVersionData:int = 0xA5;
//
public const pbjTypeFloat:int = 0x01;
public const pbjTypeFloat2:int = 0x02;
public const pbjTypeFloat3:int = 0x03;
public const pbjTypeFloat4:int = 0x04;
public const pbjTypeFloat2x2:int = 0x05;
public const pbjTypeFloat3x3:int = 0x06;
public const pbjTypeFloat4x4:int = 0x07;
public const pbjTypeInt:int = 0x08;
public const pbjTypeInt2:int = 0x09;
public const pbjTypeInt3:int = 0x0A;
public const pbjTypeInt4:int = 0x0B;
public const pbjTypeString:int = 0x0C;
public const pbjTypeBool:int = 0x0D;
public const pbjTypeBool2:int = 0x0E;
public const pbjTypeBool3:int = 0x0F;
public const pbjTypeBool4:int = 0x10;
//
public const pbjSampleSizeScalar:int = 0x01;
public const pbjSampleSizeVector2:int = 0x02;
public const pbjSampleSizeVector3:int = 0x03;
public const pbjSampleSizeVector4:int = 0x04;
public const namesLo:Array = [
"nop",
"add",
"sub",
"mul",
"rcp",
"div",
"atan2",
"pow",
"mod",
"min",
"max",
"step",
"sin",
"cos",
"tan",
"asin",
"acos",
"atan",
"exp",
"exp2",
"log",
"log2",
"sqr",
"rsqr",
"abs",
"sign",
"floor",
"ceil",
"fract",
"mov",
"ftoi",
"itof",
"mmmul",
"vmmul",
"mvmul",
"norm",
"len",
"dist",
"dot",
"cross",
"equ",
"neq",
"ltn",
"lte",
"not",
"and",
"or",
"xor",
"texn",
"texb",
"set",
"sel",
"if",
"else",
"end",
"ftob",
"btof",
"itob",
"btoi",
"vequ",
"vneq",
"any",
"all"
];// end namesLo
public const namesHi:Array = [
"kernel",
"parameter",
"meta",
"texture",
"name",
"version"
];// end namesHi
public const namesMatrix:Array = [
"",
"2x2",
"3x3",
"4x4"
];// end namesMatrix
public const typeSize:Array = [
0,1,2,3,4,4,9,16,1,2,3,4,0,1,2,3,4
];// end typeSize
public const typeNames:Array = [
"",
"float","float2","float3","float4",
"matrix2x2", "matrix3x3", "matrix4x4",
"int", "int2", "int3", "int4",
"bool", "bool2", "bool3", "bool4"
];// end namesLo
public const qualifierName:Array = [
"","in","out"
];// end qualifierName
public const channelName:Array = ["r","g","b","a"];
public const map:Array= [
0x00, 0x00, 0x00, 0x00,
0x03, 0x00, 0x00, 0x00,
0x02, 0x00, 0x00, 0x00,
0x02, 0x03, 0x00, 0x00,
0x01, 0x00, 0x00, 0x00,
0x01, 0x03, 0x00, 0x00,
0x01, 0x02, 0x00, 0x00,
0x01, 0x02, 0x03, 0x00,
0x00, 0x00, 0x00, 0x00,
0x00, 0x03, 0x00, 0x00,
0x00, 0x02, 0x00, 0x00,
0x00, 0x02, 0x03, 0x00,
0x00, 0x01, 0x00, 0x00,
0x00, 0x01, 0x03, 0x00,
0x00, 0x01, 0x02, 0x00,
0x00, 0x01, 0x02, 0x03,
];
]]>
</fx:Script>
</s:Application>
