* Copyright yurij.shaulov ( http://wonderfl.net/user/yurij.shaulov )
* MIT License ( http://www.opensource.org/licenses/mit-license.php )
* Downloaded from: http://wonderfl.net/c/vmyD
*/
// forked from makc3d's ericlin's EquationDisplayer
package {
import flash.display.*;
import flash.geom.*;
import com.bit101.components.*;
public class Test extends Sprite {
public var ta:TextArea;
public function Test () {

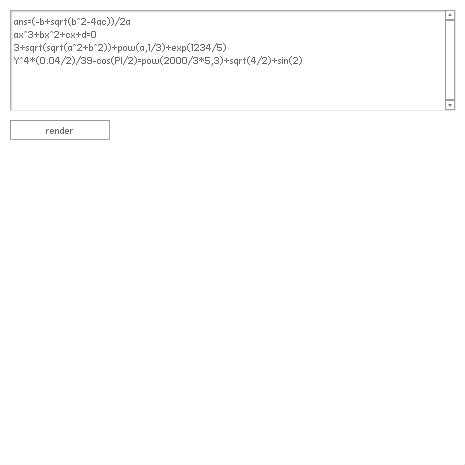

ta = new TextArea (this, 10, 10,
"ans=(-b+sqrt(b^2-4ac))/2a\n"+
"ax^3+bx^2+cx+d=0\n"+
"3+sqrt(sqrt(a^2+b^2))+pow(a,1/3)+exp(1234/5)\n"+
"Y^4*(0.04/2)/39-cos(PI/2)=pow(2000/3*5,3)+sqrt(4/2)+sin(2)"
);
ta.width = 445; ta.height = 100;
new PushButton (this, 10, 120, "render", render);
}
private function render (...fu):void {
if (numChildren == 3) {
removeChildAt (2);
}
var canvas:Sprite = new Sprite;
canvas.x = 10; canvas.y = 140; addChild (canvas);
var offset:int = 0;
var lines:Array = ta.text.split (/[\n\r]+/);
for (var i:int = 0; i < lines.length; i++) {
var clip:EquationDisplayer = new EquationDisplayer;
canvas.addChild (clip);
clip.setEquation (lines[i]);
clip.render ();
var b:Rectangle = clip.getBounds(canvas);
clip.y += offset-b.y;
offset += clip.height+5;
}
}
}
}
import flash.display.*;
import flash.geom.*;
import flash.text.*;
// port of http://ericlin2.tripod.com/math2/eqDisplayert.html
// this is dumb port: everything is public, needless code is possible
class EquationDisplayer extends Sprite {
public var eqObject:EquationObject;
public var equation:String = "";
public function setEquation(str:String):void {
eqObject = new EquationObject(str);
equation = str;
}
public function setEquationObject(obj:EquationObject):void {
eqObject = obj;
equation = eqObject.equation;
}
public function getEquationObject():EquationObject {
return eqObject;
}
public function clean():void {
while (numChildren > 0) removeChildAt (0);
}
//######################################################
public function render():void {
clean();
var obj:EquationObject = eqObject;
var info:Object = obj.info;
if (info == null) {
return;
}
if (info.type == "operator") {
operatorLayout(info);
return;
}
if (info.type == "function") {
functionLayout(info);
return;
}
stringLayout(info);
}
//#######################################################
public function lineUp(...args):void {
//clips in arguments
var offset:int = 0;
for (var k:int = 0; k<args.length; k++) {
var clip:Sprite = args[k];
var b:Rectangle = clip.getBounds(clip.parent);
clip.x += offset-b.x;
offset += clip.width;
}
}
//#########################################################
public function operatorLayout(info:Object):void {
var hiddenMultiplier:String = "\u0012";
var operatorChar:String = info.typeData;
var childObjects:Array = info.childObjects;
var clip1:EquationDisplayer = new EquationDisplayer; addChild (clip1);
clip1.setEquationObject(childObjects[0]);
clip1.render();
var clip2:EquationDisplayer = new EquationDisplayer; addChild (clip2);
clip2.setEquationObject(childObjects[1]);
clip2.render();
//------------------------
if (operatorChar == "^") {
var b:Rectangle = clip1.getBounds(this);
clip2.y = b.y+5;
clip2.scaleX = clip2.scaleY=0.60;
lineUp(clip1, clip2);
return;
}
if (operatorChar == "/") {
var w:Number = Math.max(clip1.width, clip2.width);
var b1:Rectangle = clip1.getBounds(this);
var b2:Rectangle = clip2.getBounds(this);
var line:Sprite = attachMovie("divide", this);
w = line.width = w+6;
clip1.y += b1.y;
clip1.x += (w/2-(b1.right+b1.x)/2);
clip2.y += b2.bottom+3;
clip2.x += (w/2-(b2.right+b2.x)/2);
return;
}
//others
var opClip:Sprite;
if (operatorChar == "*") {
opClip = attachMovie("multiply", this);
} else if (operatorChar == hiddenMultiplier) {
opClip = attachMovie("empty", this);
} else {
opClip = attachMovie("char", this, operatorChar);
}
lineUp(clip1, opClip, clip2);
}
//#####################################################
public function functionLayout(info:Object):void {
var functionName:String = info.typeData;
var childObjects:Array = info.childObjects;
var clipArray:Array = [];
for (var i:int = 0; i<childObjects.length; i++) {
var clip0:EquationDisplayer = clipArray[i]= new EquationDisplayer;
addChild (clip0);
clip0.setEquationObject(childObjects[i]);
clip0.render();
}
//-----------------------
if (functionName == "sqrt") {
var line:Sprite = attachMovie("sqrtLine", this);
var hook:Sprite = attachMovie("sqrtHook", this);
var clip:Sprite = clipArray[0];
var b:Rectangle = clip.getBounds(this);
clip.y -= (b.y+b.bottom)/2;
clip.x = hook.width+3;
line.x = hook.width;
hook.height = clip.height;
var b2:Rectangle = hook.getBounds(this);
line.y = b2.y;
line.width = clip.width+6;
return;
}
//-----------------------------------------------
if (functionName == "pow") {
var d:Number = 2;
var clip1:Sprite = clipArray[0];
var clip2:Sprite = clipArray[1];
b = clip1.getBounds(this);
//var offset = clip1._width;
if (childObjects[0].info.type != "string") {
//-------- add parenthesis to clip1 to avoid this condition: pow(3+4,2); ->2+4^2
var leftParen:Sprite = attachMovie("char", this, "(");
var rightParen:Sprite = attachMovie("char", this, ")");
lineUp(leftParen, clip1, rightParen, clip2);
leftParen.height = rightParen.height=2*Math.max(b.bottom, -b.y);
} else {
lineUp(clip1, clip2);
}
clip2.y = b.y+5;
clip2.scaleX = clip2.scaleY=0.60;
return;
}
//------------------------------------------------
if (functionName == "exp") {
clip1 = attachMovie("exp", this);
clip2 = clipArray[0];
clip2.x = clip1.width+4;
b = clip1.getBounds(this);
clip2.y = b.y;
clip2.scaleX = clip2.scaleY=0.60;
return;
}
//--------------------------------------------------
d = 50;
var funClip:Sprite = attachMovie("char", this, functionName);
leftParen = attachMovie("char", this, "(");
rightParen = attachMovie("char", this, ")");
var tempArray:Array = [funClip, leftParen];
var yMin:Number = 0;
var yMax:Number = 0;
for (var k:int = 0; k<clipArray.length; k++) {
tempArray.push(clipArray[k]);
b = clipArray[k].getBounds(this);
if (b.y<yMin) {
yMin = b.y;
}
if (b.bottom>yMax) {
yMax = b.bottom;
}
if (k<clipArray.length-1) {
var comaClip:Sprite = attachMovie("char", this, ",");
tempArray.push(comaClip);
}
}
tempArray.push(rightParen);
lineUp.apply(null, tempArray);
rightParen.height = leftParen.height=2*Math.max(yMax, -yMin);
}
//#######################################################
public function stringLayout(info:Object):void {
//trace("info="+info);
//trace("stringData="+info.stringData);
var str:String = info.typeData;
//trace("---------------end str="+str);
if ((str == "PI") || (str == "pi")) {
attachMovie("pi", this);
return;
}
var clip:Sprite = attachMovie("char", this, str);
}
public function attachMovie (movie:String, to:Sprite, label:String = null):Sprite {
// this imitates original FLA assets
var s:Sprite = new Sprite; s.graphics.lineStyle (0, 0);
switch (movie) {
case "divide":
s.graphics.lineTo (25, 0);
s.graphics.lineStyle();
s.graphics.beginFill(0,0);
s.graphics.drawRect(0,-1,25,1);
s.graphics.endFill();
break;
case "multiply":
s.graphics.moveTo (2, -2);
s.graphics.lineTo (7, 3);
s.graphics.moveTo (7, -2);
s.graphics.lineTo (2, 3);
s.graphics.lineStyle();
s.graphics.beginFill(0,0);
s.graphics.drawRect(0,-3,10,6);
s.graphics.endFill();
break;
case "char":
case "exp":
case "pi":
var italic:Boolean = (movie != "char");
var tf:TextField = new TextField;
tf.y = -14;
tf.selectable = true;
tf.autoSize = TextFieldAutoSize.LEFT;
tf.defaultTextFormat = new TextFormat ('Times New Roman', 20, 0, false, italic);
switch (movie) {
case "char":
tf.text = label;
break;
case "exp":
tf.text = "e";
break;
case "pi":
tf.text = "\u03C0";
break;
}
s.addChild(tf);
break;
case "sqrtLine":
s.graphics.lineTo(43,0);
s.graphics.lineStyle();
s.graphics.beginFill(0,0);
s.graphics.drawRect(0,-5.5,43.5,5.5);
s.graphics.endFill();
break;
case "sqrtHook":
s.graphics.moveTo(1,4);
s.graphics.lineTo(2,1);
s.graphics.lineTo(4,8);
s.graphics.lineTo(10.5,-7.5);
break;
}
to.addChild(s);
return s;
}
}
class EquationObject {
public function EquationObject(str:String) {
equation = str;
parse();
}
//#########################################################
public var equation:String = "";
public var hiddenMultiplier:String = "\u0012";
public var info:Object = {type:"string", typeData:"", childObjects:{}};
//type: operator, function and string; and childObject
//equation supplied by initObject
public var operatorSet:String = "+-=><*/"+hiddenMultiplier+"^+-";
//becareful, it is important for the order of operator in this operatorSet
//the first +- is for addition and subtracftion and the last +- is for sign
//###############################################################
public function setEquation(str:String):void {
if (str == null) {
str = "";
}
equation = str;
parse();
}
//##############################################################
public function parse():void {
if (equation == null) {
return;
}
var str:String = equation;
//trim space
str = str.split(" ").join("");
//-----------------------------------------------------
//handle the hidden multiplier such as (a-b)(c+d); there is an omitted multiplier between parenthesis block
var strArr:Array = str.split(")");
for (var k:int = 1; k<strArr.length; k++) {
if (strArr[k].substr(0, 1) == "(") {
strArr[k] = hiddenMultiplier+strArr[k];
}
}
str = strArr.join(")");
var str2:String = maskParenthesis(str);
//search for +,-,=,>,< , skip string in parenthesis and cut into pieces accordingly
//after the first step , only function and parenthesis and variable or number is left
for (k = 0; k<operatorSet.length; k++) {
var op:String = operatorSet.charAt(k);
var start:int = str.length-1;
var i:int = 0;
while ((i=str2.lastIndexOf(op, start))>=0) {
if ((k<=1) && operatorSet.indexOf(str2.charAt(i-1))>=0) {
//something like 3*-4;
start = i-1;
continue;
}
//split to recursive function and return;
var lStr:String = str.substr(0, i);
var rStr:String = str.substr(i+1, str.length-i-1);
//trace(lStr+"["+op+"]"+rStr);
var childObjects:Array = [];
childObjects[0] = new EquationObject(lStr);
childObjects[1] = new EquationObject(rStr);
info = {type:"operator", typeData:op, childObjects:childObjects};
return;
}
}
//------------------------------------------
//now we get only the parenthesis,function and pure number/variable here;
start = str.indexOf("(");
if (start>=0) {
var functionName:String = (str.substr(0, start)).toLowerCase();
var contentInParenthesis:String = str.substr(start+1, str.length-start-2);
//trace("content="+contentInParenthesis);
//there might be more than one parameters separated by ',', so parese the parameter and create clip for each parameter;
childObjects = parseFunctionArgument(contentInParenthesis);
info = {type:"function", typeData:functionName, childObjects:childObjects};
//layoutManager.layout(info);
//here arrange these clips, parenthesis and function name
return;
}
//---------------------------------------------
//After those steps , only pure number, and variable left here now
info = {type:"string", typeData:str};
//layoutManager.layout(info);
//most of the time, we display Number, but sometime we need to convert PI into symbol, so I add this function here
}
//#################################################
public function parseFunctionArgument(str:String):Array {
// cut arguments into parameters
var childObjects:Array = [];
var start:int = 0;
var paramStr:Array = [];
var parenthesisStack:int = 0;
for (var i:int = 0; i<str.length; i++) {
var char:String = str.substr(i, 1);
if (char == "(") {
parenthesisStack++;
}
if (char == ")") {
parenthesisStack--;
}
if ((char == ",") && parenthesisStack == 0) {
paramStr.push(str.substr(start, i-start));
start = i+1;
}
}
paramStr.push(str.substr(start, str.length-start));
for (var j:int = 0; j<paramStr.length; j++) {
childObjects[j] = new EquationObject(paramStr[j]);
}
return childObjects;
}
//---------------------------------------------------
public function maskParenthesis(str:String):String {
var parenthesisStack:int = 0;
//prepare to skip the first level parenthesis
var temp:Array = [];
for (var i:int = 0; i<str.length; i++) {
var char:String = str.substr(i, 1);
if (char == ")") {
parenthesisStack++;
}
if (char == "(") {
parenthesisStack--;
}
if (parenthesisStack == 0) {
temp.push(char);
} else {
temp.push("(");
}
}
if (parenthesisStack != 0) {
trace("parenthesis not match");
return "";
}
var str2:String = temp.join("");
//trace(str+"=="+str2);
return str2;
}
}
