forked from: flash on 2010-12-30

/**
 * Copyright takashi08 ( http://wonderfl.net/user/takashi08 )
 * MIT License ( http://www.opensource.org/licenses/mit-license.php )
 * Downloaded from: http://wonderfl.net/c/uowx
 */

// forked from takashi08's flash on 2010-12-30
package
{
    import Box2D.Collision.Shapes.b2PolygonDef;
    import Box2D.Collision.b2AABB;
    import Box2D.Common.Math.b2Vec2;
    import Box2D.Dynamics.Joints.b2MouseJoint;
    import Box2D.Dynamics.Joints.b2MouseJointDef;
    import Box2D.Dynamics.b2Body;
    import Box2D.Dynamics.b2BodyDef;
    import Box2D.Dynamics.b2DebugDraw;
    import Box2D.Dynamics.b2World;

    import com.adobe.viewsource.ViewSource;

    import flash.display.BlendMode;
    import flash.display.Sprite;
    import flash.display.StageAlign;
    import flash.display.StageQuality;
    import flash.display.StageScaleMode;
    import flash.events.Event;
    import flash.events.MouseEvent;
    import flash.filters.BlurFilter;
    import flash.geom.ColorTransform;
    import flash.geom.Point;

    import org.papervision3d.core.effects.BitmapLayerEffect;
    import org.papervision3d.core.effects.utils.BitmapClearMode;
    import org.papervision3d.core.effects.utils.BitmapDrawCommand;
    import org.papervision3d.events.InteractiveScene3DEvent;
    import org.papervision3d.lights.PointLight3D;
    import org.papervision3d.materials.shadematerials.FlatShadeMaterial;
    import org.papervision3d.materials.utils.MaterialsList;
    import org.papervision3d.objects.DisplayObject3D;
    import org.papervision3d.objects.primitives.Cube;
    import org.papervision3d.view.BasicView;
    import org.papervision3d.view.layer.BitmapEffectLayer;

    [SWF(backgroundColor="0x000000")]
    public class Box2D_PV3D3 extends BasicView
    {
        // Box2D用の変数
        private var worldWidth:Number;
        private var worldHeight:Number;
        private var m_iterations:int;
        private var m_wallWidth:Number;
        private var m_wallHeight:Number;
        private var m_timeStep:Number;
        private var m_physScale:Number;
        private var m_world:b2World;
        private var m_mouseJoint:b2MouseJoint;
        private var m_draggedBody:b2Body;
        private var mouseXWorldPhys:Number;
        private var mouseYWorldPhys:Number;
        private var Box2DShapeArray:Array;
        private var IsMouseDown:Boolean;
        private var arrayPosition:int;

        // PV3D用の変数
        private var rootNode:DisplayObject3D;
        private var cubeSize:int;
        private var pv3d_height:Number;

        public function Box2D_PV3D3()
        {
            // ソースビューの設定とステージの設定
            ViewSource.addMenuItem(this, "srcview/index.html");
            stage.quality=StageQuality.HIGH;
            stage.align=StageAlign.TOP_LEFT;
            stage.scaleMode=StageScaleMode.NO_SCALE;
            stage.frameRate = 40;

            // PV3Dの基本設定
            super(0, 0, true, true);
            cubeSize = 100;
            pv3d_height = 80;
            rootNode=scene.addChild(new DisplayObject3D("rootNode"));
            camera.zoom=1000/camera.focus+1;
            camera.target=DisplayObject3D.ZERO;
            camera.x=400;

            // ライトの設定
            var light:PointLight3D=new PointLight3D(true);
            light.z=-100;

            // Box2Dの基本設定
            worldWidth=stage.stageWidth;
            worldHeight=stage.stageHeight;
            m_iterations=30;
            m_timeStep=1/40;
            m_physScale=30;
            var worldAABB:b2AABB = new b2AABB;
            worldAABB.lowerBound.Set(-1000.0,-1000.0);
            worldAABB.upperBound.Set(1000.0,1000.0);
            var gravity:b2Vec2=new b2Vec2(0.0,30.0);
            var doSleep:Boolean=true;
            m_world=new b2World(worldAABB,gravity,doSleep);

            // Box2Dの世界の壁を作成（今回はサイズ固定）
            var wallShapeDef:b2PolygonDef=new b2PolygonDef();
            var wallBodyDef:b2BodyDef=new b2BodyDef();
            var wall:b2Body;
            m_wallWidth = 1400;
            m_wallHeight = 300;

            // 左の壁
            wallShapeDef.SetAsBox(10/m_physScale, m_wallHeight/2/m_physScale);
            wallBodyDef.position.Set(0, m_wallHeight/2/m_physScale);
            wall=m_world.CreateBody(wallBodyDef);
            wall.CreateShape(wallShapeDef);

            // 右の壁
            wallBodyDef.position.Set(m_wallWidth/m_physScale, m_wallHeight/2/m_physScale);
            wall=m_world.CreateBody(wallBodyDef);
            wall.CreateShape(wallShapeDef);

            // 上の壁
            wallShapeDef.SetAsBox(m_wallWidth/2/m_physScale, 10/m_physScale);
            wallBodyDef.position.Set(m_wallWidth/2/m_physScale, 0);
            wall=m_world.CreateBody(wallBodyDef);
            wall.CreateShape(wallShapeDef);

            // 下の壁
            wallBodyDef.position.Set(m_wallWidth/2/m_physScale, m_wallHeight/m_physScale);
            wall=m_world.CreateBody(wallBodyDef);
            wall.CreateShape(wallShapeDef);

            wall.SetMassFromShapes();

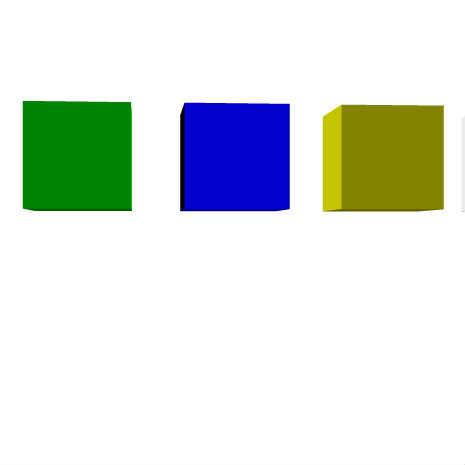

            // PV3DとBox2DでBoxを作成する
            Box2DShapeArray=new Array();
            var colorArray:Array = [0xff0000, 0x00ff00, 0x0000ff, 0xffff00, 0xffffff];
            for(var i:int=0; i < 5; i++)
            {
                // Cubeの作成して、rootNodeに追加
                var mat:FlatShadeMaterial=new FlatShadeMaterial(light, colorArray[i] as uint);
                mat.interactive=true;
                var matList:MaterialsList=new MaterialsList({all:mat});
                var cube:Cube=new Cube(matList, cubeSize,cubeSize, cubeSize);
                cube.extra={width:cubeSize/2, height:cubeSize/2, arrayPos:i};
                cube.x=(i * 150) - 300;
                cube.y=10;
                cube.addEventListener(InteractiveScene3DEvent.OBJECT_PRESS, onGetArrayPosition);
                rootNode.addChild(cube);

                // Box2Dの世界に箱を作りだし、PV3DのCubeを持たせる
                var boxShape:b2PolygonDef=new b2PolygonDef();
                boxShape.SetAsBox(cubeSize/2/m_physScale, cubeSize/2/m_physScale);
                boxShape.density=8;
                boxShape.friction=8;
                boxShape.restitution=0.5;
                var bodyDef:b2BodyDef=new b2BodyDef();
                bodyDef.position.Set((cube.x + worldWidth/2)/m_physScale, (cube.y + worldHeight/2)/m_physScale);
                var body:b2Body=m_world.CreateBody(bodyDef);
                body.CreateShape(boxShape);
                body.SetUserData(cube);
                body.SetMassFromShapes();

                // 作成した箱はArrayに格納する
                Box2DShapeArray[i]=body;
            }

            // ドラッグに利用する変数の初期化
            arrayPosition = -1;
            IsMouseDown = false;

            // 各イベントの追加
            addEventListener(Event.ENTER_FRAME, onEnterFrame);
            stage.addEventListener(MouseEvent.MOUSE_DOWN, onMouseDown);
            stage.addEventListener(MouseEvent.MOUSE_UP, onMouseUp);
            stage.addEventListener(Event.RESIZE, onResize);

            // Box2Dのデバッグ
            // setDebug();
        }

        // リサイズ用関数。リサイズ後のサイズを獲得する。
        private function onResize(e:Event):void
        {
            worldWidth=stage.stageWidth;
            worldHeight=stage.stageHeight;
        }

        // Box2Dのデバッグ用の関数
        public function setDebug():void
        {
            var dbgDraw:b2DebugDraw=new b2DebugDraw;
            var dbgSprite:Sprite=new Sprite;
            addChild(dbgSprite);
            dbgDraw.m_sprite=dbgSprite;
            dbgDraw.m_drawScale=30;
            dbgDraw.m_fillAlpha=0.5;
            dbgDraw.m_lineThickness=0;
            dbgDraw.m_drawFlags=0xFFFFFFFF;
            m_world.SetDebugDraw(dbgDraw);
        }

        // マウスの座標を獲得し、Box2D用に変換する関数
        private function updateMouseWorld():void
        {
            mouseXWorldPhys = mouseX/m_physScale;
            mouseYWorldPhys = (mouseY+pv3d_height)/m_physScale;
        }

        // フレームイベント用関数
        private function onEnterFrame(event:Event):void
        {
            // Box2Dのステップの更新
            updateMouseWorld();
            mouseDrag();
            m_world.Step(m_timeStep, m_iterations);

            // Box2Dのオブジェクトの座標をPV3Dのオブジェクトに反映
            for(var bb:b2Body=m_world.GetBodyList(); bb; bb=bb.GetNext())
            {
                if (bb.GetUserData()is DisplayObject3D)
                {
                    bb.GetUserData().x=bb.GetPosition().x * m_physScale - worldWidth / 2;
                    bb.GetUserData().y=-bb.GetPosition().y * m_physScale + worldHeight / 2 + pv3d_height;
                    bb.GetUserData().rotationZ=-bb.GetAngle() * (180 / Math.PI);
                }
            }

            // カメラを動かし、PV3Dのレンダリング
            camera.x+=(viewport.containerSprite.mouseX - camera.x) * 0.05;
            singleRender();
        }

        // クリックされたPV3Dオブジェクトの配列番号を獲得する関数
        private function onGetArrayPosition(event:InteractiveScene3DEvent):void
        {
            arrayPosition = (event.target as DisplayObject3D).extra.arrayPos;
        }

        // ドラッグアンドドロップ用の関数
        private function mouseDrag():void
        {
            if (IsMouseDown && ! m_mouseJoint)
            {
                m_draggedBody=null;

                if (arrayPosition > -1)
                    m_draggedBody=Box2DShapeArray[arrayPosition];

                if (m_draggedBody)
                {
                    var md:b2MouseJointDef=new b2MouseJointDef();
                    md.body1=m_world.GetGroundBody();
                    md.body2=m_draggedBody;
                    md.target.Set(mouseXWorldPhys, mouseYWorldPhys);
                    md.maxForce=300.0 * m_draggedBody.GetMass();
                    md.timeStep=m_timeStep;
                     m_mouseJoint=m_world.CreateJoint(md)as b2MouseJoint;
                    m_draggedBody.WakeUp();
                }
            }

            if (!IsMouseDown)
            {
                if ( m_mouseJoint)
                {
                    m_world.DestroyJoint( m_mouseJoint);
                     m_mouseJoint=null;
                }
            }

            if ( m_mouseJoint)
            {
                var p2:b2Vec2=new b2Vec2(mouseXWorldPhys, mouseYWorldPhys);
                 m_mouseJoint.SetTarget(p2);
            }
        }

        // マウスダウン用の関数
        private function onMouseDown(event:MouseEvent):void
        {
            IsMouseDown=true;
        }

        // マウスアップ用の関数
        private function onMouseUp(event:MouseEvent):void
        {
            IsMouseDown=false;
            arrayPosition=-1;
        }
    }
}
