Graphics.drawPath( 2010-5-21)

/**
 * Copyright Kazutaka ( http://wonderfl.net/user/Kazutaka )
 * MIT License ( http://www.opensource.org/licenses/mit-license.php )
 * Downloaded from: http://wonderfl.net/c/u5YB
 */

package {
    	import flash.display.GraphicsPathCommand;
	import flash.display.GraphicsPathWinding;
	import flash.display.Shape;
	import flash.display.Sprite;
    public class FlashTest extends Sprite {
        public function FlashTest() {
            // write as3 code here..

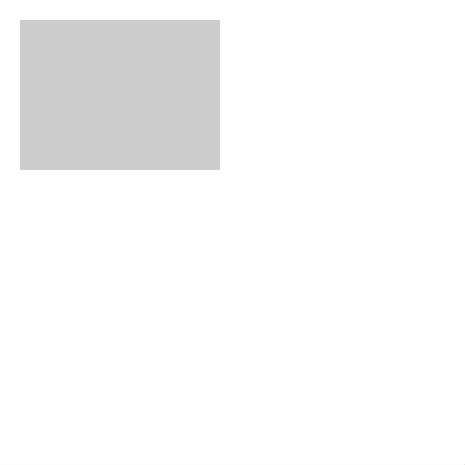

            	var myShape:Shape = setDrawPathSqare( 20, 20, 200, 150,0xcccccc);
			this.addChild( myShape );
        }
		public function setDrawPathSqare(nx:Number,ny:Number,nw:Number,nh:Number,
		nCol:uint):Shape{

			var commands:Vector.<int>=new Vector.<int>();
			commands.push( GraphicsPathCommand.MOVE_TO);
			commands.push( GraphicsPathCommand.LINE_TO);
			commands.push( GraphicsPathCommand.LINE_TO);
			commands.push( GraphicsPathCommand.LINE_TO);
			var data:Vector.<Number>=new Vector.<Number>();
			data.push(nx,ny);
			data.push(nx+nw,ny);
			data.push(nx+nw,ny+nh);
			data.push(nx,ny+nh);
			data.push(nx, ny);

			var winding:String=GraphicsPathWinding.EVEN_ODD;
			var shape:Shape = new Shape();
			shape.graphics.beginFill( nCol );
			shape.graphics.drawPath( commands, data, winding );
			shape.graphics.endFill();
			return shape;
		}
    }
}
