Point in Polygon
2011-07-21 19:53:45
♥0 |
Line 107 |
Modified 2016-01-08 15:52:36 |
MIT License
archived:2017-03-20 15:30:58
ActionScript3 source code
/**
* Copyright civet ( http://wonderfl.net/user/civet )
* MIT License ( http://www.opensource.org/licenses/mit-license.php )
* Downloaded from: http://wonderfl.net/c/t8aI
*/
// 2011-07-21 19:53:45
package
{
import flash.display.*;
import flash.events.*;
[SWF(width="465", height="465", frameRate="60")]
public class PointInPolygon extends Sprite
{
private var star:Star;
public function PointInPolygon()
{
stage.scaleMode = StageScaleMode.NO_SCALE;
stage.align = StageAlign.TOP_LEFT;
init();
}
private function init():void
{
var pattern:Shape = new Shape();
pattern.graphics.beginFill(0xffffff);
pattern.graphics.drawRect(0, 0, 8, 8);
pattern.graphics.endFill();
pattern.graphics.beginFill(0xdfdfdf);
pattern.graphics.drawRect(8, 0, 8, 8);
pattern.graphics.endFill();
pattern.graphics.beginFill(0xdfdfdf);
pattern.graphics.drawRect(0, 8, 8, 8);
pattern.graphics.endFill();
pattern.graphics.beginFill(0xffffff);
pattern.graphics.drawRect(8, 8, 8, 8);
pattern.graphics.endFill();
var texture:BitmapData = new BitmapData(16, 16, false, 0x0);
texture.draw(pattern);
this.graphics.beginBitmapFill(texture);
this.graphics.drawRect(0, 0, 465, 465);
this.graphics.endFill();

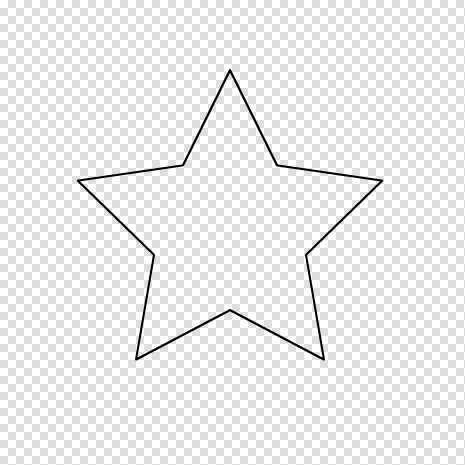

star = new Star(160, 80);
this.addChild(star);
star.update(230, 230, 0);
stage.addEventListener(Event.ENTER_FRAME, onEnterFrame);
}
private function onEnterFrame(e:Event=null):void
{
var inside:Boolean = pointInPolygon(stage.mouseX, stage.mouseY, star.poly);
star.draw(inside? 0xf9c330 : 0x000000);
}
// http://alienryderflex.com/polygon/
//
// Globals which should be set before calling this function:
//
// int polySides = how many corners the polygon has
// float polyX[] = horizontal coordinates of corners
// float polyY[] = vertical coordinates of corners
// float x, y = point to be tested
//
// (Globals are used in this example for purposes of speed. Change as
// desired.)
//
// The function will return YES if the point x,y is inside the polygon, or
// NO if it is not. If the point is exactly on the edge of the polygon,
// then the function may return YES or NO.
//
// Note that division by zero is avoided because the division is protected
// by the "if" clause which surrounds it.
/*
bool pointInPolygon() {
int i, j=polySides-1 ;
boolean oddNodes=NO ;
for (i=0; i<polySides; i++) {
if (polyY[i]<y && polyY[j]>=y
|| polyY[j]<y && polyY[i]>=y) {
if (polyX[i]+(y-polyY[i])/(polyY[j]-polyY[i])*(polyX[j]-polyX[i])<x) {
oddNodes=!oddNodes; }}
j=i; }
return oddNodes; }
*/
public function pointInPolygon(x:Number, y:Number, poly:Array):Boolean
{
var oddNodes:Boolean = false;
var sides:int = poly.length;
var i:int;
var j:int = sides - 1;
var xi:Number, xj:Number, yi:Number, yj:Number;
for(i = 0; i < sides; i++) {
xi = poly[i].x;
yi = poly[i].y;
xj = poly[j].x;
yj = poly[j].y;
if(yi < y && yj >= y || yj < y && yi >= y) {
if(xi + (y - yi) / (yj- yi) * (xj - xi) < x ) {
oddNodes = !oddNodes;
}
}
j = i;
}
return oddNodes;
}
}
}
import flash.display.Shape;
class Star extends Shape
{
private var OUTER_RADIUS:Number = 20;
private var INNER_RADIUS:Number = 12;
public var poly:Array;
public function Star(outerRadius:Number, innerRadius:Number)
{
this.OUTER_RADIUS = outerRadius;
this.INNER_RADIUS = innerRadius;
this.poly = [];
for(var i:int=0; i < 12; i++) {
poly[i] = {x:0, y:0};
}
update();
draw();
}
public function update(offsetX:Number=0, offsetY:Number=0, rotation:Number=0):void
{
var r:Number = Math.PI/180 * rotation;
for (var i:int = 0; i <= 11; i++) {
var radius:Number = (i & 1)? (INNER_RADIUS) : (OUTER_RADIUS);
var theta:Number = 0.2 * Math.PI * i;
poly[i].x = radius * Math.sin(theta + r) + offsetX;
poly[i].y = radius * -Math.cos(theta + r) + offsetY;
}
}
public function draw(color:uint=0x0):void
{
graphics.clear();
//graphics.beginFill(color);
graphics.lineStyle(2, color);
var node:Object = poly[0];
graphics.moveTo(node.x, node.y);
var numNodes:int = poly.length;
for(var i:int = 0; i < numNodes; i++) {
node = poly[i];
graphics.lineTo(node.x, node.y);
}
//graphics.endFill();
}
}
