forked from forked from: A circle through three points (trail version) (diff: 44)

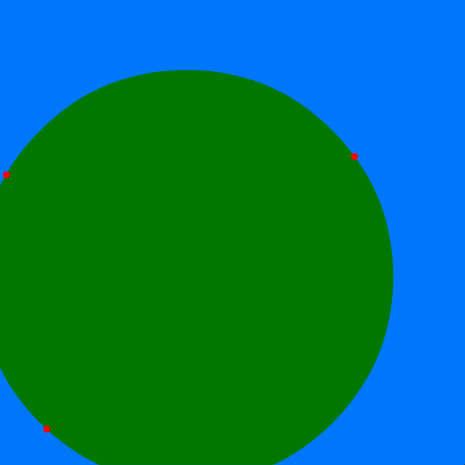

A circle through three points. @author makc @license WTFPLv2, http://sam.zoy.org/wtfpl/
♥0 |
Line 87 |
Modified 2011-08-11 13:57:18 |
see code comments
archived:2017-03-30 22:08:26
ActionScript3 source code
package
{
import flash.display.*;
import flash.geom.*;
import com.greensock.*;
import com.greensock.easing.*;
public class Circle3 extends Sprite
{
public var p1:Point = new Point (465 * Math.random (), 465 * Math.random ());
public var p2:Point = new Point (465 * Math.random (), 465 * Math.random ());
public var p3:Point = new Point (465 * Math.random (), 465 * Math.random ());
public var v1:Point = new Point (Math.random () - Math.random (), Math.random () - Math.random ());
public var v2:Point = new Point (Math.random () - Math.random (), Math.random () - Math.random ());
public var v3:Point = new Point (Math.random () - Math.random (), Math.random () - Math.random ());
public function Circle3 ()
{
v1.normalize (5);
v2.normalize (5);
v3.normalize (5);
addEventListener ("enterFrame", loop);
}
public function loop (e:*):void
{// Move points around randomly
p1 = p1.add (v1);
p2 = p2.add (v2);
p3 = p3.add (v3);
var mainTL:TimelineMax = new TimelineMax({timeScale:1});
mainTL.append
if ((p1.x < 0) || (p1.x > 465))
{ p1.x = Math.max (0, Math.min (465, p1.x)); v1.x *= -1; }
if ((p1.y < 0) || (p1.y > 465))
{ p1.y = Math.max (0, Math.min (465, p1.y)); v1.y *= -1; }
if ((p2.x < 0) || (p2.x > 465))
{ p2.x = Math.max (0, Math.min (465, p2.x)); v2.x *= -1; }
if ((p2.y < 0) || (p2.y > 465))
{ p2.y = Math.max (0, Math.min (465, p2.y)); v2.y *= -1; }
if ((p3.x < 0) || (p3.x > 465))
{ p3.x = Math.max (0, Math.min (465, p3.x)); v3.x *= -1; }
if ((p3.y < 0) || (p3.y > 465))
{ p3.y = Math.max (0, Math.min (465, p3.y)); v3.y *= -1; }
// prepare graphics
graphics.clear ();
// find circle center
var o:Object = findCircleCenter (p1, p2, p3);
var c:Point = o.center;
if (o.finite) {
// find circle radius
var r:Point = c.subtract (p1);
// draw circle
var sky: uint = 0x0077ff;
var land: uint = 0x007700;
graphics.beginFill (o.inside ? sky: land);
graphics.drawRect (0, 0, 475, 475);
graphics.endFill ();
graphics.beginFill (o.inside ? land: sky);
graphics.drawCircle (c.x, c.y, r.length);
graphics.endFill ();
} else {
// draw line
graphics.lineStyle (0, o.inside ? 0xff0000 : 0x0000ff);
var line:Point = p2.subtract (p1);
if (line.length == 0) {
line = p2.subtract (p3);
if (line.length == 0) {
line.x = 1;
}
}
line.normalize (1000);
graphics.moveTo (p2.x - line.x, p2.y - line.y);
graphics.lineTo (p2.x + line.x, p2.y + line.y);
}
// draw points
graphics.lineStyle ();
graphics.beginFill (0xFF0000);
graphics.drawCircle (p1.x, p1.y, 3.5);
graphics.drawCircle (p2.x, p2.y, 3.5);
graphics.drawCircle (p3.x, p3.y, 3.5);
}
/*
* Finds circle center from three points.
* @see http://mathforum.org/library/drmath/view/54323.html
*/
public function findCircleCenter (p1:Point, p2:Point, p3:Point): Object
{
var bc:Number = (p1.length * p1.length - p2.length * p2.length) * 0.5;
var cd:Number = (p2.length * p2.length - p3.length * p3.length) * 0.5;
var det:Number = (p1.x - p2.x) * (p2.y - p3.y) - (p2.x - p3.x) * (p1.y - p2.y);
if (det == 0) {
// center at infinity
return { finite: false, inside: false, center: null };
}
return { finite: true, inside: det < 0, center: new Point (
(bc * (p2.y - p3.y) - cd * (p1.y - p2.y)) / det,
(cd * (p1.x - p2.x) - bc * (p2.x - p3.x)) / det
)};
}
}
}
