* Copyright tepe ( http://wonderfl.net/user/tepe )
* MIT License ( http://www.opensource.org/licenses/mit-license.php )
* Downloaded from: http://wonderfl.net/c/qxBx
*/
package {
import flash.text.TextField;
import flash.display.Sprite;
import flash.geom.*;
public class FlashTest extends Sprite {
private var tf:TextField = new TextField();
public function FlashTest() {
// write as3 code here..
var pos:Point = new Point(0,10);
var pos2:Point = new Point(0,-10);
var aa:WGS84 = new WGS84();
addChild(tf);
var obj:Object = aa.dms_to_XYZ(pos.x,pos.y);

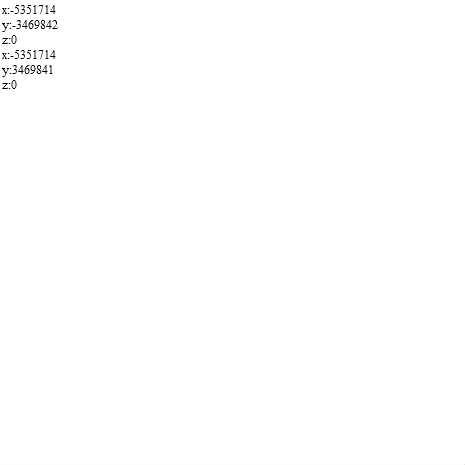

tf.text = "x:"+Math.floor(obj.x) +"\ny:"+Math.floor(obj.y)+"\nz:"+Math.floor(obj.z);
obj = aa.dms_to_XYZ(pos2.x,pos2.y);
tf.text += "\nx:"+Math.floor(obj.x) +"\ny:"+Math.floor(obj.y)+"\nz:"+Math.floor(obj.z);
}
}
}
//package{
//public
class WGS84{
private const a:Number = 6377397.155; /* 東京測地系の楕円体の長半径*/
private const a84:Number = 6378137.0; /* wgs-84 の楕円体の長半径*/
private const f84:Number = 0.0033528106647478; /* 1/298.257223563 WGS-84 の偏平度*/
private const f_tokyo:Number = 0.00334277318; /* 1/299.152813 東京測地系の偏平度*/
private const e2:Number = 0.006674372231; /*ベッセル楕円体の第１離心率*/
private const e12:Number = 0.006719218798; /*ベッセル楕円体の第２離心率*/
private const m0:Number = 0.9999; /*縮尺係数 */
private const pi:Number = 3.141592653589793; /*円周率*/
private const q:Number = 10000855.7658;
/* coefficient for equation #1 */
private var A_coef:Array = new Array(6366742.52024116306, -15988.6385238568588,
16.7299538817284, -0.0217848007897, 0.0000307730631,
-0.0000000453374, 0.0000000000685, -0.0000000000001);
/* coefficient for equation #2 */
private var B_coef:Array = new Array( -64.7467764, 217.0549893, -283.3714576, 210.1702756,
-156.901395, -637.6283903, 8326.0282307, -39421.8126979,
81936.0763069, 9950730.8889188);
/* coefficient for equation #3 */
private var C_coef:Array = new Array( -0.00000203933504, 0.00000254941046, 0.00001390414031,
-0.00008117092029, 0.000372749204, -0.001796898478,
0.006708984087, -0.01313066154, 1.578708908847);
/* zone origin for latitude */
private var B_origin:Array = new Array( 33, 33, 36, 33, 36, 36, 36, 36, 36, 40,
44, 44, 44, 26, 26, 26, 26);
/* zone origin for longitude */
private var L_origin:Array = new Array( 129.5, 131, 132.166666666667, 133.5, 134.333333333333,
136,137.166666666667, 138.5, 139.833333333333, 140.833333333333, 140.25,142.25, 144.25,
142, 127.5, 124, 131);
/*度分秒からラジアンへの変換 */
public function make_radian(deg:int, min:int, sec:Number):Number{
return(((sec/60+min)/60+deg)*pi/180);
}
/* ラジアンを度分秒へ変換 */
public function rad_to_dms(rad:Number):Object{
var d:int,m:int,sign:int;
var sd:Number;
sd = Math.abs(rad)*3600*180/pi;
m = Math.floor(sd/60.0);
sd = sd - (m*60.0);
d = Math.floor(m/60.0);
m = m - d * 60.0;
if (rad < 0) sign = -1;
else if (rad == 0) sign = 0;
sign = +1.0;
d = sign * d;
var result:Object = new Object();
result.deg = d;
result.min = m;
result.sec = sd;
return result;
}
/* 東京測地系の緯度、経度を平面座標系に変換 */
/*緯度を与えて赤道からの子午線弧長を求める、出典:精密測地網一次基準点作業規定 P55-56*/
public function mx(f:Number):Number{
var f2:Number,m:Number;
m = A_coef[0]*f;
for(var i:int = 1; i < 8; i++)m = m + A_coef[i]*Math.sin(f*2*i);
return m;
}
/* 計算式の出典:精密測地網一次基準点作業規定 P55-56*/
public function bl2xy(lat:Number,lon:Number,zone:int):Object{
var x:Number,y:Number,c:Number;
var cdeg:int, cmin:int;
var f:Number, dl:Number, dx:Number, mx0:Number, csec:Number ;
var et2:Number,w:Number,n:Number,m:Number,tn2:Number,x2:Number,x4:Number,
x6:Number,x8:Number,y1:Number,y3:Number,y5:Number,y7:Number;
var B0:Number,L0:Number;
var sinb:Number, cosb:Number, tanb:Number;
B0 = B_origin[zone] * Math.PI/180;/*原点の緯度*/
L0 = L_origin[zone] * Math.PI/180;/*原点の経度*/
dl = lon - L0;
cosb = Math.cos(lat);
sinb = Math.sin(lat);
tanb = Math.tan(lat);
f = B0;
mx0 = mx(f);
f = lat;
dx = mx(f) - mx0; /*原点の緯度と球点の緯度を与えて、それぞれの赤道からの子午線からの距離の差を取る。 S-S0*/
et2 = e12 * Math.pow(cosb,2);
w = 1 - e2*Math.pow(sinb,2);
n = a/Math.pow(w,0.5);
m = n * (1-e2)/w;
tn2 = Math.pow(tanb,2);
x2 = n*Math.pow(cosb,2)*tanb*Math.pow(dl,2)/2;
x4 = n*tanb*Math.pow(cosb,4)*(5-tn2+9*et2+4*Math.pow(et2,2))*Math.pow(dl,4)/24;
x6 = n*tanb*Math.pow(cosb,6)*(61-58*tn2+Math.pow(tn2,2)+270*et2 - 330*tn2*et2)*Math.pow(dl,6)/720;
x8 = n*tanb*Math.pow(cosb,8)*(1385-3111*tn2+543*Math.pow(tn2,2) - Math.pow(tn2,3))*Math.pow(dl,8)/40320;
x = m0*(x8 + x6 + x4 + x2 + dx);
y1 = n*cosb*dl;
y3 = n*Math.pow(cosb,3)*(1-tn2+et2)*Math.pow(dl,3)/6;
y5 = n*Math.pow(cosb,5)*(5-18*tn2+Math.pow(tn2,2)+14*et2-58*tn2*et2)*Math.pow(dl,5)/120;
/* corrected sign symbols for y5, 1998.10.22 */
y7 = n*Math.pow(cosb,7)*(61-479*tn2+179*Math.pow(tn2,2)-Math.pow(tn2,3))*Math.pow(dl,7)/5040;1
y = m0*(y7 + y5 + y3 + y1);
c = (sinb*dl+sinb*Math.pow(cosb,2)*(1+3*et2)*Math.pow(dl,3)/3);
var result:Object = new Object();
result.x = x;
result.y = y;
result.c = c;
return result;
}//function
/* 平面座標系を東京測地系の緯度、経度に変換 */
/*計算式、係数パラメータは山海堂出版、パーソナルコンピュータによる測量計算プログラムの第３章による*/
public function mxy(f:Number):Number{
var f2:Number,m:Number;
f2 = Math.pow(f,2);
m = B_coef[0];
for(var i:int = 1; i < 10; i++)m = m*f2 + B_coef[i];
return(m*f);
}
public function bm(m:Number):Number{
var m2:Number,b:Number;
m2 = Math.pow(m,2);
b = C_coef[0];
for (var i:int = 1;i < 9;i++)
b = b*m2+C_coef[i];
return(b*m);
}
public function xy2bl(XI:Number,YI:Number,zone:int):Object{
//var B:Number,L:Number,c:Number;
var x1:Number,y1:Number,B0:Number,L0:Number,f:Number,m:Number,b1:Number;
var sinb:Number, cosb:Number, tanb:Number;
var w:Number, n1:Number, m1:Number, et2:Number, tn2:Number, b2:Number, b4:Number, secb:Number;
var l1:Number, l3:Number, l5:Number,secl:Number,dl:Number;
x1 = XI/m0;
y1 = YI/m0;
B0 = B_origin[zone] * pi/180;
L0 = L_origin[zone] * pi/180;
f = 2*B0/pi;
m = (mxy(f)+x1)/q;
b1 = bm(m);
sinb = Math.sin(b1);
cosb = Math.cos(b1);
tanb = Math.tan(b1);
w = 1-e2*Math.pow(sinb,2);
n1 = a/Math.pow(w,0.5);
m1 = n1*(1-e2)/w;
et2 = e12*cosb;
tn2 = Math.pow(tanb,2);
b2 = tanb*Math.pow(y1,2)/(2*m1*n1);
b4 = tanb*(5+3*tn2+et2-9*et2*tn2-4*Math.pow(et2,2))*Math.pow(y1,4)/(24*m1*Math.pow(n1,3));
var result:Object = new Object();
result.B = b4-b2+b1;
l1 = y1/(n1*cosb);
l3 = (1+2*tn2+et2)*Math.pow(y1,3)/(6*Math.pow(n1,3)*cosb);
l5 = (5+28*tn2+24*Math.pow(tn2,2))*Math.pow(y1,5)/(120*Math.pow(n1,5)*cosb);
dl = l5-l3+l1;
result.L = L0+ dl;
result.c = tanb*y1/n1-tanb*(1+tn2-et2)*Math.pow(y1,3)/(3*Math.pow(n1,3))+tanb*(1+tn2) * (2+3*tn2)*Math.pow(y1,5)/(15*Math.pow(n1,5));
return result;
}
/*緯度、経度、楕円体高を三次元直交座標系に変換*/
public function dms_to_XYZ(lat:Number,lon:Number,height:Number=0,datum:int=1):Object{
//var X:Number,Y:Number,Z:Number;
var e_square:Number,N:Number,f:Number,adms:Number;
switch(datum){
case 1: /* wgs-84 */
adms = a84;
f = f84;
break;
case 2: /* tokyo datum */
adms = a;
f = f_tokyo;
break;
}
e_square = f*(2-f);
N = adms / Math.sqrt(1-e_square * Math.sin(lat) * Math.sin(lat));
var result:Object = new Object();
result.x = (N+height)*Math.cos(lat)*Math.cos(lon);
result.y = (N+height)*Math.cos(lat)*Math.sin(lon);
result.z = (N*(1-e_square)+height)*Math.sin(lat);
return result;
}
/*三次元直交座標系から緯度、経度、楕円体高に変換*/
public function XYZ_to_dms(X:Number,Y:Number,Z:Number=0,datum:int=1):Object{
//var lat:Number,lon:Number,height:Number;
var b_dash:Number,P:Number,theta:Number,E_square:Number,E_square_dash:Number,
neu:Number,f:Number,adms:Number;
switch(datum){
case 1: /* wgs-84 */
adms = a84;
f = f84;
break;
case 2: /* tokyo datum */
adms = a;
f = f_tokyo;
break;
}
b_dash = adms*(1-f);
P = Math.sqrt(X*X + Y*Y);
theta = Math.atan((Z*adms)/(P*b_dash));
E_square = (adms*adms - b_dash*b_dash)/(adms*adms);
E_square_dash = (adms*adms - b_dash*b_dash)/(b_dash*b_dash);
var result:Object = new Object();
result.lat = Math.atan((Z+E_square_dash*b_dash*Math.sin(theta)*Math.sin(theta)*Math.sin(theta))/
(P-E_square*adms*Math.cos(theta)*Math.cos(theta)*Math.cos(theta)));
result.lon = Math.atan(Y/X) +pi;
neu = adms/Math.sqrt(1-E_square*Math.sin(result.lat)*Math.sin(result.lat));
result.height = P/Math.cos(result.lat)-neu;
return result;
}
/*3 パラメータ変換、新、旧パラメータの選択に注意*/
public function WGS84_to_Tokyo(X:Number,Y:Number,Z:Number):Object{
var x:Number,y:Number,z:Number;
x = X;
y = Y;
z = Z;
var result:Object = new Object();
result.X = x + 146.43;//(147.54)
result.Y = y - 507.89;//(507.26)
result.Z = z - 681.46;//(680.47) ()内は新パラメータ
return result;
}
public function Tokyo_to_84(X:Number,Y:Number,Z:Number):Object{
var x:Number,y:Number,z:Number;
x = X;
y = Y;
z = Z;
var result:Object = new Object();
result.X = x - 146.43;//(147.54)
result.Y = y + 507.89;//(507.26)
result.Z = z + 681.46;//(680.47) ()内は新パラメータ
return result;
}
}//class
//}//package
