* Copyright Zahurdias.Calimero ( http://wonderfl.net/user/Zahurdias.Calimero )
* MIT License ( http://www.opensource.org/licenses/mit-license.php )
* Downloaded from: http://wonderfl.net/c/qMu2
*/
package
{
import flash.display.DisplayObject;
import flash.display.CapsStyle;
import flash.display.GradientType;
import flash.display.Graphics;
import flash.display.JointStyle;
import flash.display.Sprite;
import flash.display.StageAlign;
import flash.display.StageScaleMode;
import flash.events.Event;
import flash.events.MouseEvent;
import flash.geom.Matrix;
import flash.text.TextField;
import flash.text.TextFormat;
import flash.utils.*;
[SWF(width="1200", height="630", frameRate="60", backgroundColor="#FFFFFF")]

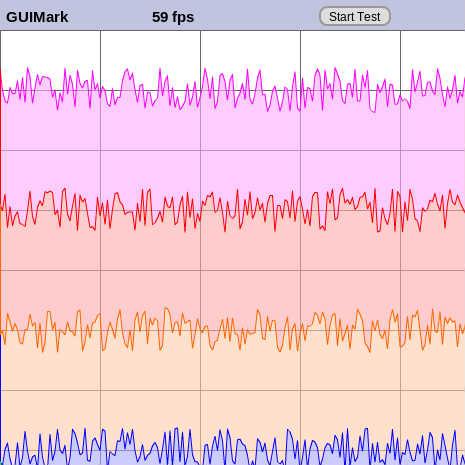

public class FlashChartingTest extends Sprite
{
public function FlashChartingTest(){
stage.scaleMode = StageScaleMode.NO_SCALE;
stage.align = StageAlign.TOP_LEFT;
this.mouseEnabled = false;
createChildren();
init();
}
private var meter:FPSMeter;
private var fps:TextField;
private var results:TextField;
private var draw:Graphics;
private var chartWidth:Number = 1200;
private var chartHeight:Number = 600;
private var highestStock:Number = 200;
private var totalMinutes:Number = 480;
private var chartXSpread:Number;
private var chartYSpread:Number;
private var a:Array = new Array();
private var b:Array = new Array();
private var c:Array = new Array();
private var d:Array = new Array();
private var e:Array = new Array();
protected function init():void{
chartXSpread = chartWidth/totalMinutes;
chartYSpread = chartHeight/highestStock;
meter = new FPSMeter();
addEventListener(Event.ENTER_FRAME, processFrame);
}
protected function processFrame(evt:Event):void{
//create background
draw.clear();
draw.lineStyle(0, 0x666666);
//draw.lineStyle(0, 0.6);
var xCoord:Number;
var yCoord:Number;
for(var x:Number=0; x<=totalMinutes; x+=40){
xCoord = x*chartXSpread;
draw.moveTo(xCoord, 0);
draw.lineTo(xCoord, chartHeight);
}
for(var y:Number=0; y<=highestStock; y+=20){
yCoord = y*chartYSpread;
draw.moveTo(0, yCoord);
draw.lineTo(chartWidth, yCoord);
}
//add data
fillStockData(a, 180);
fillStockData(b, 140);
fillStockData(c, 100);
fillStockData(d, 60);
fillStockData(e, 20);
graphStockData(a, b, 0xFF00FF, 0xFFAAFF);
graphStockData(b, c, 0xFF0000, 0xFFAAAA);
graphStockData(c, d, 0xFF6600, 0xFFCCAA);
graphStockData(d, e, 0x0000FF, 0xAAAAFF);
graphStockData(e, null, 0x00FF00, 0xAAFFAA);
updatePerformance();
}
protected function fillStockData(data:Array, region:Number):void {
var diff:Number = 15;
var low:Number = region-(diff/2);
var i:int = 0;
var stock:StockVO;
if(data.length == 0){
while(i <= totalMinutes){
stock = new StockVO(i, Math.random()*diff+low);
data.push(stock);
i++;
}
}else{
while(i <= totalMinutes){
stock = data[i];
stock.minute--;
i++;
}
stock = data.shift();
stock.minute = totalMinutes;
stock.value = Math.random()*diff+low;
data.push(stock);
}
}
protected function graphStockData(topData:Array, bottomData:Array, line:uint, fill:uint):void{
var stock:StockVO;
var xCoord:Number;
var yCoord:Number;
var i:int = 0;
//draw.lineStyle(2, line, 1.0, false, "normal", CapsStyle.ROUND, JointStyle.ROUND);
draw.lineStyle(0, line, 1.0, false, "none", CapsStyle.NONE, JointStyle.ROUND);
//draw.lineStyle();
//draw.lineStyle(0,line);
draw.beginFill(fill, 0.6);
//draw.beginFill(fill);
//plot begin point
stock = topData[i];
xCoord = stock.minute*chartXSpread;
yCoord = chartHeight-stock.value*chartYSpread;
draw.moveTo(xCoord, yCoord);
//plot data points
while(++i < topData.length){
stock = topData[i];
xCoord = stock.minute*chartXSpread;
yCoord = chartHeight-stock.value*chartYSpread;
draw.lineTo(xCoord, yCoord);
}
draw.lineStyle();
//draw.lineStyle(2, line, 0, false, "none", CapsStyle.NONE, JointStyle.ROUND);
if(bottomData != null){
//clamp fill to chart lines below
i = bottomData.length;
while(--i > -1){
stock = bottomData[i];
xCoord = stock.minute*chartXSpread;
yCoord = chartHeight-stock.value*chartYSpread;
draw.lineTo(xCoord, yCoord);
}
}else{
//clamp fill to bottom of chart
draw.lineTo(chartWidth, chartHeight);
draw.lineTo(0, chartHeight);
}
//draw.endFill();
}
protected function updatePerformance():void {
meter.increment();
fps.text = meter.getFramerate()+" fps";
if(testRunning){
continueTest();
}
}
private var testBegin:int = 0;
private var testData:Array = [];
private var testRunning:Boolean = false;
private function startTest(evt:MouseEvent):void{
testBegin = getTimer();
testRunning = true;
testData = [];
results.text = "Running..."
}
private function continueTest():void{
var time:uint = getTimer();
testData.push(time);
if(time-testBegin > 10000){
testRunning = false;
var output:Number = testData.length/(time-testBegin)*1000;
results.text = "Test Average: "+FPSMeter.formatNumber(output)+" fps";
}
}
private function createChildren():void {
var header:Sprite = new Sprite(); header.graphics.beginFill(0xC0C4DF); header.graphics.drawRect(0,0,1200,30); addChild(header);
var title:TextField = createTextField("GUIMark"); title.width = 300; title.x = 4; header.addChild(title);
var button:Sprite = createButton(); button.x = 320; button.y = 7; button.addEventListener(MouseEvent.CLICK, startTest); header.addChild(button);
fps = createTextField(""); fps.width = 140; fps.x = 150; header.addChild(fps);
results = createTextField(""); results.width = 300; results.x = 555; header.addChild(results);
var canvas:Sprite = new Sprite(); canvas.x = 0; canvas.y = 30; addChild(canvas);
canvas.mouseEnabled=false;
draw = canvas.graphics;
}
private function createTextField(val:String):TextField {
var txt:TextField = new TextField();
txt.y = 6;
txt.defaultTextFormat = new TextFormat("Arial", 15, 0x000000, true);
txt.text = val;
return txt;
}
private function createButton():Sprite {
var buttonText:TextField = new TextField();
buttonText.x = 7;
buttonText.y = 1;
buttonText.width = 63;
buttonText.height = 18;
buttonText.defaultTextFormat = new TextFormat("Arial", 12, 0x000000);
buttonText.text = "Start Test";
buttonText.mouseEnabled = false;
var button:Sprite = new Sprite();
button.graphics.beginFill(0xDDDDDD);
button.graphics.lineStyle(2, 0x999999);
button.graphics.drawRoundRect(0,0,70,18,15);
button.buttonMode = true;
button.addChild(buttonText);
return button;
}
}
}
import flash.utils.getTimer;
class StockVO {
public var minute:uint;
public var value:Number;
public function StockVO(minute:uint, value:Number){
this.minute = minute;
this.value = value;
}
}
class FPSMeter {
private var sampleFPS:Number = 0;
private var lastSampledTime:uint = 0;
private var sampleFrames:Number = 0;
public var sampleDuration:uint = 500;
public function increment():void {
sampleFrames++;
}
public function getFramerate():Number {
var diff:uint = getTimer()-lastSampledTime;
if(diff >= sampleDuration){
var rawFPS:int = sampleFrames/(diff/1000);
//sampleFPS = FPSMeter.formatNumber(rawFPS);
sampleFPS = rawFPS;
sampleFrames = 0;
lastSampledTime = getTimer();
}
return sampleFPS;
}
public static function formatNumber(val:Number):Number{
//format as XX.XX
return Math.floor(val*100)/100;
}
}
