forked from: Fork Tree
forked from Fork Tree (diff: 56)
ActionScript3 source code
/**
* Copyright wonderwhyer ( http://wonderfl.net/user/wonderwhyer )
* MIT License ( http://www.opensource.org/licenses/mit-license.php )
* Downloaded from: http://wonderfl.net/c/pkKt
*/
// forked from uwi's Fork Tree
package {
import flash.display.*;
import flash.text.TextField;
import flash.events.*;
import flash.net.*;
import com.bit101.components.*;
import flash.utils.*;
import flash.utils.getDefinitionByName;
import flash.events.MouseEvent;
public class Test extends Sprite {
private var _tf : TextField;
private var _apikey : String;
private var _text : InputText;
private var _canvas : Sprite; // グラフ描画先
private var _tree : Object; // <id:String, json:Object>
private var _root : String; // ルートID
private var zoom : HUISlider;
private var _openangle : HUISlider;
public function Test() {
_tf = new TextField();
_tf.width = 200;
_tf.height = 400;
//addChild(_tf);
_apikey = loaderInfo.parameters["open_api_key"];
_canvas = new Sprite();
addChild(_canvas);
_canvas.scaleX = 1;
_canvas.scaleY = 1;
_canvas.x = 465 / 2;
_canvas.y = 400;
//_canvas.mouseChildren = false;
//_canvas.mouseEnabled = false;
stage.addEventListener(MouseEvent.MOUSE_DOWN, function(e : MouseEvent) : void { if(e.target == stage)_canvas.startDrag(); });
stage.addEventListener(MouseEvent.MOUSE_UP, function(e : MouseEvent) : void { if(e.target == stage)_canvas.stopDrag(); });

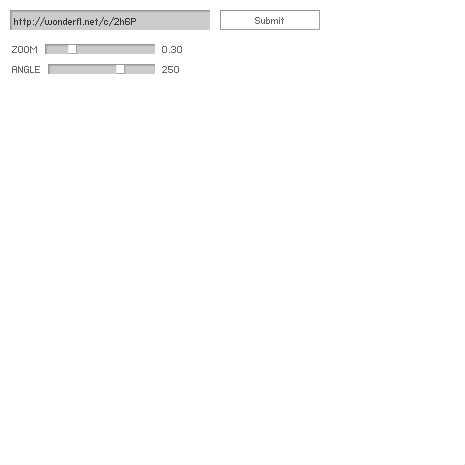

_text = new InputText(this, 10, 10, "http://wonderfl.net/c/2h6P");
_text.width = 200;
_text.height = 20;
var submit : PushButton = new PushButton(this, 220, 10, "Submit", onSubmit);
zoom = new HUISlider(this, 10, 40, "ZOOM", zoom_f);
zoom.labelPrecision = 2; zoom.tick = 0.01;
zoom.minimum = 0.1; zoom.maximum = 1.0; zoom.value = 0.1;
_openangle = new HUISlider(this, 10, 60, "ANGLE", function(e : Event) : void {
arrange(_root);
});
_openangle.labelPrecision = 0; _openangle.tick = 1;
_openangle.minimum = 0; _openangle.maximum = 360; _openangle.value = 250;
stage.addEventListener(MouseEvent.CLICK,function(e:Event):void{tr(e.target)})
setTimeout(onSubmit,100);
zoom_f(null);
}
private function zoom_f(e : Event) : void
{
var prev : Number = _canvas.scaleX;
_canvas.scaleX = zoom.value;
_canvas.scaleY = zoom.value;
_canvas.x = 465/2 - (465/2 - _canvas.x) * zoom.value / prev;
_canvas.y = 465/2 - (465/2 - _canvas.y) * zoom.value / prev;
}
private function onSubmit(e : MouseEvent) : void
{
var id : String = _text.text.match(/(?<=\/)[0-9A-Za-z]*$/)[0];
if(id == "")return;
if(_tree){
for each(var val : Object in _tree){
if(val.loader)_canvas.removeChild(val.loader);
}
}
_canvas.graphics.clear();
_root = id;
_tree = {};
_tree[id] = {};
loadCode(id); // ルートノードの情報はforkでは得られないのでcodeで得る
loadFork(id); // forkを探索
}
private function loadCode(id : String) : void
{
if(id == null)return;
tr(id);
var ul : URLLoader = new URLLoader(new URLRequest(
"http://api.wonderfl.net/code/" + id + "?api_key=" + _apikey
));
ul.addEventListener(Event.COMPLETE, onCodeLoaded);
}
private function onCodeLoaded(e : Event) : void
{
var ul : URLLoader = URLLoader(e.target);
ul.removeEventListener(Event.COMPLETE, onCodeLoaded);
tr(ul.data);
try{
var json : Object =JSON.parse(ul.data);
}catch(er:Error){
tr(er)
}
// tr(ObjectUtil.toString(json));
if(!_tree[json.code.id])_tree[json.code.id] = {};
for(var key : String in json.code){
_tree[json.code.id][key] = json.code[key];
}
// _tree[json.code.id] = json.code;
var container : Sprite = createContainer(json.code);
_canvas.addChild(container);
_tree[json.code.id].loader = container;
arrange(_root);
}
private function loadFork(id : String) : void
{
if(id == null)return;
// tr(id);
var ul : URLLoader = new URLLoader(new URLRequest(
"http://api.wonderfl.net/code/" + id + "/forks?api_key=" + _apikey
));
ul.addEventListener(Event.COMPLETE, onForkLoaded);
}
private function onForkLoaded(e : Event) : void
{
var ul : URLLoader = URLLoader(e.target);
ul.removeEventListener(Event.COMPLETE, onForkLoaded);
var json : Object = JSON.parse(ul.data);
// tr(ObjectUtil.toString(json));
if(json.forks){
for each(var fork : Object in json.forks){
// 親に子を追加
if(!_tree[fork.parent])_tree[fork.parent] = {};
if(!_tree[fork.parent].children)_tree[fork.parent].children = [];
_tree[fork.parent].children.push(fork.id);
// 木にノードを追加
_tree[fork.id] = fork;
// フォークを探索
loadFork(fork.id);
// サムネイルをロード
var container : Sprite = createContainer(fork);
_canvas.addChild(container);
_tree[fork.id].loader = container;
}
arrange(_root);
}
}
private var containers:Array = [];
private var datas:Array = [];
private function createContainer(data : Object) : Sprite
{
var container : Sprite = new Sprite();
//container.mouseEnabled = false;
//container.mouseChildren = false;
containers.push(container);
datas.push(data);
container.addEventListener(MouseEvent.CLICK,show_work);
//container.mouseChildren = false;
container.buttonMode = true;
var l : Loader = new Loader();
l.load(new URLRequest(data.thumbnail));
l.x = -50; l.y = -50;
container.addChild(l);
var tfUser : TextField = new TextField();
tfUser.x = -50; tfUser.y = 50;
tfUser.text = data.user.name;
tfUser.selectable = false;
container.addChild(tfUser);
return container;
}
private function show_work(e:Event):void
{
var data:Object = datas[containers.indexOf(e.currentTarget)];
navigateToURL(new URLRequest("http://wonderfl.net/c/"+data.id),"_blank");
}
// グラフの配置
private function arrange(id : String, x : Number = 0, y : Number = 0, theta : Number = 0) : void
{
if(id == null)return;
if(id == _root){
_canvas.graphics.clear();
}
var node : Object = _tree[id];
if(node == null)return;
var dobj : DisplayObject = DisplayObject(node.loader);
if(node.loader == null)return;
dobj.x = x;
dobj.y = y;
if(node.children){
var angle : Number = _openangle.value / 180 * Math.PI;
var base : Number = theta - angle / 2;
var step : Number = angle / (node.children.length + 1);
_canvas.graphics.lineStyle(3, 0xdddddd);
for each(var child : String in node.children){
base += step;
var d : Number = _tree[child].diff || 0;
var r : Number = Math.log(d + 10) * 100;
var cx : Number = x + r * Math.sin(base);
var cy : Number = y - r * Math.cos(base);
_canvas.graphics.moveTo(x, y);
_canvas.graphics.lineTo(cx, cy);
arrange(child, cx, cy, base);
}
}
}
private function tr(...o : Array) : void
{
_tf.appendText(o + "\n");
}
}
}
