4-bit Full Adder / Subtractor

by umhr
♥0 | Line 126 | Modified 2013-10-22 18:23:27 | MIT License

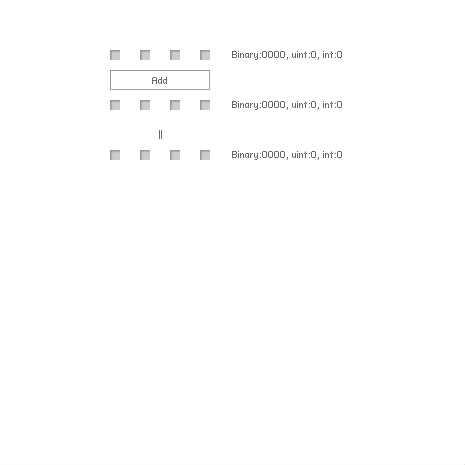

play

ActionScript3 source code

/**
 * Copyright umhr ( http://wonderfl.net/user/umhr )
 * MIT License ( http://www.opensource.org/licenses/mit-license.php )
 * Downloaded from: http://wonderfl.net/c/pNBb
 */

package

{

    import flash.display.Sprite;

    import flash.events.Event;



    /**

     * ...

     * @author umhr

     */

    [SWF(width = 465, height = 465, backgroundColor = 0xDDDDDD, frameRate = 30)]

    public class WonderflMain extends Sprite

    {



        public function WonderflMain():void

        {

            if (stage) init();

            else addEventListener(Event.ADDED_TO_STAGE, init);

        }



        private function init(e:Event = null):void

        {

            removeEventListener(Event.ADDED_TO_STAGE, init);

            // entry point

            addChild(new Canvas());

        }



    }



}



    import com.bit101.components.CheckBox;

    import com.bit101.components.Label;

    import com.bit101.components.PushButton;

    import flash.display.Sprite;

    import flash.events.Event;

    /**

     * ...

     * @author umhr

     */

     class Canvas extends Sprite

    {

        private var inCB0List:Array/*CheckBox*/ = [];

        private var inCB1List:Array/*CheckBox*/ = [];

        private var outCB1List:Array/*CheckBox*/ = [];

        private var _in0Label:Label;

        private var _in1Label:Label;

        private var _outLabel:Label;

        private var _pushButton:PushButton;



        public function Canvas()

        {

            init();

        }

        private function init():void

        {

            if (stage) onInit();

            else addEventListener(Event.ADDED_TO_STAGE, onInit);

        }



        private function onInit(event:Event = null):void

        {

            removeEventListener(Event.ADDED_TO_STAGE, onInit);

            // entry point



            var r:Object = Adder.full(false, true, false);



            trace(r.s, r.c);



            var n:int = 4;

            for (var i:int = 0; i < n; i++)

            {

                inCB0List.push(new CheckBox(this, 200 - i * 30, 50, "", onInput));

                inCB1List.push(new CheckBox(this, 200 - i * 30, 100, "", onInput));

                outCB1List.push(new CheckBox(this, 200 - i * 30, 150, "", onInput));

            }



            _in0Label = new Label(this, 230, 50 - 5, "");

            _in1Label = new Label(this, 230, 100 - 5, "");

            _outLabel = new Label(this, 230, 150 - 5, "");



            new Label(this, 157, 125, "||");

            _pushButton = new PushButton(this, 110, 70, "Add", onMouseClick);



            onInput(null);

        }



        private function onMouseClick(e:Event):void

        {

            if (_pushButton.label == "Add") {

                _pushButton.label = "Subtraction";

            }else {

                _pushButton.label = "Add";

            }

            onInput(null);

        }

        private function onInput(e:Event):void {

            calc(_pushButton.label == "Add");

        }



        private function calc(isAdd:Boolean):void

        {

            var in0:String = "";

            var in1:String = "";

            var out:String = "";

            var cx:Boolean = !isAdd;

            var n:int = inCB0List.length;

            for (var i:int = 0; i < n; i++)

            {

                var inCB1:Boolean = isAdd?inCB1List[i].selected: !inCB1List[i].selected;

                var r:Object = Adder.full(inCB0List[i].selected, inCB1, cx);

                cx = r.c;

                outCB1List[i].selected = r.s;

                in0 = (inCB0List[i].selected?"1":"0") + in0;

                in1 = (inCB1List[i].selected?"1":"0") + in1;

                out = (outCB1List[i].selected?"1":"0") + out;



            }



            _in0Label.text = "Binary:" + in0 + ", uint:" + parseInt(in0, 2);

            if (in0.substr(0,1) == "0") {

                _in0Label.text += ", int:" + parseInt(in0.substr(1), 2);

            }else {

                _in0Label.text += ", int:" + (parseInt(in0.substr(1), 2) - 8);

            }



            _in1Label.text = "Binary:" + in1 + ", uint:" + parseInt(in1, 2);

            if (in1.substr(0,1) == "0") {

                _in1Label.text += ", int:" + parseInt(in1.substr(1), 2);

            }else {

                _in1Label.text += ", int:" + (parseInt(in1.substr(1), 2) - 8);

            }



            _outLabel.text = "Binary:" + out + ", uint:" + parseInt(out, 2);

            if (out.substr(0,1) == "0") {

                _outLabel.text += ", int:" + parseInt(out.substr(1), 2);

            }else {

                _outLabel.text += ", int:" + (parseInt(out.substr(1), 2) - 8);

            }

        }



    }



    /**

     * ...

     * @author umhr

     */

     class Adder

    {



        public function Adder() { };



        static private function half(a:Boolean, b:Boolean):Object {

            var c:Boolean = a && b;

            return { "s":(a || b) && !c, "c":c };

        }



        static public function full(a:Boolean, b:Boolean, x:Boolean):Object {

            var half0:Object = half(a, b);

            var half1:Object = half(half0.s, x);

            return { "s":half1.s, "c":half0.c || half1.c };

        }





    }
