Flash to Hex ( Coordiante system )

/**
 * Copyright WLAD ( http://wonderfl.net/user/WLAD )
 * MIT License ( http://www.opensource.org/licenses/mit-license.php )
 * Downloaded from: http://wonderfl.net/c/oEAt
 */

package
{
	import flash.display.Sprite;
	import flash.events.Event;
	import flash.geom.Point;

	public class FlashTest extends Sprite
	{
		private var axis:AXIS_HEX;

		private var a:HEX;

		private var t:T;

		public function FlashTest()
		{
			axis = new AXIS_HEX();
			addChild( axis );

			t = new T();
			addChild(t);
			t.multiline = true;
			t.x = t.y = 20;

			a = new HEX(0,0,0);

			addEventListener(Event.ENTER_FRAME, loop);
		}

		private function loop(e:Event):void
		{
			axis.graphics.clear();

			a.x = mouseX;
			a.y = mouseY;

			a.render( axis.graphics, 30, 0xEA382F );


			var p:Point = new Point(a.x - axis.convas.x, a.y - axis.convas.y);
			//
			//var cX:Number = axis.lineX.V.distToPoint( p );
			//var cY:Number = axis.lineY.V.distToPoint( p );
			//var cZ:Number = axis.lineZ.V.distToPoint( p );
			//
			//
			//var cX:Number = axis.lineX.V.projection( Vec.P2V( p ) ).lenght;
			//var cY:Number = axis.lineY.V.projection( Vec.P2V( p ) ).lenght;
			//var cZ:Number = axis.lineZ.V.projection( Vec.P2V( p ) ).lenght;
			//

			var cVX:Vec = axis.lineX.V.clone();

			cVX.degrees += 90;
			cVX = Vec.PerpendicularProjection(cVX, Vec.P2V( p ));

			var cVY:Vec = axis.lineY.V.clone();
			cVY.degrees += 90;
			cVY = Vec.PerpendicularProjection(cVY, Vec.P2V( p ));

			var cVZ:Vec = axis.lineZ.V.clone();
			cVZ.degrees += 90;
			cVZ = Vec.PerpendicularProjection(cVZ, Vec.P2V( p ));

			var cX:Number = cVX.lenght;
			var cY:Number = cVY.lenght;
			var cZ:Number = cVZ.lenght;

			if ( cVX.degrees == 180 ) cX = -Math.abs(cX);
			if ( cVZ.degrees > 0 )  cZ = -Math.abs(cZ);
			if ( cVY.degrees < 0 )  cY = -Math.abs(cY);

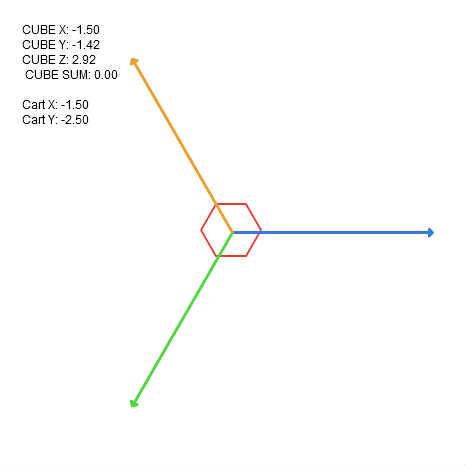

			t.text = 	"CUBE X: " + cX.toFixed(2) +
						"\nCUBE Y: " + cY.toFixed(2) +
						"\nCUBE Z: " + cZ.toFixed(2) +
						"\n CUBE SUM: " + (cX + cY + cZ).toFixed(2) +
						"\n\nCart X: " + p.x.toFixed(2) +
						"\nCart Y: " + p.y.toFixed(2);
						//"\n Test:\n" + Vec.RadiansBetween( axis.lineX.V, axis.lineY.V )
						//"\n" + cVY.degrees.toFixed(2);

						//"\n Test:\n" + (axis.lineY.V.dot( axis.lineX.V )/ (axis.lineX.V.lenght + axis.lineY.V.lenght)).toFixed(2);



							//Math.acos( A.dot(B) / ( A.lenght + B.lenght )

							//Vec.RadiansBetween( axis.lineX.V, axis.lineY.V ).toFixed(2);
		}


	}
}
import flash.display.Graphics;
import flash.display.Shape;
import flash.display.Sprite;
import flash.geom.Point;
import flash.geom.Rectangle;
import flash.text.TextField;
import flash.text.TextFormat;


class AXIS_HEX extends Sprite
{
	public var lineX:Line;
	public var lineY:Line;
	public var lineZ:Line;


	private var GIRD:HEX_GIRD;

	public var convas:Shape = new Shape();

	public function AXIS_HEX():void
	{
		//GIRD = new HEX_GIRD(465, 465, 10);
		//GIRD.alpha = 0.5;
		//addChild( GIRD );

		addChild( convas );

		convas.x = 465 / 2;
		convas.y = 465 / 2;

		var v:Vec = new Vec(200, 0);
		var p:Point = new Point();

		lineX = new Line(p, v);
		lineX.render( convas.graphics, 0x367BE2 );

		v.degrees += 120;

		lineY = new Line(p, v);
		lineY.render( convas.graphics, 0x52D643 );

		v.degrees += 120;

		lineZ = new Line(p, v);
		lineZ.render( convas.graphics, 0xEB9F2E );
	}

}

class HEX
{
	public var z:Number;
	public var y:Number;
	public var x:Number;
	public function HEX(x:Number, y:Number, z:Number)
	{
		this.z = z;
		this.y = y;
		this.x = x;

	}
	public function render(g:Graphics, size:Number, line:Number = NaN, fill:Number = NaN):void
	{
		if ( isNaN( line ) && isNaN( fill ) ) return;

		var v:Vec = new Vec(size, 0);
		var p:Point = this.p;

		if ( !isNaN( line ) ) g.lineStyle( 2, line );
		if ( !isNaN( fill ) ) g.beginFill( fill );

		g.moveTo( p.x + size, p.y );
		var i:int = 0;
		while ( i < 6 )
		{
			i++;

			v.degrees += 60;

			g.lineTo( p.x + v.x, p.y + v.y );
		}

		if ( !isNaN( fill ) ) g.endFill();

	}
	public function get p():Point
	{
		return new Point( x, y );
	}
}

class HEX_GIRD extends Shape
{
	public function HEX_GIRD( w:Number , h:Number, size:Number = 10, origin:Point = null, color:uint = 0x333333, alpha:Number = 0.5, thikness:Number = 1)
	{
		if ( origin == null ) origin = new Point(w / 2, h / 2);

		var v:Vec = new Vec(w * 2, 0);

		graphics.lineStyle( thikness, color );

		// PLOT X

		var pos:Number = origin.y;

		var sizeH:Number = Math.sqrt( 3 ) * size / 2;

		while ( pos < h )
		{
			graphics.moveTo(0, pos);
			graphics.lineTo(w, pos);

			pos += sizeH;
		}

		pos = origin.y - sizeH;

		while ( pos > 0 )
		{
			graphics.moveTo(0, pos);
			graphics.lineTo(w, pos);

			pos -= sizeH;
		}

		v.degrees += 120;

		// PLOT Y

		pos = origin.x;

		while ( pos < w * 2 )
		{
			graphics.moveTo( pos, 0 );
			graphics.lineTo( pos + v.x, v.y );

			pos += size;
		}

		pos = origin.x - size;

		while ( pos > -w )
		{
			graphics.moveTo( pos, 0 );
			graphics.lineTo( pos + v.x, v.y );

			pos -= size;
		}

		pos = origin.x;

		v.degrees += 120;

		while ( pos < w * 2 )
		{
			graphics.moveTo( pos, h );
			graphics.lineTo( pos + v.x, v.y );

			pos += size;
		}

		pos = origin.x - size;

		while ( pos > -w )
		{
			graphics.moveTo( pos, h );
			graphics.lineTo( pos + v.x, v.y );

			pos -= size;
		}


	}
}

class Line
{

	/** @author http://wonderfl.net/user/Vladik */

	public var O:Point;
	public var V:Vec;

	public function get A():Point{return O.clone();}
	public function get B():Point{return new Point(O.x + V.x, O.y + V.y);}

	public function get m():Number {return ( B.y - A.y ) / ( B.x - A.x );}
	public function get c():Number{return A.y - A.x * m;}

	public function Fx(x:Number):Number{return x * m + c;}

	public function Line(O:Point, V:Vec)
	{
		this.O = O.clone();
		this.V = V.clone();
	}
	public function render( g:Graphics, color:uint = 0xFF0000, thikness:uint = 3 ):void
	{
		g.beginFill( color );
		g.lineStyle( thikness, color);
		g.moveTo( O.x, O.y);

		var B:Point = this.B;

		g.lineTo( B.x, B.y);

		var v:Vec = Vec.PP2V( O, B );
		v.lenght = 5;

		v.degrees -= 45 + 180;
		g.lineTo( B.x + v.x, B.y + v.y );

		v.degrees += 90;
		g.lineTo( B.x + v.x, B.y + v.y );

		g.lineTo( B.x, B.y );

		g.endFill();
	}

}

class P
{
	public var x:Number;
	public var y:Number;


	public function P(x:Number, y:Number)
	{
		this.x = x;
		this.y = y;
	}

	public function render( g:Graphics, color:uint = 0x89CF49 ):void
	{
		g.beginFill(color);
		g.drawCircle(x, y, 7);
		g.endFill();
	}
}

class Vec
{
	// Convert a line between two point into a vector
	static public function PP2V(a:Point, b:Point):Vec{return new Vec(b.x - a.x, b.y - a.y);}
	// Convert line 2 point
	static public function P2V(p:Point):Vec{return new Vec(p.x,p.y);}

	// Angle between two vectors in radians
	static public function RadiansBetween( A:Vec, B:Vec):Number
	{
		return Math.acos( A.clone().normalise().dot( B.clone().normalise() ) );
		//return Math.acos( A.dot(B) / ( A.lenght + B.lenght );
	}

	// Example: http://wonderfl.net/c/4Zft
	static public function PerpendicularProjection( V:Vec, U:Vec ):Vec
	{
		return U.clone().subtract( V.projection( U ) );
	}


    /** @author http://wonderfl.net/user/Vladik */
    public var x:Number, y:Number;
    public function Vec(x:Number = 0, y:Number = 0){this.x = x;this.y = y;}
    public function get lenght():Number{return Math.sqrt(x * x + y * y);}
    public function set lenght(value:Number):void{lenght == 0 ? scale(0) : scale(value / lenght);}
	public function set degrees(value:Number):void{radians = value * Math.PI / 180;}
	public function get degrees():Number{return radians * 180 / Math.PI;}
	public function set radians(value:Number):void{var f:Number = lenght;x = Math.cos(value) * f;y = Math.sin(value) * f;}
	public function scale(n:Number):Vec { x *= n; y *= n; return this; }
	public function clone():Vec{return new Vec(x, y);}
	public function get radians():Number { return Math.atan2(y, x); }
	public function dot( v:Vec ):Number { return x * v.x + y * v.y; }
	public function get point():Point { return new Point(x, y); }
	//Projection method credits: http://jccc-mpg.wikidot.com/vector-projection
	public function projection( u:Vec ):Vec{var l:Number = lenght;return clone().scale( u.dot( this ) / (l * l) );}
	public function normalise():Vec{scale(1);return this;}
	public function distToPoint( p:Point ):Number {return p.length * Math.sin( Vec.RadiansBetween( this, Vec.P2V(p) ) );}
	public function render( g:Graphics, o:Point = null, color:uint = 0xFF0000, thikness:uint = 3 ):void
	{g.beginFill( color );g.lineStyle( thikness, color);g.moveTo( o.x, o.y);var B:Point = new Point(o.x + x, o.y + y);g.lineTo( B.x, B.y);
	var v:Vec = Vec.PP2V( o, B );v.lenght = 7;v.degrees -= 45 + 180;g.lineTo( B.x + v.x, B.y + v.y );
	v.degrees += 90;g.lineTo( B.x + v.x, B.y + v.y );g.lineTo( B.x, B.y );g.endFill();}
	public function add( V:Vec ):Vec{this.x += V.x;this.y += V.y;return this;}
	public function subtract(V:Vec):Vec { this.x -= V.x; this.y -= V.y; return this; }
	public function toString():String{return "["+x.toFixed(2)+","+y.toFixed(2)+"]";}
}

class T extends TextField
{
	/** @author http://wonderfl.net/user/Vladik */
    public function T(txt:String = "Text", x:Number = 0, y:Number = 0)
    {
        var tf:TextFormat = new TextFormat("_sans", 12, 0x000000);
        this.setTextFormat(tf);
        this.defaultTextFormat = tf;
        this.autoSize = 'left';
        this.text = txt;
        this.selectable = this.wordWrap = this.multiline = this.mouseEnabled = false;

        this.x = x - this.width / 2;
        this.y = y - this.height / 2;
    }

}
