* Copyright insocium ( http://wonderfl.net/user/insocium )
* MIT License ( http://www.opensource.org/licenses/mit-license.php )
* Downloaded from: http://wonderfl.net/c/nruI
*/
/**
* Copyright spanvega ( http://wonderfl.net/user/spanvega )
* MIT License ( http://www.opensource.org/licenses/mit-license.php )
* Downloaded from: http://wonderfl.net/c/gYWo
*/
package
{
import com.greensock.TweenMax;
import com.greensock.easing.*;
import flash.geom.Matrix;
import flash.geom.Rectangle;
import flash.net.FileFilter;
import flash.net.FileReference;
import flash.events.Event;
import flash.display.Shape;
import flash.display.Sprite;
import flash.display.Loader;
import flash.display.Bitmap;
import flash.display.LoaderInfo;
import flash.display.BitmapData;
import com.bit101.components.Label;
import com.bit101.components.CheckBox;
import com.bit101.components.ComboBox;
import com.bit101.components.PushButton;
import org.papervision3d.view.BasicView;
import org.papervision3d.lights.PointLight3D;
import org.papervision3d.events.FileLoadEvent;
import org.papervision3d.objects.primitives.Cube;
import org.papervision3d.events.InteractiveScene3DEvent;
import org.papervision3d.core.geom.renderables.Vertex3D;
import org.papervision3d.materials.BitmapFileMaterial;
import org.papervision3d.materials.utils.MaterialsList;
import org.papervision3d.materials.shadematerials.EnvMapMaterial;
/*
* EXTENSION BASED ON THE FORMER VERTEX3D TWEEN http://wonderfl.net/c/1pGc

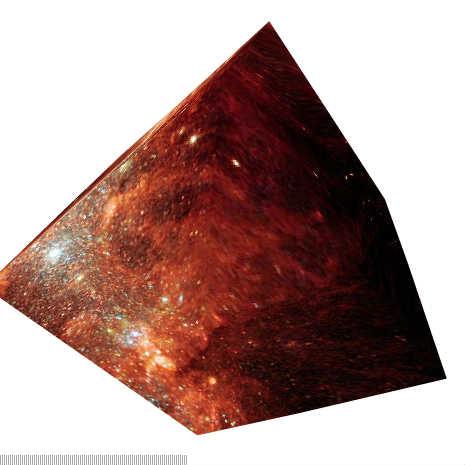

* DEFAULT TEXTURE IS LOADED RANDOMLY FROM A FIVE SUPERNOVAS PHOTOS SERIE (400x400)
* PANEL ALLOWS TO UPLOAD ANOTHER TEXTURE AND DISPLAYS IT ON THE RUN, CHANGE TWEEN AND EASE TYPES
* BOTTOM BAR DISPLAYS THE VERTICES TWEENS PROGRESSION
*/
[ SWF (width = '465', height = '465', backgroundColor = '0xFFFFFF', frameRate = '25') ]
/**
* @author SPANVEGA // CHRISTIAN //
**/
public class CUBASTIC_NOVA extends BasicView
{
// --o PROPERTIES
private var type_ease : String = 'easeOut'; // DEFAULT EASE TYPE
private var type_tween : Class = Elastic; // DEFAULT TWEEN TYPE
private var light_point : PointLight3D;
private var bar_display : BitmapData;
private var size_min : uint = 300;
private var size_max : uint = 750;
private var texture : BitmapData;
private var file : FileReference;
private var bar_bitmap : Bitmap;
private var ratio_step : uint;
private var vertex_num : uint;
private var size_cur : Number;
private var stageW : uint;
private var stageH : uint;
private var cube : Cube;
// --o CONSTRUCTOR
public function CUBASTIC_NOVA ()
{
stage ? main () : addEventListener (Event.ADDED_TO_STAGE, main);
}
// --o PRIVATE METHODS
private function main (e : Event = null) : void
{
if (hasEventListener (Event.ADDED_TO_STAGE))
{
removeEventListener (Event.ADDED_TO_STAGE, init);
}
stage.addEventListener (Event.RESIZE, onResize);
onResize ();
// --o DISPLAY BAR
bar_bitmap = new Bitmap ();
addChild (bar_bitmap);
onBarDraw ();
// --o PANEL
onPanel ();
//
var bitmap : BitmapFileMaterial = new BitmapFileMaterial ();
var bitmap_num : uint = 1 + Math.round (Math.random () * 4);
bitmap.addEventListener
(
FileLoadEvent.LOAD_COMPLETE, onComplete
);
bitmap.addEventListener
(
FileLoadEvent.LOAD_PROGRESS, onProgress
);
bitmap.addEventListener
(
FileLoadEvent.LOAD_ERROR, onIOError
);
bitmap.addEventListener
(
FileLoadEvent.SECURITY_LOAD_ERROR, onSecurityError
);
bitmap.interactive = true;
bitmap.checkPolicyFile = true;
bitmap.texture = 'http://mm4d.free.fr/images/sample_nova_'+ bitmap_num + '.jpg';
}
private function init () : void
{
viewport.buttonMode = true;
viewport.interactive = true;
//
light_point = new PointLight3D ();
//
cube = new Cube
(
new MaterialsList
(
{
all : onSetMaterial ()
}
),
1, 1, 1,
2, 2, 2
);
cube.useOwnContainer = true;
cube.addEventListener
(
InteractiveScene3DEvent.OBJECT_PRESS,
onNova
);
//
super.scene.addChild (cube);
super.startRendering ();
//
onNova ();
}
private function onSetMaterial () : EnvMapMaterial
{
var material : EnvMapMaterial = new EnvMapMaterial
(
light_point, texture
);
material.interactive = true;
// --o OVERRIDE DEFAULT BACKENVMAP OPAQUE BITMAPDATA WITH A TRANSPARENT BACKGROUND
// ONE TO HIDE UNESTHETIC AMBIENTCOLOR ON BACK FACES WHEN VERTICES ARE RESIZED
var alpha_bitmap : BitmapData = new BitmapData (texture.width, texture.height, true, 0);
alpha_bitmap.draw (texture);
material.backenvmap = alpha_bitmap;
return material;
}
private function onNova (e : InteractiveScene3DEvent = null) : void
{
// --o COMPLETE QUEUED VERTICES TWEEN
for each (var tween : TweenMax in TweenMax.getAllTweens())
{
tween.complete (false, true);
}
//
var size : Number = size_min + (Math.random () * (size_max - size_min));
var scaleRatio : Number;
if (! size_cur)
{
scaleRatio = size_cur = size;
}
else
{
scaleRatio = size / size_cur;
size_cur = size;
}
// --o RESET DISPLAY BAR TO FULL WIDTH
bar_bitmap.bitmapData = bar_display;
vertex_num = cube.geometry.vertices.length;
ratio_step = stageW / vertex_num;
// --o VERTEX3D PROP TWEEN
for each (var v : Vertex3D in cube.geometry.vertices)
{
TweenMax.to
(
v,
Math.random () * 5,
{
x : v.x * scaleRatio,
y : v.y * scaleRatio,
z : v.z * scaleRatio,
onComplete : onTweenEnd,
ease : type_tween[type_ease]
}
);
}
}
private function onTweenEnd () : void
{
var b : BitmapData = new BitmapData
(
1 + (ratio_step * --vertex_num), 10, true, 0
);
b.draw (bar_display);
bar_bitmap.bitmapData = b;
}
override protected function onRenderTick (e : Event = null) : void
{
var p1 : Number = mouseY - (stageH / 2);
var p2 : Number = mouseX - (stageW / 2);
TweenMax.to
(
cube,
1,
{
rotationX : p1,
rotationY : p2
}
);
cube.rotationZ ++;
// --o FILTER DISTANCE | ALPHA
var distance : Number = Math.sqrt (p1 * p1 + p2 * p2);
// --o FILTER ANGLE
var degrees : Number = Math.atan2 (p1, p2) * (180 / Math.PI);
// --o LIGHT POINT
light_point.x = p2;
light_point.y = p1;
//
super.onRenderTick ();
}
//
private function onComplete (e : FileLoadEvent) : void
{
texture = e.target.bitmap;
//
init ();
}
private function onProgress (e : FileLoadEvent) : void
{
var n : Number = 1 - e.bytesLoaded / e.bytesTotal;
var b : BitmapData = new BitmapData
(
Math.round (stageW * n) + 1, 10, true, 0
);
b.draw (bar_display);
bar_bitmap.bitmapData = b;
}
private function onIOError (e : FileLoadEvent) : void
{
trace ('LOAD : FILE ERROR -> ' + e.message);
}
private function onSecurityError (e : FileLoadEvent) : void
{
trace ('LOAD : SECURITY ERROR -> ' + e.message)
}
//
private function onUpload (e : Event) : void
{
file = new FileReference ();
file.addEventListener
(
Event.SELECT, onFileSelect
);
file.addEventListener
(
Event.COMPLETE, onFileComplete
);
var type : Array =
[
new FileFilter
(
'Images (*.jpeg, *.jpg, *.gif, *.png)',
'*.jpeg; *.jpg; *.gif; *.png;',
'JPEG; jp2_; GIFF'
)
];
file.browse (type);
}
private function onFileSelect (e : Event) : void
{
file.load ();
}
private function onFileComplete (e : Event) : void
{
var loader : Loader = new Loader();
loader.loadBytes (file.data);
loader.contentLoaderInfo.addEventListener
(
Event.COMPLETE,
onLoadComplete
);
}
private function onLoadComplete (e : Event) : void
{
var loaderInfo : LoaderInfo = LoaderInfo (e.target);
texture = new BitmapData (loaderInfo.width, loaderInfo.height);
texture.draw(loaderInfo.loader);
//
cube.replaceMaterialByName (onSetMaterial (), 'all');
}
private function onResize (e : Event = null) : void
{
stageW = stage.stageWidth;
stageH = stage.stageHeight;
if (bar_bitmap) onBarDraw ();
// --o UPDATE BAR WIDTH PER TWEEN
ratio_step = stageW / vertex_num;
}
private function onBarDraw () : void
{
var mat : Matrix = new Matrix ();
mat.createGradientBox (2, 10);
var bar : Shape = new Shape ();
bar.graphics.beginGradientFill
(
'linear', [0xAAAAAA, 0xFFFFFF], [1, 0], [0, 127], mat, 'repeat'
);
bar.graphics.drawRect
(
0, 0, stageW, 10
);
bar.graphics.endFill ();
bar_display = new BitmapData (bar.width, bar.height, true, 0);
bar_display.draw (bar);
bar_bitmap.y = stageH - 10;
}
//
private function onPanel () : void
{
// --o SHAPE
var rect : Shape = new Shape ();
rect.graphics.lineStyle (1, 0xAAAAAA);
rect.graphics.beginFill (0xFFFFFF, 0.5);
rect.graphics.moveTo (0, 0);
rect.graphics.lineTo (130, 0);
rect.graphics.lineTo (130, 80);
rect.graphics.lineTo (20, 80);
rect.graphics.lineTo (20, 20);
rect.graphics.lineTo (0, 20);
rect.graphics.lineTo (0, 0);
rect.graphics.endFill ();
//
// --o COMBOBOXES
(
Event.SELECT, onSelectTween
);
(
Event.SELECT, onSelectEase
);
//
}
private function onPanelDisplay (e : Event = null) : void
{
}
private function onSelectTween (e : Event) : void
{
type_tween = e.target.selectedItem.data;
}
private function onSelectEase (e : Event) : void
{
type_ease = e.target.selectedItem.data;
}
}
}
