forked from: Shadow
forked from Shadow (diff: 334)

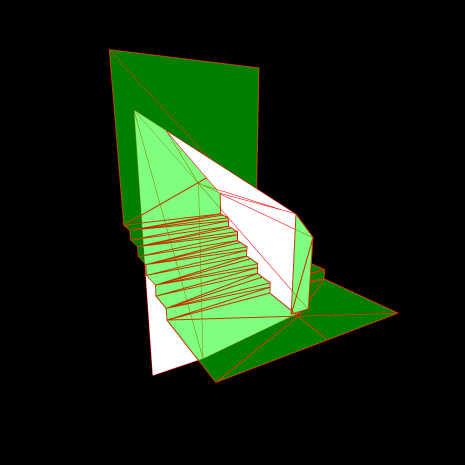

影がどうやってついているか、学習のためfork なるほどこうなってるのか。すごい。 シャドウボリューム法を参考に無理やり影生成をしてみました。 * 色々と間違ってる気がします。もの凄く重い。
ActionScript3 source code
/**
* Copyright dizgid ( http://wonderfl.net/user/dizgid )
* MIT License ( http://www.opensource.org/licenses/mit-license.php )
* Downloaded from: http://wonderfl.net/c/nRPN
*/
// 影がどうやってついているか、学習のためfork なるほどこうなってるのか。すごい。
// forked from tencho's Shadow
/**
* シャドウボリューム法を参考に無理やり影生成をしてみました。
* 色々と間違ってる気がします。もの凄く重い。
*/
package {
import com.bit101.components.*;
import flash.display.Bitmap;
import flash.display.BitmapData;
import flash.display.BlendMode;
import flash.display.Sprite;
import flash.events.Event;
import flash.events.MouseEvent;
import flash.filters.BlurFilter;
import flash.geom.Point;
import flash.utils.Dictionary;
import org.papervision3d.cameras.Camera3D;
import org.papervision3d.core.clipping.FrustumClipping;
import org.papervision3d.core.geom.renderables.Triangle3D;
import org.papervision3d.core.geom.renderables.Vertex3D;
import org.papervision3d.core.geom.TriangleMesh3D;
import org.papervision3d.core.math.Number3D;
import org.papervision3d.materials.ColorMaterial;
import org.papervision3d.materials.utils.MaterialsList;
import org.papervision3d.objects.DisplayObject3D;
import org.papervision3d.objects.primitives.Cube;
import org.papervision3d.objects.primitives.Plane;
import org.papervision3d.objects.primitives.Sphere;
import org.papervision3d.Papervision3D;
import org.papervision3d.render.BasicRenderEngine;
import org.papervision3d.render.QuadrantRenderEngine;
import org.papervision3d.scenes.Scene3D;
import org.papervision3d.view.BitmapViewport3D;
import org.papervision3d.view.Viewport3D;
import org.papervision3d.materials.special.CompositeMaterial;
import org.papervision3d.materials.WireframeMaterial;
public class Shadow extends Sprite {
private var scene:Scene3D;
private var render:BasicRenderEngine;
private var camera:Camera3D;
private var viewport:Viewport3D;
private var cameraTarget:DisplayObject3D;
private var light:Sphere;
private var plane:Plane;
private var kaidan:Plane;
private var wall:Plane;
private var floor:Plane;
private var points:Array;
private var indexes:Array;
private var bg:Sprite;
private var shadowScene:Scene3D;
private var shadowViewport:BitmapViewport3D
private var shadowRender:QuadrantRenderEngine;
//private var shadowRender:BasicRenderEngine;
private var shadowModel:Cube;
private var shadowMap:BitmapData;
private var fillMaterial:CompositeMaterial;
//private var maskMaterial:ColorMaterial;
private var maskMaterial:CompositeMaterial;
private var topColor:ColorMaterial;
private var sideColor:CompositeMaterial;
private var shadowClones:Dictionary;
private var totalShadow:Sprite;
private var view1:Bitmap;
private var view2:Bitmap;
private var sceneDragger:SceneDragger;
private var lightDragger:LightDragger;
private var shadowBitmap:Bitmap;
//コンストラクタ
public function Shadow() {
Style.LABEL_TEXT = 0xFFFFFF;
var size:Array = [100, 450];
bg = new Sprite();
bg.graphics.beginFill(0x333333);
bg.graphics.drawRect(0, 0, 465, 465);
points = [new Number3D(size[0]/2, -size[1]/2, -600), new Number3D(-size[0]/2, -size[1]/2, -600), new Number3D(size[0]/2, size[1]/4, -600), new Number3D(-size[0]/2, size[1]/2, -600)];
indexes = [0,1,2,3,6,7,4,5];
scene = new Scene3D();
render = new BasicRenderEngine();
render.clipping = new FrustumClipping(FrustumClipping.NEAR);
viewport = new Viewport3D(465, 465, false);
camera = new Camera3D();
cameraTarget = scene.addChild(new DisplayObject3D());
cameraTarget.position = new Number3D(0, 0, 0);
//color
fillMaterial = new CompositeMaterial();
fillMaterial.addMaterial(new WireframeMaterial(0xff0000));
fillMaterial.addMaterial(new ColorMaterial(0x00ff00, 0.5));
maskMaterial = new CompositeMaterial();
maskMaterial.addMaterial(new WireframeMaterial(0xff0000));
maskMaterial.addMaterial(new ColorMaterial(0xffffff));
topColor = new ColorMaterial(0x969696);
sideColor = new CompositeMaterial();
sideColor.addMaterial(new WireframeMaterial(0xff0000));
sideColor.addMaterial(new ColorMaterial(0xD5D5D5));
//model
createModels();
//shadow
shadowScene = new Scene3D();
shadowRender = new QuadrantRenderEngine(QuadrantRenderEngine.ALL_FILTERS);
//shadowRender = new BasicRenderEngine();
shadowViewport = new BitmapViewport3D(465, 465, false, false, 0x000000);
shadowModel = new Cube(new MaterialsList( { all:maskMaterial } ), 100, 100, 100, 1, 1, 1);
scene.addChild(plane);
scene.addChild(wall);
scene.addChild(floor);
scene.addChild(kaidan);
scene.addChild(light);
shadowScene.addChild(shadowModel);
var clones:Array = [kaidan, plane, wall, floor];
shadowClones = new Dictionary();
for each(var model:DisplayObject3D in clones) {
var tm:TriangleMesh3D = shadowScene.addChild(model.clone()) as TriangleMesh3D;
for each(var tri:Triangle3D in tm.geometry.faces) tri.material = fillMaterial;
shadowClones[model] = tm;
}
shadowMap = new BitmapData(465, 465, false, 0x00000000);
totalShadow = new Sprite();
view1 = totalShadow.addChild(new Bitmap(new BitmapData(465, 465, true))) as Bitmap;
view2 = totalShadow.addChild(new Bitmap(new BitmapData(465, 465, false))) as Bitmap;
view2.blendMode = BlendMode.SUBTRACT;
shadowBitmap = new Bitmap(shadowMap);
shadowBitmap.alpha = 0.2;
shadowBitmap.filters = [new BlurFilter(5, 5, 1)];
shadowBitmap.blendMode = BlendMode.SUBTRACT;
sceneDragger = new SceneDragger(bg, -120, 15);
sceneDragger.addEventListener(Event.CHANGE, onMoveCamera);
lightDragger = new LightDragger();
lightDragger.addEventListener(Event.CHANGE, onChangeLight);
viewport.mouseChildren = false;
viewport.mouseEnabled = false;
addChild(bg);
addChild(viewport);
addChild(shadowBitmap);
addChild(lightDragger);
createButtons();
updateLight();
refresh();
shadowViewport.mouseChildren = false;
shadowViewport.mouseEnabled = false;
addChild(shadowViewport);
}
private function createButtons():void {
var vox:VBox = new VBox(this, 7, 115);
new RadioButton(vox, 0, 0, "NORMAL", true, onSelectMode).tag = 0;
new RadioButton(vox, 0, 0, "VIEW1", false, onSelectMode).tag = 1;
new RadioButton(vox, 0, 0, "VIEW2", false, onSelectMode).tag = 2;
new Label(this, 3, 465-20, "DRAG TO ROTATE CAMERA");
}
private function onSelectMode(e:MouseEvent):void{
switch(RadioButton(e.currentTarget).tag) {
case 0:
view1.visible = true;
view2.visible = true;
view2.blendMode = BlendMode.SUBTRACT;
shadowBitmap.filters = [new BlurFilter(5, 5, 1)];
shadowBitmap.alpha = 0.2;
break;
case 1:
view1.visible = true;
view2.visible = false;
shadowBitmap.alpha = 0.4;
shadowBitmap.filters = [];
break;
case 2:
view1.visible = false;
view2.visible = true;
view2.blendMode = BlendMode.NORMAL;
shadowBitmap.filters = [];
shadowBitmap.alpha = 0.4;
break;
}
refresh();
}
private function createModels():void {
var i:int;
var slide:Number = 500;
var stepDepth:Number = 150;
var stepHeight:Number = 60;
var stepNum:Number = 5;
var stepWidth:Number = 1000;
var planeColor:ColorMaterial = new ColorMaterial(0xEEEEEE);
planeColor.doubleSided = true;
plane = new Plane(planeColor, 100, 500, 1, 1);
for (i = 0; i < plane.geometry.vertices.length; i++) {
plane.geometry.vertices[i].x = points[i].x;
plane.geometry.vertices[i].y = points[i].y;
plane.geometry.vertices[i].z = points[i].z - 5;
}
kaidan = new Plane(null, 100, stepWidth, stepNum*2, 1);
kaidan.rotationY = kaidan.rotationX = 90;
kaidan.z = slide;
for (i = 0; i < kaidan.geometry.faces.length; i++)
kaidan.geometry.faces[i].material = (int(i/2)%2)? sideColor : topColor;
for (i = 0; i < kaidan.geometry.vertices.length; i++) {
var v:Vertex3D = kaidan.geometry.vertices[i];
v.z = int(i / 4) * stepHeight;
v.x = int((i+2) / 4) * stepDepth;
}
floor = new Plane(topColor, stepWidth, 500, 1, 1);
floor.z = -stepDepth * stepNum + slide - 500/2;
floor.y = -stepHeight * stepNum;
floor.rotationX = 90;
wall = new Plane(sideColor, stepWidth, 1000, 1, 1);
wall.y = 1000/2;
wall.z = slide;
light = new Sphere(new ColorMaterial(0xFFAA00, 0.5), 50, 8, 4);
light.position = new Number3D(0, 300, -1000);
}
private function onChangeLight(e:Event):void {
updateLight();
refresh();
}
private function onMoveCamera(e:Event):void {
refresh();
}
private function updateLight():void {
var pos:Point = lightDragger.getPosition();
light.x = pos.x * 500;
light.y = pos.y * 500 - 200;
for (var i:int = 0; i < 4; i++) {
shadowModel.geometry.vertices[indexes[i]].x = points[i].x;
shadowModel.geometry.vertices[indexes[i]].y = points[i].y;
shadowModel.geometry.vertices[indexes[i]].z = points[i].z;
var stretch:Number3D = Number3D.sub(points[i], light.position);
stretch.multiplyEq(5);
stretch.plusEq(light.position);
shadowModel.geometry.vertices[indexes[i + 4]].x = stretch.x;
shadowModel.geometry.vertices[indexes[i + 4]].y = stretch.y;
shadowModel.geometry.vertices[indexes[i + 4]].z = stretch.z;
}
}
private function refresh():void {
camera.position = sceneDragger.getPosition(2000);
camera.lookAt(cameraTarget);
for(var m:* in shadowClones) m.transform = shadowClones[m].transform;
render.renderScene(scene, camera, viewport);
drawShadow();
}
private function drawShadow():void {
shadowRender.renderScene(shadowScene, camera, shadowViewport);
view1.bitmapData.copyPixels(shadowViewport.bitmapData, shadowViewport.bitmapData.rect, new Point());
shadowModel.geometry.flipFaces();
shadowRender.renderScene(shadowScene, camera, shadowViewport);
view2.bitmapData.copyPixels(shadowViewport.bitmapData, shadowViewport.bitmapData.rect, new Point());
shadowMap.draw(totalShadow);
shadowModel.geometry.flipFaces();
}
}
}
import com.bit101.components.Label;
import flash.display.BitmapData;
import flash.display.Sprite;
import flash.events.Event;
import flash.events.EventDispatcher;
import flash.events.MouseEvent;
import flash.geom.Point;
import flash.geom.Rectangle;
import org.papervision3d.core.math.Number3D;
/**
* ライト位置をマウスで動かす
*/
class LightDragger extends Sprite {
private var position:Point;
private var circle:Sprite;
private var grid:BitmapData;
public function LightDragger() {
position = new Point(50, 70);
grid = new BitmapData(10, 10, false, 0xFFA0A0A0);
grid.fillRect(new Rectangle(0, 0, 10, 1), 0xFF888888);
grid.fillRect(new Rectangle(0, 0, 1, 10), 0xFF888888);
graphics.clear();
graphics.beginBitmapFill(grid);
graphics.drawRect(0, 0, 100, 100);
circle = new Sprite();
circle.graphics.beginFill(0x000000);
circle.graphics.drawCircle(0, 0, 5);
circle.graphics.beginFill(0xFFFFFF);
circle.graphics.drawCircle(0, 0, 4);
circle.mouseChildren = false;
circle.mouseEnabled = false;
addChild(circle);
draw(position.x, position.y);
buttonMode = true;
addEventListener(MouseEvent.MOUSE_DOWN, onMsDown);
new Label(this, 3, 3, "LIGHT POSITION");
}
public function getPosition():Point {
return new Point((position.x - 50) / 50, 1 - (position.y - 50) / 50);
}
private function onMsUp(e:MouseEvent):void {
stage.removeEventListener(MouseEvent.MOUSE_MOVE, onMsMove);
stage.removeEventListener(MouseEvent.MOUSE_UP, onMsUp);
draw();
}
private function onMsDown(e:MouseEvent):void {
stage.addEventListener(MouseEvent.MOUSE_MOVE, onMsMove);
stage.addEventListener(MouseEvent.MOUSE_UP, onMsUp);
draw();
}
private function onMsMove(e:MouseEvent):void {
draw();
}
private function draw(px:Number = NaN, py:Number = NaN):void {
if (isNaN(px)) px = Math.max(0, Math.min(100, mouseX));
if (isNaN(py)) py = Math.max(0, Math.min(100, mouseY));
circle.x = px;
circle.y = py;
position.x = px;
position.y = py;
dispatchEvent(new Event(Event.CHANGE));
}
}
/**
* シーンをマウスでぐるぐる
*/
class SceneDragger extends EventDispatcher {
private var _rotation:Number;
private var _angle:Number;
private var _sprite:Sprite;
private var _saveRotation:Number;
private var _saveAngle:Number;
private var _saveMousePos:Point;
public function SceneDragger(sprite:Sprite, rotation:Number = 0, angle:Number = 30) {
_angle = angle;
_rotation = rotation;
_sprite = sprite;
_sprite.addEventListener(MouseEvent.MOUSE_DOWN, onMsDown);
_sprite.addEventListener(MouseEvent.MOUSE_UP, onMsUp);
}
private function onMsDown(e:MouseEvent):void {
_sprite.addEventListener(MouseEvent.MOUSE_MOVE, onMsMove);
_saveRotation = _rotation;
_saveAngle = _angle;
_saveMousePos = new Point(_sprite.mouseX, _sprite.mouseY);
}
private function onMsMove(e:MouseEvent):void {
var dragOffset:Point = new Point(_sprite.mouseX, _sprite.mouseY).subtract(_saveMousePos);
_rotation = _saveRotation - dragOffset.x * 0.5;
_angle = Math.max(-89, Math.min(89, _saveAngle + dragOffset.y * 0.5));
dispatchEvent(new Event(Event.CHANGE));
}
private function onMsUp(...rest):void {
_sprite.removeEventListener(MouseEvent.MOUSE_MOVE, onMsMove);
dispatchEvent(new Event(Event.CHANGE));
}
public function getPosition(distance:Number):Number3D {
var per:Number = Math.cos(Math.PI / 180 * _angle);
var px:Number = Math.cos(Math.PI / 180 * _rotation) * distance * per;
var py:Number = Math.sin(Math.PI / 180 * _angle) * distance;
var pz:Number = Math.sin(Math.PI / 180 * _rotation) * distance * per;
return new Number3D(px, py, pz);
}
}
