「配列→ブロック絵」の置き換え処理

/**
 * Copyright o_healer ( http://wonderfl.net/user/o_healer )
 * MIT License ( http://www.opensource.org/licenses/mit-license.php )
 * Downloaded from: http://wonderfl.net/c/mOTe
 */

/*

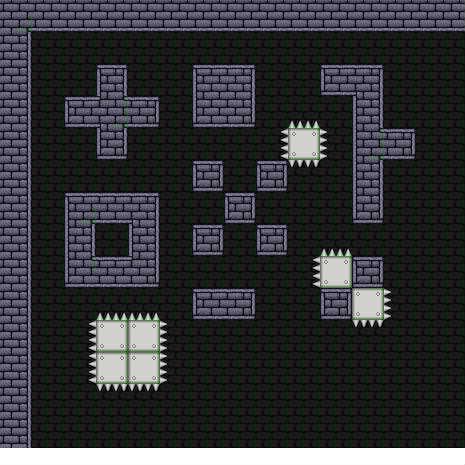

　「配列→ブロック絵」の置き換え処理

　・配列(MAP)の値に基づき、ブロックの絵を描く
　　・境界線ありのブロック画像に対応
　　・ConvolutionFilterとpaletteMapで絵のIndexに変換する

　・別のアクションゲームで使うための土台
　　・MAPの中身をいじるだけで画像を簡単に変えられるようにしておく

　・wonderflに上げた画像だと圧縮されて隣接ブロックの色がにじむので
　　余裕を持った画像にするか、別のところに上げるかした方が良いかも
*/

package{
    import flash.display.*;
    import flash.events.*;
    import flash.geom.*;
    import flash.net.*;
    import flash.text.*;
    import flash.filters.*;
    import flash.ui.*;
    import flash.system.*;

    public class GameMain extends Sprite{
        //==File==
//*
        static public const BITMAP_URL:String = "http://assets.wonderfl.net/images/related_images/c/cd/cdde/cdde14248108db9327a151f43ac41fa70b897c11m";
/*/
        [Embed(source='Blocks.png')]
         private static var Bitmap_Graphic: Class;
//*/

        //==Const==

        //マップ要素
        static public var MapIter:int = 0;
        static public const O:uint    = MapIter++;
        static public const W:uint    = MapIter++;
        static public const P:uint    = MapIter++;
        static public const G:uint    = MapIter++;
        static public const X:uint    = MapIter++;

        //マップ
        static public const MAP:Array = [
            [W, W, W, W, W, W, W, W, W, W, W, W, W, W, W, W, W, W],
            [W, O, O, O, O, O, O, O, O, O, O, O, O, O, O, O, O, W],
            [W, O, O, W, O, O, W, W, O, O, W, W, O, O, O, O, O, W],
            [W, O, W, W, W, O, W, W, O, O, O, W, O, O, O, O, O, W],
            [W, O, O, W, O, O, O, O, O, X, O, W, W, O, O, O, O, W],
            [W, O, O, O, O, O, W, O, W, O, O, W, O, O, O, O, O, W],
            [W, O, W, W, W, O, O, W, O, O, O, W, O, O, O, O, O, W],
            [W, O, W, O, W, O, W, O, W, O, O, O, O, O, O, O, O, W],
            [W, O, W, W, W, O, O, O, O, O, X, W, O, O, O, O, O, W],
            [W, O, O, O, O, O, W, W, O, O, W, X, O, O, O, O, O, W],
            [W, P, O, X, X, O, O, O, O, O, O, O, O, O, O, O, G, W],
            [W, O, O, X, X, O, O, O, O, O, O, O, O, O, O, O, O, W],
            [W, O, O, O, O, O, O, O, O, O, O, O, O, O, O, O, O, W],
            [W, O, O, O, O, O, O, O, O, O, O, O, O, O, O, O, O, W],
        ];


        //==Var==

        public var m_BitmapData_View:BitmapData;


        //==Function==

        public function GameMain(){
//*
            //wonderfl用：Bitmapを外部からロードする場合

            //Load
            addEventListener(
                Event.ADDED_TO_STAGE,//ステージに追加されたら
                function(e:Event):void{
                    var loader:Loader = new Loader();
                    loader.load(new URLRequest(BITMAP_URL), new LoaderContext(true));//画像のロードを開始して
                    loader.contentLoaderInfo.addEventListener(
                        Event.COMPLETE,//ロードが完了したら
                        function(e:Event):void{
                            ImageManager.Init(loader.content);//それを保持した後

                            Init();//初期化に入る
                        }
                    );
                }
            );
/*/
            //ローカル用：Bitmapを事前ロードできる場合

            //ブロック画像のセット（＆その他初期化）
            ImageManager.Init(new Bitmap_Graphic());

            //本体の初期化
            addEventListener(Event.ADDED_TO_STAGE, Init);
//*/
        }

        public function Init(e:Event=null):void{
            var BitmapW:int = MAP[0].length * 32;
            var BitmapH:int = MAP.length * 32;

            m_BitmapData_View = new BitmapData(BitmapW, BitmapH, true, 0x00000000);

            ImageManager.DrawBG(MAP, m_BitmapData_View);

            addChild(new Bitmap(m_BitmapData_View));
        }
    }
}


import flash.display.*;
import flash.events.*;
import flash.geom.*;
import flash.net.*;
import flash.text.*;
import flash.filters.*;
import flash.ui.*;

class ImageManager
{
    //==Const==

    //#Graphic
    static public var m_GraphicIndexIter:int = 0;

    static public const GRAPHIC_INDEX_BG:int            = m_GraphicIndexIter++;

    static public const GRAPHIC_INDEX_WALL:int            = m_GraphicIndexIter++;
    static public const GRAPHIC_INDEX_WALL_X:int        = m_GraphicIndexIter++;
    static public const GRAPHIC_INDEX_WALL_Y:int        = m_GraphicIndexIter++;
    static public const GRAPHIC_INDEX_WALL_XorY:int        = m_GraphicIndexIter++;
    static public const GRAPHIC_INDEX_WALL_XandY:int    = m_GraphicIndexIter++;

    static public const GRAPHIC_INDEX_NEEDLE:int        = m_GraphicIndexIter++;
    static public const GRAPHIC_INDEX_NEEDLE_X:int        = m_GraphicIndexIter++;
    static public const GRAPHIC_INDEX_NEEDLE_Y:int        = m_GraphicIndexIter++;
    static public const GRAPHIC_INDEX_NEEDLE_XY:int        = m_GraphicIndexIter++;

    static public const GRAPHIC_INDEX_NUM:int            = m_GraphicIndexIter;


    //#enum:Quater
    static public const LU:int = 0;
    static public const RU:int = 1;
    static public const LD:int = 2;
    static public const RD:int = 3;

    //#enum:Pos
    static public const POS_X:int = 0;
    static public const POS_Y:int = 1;


    //#Graphic
    static public var m_BitmapData_View:BitmapData;

    //#Mapping
    static public var GRAPHIC_INDEX_TO_POS:Array;


    //#Palette
    static public var m_Palette_ForView:Array;


    //#Utility
    static public const POS_ZERO:Point = new Point(0,0);


    //==Function==

    //#Init
    static public function Init(in_Graphic:DisplayObject):void{
        var x:int, y:int, i:int;

        //m_BitmapData_View
        {
            m_BitmapData_View = new BitmapData(256, 256, false, 0x000000);
            m_BitmapData_View.draw(in_Graphic);
        }

        //GRAPHIC_INDEX_TO_POS
        {//GRAPHIC_INDEX_～から画像の位置へのマッピング（さらにどの隅での処理かも含む）（そして左から何マス目、上から何マス目、という指定）
            GRAPHIC_INDEX_TO_POS = new Array(GRAPHIC_INDEX_NUM);

            //[LU][RU][LD][RD]

            GRAPHIC_INDEX_TO_POS[GRAPHIC_INDEX_BG]            = [[3,2], [3,2], [3,2], [3,2]];

            GRAPHIC_INDEX_TO_POS[GRAPHIC_INDEX_WALL]        = [[1,1], [1,1], [1,1], [1,1]];
            GRAPHIC_INDEX_TO_POS[GRAPHIC_INDEX_WALL_X]        = [[0,1], [2,1], [0,1], [2,1]];
            GRAPHIC_INDEX_TO_POS[GRAPHIC_INDEX_WALL_Y]        = [[1,0], [1,0], [1,2], [1,2]];
            GRAPHIC_INDEX_TO_POS[GRAPHIC_INDEX_WALL_XorY]    = [[0,0], [2,0], [0,2], [2,2]];
            GRAPHIC_INDEX_TO_POS[GRAPHIC_INDEX_WALL_XandY]    = [[3,0], [4,0], [3,1], [4,1]];

            GRAPHIC_INDEX_TO_POS[GRAPHIC_INDEX_NEEDLE]        = [[3,3], [4,3], [3,4], [4,4]];
            GRAPHIC_INDEX_TO_POS[GRAPHIC_INDEX_NEEDLE_X]    = [[0,4], [2,4], [0,4], [2,4]];
            GRAPHIC_INDEX_TO_POS[GRAPHIC_INDEX_NEEDLE_Y]    = [[1,3], [1,3], [1,5], [1,5]];
            GRAPHIC_INDEX_TO_POS[GRAPHIC_INDEX_NEEDLE_XY]    = [[0,3], [2,3], [0,5], [2,5]];
        }

        //m_Palette_ForView
        {
            m_Palette_ForView = new Array(256);

            var index_graphic:int = GRAPHIC_INDEX_BG;
            for(i = 0; i < 256; i++){
                //区切りごとにindexを変更。次の区切りまではその値をセット
                switch(i){
                case 0:
                case 6:
                case 18:
                case 24:
                    index_graphic = GRAPHIC_INDEX_BG; break;
                case 3:
                case 21:
                    index_graphic = GRAPHIC_INDEX_NEEDLE_Y; break;
                case 9:
                case 15:
                    index_graphic = GRAPHIC_INDEX_NEEDLE_X; break;
                case 12:
                    index_graphic = GRAPHIC_INDEX_NEEDLE_XY; break;
                case 27:
                    index_graphic = GRAPHIC_INDEX_NEEDLE; break;
                case 54:
                case 63:
                    index_graphic = GRAPHIC_INDEX_WALL_XorY; break;
                case 60:
                case 69:
                    index_graphic = GRAPHIC_INDEX_WALL_X; break;
                case 72:
                    index_graphic = GRAPHIC_INDEX_WALL_Y; break;
                case 78:
                    index_graphic = GRAPHIC_INDEX_WALL_XandY; break;
                case 80:
                    index_graphic = GRAPHIC_INDEX_WALL; break;
                }

                m_Palette_ForView[i] = index_graphic;
            }
        }
    }

    //#Draw : BG
    static public function DrawBG(in_Map:Array, out_BitmapData_View:BitmapData):void
    {
        var x:int, y:int, i:int;
        var mtx:Matrix = new Matrix();

        var NumX:int = in_Map[0].length;
        var NumY:int = in_Map.length;

        //Map => Bitmap_Base
        //Mapの要素を元に、「０：空白」「１：トゲ」「２：壁」というBitmapを生成
        var BitmapData_Base:BitmapData;
        {
            BitmapData_Base = new BitmapData(NumX, NumY, false, 0x000000);
            for(y = 0; y < NumY; y++){
                for(x = 0; x < NumX; x++){
                    var index:int = 0;//default(O, P, G)
                    {
                        switch(in_Map[y][x]){
                        case GameMain.W:
                            index = 2;
                            break;
                        case GameMain.X:
                            index = 1;
                            break;
                        }
                    }

                    BitmapData_Base.setPixel(x, y, index);
                }
            }
        }

        //Bitmap_Base => Bitmap_LU,Bitmap_RU,Bitmap_LD,Bitmap_RD
        //Bitmap_Baseを元に、四隅の隣接状況をそれぞれ求める(Uniqueな値になるようにする)
        var BitmapData_Quater:Array = new Array(4);
        {
            //Create Filter
            const filter:Array = [
                new ConvolutionFilter(3,3,
                    [//LU
                        1,  3,  0,
                        9, 27,  0,
                        0,  0,  0,
                    ]
                ),
                new ConvolutionFilter(3,3,
                    [//RU
                        0,  3,  1,
                        0, 27,  9,
                        0,  0,  0,
                    ]
                ),
                new ConvolutionFilter(3,3,
                    [//LD
                        0,  0,  0,
                        9, 27,  0,
                        1,  3,  0,
                    ]
                ),
                new ConvolutionFilter(3,3,
                    [//RD
                        0,  0,  0,
                        0, 27,  9,
                        0,  3,  1,
                    ]
                ),
            ];

            for(i = 0; i < 4; i++){
                //Init
                BitmapData_Quater[i] = new BitmapData(NumX, NumY, false, 0x000000);

                //Apply Filter
                BitmapData_Quater[i].applyFilter(BitmapData_Base, BitmapData_Base.rect, POS_ZERO, filter[i]);
            }
        }

        //Bitmap_LU,Bitmap_RU,Bitmap_LD,Bitmap_RD => ForView
        //Uniqueな値から、対応するIndexへと変換する
        var BitmapData_ForView:Array = new Array(4);
        {
            for(i = 0; i < 4; i++){
                //Init
                BitmapData_ForView[i] = new BitmapData(NumX, NumY, false, 0x000000);

                //Apply Palette
                BitmapData_ForView[i].paletteMap(BitmapData_Quater[i], BitmapData_Quater[i].rect, POS_ZERO, null, null, m_Palette_ForView);
            }
        }


        //Draw
        //上で求めたIndexに基づき描画
        {
            var rect:Rectangle = new Rectangle(0,0, 16,16);

            for(y = 0; y < NumY; y++){
                for(x = 0; x < NumX; x++){
                    for(i = 0; i < 4; i++){
                        rect.x = x * 32 + 16 * ((i&1)>>0);
                        rect.y = y * 32 + 16 * ((i&2)>>1);

                        //#view
                        mtx.tx = rect.x - 16 * GRAPHIC_INDEX_TO_POS[BitmapData_ForView[i].getPixel(x, y)][i][POS_X];
                        mtx.ty = rect.y - 16 * GRAPHIC_INDEX_TO_POS[BitmapData_ForView[i].getPixel(x, y)][i][POS_Y];
                        out_BitmapData_View.draw(m_BitmapData_View, mtx, null, null, rect);
                    }
                }
            }
        }
    }
}
