forked from: QbicQube2(ReflectionView)

/**
 * Copyright 1031no ( http://wonderfl.net/user/1031no )
 * MIT License ( http://www.opensource.org/licenses/mit-license.php )
 * Downloaded from: http://wonderfl.net/c/mM4A
 */

// forked from umhr's QbicQube2(ReflectionView)
/*

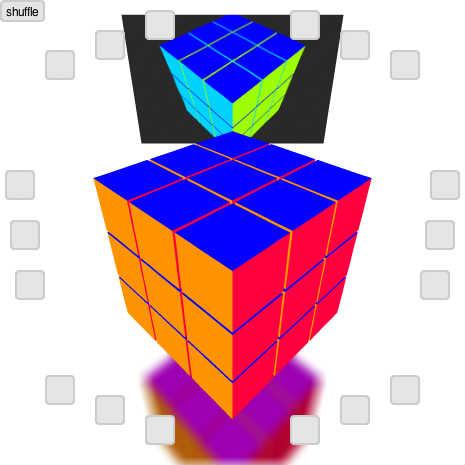

鏡面反射と鏡を追加。

◆鏡面反射
BasicViewの代わりにReflectionViewにして、
surfaceHeight = -1300;
setReflectionColor(0.7, 0.7, 0.7);
viewportReflection.filters = [new BlurFilter(16,16)];
とかやると、鏡面反射ができる。
毎フレーム
singleRender();
でレンダリングし直す。


◆鏡
鏡用のカメラを設定して、
second_camera = new Camera3D(30);
投影先を作って、
var material:BitmapViewportMaterial = new BitmapViewportMaterial(bitmapViewport);
//material.doubleSided = true;
material.opposite = true;
material.smooth = true;
plane = new Plane(material, 1000, 600,6,4);
毎フレーム
renderer.renderScene(scene, second_camera, bitmapViewport);
でレンダリングし直す。


参考
http://www.kyucon.com/blog/flash/flash3d/

*/
package {
	import flash.filters.BlurFilter;
	import flash.text.TextField;
	import flash.events.Event;
	import flash.events.MouseEvent;
	import flash.display.DisplayObject;
	import flash.display.Sprite;
	import flash.display.SimpleButton;

	import org.papervision3d.view.BitmapViewport3D;
	import org.papervision3d.lights.PointLight3D;
	import org.papervision3d.cameras.Camera3D;
	import org.papervision3d.materials.BitmapMaterial;
	import org.papervision3d.materials.BitmapViewportMaterial;
	import org.papervision3d.materials.utils.MaterialsList;
	import org.papervision3d.materials.shadematerials.FlatShadeMaterial;
	import org.papervision3d.objects.primitives.Plane;
	import org.papervision3d.objects.primitives.Cube;
	import org.papervision3d.objects.DisplayObject3D;
	import org.papervision3d.core.effects.view.ReflectionView;
	import org.papervision3d.core.math.Quaternion;
	import org.papervision3d.core.math.Matrix3D;
	import caurina.transitions.Tweener;

	[SWF(width="465", height="465", frameRate="30", backgroundColor="0x000000")]
	public class Main8 extends ReflectionView {

		private var cube:Cube;
		private var stageWidth:int = stage.stageWidth;
		private var stageHeight:int = stage.stageHeight;
		private var light:PointLight3D = new PointLight3D();
		private var cubes_array:Array = new Array();
		private var anchors_array:Array = new Array();
		private var cubePoz:Array = [
		{ x: -1, y: -1, z: -1 }, { x:0, y: -1, z: -1 }, { x:1, y: -1, z: -1 },
		{ x: -1, y: 0, z: -1 }, { x:0, y: 0, z: -1 }, { x:1, y: 0, z: -1 },
		{ x: -1, y:1, z: -1 }, { x:0, y:1, z: -1 }, { x:1, y:1, z: -1 },

		{ x: -1, y: -1, z: 0 }, { x:0, y: -1, z: 0 }, { x:1, y: -1, z: 0 },
		{ x: -1, y: 0, z: 0 }, { x:0, y: 0, z: 0 }, { x:1, y: 0, z: 0 },
		{ x: -1, y:1, z: 0 }, { x:0, y:1, z: 0 }, { x:1, y:1, z: 0 },

		{ x: -1, y: -1, z: 1 }, { x:0, y: -1, z: 1 }, { x:1, y: -1, z: 1 },
		{ x: -1, y: 0, z: 1 }, { x:0, y: 0, z: 1 }, { x:1, y: 0, z: 1 },
		{ x: -1, y:1, z: 1 }, { x:0, y:1, z: 1 }, { x:1, y:1, z: 1 }
		];
		private var do3d:DisplayObject3D = new DisplayObject3D();
		private var myCubicData:CubicData = new CubicData();
		private var shield:Sprite = Create.newSprite(null, null, [["beginFill", [0x000000, 0]], ["drawRect", [0, 0, stageWidth, stageHeight]]]);

		public function Main8(){
			super(465, 465, false);

			//キューブを生成
			var colors_array:Array = [ 0x00d3ff, 0xff003e, 0x9dff00, 0xff9300, 0x0400ff, 0xe200ff ];
			//var material:FlatShadeMaterial = new FlatShadeMaterial(light, 0xFF, 0x000000);
			/*
			var ml:MaterialsList = new MaterialsList( {
				front:new BitmapFileMaterial("t0.jpg"),
				back:new BitmapFileMaterial("t1.jpg"),
				right:new BitmapFileMaterial("t2.jpg"),
				left:new BitmapFileMaterial("t3.jpg"),
				top:new BitmapFileMaterial("t4.jpg"),
				bottom:new BitmapFileMaterial("t5.jpg")
				} )
			*/
			var ml:MaterialsList = new MaterialsList( {
				front:new FlatShadeMaterial(light, colors_array[0], colors_array[0]),
				back:new FlatShadeMaterial(light, colors_array[1], colors_array[1]),
				right:new FlatShadeMaterial(light, colors_array[2], colors_array[2]),
				left:new FlatShadeMaterial(light, colors_array[3], colors_array[3]),
				top:new FlatShadeMaterial(light, colors_array[4], colors_array[4]),
				bottom:new FlatShadeMaterial(light, colors_array[5], colors_array[5])
				} )

			//var wfm:WireframeMaterial = new WireframeMaterial(0x009900);
			var cubicPoz_array:Array = new Array();
			for (var i:int = 0; i < cubePoz.length; i++) {
				var _cube:Cube;
				if (i<30) {
					_cube = new Cube(ml, 200, 200, 200, 4, 4, 4);
				}else {
					//_cube = new Cube(new MaterialsList( { all:wfm } ), 200, 200, 200, 2, 2, 2);
				}
				_cube.x = cubePoz[i].x * 210;
				_cube.y = cubePoz[i].y * 210;
				_cube.z = cubePoz[i].z * 210;
				var _anchor:DisplayObject3D = new DisplayObject3D();
				cubes_array[i] = _cube;
				_anchor.addChild(_cube);
				anchors_array[i] = _anchor;
				do3d.addChild(_anchor);
			}
			var pos:Quaternion = Quaternion.createFromEuler( 0, 0, 0, true);
			do3d.copyTransform(Matrix3D.quaternion2matrix(pos.x, pos.y, pos.z, pos.w));
			do3d.y = -100;
			scene.addChild(do3d);
			startRendering();

			//ボタン類
			var btnName_array:Array = ["0_0", "0_1", "1_0", "1_1", "2_0", "2_1", "3_0", "3_1", "4_0", "4_1", "5_0", "5_1", "6_0", "6_1", "7_0", "7_1", "8_0", "8_1"];
			var btnXYWH:Array = [
			[390, 50, 30, 30], [145, 415, 30, 30], [340, 30, 30, 30], [95, 395, 30, 30], [290, 10, 30, 30], [45, 375, 30, 30],
			[420, 270, 30, 30], [15, 270, 30, 30], [425, 220, 30, 30], [10, 220, 30, 30], [430, 170, 30, 30], [5, 170, 30, 30],
			[290, 415, 30, 30], [45, 50, 30, 30], [340, 395, 30, 30], [95, 30, 30, 30], [390, 375, 30, 30], [145, 10, 30, 30]];

			for (i = 0; i < btnName_array.length; i++) {
				var _btn:SimpleButton = Create.newSimpleButton(btnXYWH[i]);
				_btn.name = btnName_array[i];
				_btn.addEventListener(MouseEvent.CLICK, CLICK);
				addChild(_btn);
			}

			//シャッフル用ボタン＆関数
			var auto_btn:SimpleButton = Create.newSimpleButton([0,0,45,22,"shuffle"]);
			auto_btn.addEventListener(MouseEvent.CLICK, autoCLICK);
			addChild(auto_btn);

			function autoCLICK(e:MouseEvent = null):void {
				Tweener.addCaller(auto_btn, { onUpdate:fnAuto, time:5, count:10 , transition : "linear"} );
				function fnAuto():void {
					CLICK(null, btnName_array[Math.floor(Math.random()*btnName_array.length)]);
				}
			}

			//誤動作防止用盾
			addChild(shield);
			shield.visible = false;

			//回転時用
			function CLICK(e:MouseEvent = null , auto:String = null):void {
				if (shield.visible) {
					return;
				}
				shield.visible = true;
				var _ar:Array;
				var step:int;
				if (auto) {
					_ar = auto.split("_");
					step = 1;
				}else{
					_ar = e.currentTarget.name.split("_");
					step = 10;
				}
				_ar = [int(_ar[0]), int(_ar[1])];
				var move_array:Array = myCubicData.moveRotation(_ar);
				var count_array:Array = new Array();
				var ai_array:Array = new Array();
				for (var i:int = 0; i < move_array.length; i++) {
					ai_array[i] = move_array[i];
					var pos1:Quaternion = Quaternion.createFromMatrix(anchors_array[ai_array[i]].transform);
					var pos2:Quaternion;
					if (_ar[0] < 3) {
						pos2 = Quaternion.createFromEuler(0, -90+180*_ar[1], 0, true);
					}else if (_ar[0] <6) {
						pos2 = Quaternion.createFromEuler(-90+180*_ar[1], 0, 0, true);
					}else if (_ar[0] <9) {
						pos2 = Quaternion.createFromEuler(0, 0, -90+180*_ar[1], true);
					}
					pos2.mult(pos1);
					count_array[i] = 0;
					Tweener.addCaller(do3d, { onUpdate:update, time:step/20, count:step ,onUpdateParams:[i,pos1,pos2], transition : "linear"} );
					function update(n:int,p1:Quaternion,p2:Quaternion):void {
						count_array[n] ++;
						if (count_array[n] > step) {return };
						var gpos:Quaternion = Quaternion.slerp( p1, p2, count_array[n]/step );
						anchors_array[ai_array[n]].copyTransform(Matrix3D.quaternion2matrix(gpos.x, gpos.y, gpos.z, gpos.w));
						if (count_array[n] == step && n == 8) {
							ENTER_FRAME();
							shield.visible = false;
						};
					}
				}
			}

			//カメラ設定
			initCamera();

			//鏡面反射
			surfaceHeight = -1300;
			setReflectionColor(0.7, 0.7, 0.7);
			viewportReflection.filters = [new BlurFilter(16, 16)];
			renderer.renderScene(scene, second_camera, bitmapViewport);
			singleRender();
			addEventListener(Event.ENTER_FRAME, ENTER_FRAME);
		}

 		private var plane:Plane;
		private var bitmapViewport:BitmapViewport3D;
		private var second_camera:Camera3D;

		public function initCamera() : void {
			//第1カメラ
			camera.x = -700*1;
			camera.y = 700*1;
			camera.z = -700*1;
			//第2カメラ
			second_camera = new Camera3D(30);
			second_camera.x = 600;
			second_camera.y = 700;
			second_camera.z = 600;
			second_camera.target = do3d;
			bitmapViewport = new BitmapViewport3D(1000, 600, false, false, 0x292929);
			var material:BitmapViewportMaterial = new BitmapViewportMaterial(bitmapViewport);
			//material.doubleSided = true;
			material.opposite = true;
			material.smooth = true;

			plane = new Plane(material, 1000, 600,6,4);
			plane.x = 600;
			plane.y = 300;
			plane.z = 600;
			plane.rotationY = 45+180;
			scene.addChild(plane);
		}
		public function ENTER_FRAME(e:Event = null) : void {
			if (shield.visible) {
				renderer.renderScene(scene, second_camera, bitmapViewport);
				singleRender();
			}
		}
	}
}


//各キューブの位置を管理するクラス
class CubicData {
	public var poz:Array = [];

	public function CubicData() {
		for (var i:int = 0; i < 27; i++) {
			poz[i] = i;
		}
	}

	public function moveRotation(_ar:Array):Array {
		var n:int = _ar[0];
		var r:int = _ar[1];
		var _temp:Array = poz.concat();
		var _result:Array = [];
		if (n < 3) {
			if(r==0){
				_temp[0+n*9] = poz[2+n*9];
				_temp[1+n*9] = poz[5+n*9];
				_temp[2+n*9] = poz[8+n*9];
				_temp[3+n*9] = poz[1+n*9];
				_temp[4+n*9] = poz[4+n*9];
				_temp[5+n*9] = poz[7+n*9];
				_temp[6+n*9] = poz[0+n*9];
				_temp[7+n*9] = poz[3+n*9];
				_temp[8+n*9] = poz[6+n*9];
			}else {
				_temp[0+n*9] = poz[6+n*9];
				_temp[1+n*9] = poz[3+n*9];
				_temp[2+n*9] = poz[0+n*9];
				_temp[3+n*9] = poz[7+n*9];
				_temp[4+n*9] = poz[4+n*9];
				_temp[5+n*9] = poz[1+n*9];
				_temp[6+n*9] = poz[8+n*9];
				_temp[7+n*9] = poz[5+n*9];
				_temp[8+n*9] = poz[2+n*9];
			}
			_result = [_temp[0+n*9], _temp[1+n*9], _temp[2+n*9], _temp[3+n*9], _temp[4+n*9], _temp[5+n*9], _temp[6+n*9], _temp[7+n*9], _temp[8+n*9]];
		}else if (n < 6) {
			n -= 3;
			if(r==0){
				_temp[0+n*3] = poz[18+n*3];
				_temp[1+n*3] = poz[9+n*3];
				_temp[2+n*3] = poz[0+n*3];
				_temp[9+n*3] = poz[19+n*3];
				_temp[10+n*3] = poz[10+n*3];
				_temp[11+n*3] = poz[1+n*3];
				_temp[18+n*3] = poz[20+n*3];
				_temp[19+n*3] = poz[11+n*3];
				_temp[20+n*3] = poz[2+n*3];
			}else {
				_temp[0+n*3] = poz[2+n*3];
				_temp[1+n*3] = poz[11+n*3];
				_temp[2+n*3] = poz[20+n*3];
				_temp[9+n*3] = poz[1+n*3];
				_temp[10+n*3] = poz[10+n*3];
				_temp[11+n*3] = poz[19+n*3];
				_temp[18+n*3] = poz[0+n*3];
				_temp[19+n*3] = poz[9+n*3];
				_temp[20+n*3] = poz[18+n*3];
			}
			_result = [_temp[0+n*3], _temp[1+n*3], _temp[2+n*3], _temp[9+n*3], _temp[10+n*3], _temp[11+n*3], _temp[18+n*3], _temp[19+n*3], _temp[20+n*3]];
		}else{
			n -= 6;
			if(r==0){
				_temp[0+n] = poz[6+n];
				_temp[3+n] = poz[15+n];
				_temp[6+n] = poz[24+n];
				_temp[9+n] = poz[3+n];
				_temp[12+n] = poz[12+n];
				_temp[15+n] = poz[21+n];
				_temp[18+n] = poz[0+n];
				_temp[21+n] = poz[9+n];
				_temp[24+n] = poz[18+n];
			}else {
				_temp[0+n] = poz[18+n];
				_temp[3+n] = poz[9+n];
				_temp[6+n] = poz[0+n];
				_temp[9+n] = poz[21+n];
				_temp[12+n] = poz[12+n];
				_temp[15+n] = poz[3+n];
				_temp[18+n] = poz[24+n];
				_temp[21+n] = poz[15+n];
				_temp[24+n] = poz[6+n];
			}
			_result = [_temp[0+n], _temp[3+n], _temp[6+n], _temp[9+n], _temp[12+n], _temp[15+n], _temp[18+n], _temp[21+n], _temp[24+n]];
		}
		poz = _temp.concat();
		return _result;
	}
}

import flash.display.DisplayObject;
import flash.display.Graphics;
import flash.text.TextField;
import flash.text.TextFieldType;
import flash.text.TextFormat;
import flash.display.Sprite;
import flash.display.Shape;
import flash.display.SimpleButton;
//import flash.events.MouseEvent;
//import flash.events.Event;
//import flash.events.KeyboardEvent;

class Create{
	public static var defaultTextFormat:TextFormat = new TextFormat();

	public static function newSimpleButton(x_y_w_h_txt:Array = null,property:Array=null,graphics:Array=null):SimpleButton{
		var upState:Sprite = newSprite([x_y_w_h_txt[0],x_y_w_h_txt[1]],null,[["beginFill",[0xCCCCCC,1]],["drawRoundRect",[0,0,x_y_w_h_txt[2],x_y_w_h_txt[3],8]]]);
		upState.addChild(newShape([2,2],null,[["beginFill",[0xE5E5E5,1]],["drawRoundRect",[0,0,x_y_w_h_txt[2]-4,x_y_w_h_txt[3]-4,6]]]))
		var overState:Sprite = newSprite([x_y_w_h_txt[0],x_y_w_h_txt[1]],null,[["beginFill",[0xBBBBBB,1]],["drawRoundRect",[0,0,x_y_w_h_txt[2],x_y_w_h_txt[3],8]]]);
		overState.addChild(newShape([2,2],null,[["beginFill",[0xEEEEEE,1]],["drawRoundRect",[0,0,x_y_w_h_txt[2]-4,x_y_w_h_txt[3]-4,6]]]))
		var downState:Sprite = newSprite([x_y_w_h_txt[0],x_y_w_h_txt[1]],null,[["beginFill",[0xAAAAAA,1]],["drawRoundRect",[0,0,x_y_w_h_txt[2],x_y_w_h_txt[3],8]]]);
		downState.addChild(newShape([2,2],null,[["beginFill",[0xDDDDDD,1]],["drawRoundRect",[0,0,x_y_w_h_txt[2]-4,x_y_w_h_txt[3]-4,6]]]))
		var hitTestState:Shape = newShape([x_y_w_h_txt[0],x_y_w_h_txt[1]],null,[["beginFill",[0,1]],["drawRoundRect",[0,0,x_y_w_h_txt[2],x_y_w_h_txt[3],8]]]);
		if(x_y_w_h_txt[4]){
			upState.addChild(newTextField([0,2,x_y_w_h_txt[2],x_y_w_h_txt[3]-2],[["defaultTextFormat",new TextFormat("_sans", null, null, null, null, null, null, null, "center")],["text",x_y_w_h_txt[4]]]));
			overState.addChild(newTextField([0,2,x_y_w_h_txt[2],x_y_w_h_txt[3]-2],[["defaultTextFormat",new TextFormat("_sans", null, null, null, null, null, null, null, "center")],["text",x_y_w_h_txt[4]]]));
			downState.addChild(newTextField([0,3,x_y_w_h_txt[2],x_y_w_h_txt[3]-3],[["defaultTextFormat",new TextFormat("_sans", null, null, null, null, null, null, null, "center")],["text",x_y_w_h_txt[4]]]));
		}
		var sb:SimpleButton = new SimpleButton(upState,overState,downState,hitTestState);

		return sb;
	}

	public static function newShape(x_y_w_h_sh:Array = null,property:Array=null,graphics:Array=null):Shape{
		var i:int;
		var sh:Shape;
		if(x_y_w_h_sh && x_y_w_h_sh[4]){
			sh = x_y_w_h_sh[4];
		}else{
			sh = new Shape();
		}
		if(x_y_w_h_sh){
			if (x_y_w_h_sh[0]) { sh.x = x_y_w_h_sh[0] };
			if (x_y_w_h_sh[1]) { sh.y = x_y_w_h_sh[1] };
		}
		if(property){
			for (i = 0; i < property.length; i++) {
				if(property[i] && property[i].length > 1){
					sh[property[i][0]] = property[i][1];
				}
			}
		}
		if(graphics){
			for (i = 0; i < graphics.length; i++) {
				if(graphics[i] && graphics[i].length > 1){
					sh.graphics[graphics[i][0]].apply(null, graphics[i][1]);
				}
			}

		}
		if(x_y_w_h_sh){
			if (x_y_w_h_sh[2]) { sh.width = x_y_w_h_sh[2] };
			if (x_y_w_h_sh[3]) { sh.height = x_y_w_h_sh[3] };
		}
		return sh;
	}
	public static function newSprite(x_y_w_h_sp:Array = null,property:Array=null,graphics:Array=null,addChild:DisplayObject = null):Sprite{
		var i:int;
		var sp:Sprite;
		if(x_y_w_h_sp && x_y_w_h_sp[4]){
			sp = x_y_w_h_sp[4];
		}else{
			sp = new Sprite();
		}
		if(x_y_w_h_sp){
			if (x_y_w_h_sp[0]) { sp.x = x_y_w_h_sp[0] };
			if (x_y_w_h_sp[1]) { sp.y = x_y_w_h_sp[1] };
		}
		if(property){
			for (i = 0; i < property.length; i++) {
				if(property[i] && property[i].length > 1){
					sp[property[i][0]] = property[i][1];
				}
			}
		}
		if(graphics){
			for (i = 0; i < graphics.length; i++) {
				if(graphics[i] && graphics[i].length > 1){
					sp.graphics[graphics[i][0]].apply(null, graphics[i][1]);
				}
			}

		}
		if(addChild){
			sp.addChild(addChild);
		}
		if(x_y_w_h_sp){
			if (x_y_w_h_sp[2]) { sp.width = x_y_w_h_sp[2] };
			if (x_y_w_h_sp[3]) { sp.height = x_y_w_h_sp[3] };
		}
		return sp;
	}

	public static function newTextField(x_y_w_h_txt_color_alpha:Array = null,property:Array=null,method:Array=null):TextField{
		var i:int;
		var ta:TextField = new TextField();
		ta.defaultTextFormat = defaultTextFormat;
		if(x_y_w_h_txt_color_alpha){
			if (x_y_w_h_txt_color_alpha[0]) { ta.x = x_y_w_h_txt_color_alpha[0] };
			if (x_y_w_h_txt_color_alpha[1]) { ta.y = x_y_w_h_txt_color_alpha[1] };
			if (x_y_w_h_txt_color_alpha[2]) { ta.width = x_y_w_h_txt_color_alpha[2] };
			if (x_y_w_h_txt_color_alpha[3]) { ta.height = x_y_w_h_txt_color_alpha[3] };
			if (x_y_w_h_txt_color_alpha[4]) { ta.text = x_y_w_h_txt_color_alpha[4] };
			if (x_y_w_h_txt_color_alpha[5]) { ta.textColor = x_y_w_h_txt_color_alpha[5] };
			if (x_y_w_h_txt_color_alpha[6]) { ta.alpha = x_y_w_h_txt_color_alpha[6] };
		}
		if(property){
			for (i = 0; i < property.length; i++) {
				if(property[i] && property[i].length > 1){
					ta[property[i][0]] = property[i][1];
				}
			}
		}
		if(method){
			for (i = 0; i < method.length; i++) {
				if(method[i] && method[i].length > 1){
					ta[method[i][0]].apply(null, method[i][1]);
				}
			}
		}
		return ta;
	}
}
