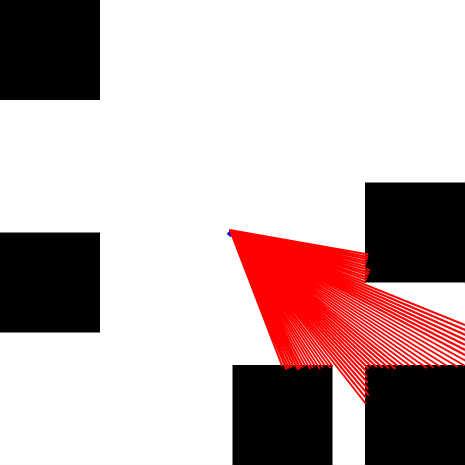

Ray casting test
Rotate with LEFT and RIGHT
This is very slow. I increased the ray length by +5 so it's obviously not as accurate as it would be grid based.
♥2 |
Line 79 |
Modified 2014-05-03 04:46:43 |
MIT License
archived:2017-03-20 17:52:02
ActionScript3 source code
/**
* Copyright bennett.yeates ( http://wonderfl.net/user/bennett.yeates )
* MIT License ( http://www.opensource.org/licenses/mit-license.php )
* Downloaded from: http://wonderfl.net/c/mLVL
*/
package
{
import flash.display.Sprite;
import flash.events.Event;
import flash.events.KeyboardEvent;
import flash.geom.Point;
import flash.ui.Keyboard;
[SWF(backgroundColor=0x0)]
public class RayCastTest extends Sprite
{
private const FOV :int = 60;
private const STEP_LENGTH :int = 5; //length of the ray to step by
private var player :Sprite;
private var ray_drawer :Sprite;
private var squares :Array = [];
private const POSITIONS:Array = [ {x:0, y:0}, {x:0, y:stage.stageHeight/2}, {x:stage.stageWidth-100, y:stage.stageHeight/2 - 50},
{x:stage.stageWidth/2, y:stage.stageHeight - 100}, {x:stage.stageWidth-100, y:stage.stageHeight - 100} ];
public function RayCastTest()
{
ray_drawer = new Sprite();
var i:int;
for ( ; i < 5; ++i ) {
var square:Sprite = new Sprite();
square.graphics.beginFill(0);
square.graphics.drawRect(0,0,100,100);
square.x = POSITIONS[i].x;
square.y = POSITIONS[i].y;
addChild( square );
squares.push( square );
}
player = new Sprite();
player.graphics.beginFill(0x0000FF);
player.graphics.drawRect(0,0,5,5);
player.x = stage.stageWidth/2 - 2.5;
player.y = stage.stageHeight/2 - 2.5;
addChild( player );
addChild( ray_drawer );
stage.addEventListener(KeyboardEvent.KEY_DOWN, onKeyDown);
addEventListener( Event.ENTER_FRAME, oef );
}
public function onKeyDown( e:KeyboardEvent ):void {
if ( e.keyCode == Keyboard.LEFT ) { player.rotation -= 2; }
else if ( e.keyCode == Keyboard.RIGHT ) { player.rotation += 2; }
}
public function oef( e:Event ):void {
ray_drawer.graphics.clear();
ray_drawer.graphics.lineStyle( 2, 0xFF0000 );
var startRotation:Number = player.rotation - FOV/2;
var endRotation:Number = player.rotation + FOV/2;
var hit:Boolean;
var length:int;
while( startRotation < endRotation ) {
hit = false;
length = STEP_LENGTH;
var pos:Point = new Point( player.x, player.y );
while( !hit ) {
pos.x = player.x + length * Math.cos( startRotation * Math.PI / 180 );
pos.y = player.y + length * Math.sin( startRotation * Math.PI / 180 );
var i:int;
for ( i=0; i < squares.length; ++i ) {
var square:Sprite = squares[i];
if ( pos.x >= square.x && pos.y >= square.y ) {
if( pos.x <= square.x + 100 && pos.y <= square.y + 100 ) {
hit = true;
}
}
else if ( pos.x >= stage.stageWidth || pos.x < 0 || pos.y < 0 || pos.y >= stage.stageHeight ) {
hit = true;
}
}
length += STEP_LENGTH;
}
ray_drawer.graphics.moveTo( player.x, player.y );
ray_drawer.graphics.lineTo( pos.x, pos.y );
++startRotation;
}
}
}
}
