forked from: BeatFlower + MP3 Choice
forked from BeatFlower (diff: 219)
Was too long to wait for music to load, so I thought that it will be quicker to add MP3 loading from hdd then wait :D Hmm, its rather quick modification, may be I did not do it right, may be after many songs loaded it collects garbage in the memory.
ActionScript3 source code
/**
* Copyright wonderwhyer ( http://wonderfl.net/user/wonderwhyer )
* GNU General Public License, v3 ( http://www.gnu.org/licenses/quick-guide-gplv3.html )
* Downloaded from: http://wonderfl.net/c/mLRs
*/
// forked from rettuce's BeatFlower
package
{
import caurina.transitions.Tweener;
import com.bit101.components.ComboBox;
import com.bit101.components.HUISlider;
import com.bit101.components.PushButton;
import com.demonsters.debugger.MonsterDebugger;
import flash.display.Bitmap;
import flash.display.BitmapData;
import flash.display.BlendMode;
import flash.display.Sprite;
import flash.display.StageAlign;
import flash.display.StageScaleMode;
import flash.events.Event;
import flash.events.IOErrorEvent;
import flash.events.ProgressEvent;
import flash.filters.BlurFilter;
import flash.geom.Matrix;
import flash.geom.Point;
import flash.geom.Rectangle;
import flash.media.Sound;
import flash.media.SoundLoaderContext;
import flash.media.SoundMixer;
import flash.net.URLRequest;
import flash.text.TextField;
import flash.utils.ByteArray;
import com.codeazur.as3swf.SWF;
import com.codeazur.as3swf.SWFData;
import com.codeazur.as3swf.data.SWFScene;
import com.codeazur.as3swf.data.SWFSymbol;
import com.codeazur.as3swf.data.consts.SoundCompression;
import com.codeazur.as3swf.data.consts.SoundRate;
import com.codeazur.as3swf.data.consts.SoundSize;
import com.codeazur.as3swf.data.consts.SoundType;
import com.codeazur.as3swf.tags.TagDefineSceneAndFrameLabelData;
import com.codeazur.as3swf.tags.TagDefineSound;
import com.codeazur.as3swf.tags.TagDoABC;
import com.codeazur.as3swf.tags.TagEnd;
import com.codeazur.as3swf.tags.TagFileAttributes;
import com.codeazur.as3swf.tags.TagSetBackgroundColor;
import com.codeazur.as3swf.tags.TagShowFrame;
import com.codeazur.as3swf.tags.TagSymbolClass;
import flash.media.SoundChannel;
import flash.net.FileFilter;
import flash.net.FileReference;
import flash.events.MouseEvent;
import flash.text.TextFieldAutoSize;
import flash.text.TextFormat;
import flash.display.Loader;
import flash.display.LoaderInfo;
/**
* ...
* @author rettuce
*
* Sound パラメータあてこんでみた
* 音はYoodaさんのKasanaを拝借。
* http://soundcloud.com/yooda/kasana
*
*/
[SWF(width = 465, height = 465, backgroundColor = 0xFFFFFF, frameRate = 40)]
public class Main extends Sprite
{
public function Main()
{
if (stage) init();
else addEventListener(Event.ADDED_TO_STAGE, init );
}
private function init(e:Event = null ):void
{
removeEventListener(Event.ADDED_TO_STAGE, init );
setStage();
// SoundMixer
playSoundMixer();
loaderInfo.addEventListener(Event.UNLOAD, function(e:Event):void {
stage.removeEventListener(Event.RESIZE, resizeEvent);
loaderInfo.removeEventListener(Event.UNLOAD, arguments.callee );
});
}
/* UI Setting */
///////////////////////////////////////////////////////////////////////
private var _blmodeSelect:ComboBox;
private var _slider1:HUISlider;
private var _slider2:HUISlider;
private var _slider3:HUISlider;
private var _slider4:HUISlider;
private var _slider5:HUISlider;
private var _slider6:HUISlider;
private var _loadBtn:PushButton;
private function uiSet():void
{
var blArr:Array = [
BlendMode.NORMAL,
BlendMode.LAYER,
BlendMode.OVERLAY,
BlendMode.HARDLIGHT,
BlendMode.DARKEN,
BlendMode.DIFFERENCE
];

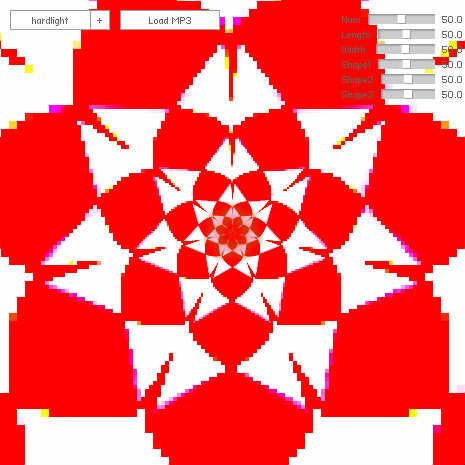

_blmodeSelect = new ComboBox(this,10,10,'BlendMode',blArr);
_blmodeSelect.selectedIndex = 3;
_loadBtn = new PushButton(this, 120, 10, "Load MP3", up);
_slider1 = new HUISlider(this, 340, 10, "Num");
_slider2 = new HUISlider(this, 340, 25, "Length");
_slider3 = new HUISlider(this, 340, 40, "Width ");
_slider4 = new HUISlider(this, 340, 55, "Shape1");
_slider5 = new HUISlider(this, 340, 70, "Shape2");
_slider6 = new HUISlider(this, 340, 85, "Shape3");
_slider1.width = _slider2.width = _slider3.width = _slider4.width = _slider5.width = _slider6.width = 150;
_slider1.value = 50;
_slider2.value = 50;
_slider3.value = 50;
_slider4.value = 50;
_slider5.value = 50;
_slider6.value = 50;
}
///////////////////////////////////////////////////////////////////////
public var fr:FileReference;
public var soundSource:Sound;
public var currentSong:SoundChannel;
public function up(e:Event):void {
fr = new FileReference();
fr.addEventListener(Event.SELECT, onFileSelected);
fr.addEventListener(Event.COMPLETE, parse);
var mp3Filter:FileFilter = new FileFilter("mp3","*.mp3");
fr.browse([mp3Filter]);
if (currentSong)
{
currentSong.stop();
currentSong = null;
}
}
public function onFileSelected(e:Event):void
{
fr.load();
}
public function parse(e:Event):void
{
var swf:ByteArray = createSWFFromMP3(fr.data);
var loader:Loader = new Loader();
loader.contentLoaderInfo.addEventListener(Event.INIT, SoundLoaded);
loader.loadBytes(swf);
}
public function SoundLoaded(e:Event):void
{
flowerInit();
var SoundClass:Class = LoaderInfo(e.currentTarget).applicationDomain.getDefinition("MP3Wrapper_soundClass") as Class;
soundSource = new SoundClass() as Sound;
currentSong = soundSource.play();
currentSong.addEventListener(Event.COMPLETE,songEnded);
}
public function songEnded(e:Event):void
{
currentSong = null;
}
public function createSWFFromMP3(mp3:ByteArray):ByteArray
{
// Create an empty SWF
// Defaults to v10, 550x400px, 50fps, one frame (works fine for us)
var swf:SWF = new SWF();
// Add FileAttributes tag
// Defaults: as3 true, all other flags false (works fine for us)
swf.tags.push(new TagFileAttributes());
// Add SetBackgroundColor tag
// Default: white background (works fine for us)
swf.tags.push(new TagSetBackgroundColor());
// Add DefineSceneAndFrameLabelData tag
// (with the only entry being "Scene 1" at offset 0)
var defineSceneAndFrameLabelData:TagDefineSceneAndFrameLabelData = new TagDefineSceneAndFrameLabelData();
defineSceneAndFrameLabelData.scenes.push(new SWFScene(0, "Scene 1"));
swf.tags.push(defineSceneAndFrameLabelData);
// Add DefineSound tag
// The ID is 1, all other parameters are automatically
// determined from the mp3 itself.
swf.tags.push(TagDefineSound.createWithMP3(1, mp3));
// Add DoABC tag
// Contains the AS3 byte code for the document class and the
// class definition for the embedded sound
swf.tags.push(TagDoABC.create(abc));
// Add SymbolClass tag
// Specifies the document class and binds the sound class
// definition to the embedded sound
var symbolClass:TagSymbolClass = new TagSymbolClass();
symbolClass.symbols.push(SWFSymbol.create(1, "MP3Wrapper_soundClass"));
symbolClass.symbols.push(SWFSymbol.create(0, "MP3Wrapper"));
swf.tags.push(symbolClass);
// Add ShowFrame tag
swf.tags.push(new TagShowFrame());
// Add End tag
swf.tags.push(new TagEnd());
// Publish the SWF
var swfData:SWFData = new SWFData();
swf.publish(swfData);
return swfData;
}
private static var abcData:Array = [
0x10, 0x00, 0x2e, 0x00, 0x00, 0x00, 0x00, 0x19, 0x07, 0x6d, 0x78, 0x2e, 0x63, 0x6f, 0x72, 0x65,
0x0a, 0x49, 0x46, 0x6c, 0x65, 0x78, 0x41, 0x73, 0x73, 0x65, 0x74, 0x0a, 0x53, 0x6f, 0x75, 0x6e,
0x64, 0x41, 0x73, 0x73, 0x65, 0x74, 0x0b, 0x66, 0x6c, 0x61, 0x73, 0x68, 0x2e, 0x6d, 0x65, 0x64,
0x69, 0x61, 0x05, 0x53, 0x6f, 0x75, 0x6e, 0x64, 0x12, 0x6d, 0x78, 0x2e, 0x63, 0x6f, 0x72, 0x65,
0x3a, 0x53, 0x6f, 0x75, 0x6e, 0x64, 0x41, 0x73, 0x73, 0x65, 0x74, 0x00, 0x15, 0x4d, 0x50, 0x33,
0x57, 0x72, 0x61, 0x70, 0x70, 0x65, 0x72, 0x5f, 0x73, 0x6f, 0x75, 0x6e, 0x64, 0x43, 0x6c, 0x61,
0x73, 0x73, 0x0a, 0x4d, 0x50, 0x33, 0x57, 0x72, 0x61, 0x70, 0x70, 0x65, 0x72, 0x0d, 0x66, 0x6c,
0x61, 0x73, 0x68, 0x2e, 0x64, 0x69, 0x73, 0x70, 0x6c, 0x61, 0x79, 0x06, 0x53, 0x70, 0x72, 0x69,
0x74, 0x65, 0x0a, 0x73, 0x6f, 0x75, 0x6e, 0x64, 0x43, 0x6c, 0x61, 0x73, 0x73, 0x05, 0x43, 0x6c,
0x61, 0x73, 0x73, 0x2a, 0x68, 0x74, 0x74, 0x70, 0x3a, 0x2f, 0x2f, 0x77, 0x77, 0x77, 0x2e, 0x61,
0x64, 0x6f, 0x62, 0x65, 0x2e, 0x63, 0x6f, 0x6d, 0x2f, 0x32, 0x30, 0x30, 0x36, 0x2f, 0x66, 0x6c,
0x65, 0x78, 0x2f, 0x6d, 0x78, 0x2f, 0x69, 0x6e, 0x74, 0x65, 0x72, 0x6e, 0x61, 0x6c, 0x07, 0x56,
0x45, 0x52, 0x53, 0x49, 0x4f, 0x4e, 0x06, 0x53, 0x74, 0x72, 0x69, 0x6e, 0x67, 0x07, 0x33, 0x2e,
0x30, 0x2e, 0x30, 0x2e, 0x30, 0x0b, 0x6d, 0x78, 0x5f, 0x69, 0x6e, 0x74, 0x65, 0x72, 0x6e, 0x61,
0x6c, 0x06, 0x4f, 0x62, 0x6a, 0x65, 0x63, 0x74, 0x0c, 0x66, 0x6c, 0x61, 0x73, 0x68, 0x2e, 0x65,
0x76, 0x65, 0x6e, 0x74, 0x73, 0x0f, 0x45, 0x76, 0x65, 0x6e, 0x74, 0x44, 0x69, 0x73, 0x70, 0x61,
0x74, 0x63, 0x68, 0x65, 0x72, 0x0d, 0x44, 0x69, 0x73, 0x70, 0x6c, 0x61, 0x79, 0x4f, 0x62, 0x6a,
0x65, 0x63, 0x74, 0x11, 0x49, 0x6e, 0x74, 0x65, 0x72, 0x61, 0x63, 0x74, 0x69, 0x76, 0x65, 0x4f,
0x62, 0x6a, 0x65, 0x63, 0x74, 0x16, 0x44, 0x69, 0x73, 0x70, 0x6c, 0x61, 0x79, 0x4f, 0x62, 0x6a,
0x65, 0x63, 0x74, 0x43, 0x6f, 0x6e, 0x74, 0x61, 0x69, 0x6e, 0x65, 0x72, 0x0a, 0x16, 0x01, 0x16,
0x04, 0x18, 0x06, 0x16, 0x07, 0x18, 0x08, 0x16, 0x0a, 0x18, 0x09, 0x08, 0x0e, 0x16, 0x14, 0x03,
0x01, 0x01, 0x01, 0x04, 0x14, 0x07, 0x01, 0x02, 0x07, 0x01, 0x03, 0x07, 0x02, 0x05, 0x09, 0x02,
0x01, 0x07, 0x04, 0x08, 0x07, 0x04, 0x09, 0x07, 0x06, 0x0b, 0x07, 0x04, 0x0c, 0x07, 0x04, 0x0d,
0x07, 0x08, 0x0f, 0x07, 0x04, 0x10, 0x07, 0x01, 0x12, 0x09, 0x03, 0x01, 0x07, 0x04, 0x13, 0x07,
0x09, 0x15, 0x09, 0x08, 0x02, 0x07, 0x06, 0x16, 0x07, 0x06, 0x17, 0x07, 0x06, 0x18, 0x0d, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x04, 0x01, 0x00, 0x05, 0x00, 0x02, 0x00, 0x02, 0x03, 0x09, 0x03, 0x01,
0x04, 0x05, 0x00, 0x05, 0x02, 0x09, 0x05, 0x00, 0x08, 0x00, 0x06, 0x07, 0x09, 0x07, 0x00, 0x0b,
0x01, 0x08, 0x00, 0x00, 0x09, 0x00, 0x01, 0x00, 0x04, 0x01, 0x0a, 0x06, 0x01, 0x0b, 0x11, 0x01,
0x07, 0x00, 0x0a, 0x00, 0x05, 0x00, 0x01, 0x0c, 0x06, 0x00, 0x00, 0x08, 0x08, 0x03, 0x01, 0x01,
0x04, 0x00, 0x00, 0x06, 0x01, 0x02, 0x04, 0x00, 0x01, 0x09, 0x01, 0x05, 0x04, 0x00, 0x02, 0x0c,
0x01, 0x06, 0x04, 0x01, 0x03, 0x0c, 0x00, 0x01, 0x01, 0x01, 0x02, 0x03, 0xd0, 0x30, 0x47, 0x00,
0x00, 0x01, 0x00, 0x01, 0x03, 0x03, 0x01, 0x47, 0x00, 0x00, 0x03, 0x02, 0x01, 0x01, 0x02, 0x0a,
0xd0, 0x30, 0x5d, 0x04, 0x20, 0x58, 0x00, 0x68, 0x01, 0x47, 0x00, 0x00, 0x04, 0x02, 0x01, 0x05,
0x06, 0x09, 0xd0, 0x30, 0x5e, 0x0a, 0x2c, 0x11, 0x68, 0x0a, 0x47, 0x00, 0x00, 0x05, 0x01, 0x01,
0x06, 0x07, 0x06, 0xd0, 0x30, 0xd0, 0x49, 0x00, 0x47, 0x00, 0x00, 0x06, 0x02, 0x01, 0x01, 0x05,
0x17, 0xd0, 0x30, 0x5d, 0x0d, 0x60, 0x0e, 0x30, 0x60, 0x0f, 0x30, 0x60, 0x03, 0x30, 0x60, 0x03,
0x58, 0x01, 0x1d, 0x1d, 0x1d, 0x68, 0x02, 0x47, 0x00, 0x00, 0x07, 0x01, 0x01, 0x06, 0x07, 0x03,
0xd0, 0x30, 0x47, 0x00, 0x00, 0x08, 0x01, 0x01, 0x07, 0x08, 0x06, 0xd0, 0x30, 0xd0, 0x49, 0x00,
0x47, 0x00, 0x00, 0x09, 0x02, 0x01, 0x01, 0x06, 0x1b, 0xd0, 0x30, 0x5d, 0x10, 0x60, 0x0e, 0x30,
0x60, 0x0f, 0x30, 0x60, 0x03, 0x30, 0x60, 0x02, 0x30, 0x60, 0x02, 0x58, 0x02, 0x1d, 0x1d, 0x1d,
0x1d, 0x68, 0x05, 0x47, 0x00, 0x00, 0x0a, 0x01, 0x01, 0x08, 0x09, 0x03, 0xd0, 0x30, 0x47, 0x00,
0x00, 0x0b, 0x02, 0x01, 0x09, 0x0a, 0x0b, 0xd0, 0x30, 0xd0, 0x60, 0x05, 0x68, 0x08, 0xd0, 0x49,
0x00, 0x47, 0x00, 0x00, 0x0c, 0x02, 0x01, 0x01, 0x08, 0x23, 0xd0, 0x30, 0x65, 0x00, 0x60, 0x0e,
0x30, 0x60, 0x0f, 0x30, 0x60, 0x11, 0x30, 0x60, 0x12, 0x30, 0x60, 0x13, 0x30, 0x60, 0x07, 0x30,
0x60, 0x07, 0x58, 0x03, 0x1d, 0x1d, 0x1d, 0x1d, 0x1d, 0x1d, 0x68, 0x06, 0x47, 0x00, 0x00
];
private static function abcDataToByteArray():ByteArray {
var ba:ByteArray = new ByteArray();
for (var i:uint = 0; i < abcData.length; i++) {
ba.writeByte(abcData[i]);
}
return ba;
}
private static var abc:ByteArray = abcDataToByteArray();
/* Sound Mixer */
///////////////////////////////////////////////////////////////////////
private var _bArr:ByteArray = new ByteArray();
private var _bg:Bitmap;
private var _num:Object = new Object();
private function playSoundMixer():void
{
_bg = new Bitmap();
_bg.smoothing = true;
_bg.bitmapData = new BitmapData(stage.stageWidth, stage.stageHeight );
addChild(_bg);
uiSet();
addEventListener(Event.ENTER_FRAME,beatCheck2);
}
private function beatCheck2(e:Event):void
{
SoundMixer.computeSpectrum(_bArr, false, 0); // byteArr(length=512), FFT, rate 0->44.1 KHz, 1->22.05KHz...
_bArr.position = 0;
var byteTotal:Number = 0; // 両音
var byte:Number = 0;
for(var i:int = 0; i < 512; i++)
{
byte = Math.abs(_bArr.readFloat());
byteTotal += byte;
};
byteTotal /= 512;
if(byteTotal>0.01){
Tweener.addTween( _num, { x:byteTotal, time:0.4, transition:'easeOutQuad' });
}
// _bg.bitmapData.draw( stage, new Matrix(3,0,0,3,-stage.stageWidth,-stage.stageHeight), null, _blmodeSelect.selectedItem.toString() );
_bg.bitmapData.draw( stage, new Matrix(2,0,0,2,-stage.stageWidth/2,-stage.stageHeight/2), null, _blmodeSelect.selectedItem.toString());
var num:int = Math.round(_num.x*(_slider1.value))+6;
_flower.NUM = num;
_flower.W = _num.x*(25*(_slider2.value)*0.5+500);
_flower.H = (180*(_slider3.value)*0.01)/num + _num.x*100;
_flower.FY = _num.x*(0.1*(_slider4.value)+1);
_flower.FT = _num.x*(0.08*(_slider5.value)+2);
_flower.K = _num.x*(8*(_slider6.value));
_flower.Z = _num.x*10;
_flower.drawFlower();
}
/* Flower Setting */
/////////////////////////////////////////////////////////////////////////
private var _flower:Flower;
private var _s:Flower;
private function flowerInit():void
{
if(_flower)
{
removeChild(_flower);
}
_flower = new Flower();
// _flower._fillFlg = false;
addChildAt(_flower,1);
_flower.x = stage.stageWidth/2;
_flower.y = stage.stageHeight/2;
}
/* Error Handler */
//////////////////////////////////////////////////////////////////
private function errorHandler(e:IOErrorEvent):void
{
MonsterDebugger.trace( 'Error...', e );
}
/* stage set */
//////////////////////////////////////////////////////////////////
private function setStage():void
{
stage.align = StageAlign.TOP_LEFT;
stage.scaleMode = StageScaleMode.NO_SCALE;
stage.addEventListener(Event.RESIZE, resizeEvent);
resizeHandler();
}
private function resizeEvent(e:Event = null):void
{
resizeHandler();
}
public function resizeHandler():void
{
}
}
}
import flash.display.GradientType;
import flash.display.Graphics;
import flash.display.Sprite;
import flash.filters.DropShadowFilter;
import flash.geom.Matrix;
import flash.geom.Point;
class Flower extends Sprite
{
private var _g:Graphics;
private var _NUM:uint = 10; // 枚数
private var _W:uint = 180; //幅
private var _H:uint = 30; //高さ
private var _FY:Number = 0.7; //膨らみ位置 横
private var _FT:Number = 0.5; //膨らみ位置 縦
private var _K:uint = 20; //深さ
private var _Z:Number = 5; //ズレ
private var _zure:Array = [];
public var _fillFlg:Boolean = true;
public function Flower()
{
_g = this.graphics;
for (var i:int = 0; i < 7; i++) { _zure[i] = new Point();}
drawFlower();
}
public function drawFlower($num:Number=0):void
{
// Line&Color Setting
if(!_fillFlg){
_g.clear();
_g.lineStyle( 0.5, 0 );
_g.beginFill(0xFFFFFF);
}else{
_g.clear();
// _g.lineStyle( 1, 0xca4000 );
var fillType:String = GradientType.RADIAL;
var colors:Array;
var dropColor:Number;
switch($num){
case 0:
colors = [0xca4000, 0xde878b, 0xffaec1, 0xffd4ef];
// colors = [0xFFFFFF, 0xFFFFFF, 0xFFFFFF, 0xFFFFFF];
dropColor = 0xca4000;
break;
case 1:
colors = [0xca4000, 0xde878b, 0xffaec1, 0xffd4ef];
dropColor = 0xca4000;
break;
case 2:
colors = [0x0040cd, 0x5990ff, 0x90c9ff, 0xd7ebff];
dropColor = 0x5990ff;
break;
case 3:
colors = [0xffd4ef, 0xffaec1, 0xde878b, 0xca4000 ];
dropColor = 0xffd4ef;
break;
};
var alphas:Array = [1, 1, 1, 1];
// var alphas:Array = [1 , Math.random()+0.3, Math.random()+0.3, 1];
var ratios:Array = [0, 80, 180, 255];
var matrix:Matrix = new Matrix();
matrix.createGradientBox(-_W*2, -_W*2, 0, _W, _W );
_g.beginGradientFill(fillType, colors, alphas, ratios, matrix);
}
// draw Petal
for(var i:int=0; i < _NUM; i++){
var ang:Number = ( 2*Math.PI/_NUM*i - Math.PI/2 );
drawPetal(ang);
}
// DropShadow
var filArr:Array = new Array();
var dsFilter:DropShadowFilter = new DropShadowFilter( 0, 10, dropColor, 0.7, 15, 15, 3);
filArr.push(dsFilter);
filters = filArr;
}
private function drawPetal(ang:Number):void
{
for (var u:int = 0; u < 7; u++) {
_zure[u].x = Math.random()*_Z-_Z/2;
_zure[u].y = Math.random()*_Z-_Z/2;
}
var pointArr:Array = [];
var px:Number;
var py:Number
var x1:Number = _W*_FY/2;
var x2:Number = _W*_FY;
var x3:Number = _W;
var x4:Number = _W-_K;
var y1:Number = _H*_FT;
var y2:Number = _H;
var y3:Number = _H*_FT/2;
var y4:Number = 0;
var leng1:Number = Math.sqrt( x1*x1 + y1*y1 );
var leng2:Number = Math.sqrt( x2*x2 + y2*y2 );
var leng3:Number = Math.sqrt( x3*x3 + y3*y3 );
var leng4:Number = Math.sqrt( x4*x4 + y4*y4 );
var ang1:Number = y1/leng1;
var ang2:Number = y2/leng2;
var ang3:Number = y3/leng3;
var ang4:Number = y4/leng4;
pointArr.push(new Point(0, 0));
pointArr.push( new Point( Math.cos(ang-ang1)*leng1+_zure[0].x , Math.sin(ang-ang1)*leng1+_zure[0].y ));
pointArr.push( new Point( Math.cos(ang-ang2)*leng2+_zure[1].x , Math.sin(ang-ang2)*leng2+_zure[1].y ));
pointArr.push( new Point( Math.cos(ang-ang3)*leng3+_zure[2].x , Math.sin(ang-ang3)*leng3+_zure[2].y ));
_g.moveTo(pointArr[0].x, pointArr[0].y);
for(var i:int=0; i<pointArr.length-1; i++){
px = (pointArr[i+1].x + pointArr[i].x)/2;
py = (pointArr[i+1].y + pointArr[i].y)/2;
_g.curveTo(pointArr[i].x, pointArr[i].y, px, py);
}
_g.lineTo(pointArr[pointArr.length-1].x+_zure[3].x , pointArr[pointArr.length-1].y+_zure[3].y );
_g.lineTo( Math.cos(ang+ang4)*leng4, Math.sin(ang+ang4)*leng4 );
_g.lineTo( Math.cos(ang+ang3)*leng3+_zure[4].x , Math.sin(ang+ang3)*leng3+_zure[4].y );
pointArr = [];
pointArr.push( new Point( Math.cos(ang+ang3)*leng3+_zure[4].x , Math.sin(ang+ang3)*leng3+_zure[4].y ));
pointArr.push( new Point( Math.cos(ang+ang2)*leng2+_zure[5].x , Math.sin(ang+ang2)*leng2+_zure[5].y ));
pointArr.push( new Point( Math.cos(ang+ang1)*leng1+_zure[6].x , Math.sin(ang+ang1)*leng1+_zure[6].y ));
pointArr.push(new Point(0, 0));
for(i=0; i<pointArr.length-1; i++){
px = (pointArr[i+1].x + pointArr[i].x)/2;
py = (pointArr[i+1].y + pointArr[i].y)/2;
_g.curveTo(pointArr[i].x, pointArr[i].y, px, py);
}
_g.lineTo(pointArr[pointArr.length-1].x, pointArr[pointArr.length-1].y );
}
private function angleMath($x:Number, $y:Number):Number
{
var dx:Number = $x - $x;
var dy:Number = $y - 0;
return Math.atan2(dy , dx)*180/Math.PI;
}
/* Setter & Getter */
/////////////////////////////////////////////////////////////////////////
public function set NUM($NUM:uint):void{ _NUM = $NUM; }
public function set W ($W:uint):void { _W = $W; }
public function set H ($H:uint):void { _H = $H; }
public function set FY ($FY:Number):void{ _FY = $FY; }
public function set FT ($FT:Number):void{ _FT = $FT; }
public function set K ($K:uint):void { _K = $K; }
public function set Z ($Z:uint):void { _Z = $Z; }
}
