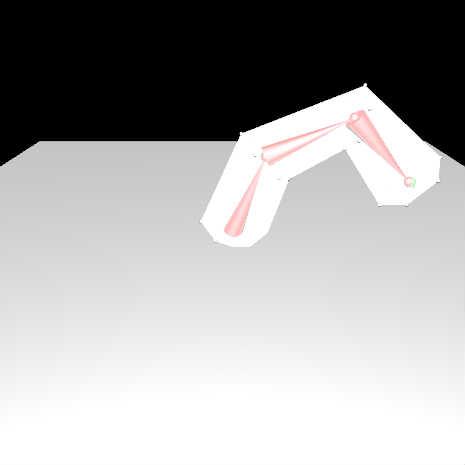

Bones and Skinning

/**
 * Copyright civet ( http://wonderfl.net/user/civet )
 * MIT License ( http://www.opensource.org/licenses/mit-license.php )
 * Downloaded from: http://wonderfl.net/c/l2a0
 */

// 2014-04-25 17:10:52
// forked from civet's CCD IK Solver
package
{
    import flash.display.Bitmap;
    import flash.display.BitmapData;
    import flash.display.Sprite;
    import flash.display.StageAlign;
    import flash.display.StageScaleMode;
    import flash.events.Event;
    import flash.events.KeyboardEvent;
    import flash.events.MouseEvent;
    import flash.geom.Matrix3D;
    import flash.geom.Vector3D;
    import flash.ui.Keyboard;

    import away3d.containers.ObjectContainer3D;
    import away3d.containers.View3D;
    import away3d.controllers.HoverController;
    import away3d.core.math.Quaternion;
    import away3d.entities.Mesh;
    import away3d.lights.DirectionalLight;
    import away3d.lights.PointLight;
    import away3d.lights.shadowmaps.NearDirectionalShadowMapper;
    import away3d.materials.ColorMaterial;
    import away3d.materials.lightpickers.StaticLightPicker;
    import away3d.materials.methods.FilteredShadowMapMethod;
    import away3d.materials.methods.NearShadowMapMethod;
    import away3d.primitives.ConeGeometry;
    import away3d.primitives.PlaneGeometry;
    import away3d.primitives.SphereGeometry;
    import away3d.tools.helpers.MeshHelper;


    public class TestSkinnedMesh extends Sprite
    {
        //engine
        private var _view:View3D;
        private var _cameraController:HoverController;

        private var source:BitmapData = new BitmapData(465, 465, true, 0x00);

        public function TestSkinnedMesh()
        {
            Wonderfl.disable_capture();
            addChild(new Bitmap(source));
            //http://wonderfl.net/c/wia8

            initAway3D();

            initObjects();
        }

        public function initAway3D():void
        {
            stage.scaleMode = StageScaleMode.NO_SCALE;
            stage.align = StageAlign.TOP_LEFT;
            stage.frameRate = 60;

            //setup the view
            _view = new View3D();
            _view.antiAlias = 2;//2x
            addChild(_view);

            //setup the scene
            var ground:Mesh = new Mesh(new PlaneGeometry(400, 400)/*, new ColorMaterial()*/);
            _view.scene.addChild(ground);

            //setup the camera
            _cameraController = new HoverController(_view.camera, ground, 180, 15, 400);

            //ground and shadow
            var light:DirectionalLight = new DirectionalLight(0, -1, 1);
            light.color = 0xffffff;
            light.shadowMapper = new NearDirectionalShadowMapper(.2);
            _view.scene.addChild(light);

            var shadowMethod:NearShadowMapMethod = new NearShadowMapMethod(new FilteredShadowMapMethod(light));
            shadowMethod.epsilon = 1;
            shadowMethod.alpha = 0.5;

            var groundMat:ColorMaterial = new ColorMaterial(0xffffff);
            groundMat.lightPicker = new StaticLightPicker([light]);
            groundMat.shadowMethod = shadowMethod;
            groundMat.gloss = 4;

            ground.castsShadows = false;
            ground.material = groundMat;

            //frame loop
            stage.addEventListener(Event.ENTER_FRAME, onEnterFrame);

            //autosize
            stage.addEventListener(Event.RESIZE, onResize);
            onResize();

            //camera controls
            stage.addEventListener(MouseEvent.MOUSE_DOWN, onMouseDown);
            stage.addEventListener(MouseEvent.MOUSE_UP, onMouseUp);
            stage.addEventListener(MouseEvent.MOUSE_WHEEL, onMouseWheel);

            //keyboard
            stage.addEventListener(KeyboardEvent.KEY_DOWN, onKeyDown);
            stage.addEventListener(KeyboardEvent.KEY_UP, onKeyUp);
        }

        //---------
        public const NUM_JOINTS:int = 4;
        private var _joints:Vector.<JointObject>;
        private var _chain:Vector.<int>;//0(effector), 1, 2...
        private var _targetObject:ObjectContainer3D;
        private var _iterations:int = 8;
        private var _minDistance:int = 1;


        public function initObjects():void
        {
            //init joints
            _joints = new Vector.<JointObject>();

            var joint:JointObject;
            var i:int, num:int = NUM_JOINTS;
            for(i = 0; i < num; ++i) {

                joint = new JointObject( new Vector3D(0, 50 * i, 0) )

                var display:ObjectContainer3D = createJointDisplay();
                var boneDisplay:ObjectContainer3D = (i < num-1) ? createBoneDisplay() : createBoneDisplay(0x00ff00, 6, 3);
                display.addChild( boneDisplay );
                _view.scene.addChild( display );

                joint.setDisplay( display );
                joint.updateDisplay();

                //init offsetMatrix
                joint.calculateOffsetMatrix();

                _joints.push(joint);
            }

            //init chain
            _chain = new Vector.<int>();

            for(i = num-1; i >= 0; --i) {
                _chain.push( i );

                joint = _joints[i];
                joint.parent = i - 1;//Root: -1

                if(joint.parent >= 0) {
                    joint.relativePosition = joint.position.subtract( _joints[ joint.parent ].position );
                }
                else {
                    joint.relativePosition = new Vector3D(0, 0, 0);
                }
            }

            //init mesh
            _mesh = new MeshObject();

            var ids:Vector.<uint> = new Vector.<uint>();

            for(i = 0; i < num; ++i) {

                var seg:int = 6;
                for(var j:int = 0; j < seg; ++j) {

                    var px:int = (Math.cos(Math.PI*2/seg * (j+1))) * 20;
                    var py:int = 50 * i;
                    var pz:int = (Math.sin(Math.PI*2/seg * (j+1))) * 20;

                    var vertex:VertexObject = new VertexObject( new Vector3D(px, py, pz) );

                    var bindings:Vector.<BindingInfo>;
                    if(i == 0 || i == num-1) {
                        bindings = new <BindingInfo>
                            [
                                new BindingInfo(_joints[i], 1.0)
                            ];
                    }
                    else {
                        bindings = new <BindingInfo>
                            [
                                new BindingInfo(_joints[i-1], 0.5),
                                new BindingInfo(_joints[i], 0.5)
                            ];
                    }
                    vertex.bindings = bindings;

                    vertex.display = createJointDisplay(0xffffff, 1);
                    vertex.updateDisplay();
                    _view.scene.addChild(vertex.display);

                    _mesh.addVertex(vertex);

                    if(i < num-1 && j < seg-1) {
                        ids.push(
                            i * seg + j,
                            (i+1) * seg + j,
                            i * seg + j + 1
                        );

                        ids.push(
                            i * seg + j + 1,
                            (i+1) * seg + j,
                            (i+1) * seg + j + 1
                        );
                    }
                    else if(i < num-1 && j == seg-1) {
                        ids.push(
                            i * seg + j,
                            (i+1) * seg + j,
                            i * seg
                        );
                        ids.push(
                            i * seg,
                            (i+1) * seg + j,
                            i * seg + j + 1
                        );
                    }
                }
            }
            _mesh.buildDisplay(ids);
            _view.scene.addChild(_mesh.display);

            //init target
            _targetObject = createJointDisplay(0x00ff00);
            _targetObject.position = new Vector3D(100, 50, 0);
            _view.scene.addChild(_targetObject);

            //
            calculateIK( _targetObject.position );
            _mesh.blendVertices();
            _mesh.updateDisplay();
        }

        private var _mesh:MeshObject;

        public function calculateIK(targetPosition:Vector3D):void
        {
            var itr:int = _iterations;
            while(itr--) {

                var num:int = (itr == 0 ? 2 : _chain.length);
                for(var i:int = 1; i < num; ++i) {

                    //current joint (as root) and effector
                    var joint:JointObject = _joints[ _chain[i] ];
                    var effector:JointObject = _joints[ _chain[0] ];

                    //var targetPosition:Vector3D = ;
                    var jointPositon:Vector3D = joint.position;
                    var effectorPositon:Vector3D = effector.position;

                    var v0:Vector3D = targetPosition.subtract(jointPositon);
                    v0.normalize();

                    var v1:Vector3D = effectorPositon.subtract(jointPositon);
                    v1.normalize();

                    var angle:Number = Math.acos( v1.dotProduct(v0) );

                    var axis:Vector3D = v1.crossProduct(v0);
                    axis.normalize();

                    var rotation:Quaternion = new Quaternion();
                    rotation.fromAxisAngle(axis, angle);

                    //apply rotation
                    joint.rotation.multiply(rotation, joint.rotation);
                    joint.updateDisplay();

                    //update children
                    for(var j:int = i-1; j >= 0; --j)
                    {
                        var childJoint:JointObject = _joints[ _chain[j] ];
                        //if(childJoint.parent == -1) continue;
                        var parentJoint:JointObject = _joints[ childJoint.parent ];

                        var relativePos:Vector3D = parentJoint.rotation.rotatePoint( childJoint.relativePosition );
                        childJoint.position = parentJoint.position.add( relativePos );
                        childJoint.rotation.multiply(rotation, childJoint.rotation);
                        childJoint.updateDisplay();
                    }

                    //if nearest
                    if(effector.position.subtract( targetPosition ).length < _minDistance ) return;
                }
            }
        }

        //------ Utils ------

        private function createJointDisplay(color:uint=0xff0000, radius:int=3):ObjectContainer3D
        {
            var light:PointLight = new PointLight();
            light.x = 0;
            light.y = 200;
            light.z = -200;
            light.color = 0xffffff;

            var mat:ColorMaterial = new ColorMaterial(color);
            mat.lightPicker = new StaticLightPicker([light]);
            mat.gloss = 2;

            var joint:ObjectContainer3D = new ObjectContainer3D();
            var mesh:Mesh = new Mesh(new SphereGeometry(radius, 8, 6), mat);
            joint.addChild(mesh);
            return joint;
        }

        private function createBoneDisplay(color:uint=0xff0000, length:int=50, radius:int=6):ObjectContainer3D
        {
            var light:PointLight = new PointLight();
            light.x = 0;
            light.y = 200;
            light.z = -200;
            light.color = 0xffffff;

            var mat:ColorMaterial = new ColorMaterial(color);
            mat.lightPicker = new StaticLightPicker([light]);
            mat.gloss = 2;

            var bone:ObjectContainer3D = new ObjectContainer3D();
            var mesh:Mesh = new Mesh(new ConeGeometry(radius, length, 8, 1), mat);
            mesh.y = length/2;
            bone.addChild(mesh);
            return bone;
        }

        private function toFixed(number:Number, factor:int):Number
        {
            return Math.round(number * factor) / factor;
        }

        //------ Event Handlers ------

        private var lastPosition:Vector3D = new Vector3D();

        private function onEnterFrame(e:Event):void
        {
            if (_moving) {
                _cameraController.panAngle = 0.3 * (stage.mouseX - lastMouseX) + lastPanAngle;
                _cameraController.tiltAngle = 0.3 * (stage.mouseY - lastMouseY) + lastTiltAngle;
            }

            if(up > 0 || down > 0 || left > 0 || right > 0 || front > 0 || back > 0) {

                var position:Vector3D = _targetObject.position;
                position.x += (-left + right);
                position.y += (up - down);
                position.z += (front - back);

                if( !position.equals(lastPosition) )
                {
                    _targetObject.position = position;

                    this.calculateIK( position );

                    _mesh.blendVertices();
                    _mesh.updateDisplay();
                }

                lastPosition.copyFrom(position);
            }

            _view.render();
        }

        private var lastPanAngle:Number, lastTiltAngle:Number;
        private var lastMouseX:Number, lastMouseY:Number;
        private var _moving:Boolean;

        private function onMouseDown(event:MouseEvent):void
        {
            lastPanAngle = _cameraController.panAngle;
            lastTiltAngle = _cameraController.tiltAngle;
            lastMouseX = stage.mouseX;
            lastMouseY = stage.mouseY;
            _moving = true;
        }

        private function onMouseUp(event:MouseEvent):void
        {
            _moving = false;
        }

        private function onMouseWheel(event:MouseEvent):void
        {
            _cameraController.distance += event.delta * -10;
        }

        private function onResize(event:Event = null):void
        {
            _view.width = stage.stageWidth;
            _view.height = stage.stageHeight;
        }

        private var up:int, down:int, left:int, right:int;
        private var front:int, back:int;
        private function onKeyDown(event:KeyboardEvent):void
        {
            switch(event.keyCode) {
                case Keyboard.UP:
                    up = 1;
                    break;

                case Keyboard.DOWN:
                    down = 1;
                    break;

                case Keyboard.LEFT:
                case Keyboard.A:
                    left = 1;
                    break;

                case Keyboard.RIGHT:
                case Keyboard.D:
                    right = 1;
                    break;

                case Keyboard.W:
                    front = 1;
                    break;

                case Keyboard.S:
                    back = 1;
                    break;

                case Keyboard.C:

                    _view.renderer.swapBackBuffer = false;
                    _view.render();
                    _view.stage3DProxy.context3D.drawToBitmapData(source);
                    _view.renderer.swapBackBuffer = true;

                    break;
            }
        }

        private function onKeyUp(event:KeyboardEvent):void
        {
            switch(event.keyCode) {
                case Keyboard.UP:
                    up = 0;
                    break;

                case Keyboard.DOWN:
                    down = 0;
                    break;

                case Keyboard.LEFT:
                case Keyboard.A:
                    left = 0;
                    break;

                case Keyboard.RIGHT:
                case Keyboard.D:
                    right = 0;
                    break;

                case Keyboard.W:
                    front = 0;
                    break;

                case Keyboard.S:
                    back = 0;
                    break;
            }
        }
    }
}




import flash.geom.Matrix3D;
import flash.geom.Vector3D;

import away3d.containers.ObjectContainer3D;
import away3d.core.base.SubGeometry;
import away3d.core.math.Quaternion;
import away3d.entities.Mesh;
import away3d.materials.ColorMaterial;
import away3d.tools.helpers.MeshHelper;

internal class JointObject
{
    public var position:Vector3D;
    public var rotation:Quaternion;
    public var parent:int = -1;
    public var relativePosition:Vector3D;
    public var display:ObjectContainer3D;


    public function JointObject(position:Vector3D=null, rotation:Quaternion=null)
    {
        this.position = position ? position : new Vector3D();
        this.rotation = rotation ? rotation : new Quaternion();
    }

    public function setParent(index:int):JointObject
    {
        this.parent = index;
        return this;
    }

    public function setRelativePosition(position:Vector3D):JointObject
    {
        this.relativePosition = position;
        return this;
    }

    public function setDisplay(display:ObjectContainer3D):JointObject
    {
        this.display = display;
        return this;
    }

    protected var _matrix:Matrix3D = new Matrix3D();

    public function updateDisplay():void
    {
        //var mtx:Matrix3D = rotation.toMatrix3D();
        //mtx.position = position;
        //display.transform = mtx;

        //_matrix.identity();
        rotation.toMatrix3D(_matrix);
        _matrix.position = position;
        display.transform = _matrix;
    }

    //--- for skinning mesh ---

    protected var _offsetMatrix:Matrix3D = new Matrix3D();

    public function calculateOffsetMatrix():void
    {
        rotation.toMatrix3D(_matrix);
        _matrix.position = position;

        _matrix.copyToMatrix3D(_offsetMatrix);
        _offsetMatrix.invert();
    }

    public function get offsetMatrix():Matrix3D {
        return _offsetMatrix;
    }

    public function get transformMatrix():Matrix3D {
        _matrix.identity();
        rotation.toMatrix3D(_matrix);
        _matrix.position = position;

        return _matrix;
    }
}




internal class VertexObject
{
    public var originalPosition:Vector3D;

    public var position:Vector3D;
    public var display:ObjectContainer3D;

    public function VertexObject(pos:Vector3D=null)
    {
        this.setOriginalPosition(pos);
    }

    public function setOriginalPosition(pos:Vector3D):VertexObject
    {
        this.originalPosition ||= new Vector3D();
        this.originalPosition.copyFrom(pos);

        this.position ||= new Vector3D();
        this.position.copyFrom(pos);

        return this;
    }

    public function setDisplay(display:ObjectContainer3D):VertexObject
    {
        this.display = display;
        return this;
    }

    public function updateDisplay():void
    {
        if(display) display.position = position;
    }

    //---

    public var bindings:Vector.<BindingInfo> = new Vector.<BindingInfo>();

    public function blend():void
    {
        var num:int = bindings.length;
        if(num == 0) return;

        var result:Vector3D = new Vector3D();

        for(var i:int=0; i < num; ++i) {
            var binding:BindingInfo = bindings[i];
            var joint:JointObject = binding.joint;
            var weight:Number = binding.weight;

            var mtx:Matrix3D = new Matrix3D();
            mtx.append(joint.offsetMatrix);
            mtx.append(joint.transformMatrix);
            var p:Vector3D = mtx.transformVector(this.originalPosition.clone());

            result.x += p.x * weight;
            result.y += p.y * weight;
            result.z += p.z * weight;
        }

        this.position.copyFrom(result);
    }
}

internal class BindingInfo
{
    public var joint:JointObject;
    public var weight:Number = 0;

    public function BindingInfo(joint:JointObject, weight:Number) {
        this.joint = joint;
        this.weight = weight;
    }
}

internal class MeshObject
{
    public var vertices:Vector.<VertexObject> = new Vector.<VertexObject>();

    public var display:ObjectContainer3D;

    public function MeshObject()
    {

    }

    protected var verts:Vector.<Number> = new Vector.<Number>;
    protected var ids:Vector.<uint> = new Vector.<uint>;

    public function addVertex(vertex:VertexObject):void
    {
        vertices.push(vertex);

        var p:Vector3D = vertex.position;
        verts.push(p.x, p.y, p.z);
    }

    public function buildDisplay(indices:Vector.<uint>):void
    {
        this.ids = indices;//away3d 4.0.9

        var mesh:Mesh = MeshHelper.build(verts, indices);

        //see: http://away3d.com/forum/viewthread/4749/#14286
        //mesh.geometry.convertToSeparateBuffers();//away3d 4.1.6

        mesh.material = new ColorMaterial(0xffffff, 0.5);
        mesh.material.bothSides = true;

        display = mesh;
    }

    public function blendVertices():void
    {
        var num:int = vertices.length;
        for(var i:int=0; i < num; ++i) {
            var v:VertexObject = vertices[i];
            v.blend();

            v.updateDisplay();
        }
    }

    public function updateDisplay():void
    {
        if(!display) return;

        //see: http://away3d.com/forum/viewthread/4749/#14286
        var subGeos:SubGeometry = Mesh(display).geometry.subGeometries[0] as SubGeometry;

        var num:int = vertices.length;
        for(var i:int=0; i < num; ++i) {

            var p:Vector3D = vertices[i].position;

            verts[i * 3] = p.x;
            verts[i * 3 + 1] = p.y;
            verts[i * 3 + 2] = p.z;
        }

        subGeos.updateIndexData(ids);//fix for away3d 4.0.9
        subGeos.updateVertexData(verts);
    }
}
