* Copyright O_MEG_A ( http://wonderfl.net/user/O_MEG_A )
* MIT License ( http://www.opensource.org/licenses/mit-license.php )
* Downloaded from: http://wonderfl.net/c/klHE
*/
package
{
import flash.display.Sprite;
import flash.events.Event;

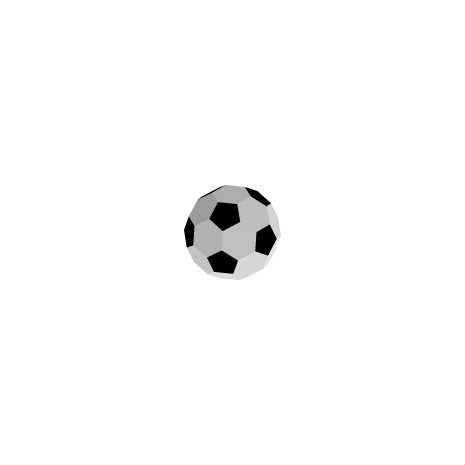

public class SoccerBall extends Sprite
{
private var vertices:Array;
private var fl:Number = 4000;
private var VP_X:Number = stage.stageWidth / 2;
private var VP_Y:Number = stage.stageHeight / 2;
private var Planes:Array;
public function SoccerBall()
{
initSoccerBall();
}
private function initSoccerBall():void
{
//stage.scaleMode = StageScaleMode.NO_SCALE;
vertices = new Array();
vertices[0] = new getPoints(0,10,48.54101966249685);
vertices[1] = new getPoints(16.18033988749895,20,42.3606797749979);
vertices[2] = new getPoints(10,36.18033988749895,32.3606797749979);
vertices[3] = new getPoints(-10,36.18033988749895,32.3606797749979);
vertices[4] = new getPoints(-16.18033988749895,20,42.3606797749979);
vertices[5] = new getPoints(0,-10,48.54101966249685);
vertices[6] = new getPoints(-16.18033988749895,-20,42.3606797749979);
vertices[7] = new getPoints(-10,-36.18033988749895,32.3606797749979);
vertices[8] = new getPoints(10,-36.18033988749895,32.3606797749979);
vertices[9] = new getPoints(16.18033988749895,-20,42.3606797749979);
//------------------------------------------------------------------------------
vertices[10] = new getPoints(0,10,-48.54101966249685);
vertices[11] = new getPoints(16.18033988749895,20,-42.3606797749979);
vertices[12] = new getPoints(10,36.18033988749895,-32.3606797749979);
vertices[13] = new getPoints(-10,36.18033988749895,-32.3606797749979);
vertices[14] = new getPoints(-16.18033988749895,20,-42.3606797749979);
vertices[15] = new getPoints(0,-10,-48.54101966249685);
vertices[16] = new getPoints(-16.18033988749895,-20,-42.3606797749979);
vertices[17] = new getPoints(-10,-36.18033988749895,-32.3606797749979);
vertices[18] = new getPoints(10,-36.18033988749895,-32.3606797749979);
vertices[19] = new getPoints(16.18033988749895,-20,-42.3606797749979);
//++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
vertices[20] = new getPoints(10,48.54101966249685,0);
vertices[21] = new getPoints(20,42.3606797749979,-16.18033988749895);
vertices[22] = new getPoints(36.18033988749895,32.3606797749979,-10);
vertices[23] = new getPoints(36.18033988749895,32.3606797749979,10);
vertices[24] = new getPoints(20,42.3606797749979,16.18033988749895);
vertices[25] = new getPoints(-10,48.54101966249685,0);
vertices[26] = new getPoints(-20,42.3606797749979,16.18033988749895);
vertices[27] = new getPoints(-36.18033988749895,32.3606797749979,10);
vertices[28] = new getPoints(-36.18033988749895,32.3606797749979,-10);
vertices[29] = new getPoints(-20,42.3606797749979,-16.18033988749895);
//-------------------------------------------------------------------------------
vertices[30] = new getPoints(10,-48.54101966249685,0);
vertices[31] = new getPoints(20,-42.3606797749979,-16.18033988749895);
vertices[32] = new getPoints(36.18033988749895,-32.3606797749979,-10);
vertices[33] = new getPoints(36.18033988749895,-32.3606797749979,10);
vertices[34] = new getPoints(20,-42.3606797749979,16.18033988749895);
vertices[35] = new getPoints(-10,-48.54101966249685,0);
vertices[36] = new getPoints(-20,-42.3606797749979,16.18033988749895);
vertices[37] = new getPoints(-36.18033988749895,-32.3606797749979,10);
vertices[38] = new getPoints(-36.18033988749895,-32.3606797749979,-10);
vertices[39] = new getPoints(-20,-42.3606797749979,-16.18033988749895);
//++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
vertices[40] = new getPoints(48.54101966249685,0,10);
vertices[41] = new getPoints(42.3606797749979,-16.18033988749895,20);
vertices[42] = new getPoints(32.3606797749979,-10,36.18033988749895);
vertices[43] = new getPoints(32.3606797749979,10,36.18033988749895);
vertices[44] = new getPoints(42.3606797749979,16.18033988749895,20);
vertices[45] = new getPoints(48.54101966249685,0,-10);
vertices[46] = new getPoints(42.3606797749979,16.18033988749895,-20);
vertices[47] = new getPoints(32.3606797749979,10,-36.18033988749895);
vertices[48] = new getPoints(32.3606797749979,-10,-36.18033988749895);
vertices[49] = new getPoints(42.3606797749979,-16.18033988749895,-20);
//-----------------------------------------------------------------------------------
vertices[50] = new getPoints(-48.54101966249685,0,10);
vertices[51] = new getPoints(-42.3606797749979,-16.18033988749895,20);
vertices[52] = new getPoints(-32.3606797749979,-10,36.18033988749895);
vertices[53] = new getPoints(-32.3606797749979,10,36.18033988749895);
vertices[54] = new getPoints(-42.3606797749979,16.18033988749895,20);
vertices[55] = new getPoints(-48.54101966249685,0,-10);
vertices[56] = new getPoints(-42.3606797749979,16.18033988749895,-20);
vertices[57] = new getPoints(-32.3606797749979,10,-36.18033988749895);
vertices[58] = new getPoints(-32.3606797749979,-10,-36.18033988749895);
vertices[59] = new getPoints(-42.3606797749979,-16.18033988749895,-20);
for(var i:uint = 0 ; i < vertices.length ; i++){
vertices[i].setVanishingPoint(VP_X,VP_Y);
vertices[i].SetCenter(0,0,200);
}
Planes = new Array();
Planes[0] = new HexaPointPlane(vertices[0],vertices[1],vertices[43],vertices[42],vertices[9],vertices[5],0xffffff);
Planes[1] = new HexaPointPlane(vertices[5],vertices[6],vertices[52],vertices[53],vertices[4],vertices[0],0xffffff);
Planes[2] = new HexaPointPlane(vertices[10],vertices[14],vertices[57],vertices[58],vertices[16],vertices[15],0xffffff);
Planes[3] = new HexaPointPlane(vertices[15],vertices[19],vertices[48],vertices[47],vertices[11],vertices[10],0xffffff);
Planes[4] = new HexaPointPlane(vertices[40],vertices[44],vertices[23],vertices[22],vertices[46],vertices[45],0xffffff);
Planes[5] = new HexaPointPlane(vertices[45],vertices[49],vertices[32],vertices[33],vertices[41],vertices[40],0xffffff);
Planes[6] = new HexaPointPlane(vertices[50],vertices[51],vertices[37],vertices[38],vertices[59],vertices[55],0xffffff);
Planes[7] = new HexaPointPlane(vertices[55],vertices[56],vertices[28],vertices[27],vertices[54],vertices[50],0xffffff);
Planes[8] = new HexaPointPlane(vertices[20],vertices[24],vertices[2],vertices[3],vertices[26],vertices[25],0xffffff);
Planes[9] = new HexaPointPlane(vertices[25],vertices[29],vertices[13],vertices[12],vertices[21],vertices[20],0xffffff);
Planes[10] = new HexaPointPlane(vertices[30],vertices[31],vertices[18],vertices[17],vertices[39],vertices[35],0xffffff);
Planes[11] = new HexaPointPlane(vertices[35],vertices[36],vertices[7],vertices[8],vertices[34],vertices[30],0xffffff);
Planes[12] = new HexaPointPlane(vertices[24],vertices[23],vertices[44],vertices[43],vertices[1],vertices[2],0xffffff);
Planes[13] = new HexaPointPlane(vertices[8],vertices[9],vertices[42],vertices[41],vertices[33],vertices[34],0xffffff);
Planes[14] = new HexaPointPlane(vertices[36],vertices[37],vertices[51],vertices[52],vertices[6],vertices[7],0xffffff);
Planes[15] = new HexaPointPlane(vertices[3],vertices[4],vertices[53],vertices[54],vertices[27],vertices[26],0xffffff);
Planes[16] = new HexaPointPlane(vertices[12],vertices[11],vertices[47],vertices[46],vertices[22],vertices[21],0xffffff);
Planes[17] = new HexaPointPlane(vertices[29],vertices[28],vertices[56],vertices[57],vertices[14],vertices[13],0xffffff);
Planes[18] = new HexaPointPlane(vertices[17],vertices[16],vertices[58],vertices[59],vertices[38],vertices[39],0xffffff);
Planes[19] = new HexaPointPlane(vertices[31],vertices[32],vertices[49],vertices[48],vertices[19],vertices[18],0xffffff);
//
Planes[20] = new PentaPointPlane(vertices[0],vertices[4],vertices[3],vertices[2],vertices[1],0x000000);
Planes[21] = new PentaPointPlane(vertices[5],vertices[9],vertices[8],vertices[7],vertices[6],0x000000);
Planes[22] = new PentaPointPlane(vertices[10],vertices[11],vertices[12],vertices[13],vertices[14],0x000000);
Planes[23] = new PentaPointPlane(vertices[15],vertices[16],vertices[17],vertices[18],vertices[19],0x000000);
Planes[24] = new PentaPointPlane(vertices[20],vertices[21],vertices[22],vertices[23],vertices[24],0x000000);
Planes[25] = new PentaPointPlane(vertices[25],vertices[26],vertices[27],vertices[28],vertices[29],0x000000);
Planes[26] = new PentaPointPlane(vertices[30],vertices[34],vertices[33],vertices[32],vertices[31],0x000000);
Planes[27] = new PentaPointPlane(vertices[35],vertices[39],vertices[38],vertices[37],vertices[36],0x000000);
Planes[28] = new PentaPointPlane(vertices[40],vertices[41],vertices[42],vertices[43],vertices[44],0x000000);
Planes[29] = new PentaPointPlane(vertices[45],vertices[46],vertices[47],vertices[48],vertices[49],0x000000);
Planes[30] = new PentaPointPlane(vertices[50],vertices[54],vertices[53],vertices[52],vertices[51],0x000000);
Planes[31] = new PentaPointPlane(vertices[55],vertices[59],vertices[58],vertices[57],vertices[56],0x000000);
var shadow : ShadoW = new ShadoW();
for (var i = 0 ; i < Planes.length ; i++){
Planes[i].shadow = shadow ;
}
addEventListener(Event.ENTER_FRAME, onEnterFrame);
}
private function onEnterFrame (event:Event):void {
var ang_X : Number = (mouseY - VP_Y)* 0.001;
var ang_Y : Number = (mouseX - VP_X)* 0.001;
for (var i : uint = 0 ; i < vertices.length ; i++){
var vertice:getPoints = vertices[i];
vertice.rotx(ang_X);
vertice.roty(ang_Y);
}
Planes.sortOn("depth", Array.DESCENDING | Array.NUMERIC);
graphics.clear();
for(i = 0; i < Planes.length; i++)
{
Planes[i].draw(graphics);
}
}
}
}
class getPoints{
private var VP_X:Number = 0;
private var VP_Y:Number = 0;
private var C_X:Number = 0;
private var C_Y:Number = 0;
private var C_Z:Number = 0;
public var fl:Number = 10000;
public var x:Number = 0;
public var y:Number = 0;
public var z:Number = 0;
public function getPoints(x:Number=0, y:Number=0, z:Number=0){
this.x = x;
this.y = y;
this.z = z;
}
public function setVanishingPoint(VP_X:Number, VP_Y:Number):void
{
this.VP_X = VP_X;
this.VP_Y = VP_Y;
}
public function SetCenter(C_X:Number, C_Y:Number, C_Z:Number=0):void
{
this.C_X = C_X;
this.C_Y = C_Y;
this.C_Z = C_Z;
}
public function get screenX():Number
{
var scale:Number = fl / (fl + z + C_Z);
return VP_X + (C_X + x) * scale;
}
public function get screenY():Number
{
var scale:Number = fl / (fl + z + C_Z);
return VP_Y + (C_Y + y) * scale;
}
public function rotx(ang_X:Number):void
{
var cos_X:Number = Math.cos(ang_X);
var sin_X:Number = Math.sin(ang_X);
var y1:Number = y * cos_X - z * sin_X;
var z1:Number = z * cos_X + y * sin_X;
y = y1;
z = z1;
}
public function roty(ang_Y:Number):void
{
var cos_Y:Number = Math.cos(ang_Y);
var sin_Y:Number = Math.sin(ang_Y);
var x1:Number = x * cos_Y - z * sin_Y;
var z1:Number = z * cos_Y + x * sin_Y;
x = x1;
z = z1;
}
public function rotz(ang_Z:Number):void
{
var cos_Z:Number = Math.cos(ang_Z);
var sin_Z:Number = Math.sin(ang_Z);
var x1:Number = x * cos_Z - y * sin_Z;
var y1:Number = y * cos_Z + x * sin_Z;
x = x1;
y = y1;
}
}
import flash.display.Graphics;
class HexaPointPlane {
private var vertice_A:getPoints;
private var vertice_B:getPoints;
private var vertice_C:getPoints;
private var vertice_D:getPoints;
private var vertice_E:getPoints;
private var vertice_F:getPoints;
private var color:uint;
public var shadow:ShadoW;
public function HexaPointPlane(a:getPoints, b:getPoints, c:getPoints, d:getPoints , e:getPoints ,f:getPoints , color:uint)
{
vertice_A = a;
vertice_B = b;
vertice_C = c;
vertice_D = d;
vertice_E = e;
vertice_F = f;
this.color = color;
}
public function draw(g:Graphics):void
{
if(isBackFace())
{
return;
}
g.beginFill(getAdjustedColor());
g.moveTo(vertice_A.screenX, vertice_A.screenY);
g.lineTo(vertice_B.screenX, vertice_B.screenY);
g.lineTo(vertice_C.screenX, vertice_C.screenY);
g.lineTo(vertice_D.screenX, vertice_D.screenY);
g.lineTo(vertice_E.screenX, vertice_E.screenY);
g.lineTo(vertice_F.screenX, vertice_F.screenY);
g.lineTo(vertice_A.screenX, vertice_A.screenY);
g.endFill();
}
private function getAdjustedColor():uint
{
var red:Number = color >> 16;
var green:Number = color >> 8 & 0xff;
var blue:Number =color & 0xff;
var lightFactor:Number = getLightFactor();
red *= lightFactor;
green *= lightFactor;
blue *= lightFactor;
return red << 16 | green << 8 | blue;
}
private function getLightFactor():Number
{
var ab:Object = new Object();
ab.x = vertice_A.x - vertice_C.x;
ab.y = vertice_A.y - vertice_C.y;
ab.z = vertice_A.z - vertice_C.z;
var bc:Object = new Object();
bc.x = vertice_C.x - vertice_E.x;
bc.y = vertice_C.y - vertice_E.y;
bc.z = vertice_C.z - vertice_E.z;
var norm:Object = new Object();
norm.x = (ab.y * bc.z) - (ab.z * bc.y);
norm.y = -((ab.x * bc.z) - (ab.z * bc.x));
norm.z = (ab.x * bc.y) - (ab.y * bc.x);
var dotProd:Number = norm.x * shadow.x +
norm.y * shadow.y +
norm.z * shadow.z;
var normMag:Number = Math.sqrt(norm.x * norm.x +
norm.y * norm.y +
norm.z * norm.z);
var shadowMagnitude:Number = Math.sqrt(shadow.x * shadow.x +
shadow.y * shadow.y +
shadow.z * shadow.z);
return (((Math.acos(dotProd / (normMag * shadowMagnitude)) / Math.PI)
* shadow.darkness)*0.4)+.6;
}
private function isBackFace():Boolean
{
var cax:Number = vertice_F.screenX - vertice_A.screenX;
var cay:Number = vertice_F.screenY - vertice_A.screenY;
var bcx:Number = vertice_C.screenX - vertice_F.screenX;
var bcy:Number = vertice_C.screenY - vertice_F.screenY;
return cax * bcy > cay * bcx;
}
public function get depth():Number
{
var Z_pos:Number = Math.min(vertice_A.z,vertice_B.z);
Z_pos = Math.min(Z_pos, vertice_C.z);
return Z_pos;
}
}
import flash.display.Graphics;
class PentaPointPlane {
private var vertice_A:getPoints;
private var vertice_B:getPoints;
private var vertice_C:getPoints;
private var vertice_D:getPoints;
private var vertice_E:getPoints;
// private var vertice_F:getPoints;
private var color:uint;
public var shadow:ShadoW;
public function PentaPointPlane(a:getPoints, b:getPoints, c:getPoints, d:getPoints , e:getPoints , color:uint)
{
vertice_A = a;
vertice_B = b;
vertice_C = c;
vertice_D = d;
vertice_E = e;
// vertice_F = f;
this.color = color;
}
public function draw(g:Graphics):void
{
if(isBackFace())
{
return;
}
g.beginFill(getAdjustedColor());
g.moveTo(vertice_A.screenX, vertice_A.screenY);
g.lineTo(vertice_B.screenX, vertice_B.screenY);
g.lineTo(vertice_C.screenX, vertice_C.screenY);
g.lineTo(vertice_D.screenX, vertice_D.screenY);
g.lineTo(vertice_E.screenX, vertice_E.screenY);
// g.lineTo(vertice_F.screenX, vertice_F.screenY);
g.lineTo(vertice_A.screenX, vertice_A.screenY);
g.endFill();
}
private function getAdjustedColor():uint
{
var red:Number = color >> 16;
var green:Number = color >> 8 & 0xff;
var blue:Number =color & 0xff;
var lightFactor:Number = getLightFactor();
red *= lightFactor;
green *= lightFactor;
blue *= lightFactor;
return red << 16 | green << 8 | blue;
}
private function getLightFactor():Number
{
var ab:Object = new Object();
ab.x = vertice_A.x - vertice_C.x;
ab.y = vertice_A.y - vertice_C.y;
ab.z = vertice_A.z - vertice_C.z;
var bc:Object = new Object();
bc.x = vertice_C.x - vertice_D.x;
bc.y = vertice_C.y - vertice_D.y;
bc.z = vertice_C.z - vertice_D.z;
var norm:Object = new Object();
norm.x = (ab.y * bc.z) - (ab.z * bc.y);
norm.y = -((ab.x * bc.z) - (ab.z * bc.x));
norm.z = (ab.x * bc.y) - (ab.y * bc.x);
var dotProd:Number = norm.x * shadow.x +
norm.y * shadow.y +
norm.z * shadow.z;
var normMag:Number = Math.sqrt(norm.x * norm.x +
norm.y * norm.y +
norm.z * norm.z);
var shadowMagnitude:Number = Math.sqrt(shadow.x * shadow.x +
shadow.y * shadow.y +
shadow.z * shadow.z);
return (Math.acos(dotProd / (normMag * shadowMagnitude)) / Math.PI)
* shadow.darkness;
}
private function isBackFace():Boolean
{
var cax:Number = vertice_D.screenX - vertice_A.screenX;
var cay:Number = vertice_D.screenY - vertice_A.screenY;
var bcx:Number = vertice_C.screenX - vertice_D.screenX;
var bcy:Number = vertice_C.screenY - vertice_D.screenY;
return cax * bcy > cay * bcx;
}
public function get depth():Number
{
var Z_pos:Number = Math.min(vertice_A.z,vertice_B.z);
Z_pos = Math.min(Z_pos, vertice_C.z);
return Z_pos;
}
}
class ShadoW
{
public var x:Number;
public var y:Number;
public var z:Number;
private var _darkness:Number;
public function ShadoW(x:Number = 100, y:Number = 100, z:Number = 100, darkness:Number = 0)
{
this.x = x;
this.y = y;
this.z = z;
this.darkness = darkness;
}
public function set darkness(b:Number):void
{
_darkness = Math.max(b, 1);
_darkness = Math.min(_darkness, 1);
}
public function get darkness():Number
{
return _darkness;
}
}
