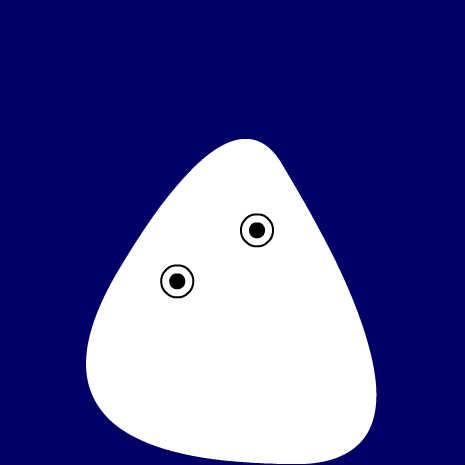

おばけだぞぉ
三角形の三頂点 { C0, C1, C2 } を制御点として
三辺上にひとつずつ取った点 { P0, P1, P2 } を
curvtTo() で結び卵形線を描く
P0, P1, P2 を動かして内部を白く塗ればオバケのできあがり
目玉の位置は P0,P1,P2 の重心と P0 または P1 との中間点
--------------------------------------------------
現在は C0,C1,C2 を固定したうえ
P0,P1,P2 の位置を時間のみの函数で決めているけど
こいつらをインタラクティブに変化させると面白いかも
♥0 |
Line 90 |
Modified 2010-03-25 08:56:40 |
MIT License
archived:2017-03-20 07:19:26
ActionScript3 source code
/**
* Copyright tenasaku ( http://wonderfl.net/user/tenasaku )
* MIT License ( http://www.opensource.org/licenses/mit-license.php )
* Downloaded from: http://wonderfl.net/c/jWFJ
*/
/*
三角形の三頂点 { C0, C1, C2 } を制御点として
三辺上にひとつずつ取った点 { P0, P1, P2 } を
curvtTo() で結び卵形線を描く
P0, P1, P2 を動かして内部を白く塗ればオバケのできあがり
目玉の位置は P0,P1,P2 の重心と P0 または P1 との中間点
--------------------------------------------------
現在は C0,C1,C2 を固定したうえ
P0,P1,P2 の位置を時間のみの函数で決めているけど
こいつらをインタラクティブに変化させると面白いかも
*/
package {
import flash.display.*;
import flash.events.*;
import flash.geom.*;
import flash.utils.*;
public class Main extends Sprite {
private var eggCurve:Sprite;
private var leftEye:EyeBall;
private var rightEye:EyeBall;
private var C0:Point;
private var C1:Point;
private var C2:Point;
private function atEveryFrame(e:Event):void {
var theta:Number = getTimer()*Math.PI/10000;
var t0:Number = (1+0.6*Math.cos(theta*3))/2;
var t1:Number = (1+0.6*Math.cos(theta*5))/2;
var t2:Number = (1+0.8*Math.cos(theta*2))/2;
var P0:Point = new Point(t0*C1.x+(1-t0)*C2.x,t0*C1.y+(1-t0)*C2.y);
var P1:Point = new Point(t1*C2.x+(1-t1)*C0.x,t1*C2.y+(1-t1)*C0.y);
var P2:Point = new Point(t2*C0.x+(1-t2)*C1.x,t2*C0.y+(1-t2)*C1.y);
eggCurve.visible = false;
eggCurve.graphics.clear();
eggCurve.graphics.lineStyle(NaN);
eggCurve.graphics.beginFill(0xffffff);
eggCurve.graphics.moveTo(P0.x,P0.y);
eggCurve.graphics.curveTo(C1.x,C1.y,P2.x,P2.y);
eggCurve.graphics.curveTo(C0.x,C0.y,P1.x,P1.y);
eggCurve.graphics.curveTo(C2.x,C2.y,P0.x,P0.y);
eggCurve.graphics.endFill();
var LX:Number = (P0.x*4+P1.x+P2.x)/6;
var LY:Number = (P0.y*4+P1.y+P2.y)/6;
var MX:Number = (P0.x+P1.x*4+P2.x)/6;
var MY:Number = (P0.y+P1.y*4+P2.y)/6;
leftEye.x = LX;
leftEye.y = LY;
rightEye.x = MX;
rightEye.y = MY;
eggCurve.visible = true;
}
private function initialize(e:Event):void {
this.removeEventListener(Event.ADDED_TO_STAGE, initialize);
this.graphics.beginFill(0x000066);
this.graphics.drawRect(0,0,465,465);
this.graphics.endFill();
C0 = new Point(-232, 0);
C1 = new Point( 232, 0);
C2 = new Point( 0,-220*Math.sqrt(3));
eggCurve = new Sprite;
eggCurve.x = 232.5;
eggCurve.y = 464;
leftEye = new EyeBall;
rightEye = new EyeBall;
eggCurve.addChild(leftEye);
eggCurve.addChild(rightEye);
this.addChild(eggCurve);
stage.addEventListener(Event.ENTER_FRAME, atEveryFrame);
}
// The Main constructor simply calles initialize() function.
public function Main():void {
if ( stage != null ) {
initialize(null);
} else {
this.addEventListener(Event.ADDED_TO_STAGE, initialize);
}
}
} // end of class Main
} // end of package
import flash.display.*;
class EyeBall extends Sprite {
private const R_lid:Number = 16;
private const R_iris:Number = 8;
private const eyeColor:uint = 0x000000;
private var iris:Sprite;
public function redraw():void { // とりあえず瞳を動かさないで作ってみる
iris.x = 0;
iris.y = 0;
}
public function EyeBall():void {
this.graphics.clear();
this.graphics.lineStyle(2,0x000000);
this.graphics.beginFill(0xffffff);
this.graphics.drawCircle(0,0,R_lid);
this.graphics.endFill();
iris = new Sprite();
iris.graphics.clear();
iris.graphics.beginFill(eyeColor);
iris.graphics.drawCircle(0,0,R_iris);
iris.graphics.endFill();
this.addChild(iris);
}
}
