forked from: GraphicsPathでdrawRoundRect()する

/**
 * Copyright bgarraud ( http://wonderfl.net/user/bgarraud )
 * MIT License ( http://www.opensource.org/licenses/mit-license.php )
 * Downloaded from: http://wonderfl.net/c/hfJK
 */

// forked from ferv's GraphicsPathでdrawRoundRect()する
package
{
    import com.bit101.components.CheckBox;
    import com.bit101.components.Slider;
    import flash.display.Graphics;
    import flash.display.GraphicsSolidFill;
    import flash.display.GraphicsStroke;
    import flash.display.IGraphicsData;
    import flash.display.Sprite;
    import flash.events.Event;
    import flash.text.TextFormat;

    /**
     * http://ferv.jp/blog/2009/10/28/graphicspath-drawroundrect/
     *
     * @langversion ActionScript 3.0
     * @playerversion Flash 10.0
     *
     * @author dsk
     * @since 2009/10/27
     */
    public class RountRectGraphicsPath extends Sprite
    {

        //--------------------------------------
        // CLASS CONSTANTS
        //--------------------------------------


        //--------------------------------------
        // PRIVATE VARIABLES
        //--------------------------------------

        private var _tl:CheckBox;
        private var _tr:CheckBox;
        private var _bl:CheckBox;
        private var _br:CheckBox;
        private var _width:Slider;
        private var _height:Slider;
        private var _ellipseWidth:Slider;
        private var _ellipseHeight:Slider;


        //--------------------------------------
        // GETTER/SETTERS
        //--------------------------------------


        //--------------------------------------
        // CONSTRUCTOR
        //--------------------------------------

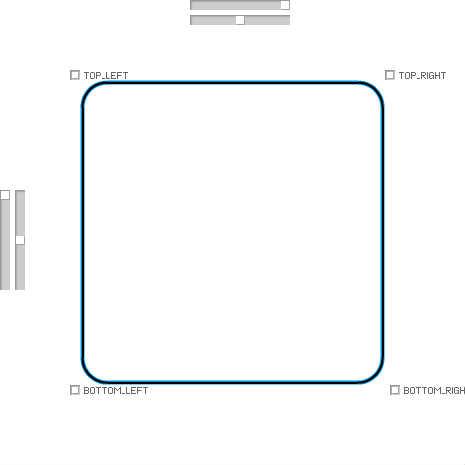

        public function RountRectGraphicsPath()
        {
            _tl = new CheckBox(this, 70, 70, 'TOP_LEFT', _onChange);
            _tl.selected = true;
            _tr = new CheckBox(this, 385, 70, 'TOP_RIGHT', _onChange);
            _tr.selected = true;
            _bl = new CheckBox(this, 70, 385, 'BOTTOM_LEFT', _onChange);
            _bl.selected = true;
            _br = new CheckBox(this, 390, 385, 'BOTTOM_RIGHT', _onChange);
            _br.selected = true;
            _width = new Slider(Slider.HORIZONTAL, this, 190, 0, _onChange);
            _height = new Slider(Slider.VERTICAL, this, 0, 190, _onChange);
            _ellipseWidth = new Slider(Slider.HORIZONTAL, this, 190, 15, _onChange);
            _ellipseHeight = new Slider(Slider.VERTICAL, this, 15, 190, _onChange);
            _height.maximum = 300;
            _width.maximum = 300;
            _width.value = 300;
            _height.value = 300;
            _ellipseWidth.value = 50;
            _ellipseHeight.value = 50;

            _onChange();
        }


        //--------------------------------------
        // PUBLIC METHODS
        //--------------------------------------


        //--------------------------------------
        // PRIVATE METHODS
        //--------------------------------------

        private function _onChange(e:Event = null):void
        {
            var width:Number = _width.value;
            var height:Number = _height.value;
            var x:Number = (stage.stageWidth - width) / 2;
            var y:Number = (stage.stageHeight - height) / 2;
            var ellipseWidth:Number = _ellipseWidth.value;
            var ellipseHeight:Number = _ellipseHeight.value;
            var tl:int = (_tl.selected)? GraphicsPathUtil.TOP_LEFT: GraphicsPathUtil.NONE;
            var tr:int = (_tr.selected)? GraphicsPathUtil.TOP_RIGHT: GraphicsPathUtil.NONE;
            var bl:int = (_bl.selected)? GraphicsPathUtil.BOTTOM_LEFT: GraphicsPathUtil.NONE;
            var br:int = (_br.selected)? GraphicsPathUtil.BOTTOM_RIGHT: GraphicsPathUtil.NONE;

            var g:Graphics = graphics;
            g.clear();
            g.lineStyle(4, 0x008CD2);
            g.drawRoundRect(x, y, width, height, ellipseWidth, ellipseHeight);

            g.drawGraphicsData(Vector.<IGraphicsData>([
                new GraphicsStroke(2, false, 'normal', 'none', 'round', 3, new GraphicsSolidFill(0x000000, 1)),
                GraphicsPathUtil.createRoundRect(x, y, width, height, ellipseWidth, ellipseHeight, tl | tr | bl | br)
            ]));
        }


    }


}



import flash.display.GraphicsPath;
import flash.display.GraphicsPathCommand;

internal class GraphicsPathUtil
{
    public static const NONE:int         = 0;
    public static const TOP_LEFT:int     = 1;
    public static const TOP_RIGHT:int    = 2;
    public static const BOTTOM_LEFT:int  = 4;
    public static const BOTTOM_RIGHT:int = 8;
    public static const ALL:int          = TOP_LEFT | TOP_RIGHT | BOTTOM_LEFT | BOTTOM_RIGHT;

    public static function createRoundRect(x:Number, y:Number, width:Number, height:Number, ellipseWidth:Number, ellipseHeight:Number,
                                           option:int = 15, winding:String = 'evenOdd'):GraphicsPath
    {
        ellipseWidth = (ellipseWidth > width)? width: ellipseWidth;
        ellipseHeight = (ellipseHeight > height)? height: ellipseHeight;
        ellipseWidth /= 2;
        ellipseHeight /= 2;

        var anchorX:Number = ellipseWidth * (1 - Math.SQRT1_2);
        var anchorY:Number = ellipseHeight * (1 - Math.SQRT1_2);
        var handleX:Number = ellipseWidth * (2 - Math.SQRT2);
        var handleY:Number = ellipseHeight * (2 - Math.SQRT2);

        var commands:Vector.<int> = new Vector.<int>();
        var data:Vector.<Number> = new Vector.<Number>();

        if ((option & TOP_LEFT) == TOP_LEFT) {
            commands.push(GraphicsPathCommand.MOVE_TO, GraphicsPathCommand.CURVE_TO);
            data.push(
                x + anchorX, y + anchorY,
                x + handleX, y, x + ellipseWidth, y
            );
        } else {
            commands.push(GraphicsPathCommand.MOVE_TO);
            data.push(x, y);
        }
        if ((option & TOP_RIGHT) == TOP_RIGHT) {
            commands.push(GraphicsPathCommand.LINE_TO, GraphicsPathCommand.CURVE_TO, GraphicsPathCommand.CURVE_TO);
            data.push(
                x + width - ellipseWidth, y,
                x + width - handleX, y, x + width - anchorX, y + anchorY,
                x + width, y + handleY, x + width, y + ellipseHeight
            );
        } else {
            commands.push(GraphicsPathCommand.LINE_TO);
            data.push(x + width, y);
        }
        if ((option & BOTTOM_RIGHT) == BOTTOM_RIGHT) {
            commands.push(GraphicsPathCommand.LINE_TO, GraphicsPathCommand.CURVE_TO, GraphicsPathCommand.CURVE_TO);
            data.push(
                x + width, y + height - ellipseHeight,
                x + width, y + height - handleY, x + width - anchorX, y + height - anchorY,
                x + width - handleX, y + height, x + width - ellipseWidth, y + height
            );
        } else {
            commands.push(GraphicsPathCommand.LINE_TO);
            data.push(x + width, y + height);
        }
        if ((option & BOTTOM_LEFT) == BOTTOM_LEFT) {
            commands.push(GraphicsPathCommand.LINE_TO, GraphicsPathCommand.CURVE_TO, GraphicsPathCommand.CURVE_TO);
            data.push(
                x + ellipseWidth, y + height,
                x + handleX, y + height, x + anchorX, y + height - anchorY,
                x, y + height - handleY, x, y + height - ellipseHeight
            );
        } else {
            commands.push(GraphicsPathCommand.LINE_TO);
            data.push(x, y + height);
        }
        if ((option & TOP_LEFT) == TOP_LEFT) {
            commands.push(GraphicsPathCommand.LINE_TO, GraphicsPathCommand.CURVE_TO);
            data.push(
                x, y + ellipseHeight,
                x, y + handleY, x + anchorX, y + anchorY
            );
        } else {
            commands.push(GraphicsPathCommand.LINE_TO);
            data.push(x, y);
        }

        return new GraphicsPath(commands, data, winding);
    }


}
