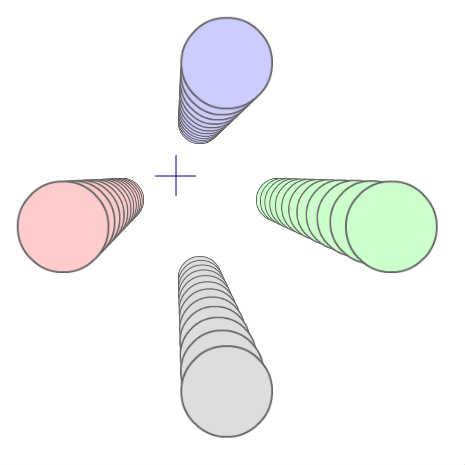

Perspective Compass

/**
 * Copyright sh0ckwav ( http://wonderfl.net/user/sh0ckwav )
 * MIT License ( http://www.opensource.org/licenses/mit-license.php )
 * Downloaded from: http://wonderfl.net/c/gsAP
 */

// forked from sh0ckwav's  Example: Perspective projection
package
{
    import flash.display.Sprite;
    import flash.display.Shape;
    import flash.geom.Point;
    import flash.events.*;
    public class ProjectionDragger extends Sprite
    {
        private var center : Sprite;
        private var boxPanel:Shape;
        private var inDrag:Boolean = false;

         public function ProjectionDragger():void
        {
            createCircles();
            createCenter();
        }
         public function createCenter():void
         {
              var  centerRadius:int = 20;

              center = new Sprite();

              // cross hairs
              center.graphics.lineStyle(1, 0x000099);
              center.graphics.moveTo(0, centerRadius);
              center.graphics.lineTo(0, -centerRadius);
              center.graphics.moveTo(centerRadius, 0);
              center.graphics.lineTo(-centerRadius, 0);
              center.x = 175;
              center.y = 175;
              center.z = 0;
              this.addChild(center);

              //center.addEventListener(MouseEvent.MOUSE_DOWN, startDragProjectionCenter);
              //center.addEventListener(MouseEvent.MOUSE_UP, stopDragProjectionCenter);
              stage.addEventListener( MouseEvent.MOUSE_MOVE, doDragProjectionCenter);
              center.startDrag(true);
              inDrag = true;
              root.transform.perspectiveProjection.projectionCenter = new Point(center.x, center.y);
        }
        public function createCircles():void
        {
            var radius:int = 50;
            var numLayers:int = 12;
            var depthPerLayer:int = 50;

            for (var i:int = 0; i < numLayers; i++)
            {
                this.addChild(createCircle(stage.stageWidth / 2, radius, (numLayers - i) * depthPerLayer, radius, 0xCCCCFF));
                this.addChild(createCircle(50, stage.stageHeight / 2, (numLayers - i) * depthPerLayer, radius, 0xFFCCCC));
                this.addChild(createCircle(stage.stageWidth - radius, stage.stageHeight / 2, (numLayers - i) * depthPerLayer, radius, 0xCCFFCC));
                this.addChild(createCircle(stage.stageWidth / 2, stage.stageHeight - radius, (numLayers - i) * depthPerLayer, radius, 0xDDDDDD));
            }
        }

        public function createCircle(xPos:int = 0, yPos:int = 0, zPos:int = 100, r:int = 50, color:int = 0xDDDDDD):Shape
        {
            var box:Shape = new Shape();
            box.graphics.lineStyle(2, 0x666666);
            box.graphics.beginFill(color, 1.0);
            box.graphics.drawCircle(0, 0, r);
            box.graphics.endFill();
            box.x = xPos;
            box.y = yPos;
            box.z = zPos;
            return box;
        }
        public function startDragProjectionCenter(e:Event):void
        {
            center.startDrag();
            inDrag = true;
        }

        public function doDragProjectionCenter(e:Event):void
        {
            if (inDrag)
            {
                root.transform.perspectiveProjection.projectionCenter = new Point(center.x, center.y);
            }
        }

        public function stopDragProjectionCenter(e:Event):void
        {
            center.stopDrag();
            root.transform.perspectiveProjection.projectionCenter = new Point(center.x, center.y);
            inDrag = false;
        }
    }
}
