* Copyright WLAD ( http://wonderfl.net/user/WLAD )
* MIT License ( http://www.opensource.org/licenses/mit-license.php )
* Downloaded from: http://wonderfl.net/c/gBJo
*/
/// @mxmlc -swf-version 20
package
{
import com.adobe.utils.AGALMiniAssembler;
import flash.display.BitmapData;
import flash.display.Graphics;
import flash.display.Sprite;
import flash.display3D.Context3DProgramType;
import flash.display3D.Context3DVertexBufferFormat;
import flash.display3D.IndexBuffer3D;
import flash.display3D.Program3D;
import flash.display3D.VertexBuffer3D;
import flash.utils.ByteArray;
[SWF(width='465', height='465')]
public class Stage3D_Tutorial_3_gBJo extends Sprite
{
public function Stage3D_Tutorial_3_gBJo()
{
var S:StageUtil = new StageUtil( stage );
var G:Graphics = this.graphics;
var B:BitmapData = new BitmapData( S.W, S.H, true, 0 );
// wait for Stage3D to provide us a Context3D
// first param [true] is for error reporting
// By enabling the Error reporting, you can get some valuable
// information about errors in your shaders
// But it also dramatically slows down your program.
S.onContext3D( true, function():void {
// ---------------------------------------------------------------------------------
// ---------------------------------------------------------------------------------
// ---------------------------------------------------------------------------------
////////////////////////////////////////////////
// ### [1]: Allocation - program compilation.
////////////////////////////////////////////////
// CREATE BUFFERS //
// How much Vertex it will have : 3
// How much information each Vertex have : x,y,z,r,g,b = 6
var vertexBuffer:VertexBuffer3D = S.Context.createVertexBuffer( 3, 6 );
// The index buffer needs to know how many instruction he will have. Here 3.
var indexBuffer:IndexBuffer3D = S.Context.createIndexBuffer( 3 );
// CREATE SHADER PROGRAM //
// When you call the createProgram method you are actually allocating
// some V-Ram space for your shader program.
var program:Program3D = S.Context.createProgram();
// Create an AGALMiniAssembler //
// The MiniAssembler is an Adobe tool that uses a simple
// Assembly-like language to write and compile your shader into bytecode
var assembler:AGALMiniAssembler = new AGALMiniAssembler();
// VERTEX SHADER //
var code:String = "";
// Move the Vertex Attribute 0 (va0), which is our Vertex
// Coordinate, to the Output Point (op)
code += "mov op, va0" + "\n";
// Move the Vertex Attribute 1 (va1), which is our Vertex
// Color, to the variable register (v0)
// Variable register are memory space shared between your
// Vertex Shader and your Fragment Shader
code += "mov v0, va1" + "\n";
// COMPILE //
// Compile our AGAL Code into ByteCode using the MiniAssembler
var vertexShader:ByteArray =
assembler.assemble(Context3DProgramType.VERTEX, code);
// Move the Variable register 0 (v0) where we copied our
// Vertex Color, to the output color (oc)
code = "mov oc, v0\n";
// Compile our AGAL Code into Bytecode using the MiniAssembler
var fragmentShader:ByteArray =
assembler.assemble(Context3DProgramType.FRAGMENT, code);
///////////////////////////////////////////////
// ### [2]: Upload program and buffers data.
///////////////////////////////////////////////
// UPLOAD TO GPU PROGRAM //
// Upload the combined program to the video Ram
program.upload(vertexShader, fragmentShader);
// Upload some data to the vertex and index buffers

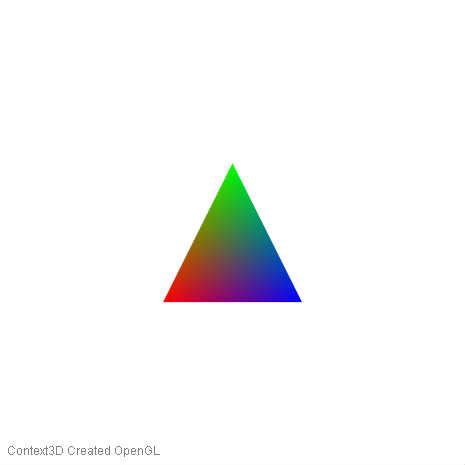

var vertexData:Vector.<Number>=Vector.<Number>([
-0.3, -0.3, +0.0, +1.0, +0.0, +0.0, // 1st vertex x,y,z,r,g,b
+0.0, +0.3, +0.0, +0.0, +1.0, +0.0, // 2nd vertex x,y,z,r,g,b
+0.3, -0.3, +0.0, +0.0, +0.0, +1.0 // 3rd vertex x,y,z,r,g,b
]);
vertexBuffer.uploadFromVector(vertexData, 0, 3);
indexBuffer.uploadFromVector(Vector.<uint>([0, 1, 2]), 0, 3);
//////////////////////////////////////////////////////////
// ### [3]: Split chunk of data and set active program.
//////////////////////////////////////////////////////////
// Define how each Chunck of Data should be split and upload
// to fast access register for our AGAL program
// So here, basically, your telling your GPU that for each
// Vertex with a vertex being x,y,y,r,g,b
// you will copy in register "0", from the buffer "vertexBuffer,
// starting from the postion "0" the FLOAT_3 next number
S.Context.setVertexBufferAt(0, vertexBuffer, 0, Context3DVertexBufferFormat.FLOAT_3);
// register "0" now contains x,y,z
// Here, you will copy in register "1" from "vertexBuffer",
// starting from index "3", the next FLOAT_3 numbers
S.Context.setVertexBufferAt(1, vertexBuffer, 3, Context3DVertexBufferFormat.FLOAT_3);
// register 1 now contains r,g,b
// Define the active program to run on our GPU
// Set our program as the current active one
S.Context.setProgram(program);
//////////////////////////////////////////////////////////
// ### [4]: Start the rendering loop.
//////////////////////////////////////////////////////////
//Called each frame, Render the scene
S.on('enterFrame', function():void
{
// Clear the backbuffer by filling it with the given color
S.Context.clear(1, 1, 1, 1);
// Draw the triangle according to the indexBuffer instructions into the backbuffer
S.Context.drawTriangles(indexBuffer);
// TEMP ( take screen shot )
if ( takescreenshot )
{
S.Context.drawToBitmapData( B );
takescreenshot = false;
readyscreenshot = true;
}
// render the backbuffer on screen.
S.Context.present();
});
// ---------------------------------------------------------------------------------
// ---------------------------------------------------------------------------------
// ---------------------------------------------------------------------------------
});
var takescreenshot:Boolean = false;
var readyscreenshot:Boolean = false;
S.on('click', function():void {
if ( ! readyscreenshot ) return;
G.clear();
G.beginBitmapFill( B );
G.drawRect( 0, 0, S.W, S.H );
G.endFill();
});
S.on('rightMouseDown', function():void {
G.clear();
takescreenshot = true;
} );
S.on('doubleClick', function():void {
S.toogleFullScreen();
});
} // end constractor
} // end class
} // end package
import flash.display.Stage;
import flash.display3D.Context3D;
import flash.geom.Rectangle;
import flash.text.TextField;
import flash.text.TextFormat;
class StageUtil
{
/// Context3D
public var Context:Context3D = null;
//
public function onContext3D( errorReporting:Boolean = false, callBack:Function = null ):void
{
if ( callBack == null ) return;
if( errorReporting )
stage.stage3Ds[0].addEventListener('error', function( e:* ):void {
text( "Context3D Error", e.text );
});
stage.stage3Ds[0].addEventListener('context3DCreate', function( e:* ):void {
Context = stage.stage3Ds[0].context3D;
Context.enableErrorChecking = errorReporting;
// Configure the back buffer, in width and height. You can also specify the antialiasing
// The backbuffer is the memory space where your final image is rendered.
Context.configureBackBuffer( W, H, 4, true );
callBack();
text( "Context3D Created " + Context.driverInfo );
});stage.stage3Ds[0].requestContext3D();
}
/// stage width
public var W:int;
/// stage height
public var H:int;
/// Array of pressed keys
public var K:Vector.<Boolean>;
private var stage:Stage;
public function StageUtil( stage:Stage ):void
{
this.stage = stage;
stage.color = 0xFFFFFF;
W = stage.stageWidth;
H = stage.stageHeight;
stage.doubleClickEnabled = true;
// Keyboard control
K = new Vector.<Boolean>();
for (var k:int = 0; k < 2000; k++) K.push( false );
var input:Function = function( e:* ):void
{K[ e.keyCode ] = e.type == "keyDown";};
stage.addEventListener('keyDown', input );
stage.addEventListener('keyUp', input );
}
public function toogleFullScreen():void
{
if ( stage.displayState == 'normal' )
{
stage.fullScreenSourceRect = new Rectangle( 0, 0, W, H );
stage.displayState = 'fullScreen';
}
else stage.displayState = 'normal';
}
public function on( event:String, callBack:Function, once:Boolean = false ):void
{
var capture:Function = function(e:*):void {
if ( once ) stage.removeEventListener( event, capture );
callBack();
};
stage.addEventListener( event, capture );
}
private var label:TextField;
public function text( ...arguments ):void
{
if ( label == null )
{
label = new TextField();
label.x = 5;
label.autoSize = 'left';
label.mouseEnabled = false;
label.alpha = 0.5;
label.defaultTextFormat = new TextFormat("Arial", 12, 0x000000 );
stage.addChild( label );
}
label.appendText( arguments.join("\n") + "\n" );
label.y = H - label.height - 5;
}
}
