FF: WFLPortalbe minifyed 1.1
forked from WFLPortalbe minifyed (diff: 211)
ActionScript3 source code
/**
* Copyright WLAD ( http://wonderfl.net/user/WLAD )
* MIT License ( http://www.opensource.org/licenses/mit-license.php )
* Downloaded from: http://wonderfl.net/c/efy55
*/
// forked from WLAD's WFLPortalbe minifyed
package {
import flash.display.Sprite;
[SWF(width = "465", height = "465" )]
public class WFLPortable extends Sprite
{
public function WFLPortable()
{
WG.INIT( stage );
var C:Canvas = new Canvas( this );
C.DrawText( "WFLPortable\nVERSION 1.1\n\nMy classes\ncollection", WG.W2, WG.H2, true, 0xFFFFFF, 68, -1, "Consolas" );
Comp.mobileSlideMenu = true;
Comp.Margin = 5;
Comp.Gap = 5;
Comp.Scale = 2;
var CP:Comp = new Comp( this );
CP.visible = false;

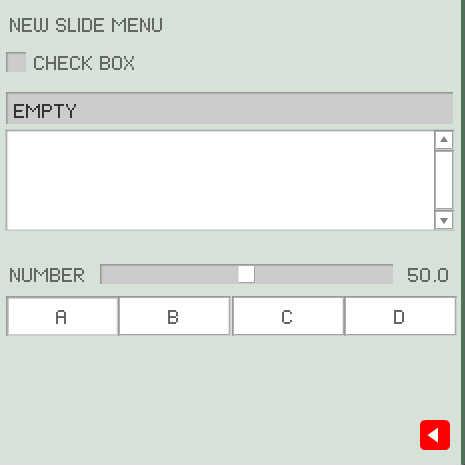

CP.addLabel("New Slide Menu");
CP.addCheckBox("Check box", true, function( state:Boolean ):void
{
input.visible = state;
});
var input:* = CP.addInput("Empty", function( text:String ):void {
output.text = text.toUpperCase();
});
var output:* = CP.addOutput( 50 );
CP.addSlider("Number", 50, 0, 100, 0.1, 1, function( val:Number ):void {
output.text = "number val: " + val;
});
CP.addSwitch( function( state:String ):void
{
output.text = "Selected State: " + state;
}, "A", "B", "C", "D" );
}
}
}
// 1.1 : Minified single line WFLPortalbe ( http://wonderfl.net/c/efy55 )
// import flash.text.*;import flash.display.*;import flash.events.*;import flash.geom.*;import com.bit101.components.*;class WG{static public var W2:int;static public var H2:int;static public var W:int;static public var H:int;static private var canvas:Shape;public static function INIT(stage:Stage, bgColor:uint=0x000000, frameRate:int=60, preventScale:Boolean=true):void{canvas=new Shape();stage.addChildAt(canvas, 0);var onStageResize:Function=function(any:*=null):void{W=stage.stageWidth;W2=W>>1;H=stage.stageHeight;H2=H>>1;canvas.graphics.clear();canvas.graphics.beginFill(bgColor);canvas.graphics.drawRect(0,0,W,H);canvas.graphics.endFill();exe(onResize);};stage.addEventListener('resize', onStageResize);stage.addEventListener('rightMouseDown', function(e:*):void{exe(onRightMouseDown);});stage.addEventListener('rightMouseUp', function(e:*):void{exe(onRightMouseUp);});stage.addEventListener('mouseDown', function(e:*):void{exe(onMouseDown);});stage.addEventListener('mouseUp', function(e:*):void{exe(onMouseUp);});stage.addEventListener('enterFrame', function(e:*):void{exe(onFrame);});if(preventScale){stage.align='tl';stage.scaleMode='noScale';}stage.frameRate=frameRate;exe(onInit);onStageResize();}static private function exe(m:Function):void{if(m !=null)m();}static public var onMouseDown:Function=null;static public var onMouseUp:Function=null;static public var onRightMouseDown:Function=null;static public var onRightMouseUp:Function=null;static public var onFrame:Function=null;static public var onResize:Function=null;static public var onInit:Function=null;}class Canvas{public var limitMinX:Number=0;public var limitMinY:Number=0;public var limitMaxX:Number=500;public var limitMaxY:Number=500;protected function limitMinMax(val:Number, x:Boolean):Number{if(x)return val<limitMinX?limitMinX :(val>limitMaxX?limitMaxX : val);return val<limitMinY?limitMinY :(val>limitMaxY?limitMaxY : val);}public function Canvas(target:DisplayObjectContainer){this.target=target;canvas=new Shape();target.addChild(canvas);}public function get display():Shape{return canvas;}private var target:DisplayObjectContainer;private var canvas:Shape;public function Clear():void{canvas.graphics.clear();}public function DrawRect(color:uint, x:Number, y:Number, w:Number, h:Number):void{canvas.graphics.lineStyle();canvas.graphics.beginFill(color);canvas.graphics.drawRect(x, y, w, h);canvas.graphics.endFill();}public function DrawsRectangle(color:uint, area:Rectangle):void{canvas.graphics.lineStyle();canvas.graphics.beginFill(color);canvas.graphics.drawRect(area.x, area.y, area.width, area.height);canvas.graphics.endFill();}public function DrawCircle(color:uint, radius:Number, x:Number, y:Number):void{canvas.graphics.lineStyle();canvas.graphics.beginFill(color);canvas.graphics.drawCircle(x, y, radius);canvas.graphics.endFill();}public function DrawPoint(color:uint, point:Point):void{DrawCircle(color, 4, point.x, point.y);}public function DrawText(text:String, x:Number, y:Number, origin:Boolean=false, color:uint=0x808080, size:int=16, background:int=-1, font:String="_sans", bold:Boolean=false):void{var tf:TextField=new TextField();tf.autoSize='left';tf.defaultTextFormat=new TextFormat(font, size, color, bold);tf.text=text;if(background !=-1){tf.background=true;tf.backgroundColor=background;}target.addChild(tf);var b:Rectangle=tf.getBounds(target);var bd:BitmapData=new BitmapData(b.width, b.height, true, 0x00000000);bd.draw(tf);target.removeChild(tf);tf=null;canvas.graphics.lineStyle();var tx:Number=x-(origin?b.width/2 : 0);var ty:Number=y-(origin?b.height/2 : 0);canvas.graphics.beginBitmapFill(bd, new Matrix(1,0,0,1,tx,ty), false);canvas.graphics.drawRect(tx, ty, b.width, b.height);canvas.graphics.endFill();}}class DragBox extends Sprite { private var size:Number;private var min:Number;private var max:Number;private var onDrag:Function=null;private var color:uint=0x0;private var limitColor:uint=0xFF0000;private var oriantationHorizontal:Boolean;public function DragBox(size:Number=20, color:uint=0xFF8000, min:Number=NaN, max:Number=NaN, oriantationHorizontal:Boolean=true, onDrag:Function=null){this.size=size;this.oriantationHorizontal=oriantationHorizontal;this.color=color;this.min=min;this.max=max;this.onDrag=onDrag;if(oriantationHorizontal)rotation=-90;if(!isNaN(min))oriantationHorizontal?x=min : y=min;scaleX=scaleY=1.4;draw(0);useHandCursor=buttonMode=true;addEventListener("addedToStage", function(e:*=null):void{addEventListener("mouseDown", function(e:*=null):void{addEventListener("enterFrame", drag);});stage.addEventListener("mouseUp", function(e:*=null):void{scaleX=scaleY=1;removeEventListener("enterFrame", drag);});});}public function get travelArea():Rectangle{if(isNaN(min)||isNaN(max))return null;var rect:Rectangle=new Rectangle(this.x-size/2, this.y-size/2, size+max-min, size+max-min);if(oriantationHorizontal){rect.height=size;rect.x=min-size/2;}else{rect.width=size;rect.y=min-size/2;}return rect;}public function get value():Number{if(isNaN(min)||isNaN(max))return 0;var N:Number=oriantationHorizontal?x : y;return(N-min)/(max-min);}public function set value(V:Number):void{if(isNaN(min)||isNaN(max))return;var N:Number=V*(max-min)+min;oriantationHorizontal?x=N : y=N;if(V==0)draw(1);else if(V==1)draw(-1);else draw(0);}public function draw(limit:int):void{graphics.beginFill(limit==0?color : limitColor);graphics.drawRoundRect(-size/2,-size/2, size, size, size*(7/20));graphics.endFill();graphics.beginFill(0xFFFFFF);if(limit<0){graphics.moveTo(0,-size/4);graphics.lineTo(size/4, size/10);graphics.lineTo(-size/4, size/10);graphics.lineTo(0,-size/4);}else if(limit>0){graphics.moveTo(0, size/4);graphics.lineTo(size/4,-size/10);graphics.lineTo(-size/4,-size/10);graphics.lineTo(0, size/4);}else graphics.drawCircle(0, 0, size/4);graphics.endFill();}private function drag(e:*=null):void{scaleX=scaleY=1.4;var N:Number=oriantationHorizontal?parent.mouseX : parent.mouseY;if(!isNaN(min)&&N<min){N=min;scaleX=scaleY=1;draw(1);}else if(!isNaN(max)&&N>max){N=max;scaleX=scaleY=1;draw(-1);}else draw(0);oriantationHorizontal?x=N : y=N;if(onDrag !=null)onDrag();}}class Comp{static public var Scale:Number=2;static public var mobileSlideMenu:Boolean=true;static public var Margin:int=10;static public var Gap:int=8;public function addLabel(text:String):void{fitComponents(new Label(cont, 0, 0, text.toUpperCase()));}public function addCheckBox(label:String, value:Boolean, onChange:Function):void{var c:CheckBox=new CheckBox(cont, 0, 0, label.toUpperCase(), function(any:*=null):void {onChange(c.selected);});fitComponents(c);}public function addButton(label:String, onPush:Function):void{fitComponents(new PushButton(cont, 0, 0, label.toUpperCase(), function(any:*=null):void {onPush();}));}public function addInput(label:String="", onInput:Function=null):InputText{var t:InputText=new InputText(cont, 0, 0, label.toUpperCase(), function(any:*=null):void{if(onInput !=null)onInput(t.text);});fitComponents(t);return t;}public function addSlider(label:String, value:Number, min:Number, max:Number, tick:Number, labelPrecision:int, onChange:Function):void{var s:HUISlider=new HUISlider(cont, 0, 0, label.toUpperCase(), function(any:*=null):void{onChange(s.value);});s.minimum=min;s.maximum=max;s.value=value;s.labelPrecision=labelPrecision;s.tick=tick;fitComponents(s);}public function addOutput(h:Number=50):TextArea{var t:TextArea=new TextArea(cont, 0, 0,"");t.editable=false;t.height=h;t.draw();t.textField.defaultTextFormat=new TextFormat("Arial", 12, 0x0, null, null, null, null, null,"left", 0, 0, 0, 0);t.text="";t.textField.embedFonts=false;fitComponents(t);return t;}public function addSwitch(onChange:Function, ...StringArguments):void{var hbox:HBox=new HBox(cont, 0, 0);var bw:Number=(w-(Margin*2)-2*Scale)/StringArguments.length/Scale;hbox.spacing=0;for(var i:int=0;i<StringArguments.length;i++){var b:PushButton=new PushButton(hbox, 0, 0, String(StringArguments[i]), function(target:*):void{for(var j:int=0;j<StringArguments.length;j++)PushButton(hbox.getChildAt(j)).selected=false;PushButton(target.target).selected=true;onChange(PushButton(target.target).label);});b.toggle=true;b.selected=i==0;b.width=bw;b.x=bw*i;hbox.addChild(b);}fitComponents(hbox);}private var dragBox:DragBox;private var list:Vector.<Component>;private var parent:Sprite;private var cont:Sprite;private var w:int=465;private var h:int=465;public function Comp(parent:Sprite, w:int=465, h:int=465){this.parent=parent;cont=new Sprite();parent.addChild(cont);list=new Vector.<Component>();this.w=w;this.h=h;fitComponents();cont.graphics.beginFill(0xD6E2D8);cont.graphics.drawRect(0, 0, w/Scale, h/Scale);cont.graphics.endFill();cont.graphics.beginFill(0x507256);cont.graphics.drawRect(w/Scale, 0,-2, h/Scale);cont.graphics.endFill();cont.scaleX=cont.scaleY=Scale;if(mobileSlideMenu){dragBox=new DragBox(30, 0x507256, 30, w-30, true, function():void{cont.x=-w*(1-dragBox.value);});dragBox.addEventListener('click', function(e:*):void{visible=!visible;});parent.addChild(dragBox);dragBox.y=h-30;visible=true;}}public function get visible():Boolean{return cont.x>-w*.65;}public function set visible(v:Boolean):void{cont.x=v?0 :-w;if(mobileSlideMenu)dragBox.value=v?1 : 0;}private function fitComponents(newComp:Component=null):void{if(newComp){list.push(newComp);}var yPos:Number=Margin/Scale;var c:Component;for(var i:int=0;i<list.length;i++){c=list[i];c.x=Margin/Scale;c.width=(w-(Margin*2))/Scale-2*Scale;c.y=yPos;c.draw();if(c is CheckBox)c.y+=Gap/Scale;else if(c is HUISlider)c.width+=25;yPos=c.y+c.getBounds(cont).height+Gap/Scale;}}}class DragPoint extends Sprite{public var dragBounds:Rectangle=null;public function styleAll(FillColor:uint=0x550200, Radius:Number=6, LineColor:uint=0xFB0600, LineThikness:Number=2, LineAlpha:Number=1, Alpha:Number=1):void{styleDown={lineThikness : LineThikness,lineColor : LineColor,lineAlpha : LineAlpha,fillColor : FillColor,radius : Radius,alpha : Alpha};styleStatic={lineThikness : LineThikness,lineColor : LineColor,lineAlpha : LineAlpha,fillColor : FillColor,radius : Radius,alpha : Alpha};styleNormal={lineThikness : LineThikness,lineColor : LineColor,lineAlpha : LineAlpha,fillColor : FillColor,radius : Radius,alpha : Alpha};}public var styleDown:Object=null;public var styleStatic:Object=null;public var styleNormal:Object=null;private var radius:Number=0;private var isStatic:Boolean;private var onMove:Function;public function DragPoint(onMove:Function=null , isStatic:Boolean=false){styleAll();this.onMove=onMove;this.isStatic=isStatic;useHandCursor=buttonMode=true;addEventListener('addedToStage', function(e:*):void{draw(isStatic?styleStatic : styleNormal);addEventListener('mouseDown', onMD);});}private function onMD(e:*):void{draw(styleDown);stage.addEventListener('mouseUp', onMU);stage.addEventListener('mouseMove', update);}private function update(e:MouseEvent):void{if(!isStatic)this.x=parent.mouseX;this.y=parent.mouseY;if(dragBounds){if(!isStatic){if(this.x-radius<dragBounds.x)this.x=dragBounds.x+radius;if(this.x+radius>dragBounds.right)this.x=dragBounds.right-radius;}if(this.y-radius<dragBounds.y)this.y=dragBounds.y+radius;if(this.y+radius>dragBounds.bottom)this.y=dragBounds.bottom-radius;}if(onMove !=null){if(onMove.length==1)onMove(this);else onMove();}}private function onMU(e:*):void{if(!stage)return;stage.removeEventListener('mouseUp', onMU);stage.removeEventListener('mouseMove', update);draw(isStatic?styleStatic : styleNormal);}public function draw(style:Object):void{graphics.clear();graphics.lineStyle(style.lineThikness, style.lineColor, style.lineAlpha);graphics.beginFill(style.fillColor);graphics.drawCircle(0, 0, style.radius);graphics.endFill();alpha=style.alpha;radius=style.radius+style.lineThikness/2;}}
// 1.0 : Minified single line WFLPortalbe ( http://wonderfl.net/c/KMGB )
// import flash.text.*;import flash.display.*;import flash.events.*;import flash.geom.*;class WG { static public var W2:int; static public var H2:int; static public var W:int; static public var H:int; static private var canvas:Shape; public static function INIT(stage:Stage, bgColor:uint=0x000000, frameRate:int=60, preventScale:Boolean=true):void{ canvas=new Shape();stage.addChildAt(canvas, 0); var onStageResize:Function=function(any:*=null):void { W=stage.stageWidth;W2=W>>1; H=stage.stageHeight;H2=H>>1; canvas.graphics.clear(); canvas.graphics.beginFill(bgColor); canvas.graphics.drawRect(0,0,W,H); canvas.graphics.endFill(); exe(onResize);}; stage.addEventListener('resize', onStageResize); stage.addEventListener('rightMouseDown', function(e:*):void{exe(onRightMouseDown);}); stage.addEventListener('rightMouseUp', function(e:*):void{exe(onRightMouseUp);}); stage.addEventListener('mouseDown', function(e:*):void{exe(onMouseDown);}); stage.addEventListener('mouseUp', function(e:*):void{exe(onMouseUp);}); stage.addEventListener('enterFrame', function(e:*):void{exe(onFrame);}); if(preventScale){stage.align='tl';stage.scaleMode='noScale';} stage.frameRate=frameRate; exe(onInit); onStageResize();} static private function exe(m:Function):void{if(m !=null)m();} static public var onMouseDown:Function=null; static public var onMouseUp:Function=null; static public var onRightMouseDown:Function=null; static public var onRightMouseUp:Function=null; static public var onFrame:Function=null; static public var onResize:Function=null; static public var onInit:Function=null;}class Canvas { public var limitMinX:Number=0; public var limitMinY:Number=0; public var limitMaxX:Number=500; public var limitMaxY:Number=500; protected function limitMinMax(val:Number, x:Boolean):Number{ if(x)return val<limitMinX?limitMinX :(val>limitMaxX?limitMaxX : val); return val<limitMinY?limitMinY :(val>limitMaxY?limitMaxY : val);} public function Canvas(target:DisplayObjectContainer){ this.target=target; canvas=new Shape(); target.addChild(canvas);} public function get display():Shape{return canvas;} private var target:DisplayObjectContainer; private var canvas:Shape; public function Clear():void{ canvas.graphics.clear();} public function DrawRect(color:uint, x:Number, y:Number, w:Number, h:Number):void{ canvas.graphics.lineStyle(); canvas.graphics.beginFill(color); canvas.graphics.drawRect(x, y, w, h); canvas.graphics.endFill();} public function DrawsRectangle(color:uint, area:Rectangle):void{ canvas.graphics.lineStyle(); canvas.graphics.beginFill(color); canvas.graphics.drawRect(area.x, area.y, area.width, area.height); canvas.graphics.endFill();} public function DrawCircle(color:uint, radius:Number, x:Number, y:Number):void{ canvas.graphics.lineStyle(); canvas.graphics.beginFill(color); canvas.graphics.drawCircle(x, y, radius); canvas.graphics.endFill();} public function DrawPoint(color:uint, point:Point):void{ DrawCircle(color, 4, point.x, point.y);} public function DrawText(text:String, x:Number, y:Number, origin:Boolean=false, color:uint=0x808080, size:int=16, background:int=-1, font:String="_sans", bold:Boolean=false):void{ var tf:TextField=new TextField(); tf.autoSize='left'; tf.defaultTextFormat=new TextFormat(font, size, color, bold); tf.text=text; if(background !=-1){tf.background=true;tf.backgroundColor=background;} target.addChild(tf);var b:Rectangle=tf.getBounds(target); var bd:BitmapData=new BitmapData(b.width, b.height, true, 0x00000000); bd.draw(tf); target.removeChild(tf); tf=null; canvas.graphics.lineStyle(); var tx:Number=x-(origin?b.width/2 : 0); var ty:Number=y-(origin?b.height/2 : 0); canvas.graphics.beginBitmapFill(bd, new Matrix(1,0,0,1,tx,ty), false); canvas.graphics.drawRect(tx, ty, b.width, b.height); canvas.graphics.endFill();}} class DragBox extends Sprite { private var size:Number; private var min:Number; private var max:Number; private var onDrag:Function=null; private var color:uint=0x0; private var limitColor:uint=0xFF0000; private var oriantationHorizontal:Boolean; public function DragBox(size:Number=20, color:uint=0xFF8000, min:Number=NaN, max:Number=NaN, oriantationHorizontal:Boolean=true, onDrag:Function=null){ this.size=size; this.oriantationHorizontal=oriantationHorizontal; this.color=color; this.min=min; this.max=max; this.onDrag=onDrag; if(oriantationHorizontal)rotation=-90; if(!isNaN(min))oriantationHorizontal?x=min : y=min; scaleX=scaleY=1.4; draw(0); useHandCursor=buttonMode=true; addEventListener("addedToStage", function(e:*=null):void { addEventListener("mouseDown", function(e:*=null):void{ addEventListener("enterFrame", drag); }); stage.addEventListener("mouseUp", function(e:*=null):void{ scaleX=scaleY=1; removeEventListener("enterFrame", drag); }); });} public function get travelArea():Rectangle { if(isNaN(min)||isNaN(max))return null; var rect:Rectangle=new Rectangle(this.x-size/2, this.y-size/2, size+max-min, size+max-min); if(oriantationHorizontal) { rect.height=size; rect.x=min-size/2; } else { rect.width=size; rect.y=min-size/2; } return rect;} public function get value():Number{ if(isNaN(min)||isNaN(max))return 0; var N:Number=oriantationHorizontal?x : y; return(N-min)/(max-min);} public function draw(limit:int):void{ graphics.beginFill(limit==0?color : limitColor); graphics.drawRoundRect(-size/2,-size/2, size, size, size*(7/20)); graphics.endFill(); graphics.beginFill(0xFFFFFF); if(limit<0) { graphics.moveTo(0,-size/4); graphics.lineTo(size/4, size/10); graphics.lineTo(-size/4, size/10); graphics.lineTo(0,-size/4); } else if(limit>0) { graphics.moveTo(0, size/4); graphics.lineTo(size/4,-size/10); graphics.lineTo(-size/4,-size/10); graphics.lineTo(0, size/4); } else graphics.drawCircle(0, 0, size/4); graphics.endFill();} private function drag(e:*=null):void{ scaleX=scaleY=1.4; var N:Number=oriantationHorizontal?parent.mouseX : parent.mouseY; if(!isNaN(min)&&N<min) { N=min; scaleX=scaleY=1; draw(1); } else if(!isNaN(max)&&N>max) { N=max; scaleX=scaleY=1; draw(-1); } else draw(0); oriantationHorizontal?x=N : y=N; if(onDrag !=null)onDrag();}} class DragPoint extends Sprite { public var dragBounds:Rectangle=null; public function styleAll( FillColor:uint=0x550200, Radius:Number=6, LineColor:uint=0xFB0600, LineThikness:Number=2, LineAlpha:Number=1, Alpha:Number=1):void{ styleDown={lineThikness : LineThikness,lineColor : LineColor,lineAlpha : LineAlpha,fillColor : FillColor,radius : Radius,alpha : Alpha}; styleStatic={lineThikness : LineThikness,lineColor : LineColor,lineAlpha : LineAlpha,fillColor : FillColor,radius : Radius,alpha : Alpha}; styleNormal={lineThikness : LineThikness,lineColor : LineColor,lineAlpha : LineAlpha,fillColor : FillColor,radius : Radius,alpha : Alpha};} public var styleDown:Object=null; public var styleStatic:Object=null; public var styleNormal:Object=null; private var radius:Number=0; private var isStatic:Boolean; private var onMove:Function; public function DragPoint(onMove:Function=null , isStatic:Boolean=false){ styleAll(); this.onMove=onMove; this.isStatic=isStatic; useHandCursor=buttonMode=true; addEventListener('addedToStage', function(e:*):void{ draw(isStatic?styleStatic : styleNormal); addEventListener('mouseDown', onMD); });} private function onMD(e:*):void { draw(styleDown); stage.addEventListener('mouseUp', onMU); stage.addEventListener('mouseMove', update);} private function update(e:MouseEvent):void { if(!isStatic)this.x=parent.mouseX; this.y=parent.mouseY; if(dragBounds) { if(!isStatic) { if(this.x-radius<dragBounds.x) this.x=dragBounds.x+radius; if(this.x+radius>dragBounds.right) this.x=dragBounds.right-radius; } if(this.y-radius<dragBounds.y) this.y=dragBounds.y+radius; if(this.y+radius>dragBounds.bottom) this.y=dragBounds.bottom-radius; } if(onMove !=null) { if(onMove.length==1)onMove(this); else onMove(); }} private function onMU(e:*):void { if(!stage)return; stage.removeEventListener('mouseUp', onMU); stage.removeEventListener('mouseMove', update); draw(isStatic?styleStatic : styleNormal);} public function draw(style:Object):void{ graphics.clear(); graphics.lineStyle(style.lineThikness, style.lineColor, style.lineAlpha); graphics.beginFill(style.fillColor); graphics.drawCircle(0, 0, style.radius); graphics.endFill(); alpha=style.alpha; radius=style.radius+style.lineThikness/2;}}
/*
Authod: http://wonderfl.net/user/WLAD
Contact : @WL4D3R
WFLPortable classes [ VERSION 1.1 ]
---------------------------------------------------
Class [WG] wonder FL global class
---------------
> WG.INIT(
stage:Stage,
bgColor:uint = 0x000000,
frameRate:int = 60,
preventScale:Boolean = true
)
WG.W = stageWidth
WG.H = stageHeight
WG.W2 = W / 2
WG.H2 = H / 2
empty event functions ( EEF ):
WG.onMouseDown
WG.onMouseUp
WG.onRightMouseDown
WG.onRightMouseUp
WG.onFrame - enter frame
WG.onResize - stage window size change
override EEF inside constractor like so:
MyClass() {
WG.INIT( stage );
WG.onFrame = function():void {
//...
};
}
---------------------------------------------------
Class [Canvas]
--------------
> Canvas( target:DisplayObjectContainer )
this class containes a shape object and
accept a DisplayObjectContainer target
as it's constractor argument.
The shape object is then added to the target.
Change the limit values to allow wider drawing range:
limitMinX
limitMinY
limitMaxX
limitMaxY
use varius draw methods starting with the draw... prefix
call Clear() to clear graphics
access to the shape object threw the property 'display'
---------------------------------------------------
Class [DragBox]
--------------
Method onDrag passed in the constractor has no input arguments
> DragBox(
size:Number = 20,
color:uint = 0xFF8000,
min:Number = NaN,
max:Number = NaN,
oriantationHorizontal:Boolean = true,
onDrag:Function = null
)
Check the component value / position relative to min, max.
the returned value range is between 0 and 1. Method will always
return 0 if min, or max is NaN
> get/set value():Number
The travel area of the drag box relevent to the parent. Return null if min or max is NaN.
> get travelArea():Rectangle
*/
import flash.text.*;
import flash.display.*;
import flash.events.*;
import flash.geom.*;
import com.bit101.components.*;
class WG /** @VERSION 1.3 : @Author @WL4D3R : 03.JAN.2016 */
{
static public var W2:int;
static public var H2:int;
static public var W:int;
static public var H:int;
static private var canvas:Shape;
public static function INIT( stage:Stage, bgColor:uint = 0x000000, frameRate:int = 60, preventScale:Boolean = true ):void {
canvas = new Shape(); stage.addChildAt( canvas, 0 );
var onStageResize:Function = function( any:* = null ):void {
W = stage.stageWidth; W2 = W >> 1;
H = stage.stageHeight; H2 = H >> 1;
canvas.graphics.clear();
canvas.graphics.beginFill( bgColor );
canvas.graphics.drawRect( 0,0,W,H);
canvas.graphics.endFill();
exe(onResize); };
stage.addEventListener('resize', onStageResize );
stage.addEventListener('rightMouseDown', function(e:*):void { exe(onRightMouseDown); } );
stage.addEventListener('rightMouseUp', function(e:*):void { exe(onRightMouseUp); } );
stage.addEventListener('mouseDown', function(e:*):void { exe(onMouseDown); } );
stage.addEventListener('mouseUp', function(e:*):void { exe(onMouseUp); } );
stage.addEventListener('enterFrame', function(e:*):void { exe(onFrame); } );
if( preventScale ) { stage.align = 'tl'; stage.scaleMode = 'noScale'; }
stage.frameRate = frameRate;
exe(onInit);
onStageResize();
}
static private function exe( m:Function ):void {if ( m != null ) m();}
static public var onMouseDown:Function = null;
static public var onMouseUp:Function = null;
static public var onRightMouseDown:Function = null;
static public var onRightMouseUp:Function = null;
static public var onFrame:Function = null;
static public var onResize:Function = null;
static public var onInit:Function = null;
}
class Canvas /** @VERSION 1.2 : @Author @WL4D3R : 03.JAN.2016 */
{
public var limitMinX:Number = 0;
public var limitMinY:Number = 0;
public var limitMaxX:Number = 500;
public var limitMaxY:Number = 500;
protected function limitMinMax( val:Number, x:Boolean ):Number
{
if ( x ) return val < limitMinX ? limitMinX : ( val > limitMaxX ? limitMaxX : val );
return val < limitMinY ? limitMinY : ( val > limitMaxY ? limitMaxY : val );
}
public function Canvas( target:DisplayObjectContainer )
{
this.target = target;
canvas = new Shape();
target.addChild( canvas );
}
public function get display():Shape { return canvas; }
private var target:DisplayObjectContainer;
private var canvas:Shape;
public function Clear():void{
canvas.graphics.clear(); }
public function DrawRect( color:uint, x:Number, y:Number, w:Number, h:Number ):void{
canvas.graphics.lineStyle();
canvas.graphics.beginFill( color );
canvas.graphics.drawRect( x, y, w, h );
canvas.graphics.endFill(); }
public function DrawsRectangle( color:uint, area:Rectangle ):void{
canvas.graphics.lineStyle();
canvas.graphics.beginFill( color );
canvas.graphics.drawRect( area.x, area.y, area.width, area.height );
canvas.graphics.endFill(); }
public function DrawCircle( color:uint, radius:Number, x:Number, y:Number ):void {
canvas.graphics.lineStyle();
canvas.graphics.beginFill( color );
canvas.graphics.drawCircle( x, y, radius );
canvas.graphics.endFill(); }
public function DrawPoint( color:uint, point:Point ):void {
DrawCircle( color, 4, point.x, point.y ); }
/** if origin is true, x & y repesent the text mid point */
public function DrawText( text:String, x:Number, y:Number, origin:Boolean = false, color:uint = 0x808080, size:int = 16, background:int = -1, font:String = "_sans", bold:Boolean = false ):void {
var tf:TextField = new TextField();
tf.autoSize = 'left';
tf.defaultTextFormat = new TextFormat(font, size, color, bold);
tf.text = text;
if ( background != -1 ) {tf.background = true;tf.backgroundColor = background;}
target.addChild( tf );var b:Rectangle = tf.getBounds(target);
var bd:BitmapData = new BitmapData( b.width, b.height, true, 0x00000000 );
bd.draw( tf );
target.removeChild( tf );
tf = null;
canvas.graphics.lineStyle();
var tx:Number = x - ( origin ? b.width / 2 : 0 );
var ty:Number = y - ( origin ? b.height / 2 : 0 );
canvas.graphics.beginBitmapFill( bd, new Matrix(1,0,0,1,tx,ty), false );
canvas.graphics.drawRect( tx, ty, b.width, b.height );
canvas.graphics.endFill();
}
}
/* Original Source : http://wonderfl.net/c/4dXR */
class DragBox extends Sprite /** @VERSION 1.2 : @Author @WL4D3R : 04.JAN.2016
1.2 + set value
*/
{
private var size:Number;
private var min:Number;
private var max:Number;
private var onDrag:Function = null;
private var color:uint = 0x0;
private var limitColor:uint = 0xFF0000;
private var oriantationHorizontal:Boolean;
/** onDrag method with no input arguments */
public function DragBox( size:Number = 20, color:uint = 0xFF8000, min:Number = NaN, max:Number = NaN, oriantationHorizontal:Boolean = true, onDrag:Function = null )
{
this.size = size;
this.oriantationHorizontal = oriantationHorizontal;
this.color = color;
this.min = min;
this.max = max;
this.onDrag = onDrag;
if ( oriantationHorizontal ) rotation = -90;
if ( !isNaN( min ) ) oriantationHorizontal ? x = min : y = min;
scaleX = scaleY = 1.4;
draw( 0 );
useHandCursor = buttonMode = true;
addEventListener("addedToStage", function(e:*= null):void
{
addEventListener("mouseDown",
function(e:*= null):void {
addEventListener("enterFrame", drag);
});
stage.addEventListener("mouseUp",
function(e:*= null):void {
scaleX = scaleY = 1;
removeEventListener("enterFrame", drag);
});
});
}
/** The travel area of the drag box relevent to the parent. Return null if min or max is NaN. */
public function get travelArea():Rectangle
{
if ( isNaN( min ) || isNaN( max ) ) return null;
var rect:Rectangle = new Rectangle( this.x - size / 2, this.y - size / 2, size + max - min, size + max - min );
if ( oriantationHorizontal )
{
rect.height = size;
rect.x = min - size / 2;
}
else
{
rect.width = size;
rect.y = min - size / 2;
}
return rect;
}
/** return value from 0 to 1 ( min, max ). If min or max is NaN return 0 */
public function get value():Number
{
if ( isNaN( min ) || isNaN( max ) ) return 0;
var N:Number = oriantationHorizontal ? x : y;
return ( N - min ) / ( max - min );
}
public function set value( V:Number ):void
{
if ( isNaN( min ) || isNaN( max ) ) return;
var N:Number = V * ( max - min ) + min;
oriantationHorizontal ? x = N : y = N;
if ( V == 0 ) draw( 1 );
else if ( V == 1 ) draw( -1 );
else draw( 0 );
}
/** 0 : circle, -1 : up, +1, down */
public function draw( limit:int ):void
{
graphics.beginFill( limit == 0 ? color : limitColor );
graphics.drawRoundRect(-size/2, -size/2, size, size, size*(7/20));
graphics.endFill();
graphics.beginFill(0xFFFFFF);
if( limit < 0 )
{
graphics.moveTo( 0, -size/4 );
graphics.lineTo( size/4, size/10 );
graphics.lineTo( -size/4, size/10 );
graphics.lineTo( 0, -size/4 );
}
else if ( limit > 0 )
{
graphics.moveTo( 0, size/4 );
graphics.lineTo( size/4, -size/10 );
graphics.lineTo( -size/4, -size/10 );
graphics.lineTo( 0, size/4 );
}
else graphics.drawCircle(0, 0, size/4 );
graphics.endFill();
}
private function drag(e:*= null):void
{
scaleX = scaleY = 1.4;
var N:Number = oriantationHorizontal ? parent.mouseX : parent.mouseY;
if ( !isNaN( min ) && N < min )
{
N = min;
scaleX = scaleY = 1;
draw( 1 );
}
else if ( !isNaN( max ) && N > max )
{
N = max;
scaleX = scaleY = 1;
draw( -1 );
}
else draw( 0 );
oriantationHorizontal ? x = N : y = N;
if ( onDrag != null ) onDrag();
}
}
class Comp /** @VERSION 1.0 : @Author @WL4D3R : 04.JAN.2016 */
{
static public var Scale:Number = 2;
static public var mobileSlideMenu:Boolean = true;
static public var Margin:int = 10;
static public var Gap:int = 8;
public function addLabel( text:String ):void
{
fitComponents( new Label( cont, 0, 0, text.toUpperCase() ) );
}
/// onChange( state:Boolean )
public function addCheckBox( label:String, value:Boolean, onChange:Function ):void
{
var c:CheckBox = new CheckBox( cont, 0, 0, label.toUpperCase(), function( any:* = null ):void
{onChange( c.selected );});
fitComponents( c );
}
/// onPush( ) - no arguments
public function addButton( label:String, onPush:Function ):void
{
fitComponents(
new PushButton( cont, 0, 0, label.toUpperCase(), function( any:* = null ):void
{onPush();}));
}
/// optional onInput( text:String )
public function addInput( label:String = "", onInput:Function = null ):InputText
{
var t:InputText = new InputText( cont, 0, 0, label.toUpperCase(), function(any:*=null):void
{if ( onInput != null ) onInput( t.text ); } );
fitComponents( t );
return t;
}
/// onChange( value:Number )
public function addSlider( label:String, value:Number, min:Number, max:Number, tick:Number, labelPrecision:int, onChange:Function ):void
{
var s:HUISlider = new HUISlider( cont, 0, 0, label.toUpperCase(), function(any:*=null):void {
onChange( s.value );
});
s.minimum = min;
s.maximum = max;
s.value = value;
s.labelPrecision = labelPrecision;
s.tick = tick;
fitComponents( s );
}
public function addOutput( h:Number = 50 ):TextArea
{
var t:TextArea = new TextArea(cont, 0, 0, "");
t.editable = false;
t.height = h;
t.draw();
t.textField.defaultTextFormat = new TextFormat("Arial", 12, 0x0, null, null, null, null, null, "left", 0, 0, 0, 0 );
t.text = "";
t.textField.embedFonts = false;
fitComponents( t );
return t;
}
/// firstElement will be always selected, onChange( selectedArgument: String )
public function addSwitch( onChange:Function, ...StringArguments ):void
{
var hbox:HBox = new HBox( cont, 0, 0 );
var bw:Number = ( w - ( Margin * 2 ) - 2*Scale ) / StringArguments.length / Scale;
hbox.spacing = 0;
for ( var i:int = 0; i < StringArguments.length; i++ )
{
var b:PushButton = new PushButton(hbox, 0, 0, String(StringArguments[i]), function(target:*):void
{
for ( var j:int = 0; j < StringArguments.length; j++ )
PushButton(hbox.getChildAt(j)).selected = false;
PushButton(target.target).selected = true;
onChange( PushButton(target.target).label );
});
b.toggle = true;
b.selected = i == 0;
b.width = bw;
b.x = bw * i;
hbox.addChild( b );
}
fitComponents( hbox );
}
private var dragBox:DragBox;
private var list:Vector.<Component>;
private var parent:Sprite;
private var cont:Sprite;
private var w:int = 465;
private var h:int = 465;
public function Comp( parent:Sprite, w:int = 465, h:int = 465 )
{
this.parent = parent;
cont = new Sprite();
parent.addChild( cont );
list = new Vector.<Component>();
this.w = w;
this.h = h;
fitComponents();
cont.graphics.beginFill( 0xD6E2D8 );
cont.graphics.drawRect( 0, 0, w/Scale, h/Scale );
cont.graphics.endFill();
cont.graphics.beginFill( 0x507256 );
cont.graphics.drawRect( w/Scale, 0, -2, h/Scale );
cont.graphics.endFill();
cont.scaleX = cont.scaleY = Scale;
if( mobileSlideMenu ) {
dragBox = new DragBox( 30, 0x507256, 30, w - 30, true, function():void
{cont.x = -w * (1-dragBox.value);});
dragBox.addEventListener('click', function(e:*):void
{visible = !visible;});
parent.addChild( dragBox );dragBox.y = h - 30;visible = true;
}
}
public function get visible():Boolean { return cont.x > -w * .65; }
public function set visible(v:Boolean):void {
cont.x = v ? 0 : -w;
if( mobileSlideMenu ) dragBox.value = v ? 1 : 0;
}
private function fitComponents( newComp:Component = null ):void
{
if ( newComp )
{
list.push( newComp );
}
var yPos:Number = Margin / Scale;
var c:Component;
for ( var i:int = 0; i < list.length; i ++ )
{
c = list[ i ];
c.x = Margin / Scale;
c.width = ( w - ( Margin * 2 ) ) / Scale - 2 * Scale;
c.y = yPos;
c.draw();
if ( c is CheckBox )
c.y += Gap / Scale;
else if ( c is HUISlider )
c.width += 25;
yPos = c.y + c.getBounds( cont ).height + Gap / Scale;
}
}
}
/* Original Source : http://wonderfl.net/c/k28Z */
class DragPoint extends Sprite /** @VERSION 1.1 : @Author @WL4D3R : 03.JAN.2016 */
{
public var dragBounds:Rectangle = null;
public function styleAll(
FillColor:uint = 0x550200,
Radius:Number = 6,
LineColor:uint = 0xFB0600,
LineThikness:Number = 2,
LineAlpha:Number = 1,
Alpha:Number = 1
) :void {
styleDown = {lineThikness : LineThikness,lineColor : LineColor,lineAlpha : LineAlpha,fillColor : FillColor,radius : Radius,alpha : Alpha};
styleStatic = {lineThikness : LineThikness,lineColor : LineColor,lineAlpha : LineAlpha,fillColor : FillColor,radius : Radius,alpha : Alpha};
styleNormal = {lineThikness : LineThikness,lineColor : LineColor,lineAlpha : LineAlpha,fillColor : FillColor,radius : Radius,alpha : Alpha};
}
public var styleDown:Object = null;
public var styleStatic:Object = null;
public var styleNormal:Object = null;
private var radius:Number = 0;
private var isStatic:Boolean;
private var onMove:Function;
/** onMove can have 1 or no arguments, were the 1 agrumnet will pass the DragPoint itself */
public function DragPoint( onMove:Function = null , isStatic:Boolean = false )
{
/* Aplly default style */
styleAll();
this.onMove = onMove;
this.isStatic = isStatic;
useHandCursor = buttonMode = true;
addEventListener('addedToStage', function( e:*):void {
draw( isStatic ? styleStatic : styleNormal );
addEventListener('mouseDown', onMD);
});
}
private function onMD(e:*):void
{
draw( styleDown );
stage.addEventListener('mouseUp', onMU);
stage.addEventListener('mouseMove', update);
}
private function update(e:MouseEvent):void
{
if ( !isStatic ) this.x = parent.mouseX;
this.y = parent.mouseY;
if ( dragBounds )
{
if ( !isStatic)
{
if ( this.x - radius < dragBounds.x )
this.x = dragBounds.x + radius;
if ( this.x + radius > dragBounds.right )
this.x = dragBounds.right - radius;
}
if ( this.y - radius < dragBounds.y )
this.y = dragBounds.y + radius;
if ( this.y + radius > dragBounds.bottom )
this.y = dragBounds.bottom - radius;
}
if ( onMove != null )
{
if ( onMove.length == 1 ) onMove( this );
else onMove();
}
}
private function onMU(e:*):void
{
if ( !stage ) return;
stage.removeEventListener('mouseUp', onMU);
stage.removeEventListener('mouseMove', update);
draw( isStatic ? styleStatic : styleNormal );
}
public function draw( style:Object ):void
{
graphics.clear();
graphics.lineStyle( style.lineThikness, style.lineColor, style.lineAlpha );
graphics.beginFill( style.fillColor );
graphics.drawCircle( 0, 0, style.radius );
graphics.endFill();
alpha = style.alpha;
radius = style.radius + style.lineThikness / 2;
}
}
