binary tree drawing

/**
 * Copyright wrotenodoc ( http://wonderfl.net/user/wrotenodoc )
 * MIT License ( http://www.opensource.org/licenses/mit-license.php )
 * Downloaded from: http://wonderfl.net/c/e3O1
 */

package {

    import flash.display.Sprite;
    import flash.display.Graphics

    import flash.text.TextField

    public class FlashTest extends Sprite {

        private var canv:Sprite
        private var tree:Tree

        private const size:Number = 5
        private const spaceX:Number = 15
        private const spaceY:Number = 15

        private var _tf:TextField = new TextField

        public function FlashTest() {
            // write as3 code here..
            canv = new Sprite
            tree = new Tree

            addChild(canv)
            canv.x = stage.stageWidth / 2
            canv.y = 50

            addChild(_tf)
            _tf.autoSize = "left"

            build(tree, 0)
            process(tree)
            adjustRoot(tree)
            render(canv.graphics, tree)

            stage.addEventListener("mouseMove", function(e:Object):void {
                canv.scaleX = 0.1 + 0.9 * (mouseX / stage.stageWidth)
            })
        }

        private function build(T:Tree, level:int):void {
            var prob:Number = 1 / (1 + level*0.1)
            if(Math.random() < prob){
                T.left = new Tree
                T.left.parent = T
                build(T.left, level+1)
            }
            if(Math.random() < prob){
                T.right = new Tree
                T.right.parent = T
                build(T.right, level+4)
            }
        }

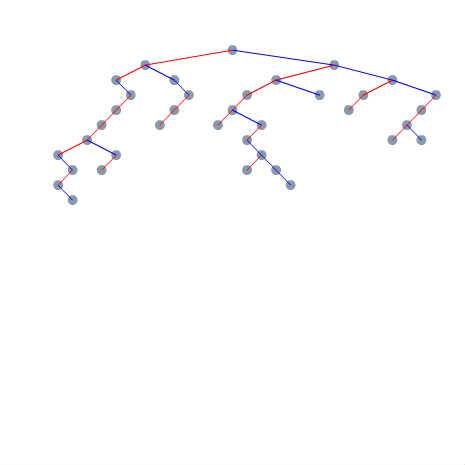

        public function render(g:Graphics, T:Tree):void {
            var level:int = 0
            var queue:Array = [T]
            var num:int
            while(queue.length){
                num = queue.length
                while(num--){
                    T = queue.shift()
                    g.beginFill(0x123456, 0.5)
                    g.drawCircle(T.x * spaceX, level * spaceY, size)
                    g.endFill()
                    if(T.parent){
                        g.lineStyle(1, T.parent.left==T ? 0xff0000 : 0x0000ff)
                        g.moveTo(T.x * spaceX, level * spaceY)
                        g.lineTo(T.parent.x * spaceX, (level-1)*spaceY)
                        g.lineStyle()
                    }
                    if(T.left) queue.push(T.left)
                    if(T.right) queue.push(T.right)
                }
                level++
            }
        }

        public function process(T:Tree):void {
            if(T == null) return
            process(T.left)
            process(T.right)
            if(T.left == null && T.right == null){
                // no children
                T.x = 0
            }else if(T.right == null){
                // has left child only
                T.x = T.left.x + 1
            }else if(T.left == null){
                // has right child only
                T.x = T.right.x - 1
            }else{
                // has both
                // BUG: lx, rx are calculated incorrectly
                var lx:int = T.left.rightmost.x
                var rx:int = T.right.leftmost.x
                var dx:int = lx - rx + 2
                fmap(function(t:Tree):void { t.x += dx }, T.right)
                T.x = (T.left.x + T.right.x) / 2
            }
        }

        public function adjustRoot(T:Tree):void {
            var x0:int = T.x
            fmap(function(t:Tree):void { t.x -= x0 }, T)
        }

        public function fmap(f:Function, t:Tree):void {
            if(t){
                f(t)
                if(t.left) fmap(f, t.left)
                if(t.right) fmap(f, t.right)
            }
        }

    }

}

class Tree {

    public var left:Tree
    public var right:Tree
    public var parent:Tree
    public var x:int

    public function Tree() {
        //
    }

    public function get leftmost():Tree {
        var t:Tree = this, s:Tree
        while(t.left) t = t.left
        if(t.right){
            s = t.right.leftmost
            if(s.x < t.x) t = s
        }
        return t
    }
    public function get rightmost():Tree {
        var t:Tree = this, s:Tree
        while(t.right) t = t.right
        if(t.left){
            s = t.left.rightmost
            if(s.x > t.x) t = s
        }
        return t
    }

}
