forked from: Dot Editor ( Color )
forked from Dot Editor ( Color ) (diff: 1)
ActionScript3 source code
/**
* Copyright umihara ( http://wonderfl.net/user/umihara )
* MIT License ( http://www.opensource.org/licenses/mit-license.php )
* Downloaded from: http://wonderfl.net/c/cNVc
*/
// forked from goodbyegirl1974's Dot Editor ( Color )
// forked from goodbyegirl1974's Dot Editor
package {
import flash.events.Event;
import flash.utils.ByteArray;
import flash.geom.Rectangle;
import flash.display.Bitmap;
import flash.display.BitmapData;
import flash.text.TextField;
import flash.text.TextFieldAutoSize;
import flash.events.MouseEvent;
import flash.display.Sprite;
import fl.controls.Button;
public class DotEditor extends Sprite {
public static const MODE_DRAW:String = "draw";
public static const MODE_ERASE:String = "erase";
public static const MODE_RESET:String = "reset";
private const COLOR_HEADER:String = "0x";
private var _colorAlpha:uint = 255;
private var _horizonalGridNum:int = 20;
private var _verticalGridNum:int = 20;
private var _gridWidth:Number = 20.0;
private var _gridHeight:Number = 20.0;
private var _mouseDownFlg:Boolean = false;
private var _mode:String = DotEditor.MODE_DRAW;
private var _allGridArray:Array = [];
private var _modePointer:Sprite;
private var _outPutWindow:Sprite;
private var _outPutTextField:TextField;
private var _outPutBitMap:Bitmap;
private var _nowColor:String = "0x000000";
//以下、カラーエディタのスライドバー関連
private const _SLIDE_BAR_MIN_X_NUM:Number = 50;
private const _SLIDE_BAR_MIN_Y_NUM:Number = 50;
private const _SLIDE_BAR_SPACE_NUM:Number = 30;
private const COLOR_MAX_NUM:uint = 255;
private var _slideBarA:SlideBar;
private var _resultFieldA:TextField;
private var _slideBarR:SlideBar;
private var _resultFieldR:TextField;
private var _slideBarG:SlideBar;
private var _resultFieldG:TextField;
private var _slideBarB:SlideBar;
private var _resultFieldB:TextField;
private var _resultSprite:Sprite;
private var _logField:TextField;
private var _colorSelectWindowSprite:Sprite;
/**
* コンストラクタ。
**/
public function DotEditor() {
// write as3 code here..
init();
}
private function init():void
{

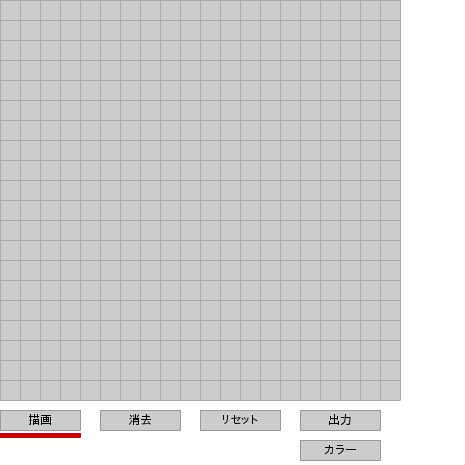

//とりあえず、20×20のグリッドを表示。
var i:int = 0;
for(i; i < _verticalGridNum; i++)
{
var j:int = 0;
var targetArray:Array = [];
for(j; j < _horizonalGridNum; j++)
{
var sprite:GridSprite = new GridSprite(_gridWidth, _gridHeight);
sprite.x = _gridWidth * j;
sprite.y = _gridHeight * i;
addChild(sprite);
sprite.addEventListener(MouseEvent.MOUSE_DOWN, gridMouseDownHandler);
sprite.addEventListener(MouseEvent.MOUSE_UP, gridMouseUpHandler);
sprite.addEventListener(MouseEvent.ROLL_OVER, gridRollOverFunction);
stage.addEventListener(MouseEvent.MOUSE_UP, gridMouseUpHandler);
targetArray.push(sprite);
}
this._allGridArray.push(targetArray);
}
//ボタンを3つ配置。
var drawButton:Sprite = makeBtn(80, 20, "描画");
drawButton.x = 40;
drawButton.y = 420;
addChild(drawButton);
drawButton.addEventListener(MouseEvent.CLICK, modeButtonClickHandler);
var eraseButton:Sprite = makeBtn(80, 20, "消去");
eraseButton.x = 140;
eraseButton.y = 420;
addChild(eraseButton);
eraseButton.addEventListener(MouseEvent.CLICK, modeButtonClickHandler);
var resetButton:Sprite = makeBtn(80, 20, "リセット");
resetButton.x = 240;
resetButton.y = 420;
addChild(resetButton);
resetButton.addEventListener(MouseEvent.CLICK, modeButtonClickHandler);
drawButton.name = DotEditor.MODE_DRAW;
eraseButton.name = DotEditor.MODE_ERASE;
resetButton.name = DotEditor.MODE_RESET;
_modePointer = new Sprite();
_modePointer.graphics.lineStyle(0, 0xcc0000);
_modePointer.graphics.beginFill(0xcc0000);
_modePointer.graphics.drawRect(-40, -2, 80, 4);
_modePointer.graphics.endFill();
_modePointer.x = drawButton.x;
_modePointer.y = drawButton.y + 15;
addChild(_modePointer);
var showOutPutButton:Sprite = makeBtn(80, 20, "出力");
showOutPutButton.x = 340;
showOutPutButton.y = 420;
addChild(showOutPutButton);
showOutPutButton.addEventListener(MouseEvent.CLICK, showOutPutButtonClickHandler);
//出力用ウィンドウの生成。
_outPutWindow = new Sprite();
var w:Number = 400;
var h:Number = 400;
_outPutWindow.graphics.lineStyle(1, 0x333333, 0.5);
_outPutWindow.graphics.beginFill(0xffffff, 0.5);
_outPutWindow.graphics.moveTo(0, 0);
_outPutWindow.graphics.lineTo(0, h);
_outPutWindow.graphics.lineTo(w, h);
_outPutWindow.graphics.lineTo(w, 0);
_outPutWindow.graphics.endFill();
var btnClose:Sprite = this.makeBtn(80, 20, "閉じる");
_outPutWindow.addChild(btnClose);
btnClose.x = w / 2;
btnClose.y = h - 30;
btnClose.addEventListener(MouseEvent.CLICK, btnCloseClickHandler);
_outPutWindow.visible = false;
this._outPutTextField = new TextField();
_outPutTextField.autoSize = TextFieldAutoSize.LEFT;
_outPutWindow.addChild(_outPutTextField);
addChild(_outPutWindow);
makeColorSelectWindow();
}
private function makeColorWindowButtonClickHandler(event:MouseEvent):void
{
if(_colorSelectWindowSprite != null)
{
if(_colorSelectWindowSprite.visible)
{
this.removeEventListener(Event.ENTER_FRAME, this.colorSelectWindowEnterFrameHandler);
_colorSelectWindowSprite.visible = false;
}
else
{
this.addEventListener(Event.ENTER_FRAME, this.colorSelectWindowEnterFrameHandler);
_colorSelectWindowSprite.visible = true;
}
}
}
private function makeColorSelectWindow():void
{
if(_colorSelectWindowSprite == null)
{
_colorSelectWindowSprite = new Sprite();
this.addChild(_colorSelectWindowSprite);
_colorSelectWindowSprite.visible = false;
}
_colorSelectWindowSprite.graphics.beginFill(0x666666, 0.7);
_colorSelectWindowSprite.graphics.drawRect(0, 0, 400, 400);
_colorSelectWindowSprite.graphics.endFill();
_slideBarA = new SlideBar();
_slideBarA.makeSlideBar(200, 10, _SLIDE_BAR_MIN_X_NUM, _SLIDE_BAR_MIN_Y_NUM);
_colorSelectWindowSprite.addChild(_slideBarA);
_resultFieldA = new TextField();
_resultFieldA.autoSize = TextFieldAutoSize.LEFT;
_resultFieldA.x = _slideBarA.x + _slideBarA.width + 20;;
_resultFieldA.y = _slideBarA.y - _slideBarA.height / 2;
_resultFieldA.text = "出力結果";
var _titleFieldA:TextField = new TextField();
_titleFieldA.text = "A:"
_colorSelectWindowSprite.addChild(_titleFieldA);
_titleFieldA.x = _SLIDE_BAR_MIN_X_NUM - 30;
_titleFieldA.y = _resultFieldA.y;
_titleFieldA.autoSize = TextFieldAutoSize.LEFT;
_colorSelectWindowSprite.addChild(_resultFieldA);
//R設定
_slideBarR = new SlideBar();
_slideBarR.makeSlideBar(200, 10, _SLIDE_BAR_MIN_X_NUM, _SLIDE_BAR_MIN_Y_NUM + _SLIDE_BAR_SPACE_NUM * 1);
_colorSelectWindowSprite.addChild(_slideBarR);
_resultFieldR = new TextField();
_resultFieldR.autoSize = TextFieldAutoSize.LEFT;
_resultFieldR.x = _slideBarR.x + _slideBarR.width + 20;;
_resultFieldR.y = _slideBarR.y - _slideBarR.height / 2;
_resultFieldR.text = "出力結果";
_colorSelectWindowSprite.addChild(_resultFieldR);
var _titleFieldR:TextField = new TextField();
_titleFieldR.text = "R:"
_colorSelectWindowSprite.addChild(_titleFieldR);
_titleFieldR.x = _SLIDE_BAR_MIN_X_NUM - 30;
_titleFieldR.y = _resultFieldR.y;
_titleFieldR.autoSize = TextFieldAutoSize.LEFT;
_colorSelectWindowSprite.addChild(_resultFieldR);
//G設定
_slideBarG = new SlideBar();
_slideBarG.makeSlideBar(200, 10, _SLIDE_BAR_MIN_X_NUM, _SLIDE_BAR_MIN_Y_NUM + _SLIDE_BAR_SPACE_NUM * 2);
_colorSelectWindowSprite.addChild(_slideBarG);
_resultFieldG = new TextField();
_resultFieldG.autoSize = TextFieldAutoSize.LEFT;
_resultFieldG.x = _slideBarG.x + _slideBarG.width + 20;;
_resultFieldG.y = _slideBarG.y - _slideBarG.height / 2;
_resultFieldG.text = "出力結果";
_colorSelectWindowSprite.addChild(_resultFieldG);
var _titleFieldG:TextField = new TextField();
_titleFieldG.text = "G:"
_colorSelectWindowSprite.addChild(_titleFieldG);
_titleFieldG.x = _SLIDE_BAR_MIN_X_NUM - 30;
_titleFieldG.y = _resultFieldG.y;
_titleFieldG.autoSize = TextFieldAutoSize.LEFT;
_colorSelectWindowSprite.addChild(_resultFieldG);
//B設定
_slideBarB = new SlideBar();
_slideBarB.makeSlideBar(200, 10, _SLIDE_BAR_MIN_X_NUM, _SLIDE_BAR_MIN_Y_NUM + _SLIDE_BAR_SPACE_NUM * 3);
_colorSelectWindowSprite.addChild(_slideBarB);
_resultFieldB = new TextField();
_resultFieldB.autoSize = TextFieldAutoSize.LEFT;
_resultFieldB.x = _slideBarB.x + _slideBarB.width + 20;;
_resultFieldB.y = _slideBarB.y - _slideBarB.height / 2;
_resultFieldB.text = "出力結果";
_colorSelectWindowSprite.addChild(_resultFieldB);
var _titleFieldB:TextField = new TextField();
_titleFieldB.text = "B:"
_colorSelectWindowSprite.addChild(_titleFieldB);
_titleFieldB.x = _SLIDE_BAR_MIN_X_NUM - 30;
_titleFieldB.y = _resultFieldB.y;
_titleFieldB.autoSize = TextFieldAutoSize.LEFT;
_colorSelectWindowSprite.addChild(_resultFieldB);
//出力結果
_resultSprite = new Sprite();
_colorSelectWindowSprite.addChild(_resultSprite);
_resultSprite.x = _SLIDE_BAR_MIN_X_NUM;
_resultSprite.y = _SLIDE_BAR_MIN_Y_NUM + _SLIDE_BAR_SPACE_NUM * 4;
//_colorSelectWindowSprite.addEventListener(MouseEvent.CLICK, makeColorWindowButtonClickHandler);
_logField = new TextField();
_colorSelectWindowSprite.addChild(this._logField);
this._logField.x = _SLIDE_BAR_MIN_X_NUM;
this._logField.y = 400;
_logField.text = "色情報";
//this.addEventListener(Event.ENTER_FRAME, this.colorSelectWindowEnterFrameHandler);
var makeColorWindowButton:Sprite = makeBtn(80, 20, "カラー");
makeColorWindowButton.x = 340;
makeColorWindowButton.y = 450;
addChild(makeColorWindowButton);
makeColorWindowButton.addEventListener(MouseEvent.CLICK, makeColorWindowButtonClickHandler);
}
private function colorSelectWindowEnterFrameHandler(event:Event):void
{
var aNum:Number = 1 - _slideBarA.getDragBarPositionRatio();
var rNum:int = Math.floor(_slideBarR.getDragBarPositionRatio() * COLOR_MAX_NUM);
var gNum:int = Math.floor(_slideBarG.getDragBarPositionRatio() * COLOR_MAX_NUM);
var bNum:int = Math.floor(_slideBarB.getDragBarPositionRatio() * COLOR_MAX_NUM);
var rString:String = String("0" + rNum.toString(16)).substr(-2, 2);
var gString:String = String("0" + gNum.toString(16)).substr(-2, 2);
var bString:String = String("0" + bNum.toString(16)).substr(-2, 2);
_resultFieldA.text = "出力結果 = " + String(Math.floor(aNum * 100)).substr(0, 3) + "%";
_resultFieldR.text = "出力結果 = " + rString;
_resultFieldG.text = "出力結果 = " + gString;
_resultFieldB.text = "出力結果 = " + bString;
var rectColor:uint = uint("0x" + rString + gString + bString);
_logField.text = "0x" + rString + gString + bString;
_resultSprite.graphics.clear();
_resultSprite.graphics.lineStyle(1, 0x999999);
_resultSprite.graphics.beginFill(rectColor, aNum);
_resultSprite.graphics.drawRect(0, 0, 200, 200)
_resultSprite.graphics.endFill();
this._nowColor = "0x" + rString + gString + bString;
this._colorAlpha = 255 * aNum;
}
private function btnCloseClickHandler(event:MouseEvent):void
{
_outPutWindow.visible = false;
_outPutWindow.removeChild(_outPutBitMap);
}
/**
* 出力ボタンをクリックした際のファンクション。
**/
private function showOutPutButtonClickHandler(event:MouseEvent):void
{
_outPutTextField.text = "";
//出力用配列の生成。Gridの数だけ0を格納した配列を作成する。
var outPutArray:Array = [];
var i:int = 0;
for(i; i < _horizonalGridNum; i++)
{
var array:Array = [];
var j:int = 0;
for(j; j < _verticalGridNum; j++)
{
array.push("0");
}
outPutArray.push(array);
}
//全グリッドの走査。
var targetArray:Array;
for each(targetArray in _allGridArray)
{
var targetGrid:GridSprite;
var arrayIndexNum:int = _allGridArray.indexOf(targetArray);
for each(targetGrid in targetArray)
{
if(targetGrid.type == "clicked")
{
var gridIndexNum:int = targetArray.indexOf(targetGrid);
outPutArray[arrayIndexNum][gridIndexNum] = this.COLOR_HEADER + _colorAlpha.toString(16) + targetGrid.colorString;
}
}
}
//全配列の再チェックしてトリミング。
//Step1:上段から順に走査。何か表示が出た時点で処理をとめる。
var stringInArray:String;
var totalNum:Number = 0;
for (i = 0; i < outPutArray.length; i++)
{
targetArray = outPutArray[0];
totalNum = 0;
for each(stringInArray in targetArray)
{
totalNum += Number(stringInArray);
}
//if(targetArray.indexOf(1) == -1)
if(totalNum == 0)
{
//1が含まれていない、つまり何も描画されていない。
outPutArray.splice(0, 1);
}
else
{
break;
}
}
//Step2:下段から順に走査。何か表示が出た時点で処理をとめる。
for (i = outPutArray.length - 1; i >= 0; i--)
{
targetArray = outPutArray[i];
totalNum = 0;
for each(stringInArray in targetArray)
{
totalNum += Number(stringInArray);
}
//if(targetArray.indexOf(1) == -1)
if(totalNum == 0)
{
//1が含まれていない、つまり何も描画されていない。
var indexNum:int = outPutArray.indexOf(targetArray);
outPutArray.splice(indexNum, 1);
}
else
{
break;
}
}
//Step3：左列から順に走査。何か表示が出た時点で処理をとめる。
for (i = 0; i < outPutArray[0].length; i++)
{
totalNum = 0;
for each(targetArray in outPutArray)
{
totalNum += targetArray[0];
}
if(totalNum != 0)
{
break;
}
else
{
//1が含まれていない、つまり何も描画されていない。
for each(targetArray in outPutArray)
{
targetArray.splice(0, 1);
}
}
}
//Step4：右列から順に走査。何か表示が出た時点で処理をとめる。
for (i = outPutArray[0].length - 1; i >= 0; i--)
{
totalNum = 0;
for each(targetArray in outPutArray)
{
totalNum += targetArray[i];
}
if(totalNum != 0)
{
break;
}
else
{
//1が含まれていない、つまり何も描画されていない。
for each(targetArray in outPutArray)
{
targetArray.splice(i, 1);
}
}
}
//トリミング終了後の配列をテキストフィールドに出力。
for each(targetArray in outPutArray)
{
_outPutTextField.appendText("[" + String(targetArray) + "]," + "\n");
}
_outPutWindow.visible = true;
_outPutBitMap = setBmpData(outPutArray, 2, 2);
_outPutWindow.addChild(_outPutBitMap);
_outPutBitMap.x = 300;
}
/**
* モード選択ボタンをクリックした際のファンクション。
**/
private function modeButtonClickHandler(event:MouseEvent):void
{
var targetButton:Sprite = event.currentTarget as Sprite;
var selectedMode:String = targetButton.name;
this._mode = selectedMode;
if(this._mode == DotEditor.MODE_DRAW || this._mode == DotEditor.MODE_ERASE)
this._modePointer.x = targetButton.x;
if(this._mode == DotEditor.MODE_RESET)
{
var targetArray:Array;
for each(targetArray in _allGridArray)
{
var targetGrid:GridSprite;
for each(targetGrid in targetArray)
{
targetGrid.changeColor(DotEditor.MODE_ERASE, _nowColor);
}
}
this._mode = DotEditor.MODE_DRAW;
}
}
/**
* ボタンを生成するファンクション。
**/
private function makeBtn(widthNum:Number, heightNum:Number, btnLabel:String = "btn"):Sprite
{
var btnSprite:Sprite = new Sprite();
btnSprite.graphics.lineStyle(1, 0x999999);
btnSprite.graphics.beginFill(0xcccccc);
btnSprite.graphics.moveTo(-widthNum / 2, -heightNum / 2);
btnSprite.graphics.lineTo(-widthNum / 2, heightNum / 2);
btnSprite.graphics.lineTo(widthNum / 2, heightNum / 2);
btnSprite.graphics.lineTo(widthNum / 2, -heightNum / 2);
btnSprite.graphics.endFill();
var labelField:TextField = new TextField();
labelField.text = btnLabel;
labelField.autoSize = TextFieldAutoSize.CENTER;
labelField.x = -labelField.width / 2;
labelField.y = -labelField.height / 2;
labelField.selectable = false;
labelField.mouseEnabled = false;
btnSprite.addChild(labelField);
this.buttonMode = true;
return btnSprite;
}
/**
* グリッド上でマウスダウンした際のファンクション。
**/
private function gridMouseDownHandler(event:MouseEvent):void
{
_mouseDownFlg = true;
var targetGrid:GridSprite = event.currentTarget as GridSprite;
targetGrid.changeColor(this._mode, _nowColor);
}
/**
* グリッド上でマウスアップした際のファンクション。
**/
private function gridMouseUpHandler(event:MouseEvent):void
{
_mouseDownFlg = false;
}
/**
* グリッドにロールオーバーした際のファンクション。
**/
private function gridRollOverFunction(event:MouseEvent):void
{
if(!_mouseDownFlg)
return;
var targetGrid:GridSprite = event.currentTarget as GridSprite;
targetGrid.changeColor(this._mode, _nowColor);
}
/**
* 出力結果をビットマップに反映させるファンクション。
**/
private function setBmpData(outPutArray:Array, pixWidth:uint = 1, pixHeight:uint = 1):Bitmap
{
var horizonalPixelNum:uint = outPutArray[0].length;
var verticalPixelNum:uint = outPutArray.length;
var bmd:BitmapData = new BitmapData(pixWidth * horizonalPixelNum, pixHeight * verticalPixelNum, true, 0x00ffffff);
//var colorBmd:BitmapData = new BitmapData(pixWidth, pixHeight, true, 0xff000000);
var colorBmd:BitmapData;
var emptyBmd:BitmapData = new BitmapData(pixWidth, pixHeight, true, 0x00ffffff);
var bmp:Bitmap = new Bitmap(bmd);
var i:int = 0;
for(i; i < outPutArray.length; i++)
{
var targetArray:Array = outPutArray[i];
var j:int = 0;
for(j; j < targetArray.length; j++)
{
colorBmd = null;
//0か1かの結果を取得する。
var colorNum:uint = uint(targetArray[j]);
var rect:Rectangle = new Rectangle(j * pixWidth, i * pixHeight, pixWidth, pixHeight);
var bytes:ByteArray;
if(colorNum != 0)
{
colorBmd = new BitmapData(pixWidth, pixHeight, true, colorNum);
bytes = colorBmd.getPixels(new Rectangle(0, 0, pixWidth, pixHeight));
}
else if(colorNum == 0)
{
bytes = emptyBmd.getPixels(new Rectangle(0, 0, pixWidth, pixHeight));
}
bytes.position = 0;
bmd.setPixels(rect, bytes);
}
}
return bmp;
}
}
}
import flash.geom.Rectangle;
import flash.events.MouseEvent;
import flash.display.Sprite;
class GridSprite extends Sprite
{
private const TYPE_DEFAULT:String = "default";
private const TYPE_CLICKED:String = "clicked";
private var _type:String = TYPE_DEFAULT;
private var _colorNum:uint = 0xcccccc;
private var _colorString:String = "0xcccccc";
private var _widthNum:Number;
private var _heightNum:Number;
/**
* コンストラクタ。
**/
public function GridSprite(widthNum:Number, heightNum:Number)
{
init(widthNum, heightNum);
}
private function init(widthNum:Number, heightNum:Number):void
{
buttonMode = true;
_widthNum = widthNum;
_heightNum = heightNum;
drawGrid(widthNum, heightNum);
}
/**
* 色を変化させるファンクション。
**/
public function changeColor(type:String, color:String):void
{
if(this._type == type)
return;
_colorString = color.substr(2);
_colorNum = uint(color);
switch(type)
{
case DotEditor.MODE_DRAW:
this._type = TYPE_CLICKED;
break;
case DotEditor.MODE_ERASE:
this._type = TYPE_DEFAULT;
_colorNum = 0xcccccc;
break;
}
//this._type = type;
drawGrid(this._widthNum, this._heightNum);
}
private function drawGrid(width:Number, height:Number):void
{
/*
var color:uint = _colorNum;
switch(this._type)
{
case TYPE_DEFAULT:
color = 0xcccccc;
break;
case TYPE_CLICKED:
color = _colorNum;
break;
}*/
graphics.clear();
graphics.lineStyle(1 , 0xaaaaaa);
graphics.beginFill(_colorNum);
/*
graphics.moveTo(0 , 0);
graphics.lineTo(0 , height);
graphics.lineTo(width , height);
graphics.lineTo(width , 0);
*/
graphics.drawRect(0, 0, width, height);
graphics.endFill();
}
/**
* _typeを取得するゲッター。
**/
public function get type():String
{
return this._type;
}
public function get colorNum():uint
{
return this._colorNum;
}
public function get colorString():String
{
return this._colorString;
}
}
class ColorObj{
private var _colorNum:uint;
private var _indexNum:uint;
public function ColorObj(colorNumValue:uint, indexNumValue:uint)
{
_colorNum = colorNumValue;
_indexNum = indexNumValue;
}
public function get colorNum():uint
{
return this._colorNum;
}
public function set colorNum(value:uint):void
{
this._colorNum = value;
}
public function get indexNum():uint
{
return this._indexNum;
}
public function set indexNum(value:uint):void
{
this._indexNum = value;
}
}
class SlideBar extends Sprite
{
private var _dragBarSprite:Sprite;
private var _dragBarBackSprite:Sprite;
//private var _slideBarAllSprite:Sprite;
private var _dragRectangle:Rectangle;
public function SlideBar()
{
}
public function makeSlideBar(widthNum:Number, heightNum:Number, xNum:Number = 100, yNum:Number = 200):void
{
var slideBarAllSprite:Sprite = new Sprite();
this.addChild(slideBarAllSprite);
x = xNum;
y = yNum;
_dragBarBackSprite = new Sprite()
_dragBarBackSprite.graphics.lineStyle(1);
_dragBarBackSprite.graphics.beginFill(0xdedede);
_dragBarBackSprite.graphics.drawRect(0, -heightNum / 2, widthNum, heightNum);
_dragBarBackSprite.graphics.endFill();
slideBarAllSprite.addChild(_dragBarBackSprite);
_dragBarSprite = new Sprite;
_dragBarSprite.graphics.lineStyle(1);
_dragBarSprite.graphics.beginFill(0xaaaaaa);
_dragBarSprite.graphics.drawRect(-heightNum, -heightNum, heightNum * 2, heightNum * 2);
_dragBarSprite.graphics.endFill();
slideBarAllSprite.addChild(_dragBarSprite);
_dragBarSprite.addEventListener(MouseEvent.MOUSE_DOWN, dragBarSpriteMouseDownHandler);
_dragRectangle = new Rectangle();
_dragRectangle.x = _dragBarBackSprite.x;
_dragRectangle.y = _dragBarBackSprite.y;
_dragRectangle.width = _dragBarBackSprite.width;
_dragRectangle.height = 0;
}
private function dragBarSpriteMouseDownHandler(event:MouseEvent):void
{
_dragBarSprite.removeEventListener(MouseEvent.MOUSE_DOWN, dragBarSpriteMouseDownHandler);
_dragBarSprite.startDrag(false, _dragRectangle);
this.stage.addEventListener(MouseEvent.MOUSE_UP, dragBarSpriteMouseUpHandler);
}
private function dragBarSpriteMouseUpHandler(event:MouseEvent):void
{
_dragBarSprite.stopDrag();
_dragBarSprite.addEventListener(MouseEvent.MOUSE_DOWN, dragBarSpriteMouseDownHandler);
this.stage.removeEventListener(MouseEvent.MOUSE_UP, dragBarSpriteMouseUpHandler);
}
public function getDragBarPositionRatio():Number
{
var ratio:Number = (this._dragBarSprite.x - this._dragBarBackSprite.x)/_dragBarBackSprite.width;
return ratio;
}
}
