forked from: Orbit

/**
 * Copyright paulstamp1 ( http://wonderfl.net/user/paulstamp1 )
 * MIT License ( http://www.opensource.org/licenses/mit-license.php )
 * Downloaded from: http://wonderfl.net/c/auaw
 */

// forked from paulstamp1's Orbit
/**
     _____ _____ _____ __       _____ _____ _____ _____ _____
    |  _  |  _  |  |  |  |     |   __|_   _|  _  |     |  _  |
    |   __|     |  |  |  |__   |__   | | | |     | | | |   __|
    |__|  |__|__|_____|_____|  |_____| |_| |__|__|_|_|_|__|
    @paulstamp

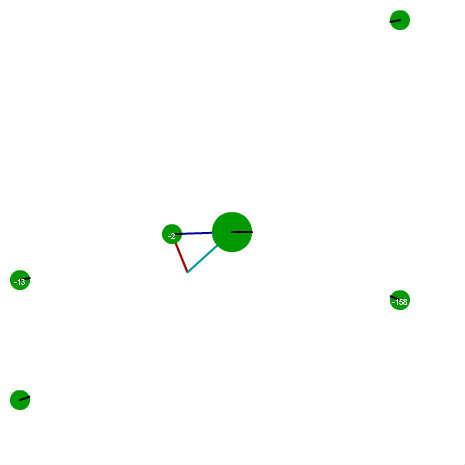

    I created this as an aid to an external project where I needed to calculate
    the rotational direction of an object entering orbit.

*/
package {
    import flash.geom.Point;
    import flash.events.Event;
    import flash.display.Sprite;
    public class FlashTest extends Sprite {

        private var _planetA:Planet;
        private var _planetB:Planet;
        private var _planetC:Planet;
        private var _planetD:Planet;
        private var _planetE:Planet;
        private var _planetF:Planet;
        private var _clockwise:Boolean;
        private var _orbitHeight:Number = 30;
        private var _speed:Number = 2;

        public function FlashTest() {
            // write as3 code here..

            _planetA = new Planet( 20 );
            _planetA.x = 465>>1;
            _planetA.y = 465>>1;
            addChild( _planetA );

            _planetB = new Planet( 10 );
            addChild( _planetB );

            _planetC = new Planet( 10 );
            _planetC.x = 20;
            _planetC.y = 280;
            _planetC.rotation = 10;
            addChild( _planetC );

            _planetD = new Planet(10);
            _planetD.x = 400;
            _planetD.y = 20;
            _planetD.rotation = 170;
            addChild( _planetD );

            _planetE = new Planet(10);
            _planetE.x = 20;
            _planetE.y = 400;
            _planetE.rotation = -20;
            addChild( _planetE );

            _planetF = new Planet(10);
            _planetF.x = 400;
            _planetF.y = 300;
            _planetF.rotation = -170;
            addChild( _planetF );

            addEventListener( Event.ENTER_FRAME, update );
        }

        private function calculatePositionAtRotation( value:Number ):Point
        {
            var rad:Number = value * Math.PI / 180;//degrees to rads
            var radius:Number = 30 + _orbitHeight;
            var difX:Number = _planetA.x - _planetB.x;
            var difY:Number = _planetA.y - _planetB.y;

            var velocityX:Number = difX + radius * Math.cos(rad);
            var velocityY:Number = difY + radius * Math.sin(rad);

             return new Point( _planetB.x + velocityX, _planetB.y + velocityY );
        }

        private function update( event:Event ):void
        {
            var speed:Number = _clockwise ? _speed : -_speed;
            _planetB.orbit += speed;

            var rad:Number = _planetB.orbit * Math.PI / 180;//degrees to rads
            var radius:Number = 30 + _orbitHeight;
            var difX:Number = _planetA.x - _planetB.x;
            var difY:Number = _planetA.y - _planetB.y;


            var velocityX:Number = difX + radius * Math.cos(rad);
            var velocityY:Number = difY + radius * Math.sin(rad);

             _planetB.x += velocityX;
             _planetB.y += velocityY;

             //show line to planet
             this.graphics.clear();
             this.graphics.lineStyle( 2, 0x000099 );
             this.graphics.moveTo( _planetB.x, _planetB.y );
             this.graphics.lineTo( _planetA.x, _planetA.y );

             //next point
             this.graphics.lineStyle( 2, 0x990000 );
             var nextPoint:Point = calculatePositionAtRotation( _planetB.orbit + (20*speed));
             this.graphics.moveTo( _planetB.x, _planetB.y );
             this.graphics.lineTo( nextPoint.x, nextPoint.y );

             //end connection
             this.graphics.lineStyle( 2, 0x009999 );
             this.graphics.lineTo( _planetA.x, _planetA.y );

             //angle for planetB to face planetA
             pointAtPlanet( _planetB, _planetA );
             pointAtPlanet( _planetC, _planetA );
             //pointAtPlanet( _planetD, _planetA );
             //pointAtPlanet( _planetE, _planetA );
             pointAtPlanet( _planetF, _planetA );
        }

        public function pointAtPlanet( planetA:Planet, planetB:Planet ):void
        {
             var angleRads:Number = getAngle( planetA.x, planetA.y, planetB.x, planetB.y );
             var angDegs:Number = angleRads*180/Math.PI;

             planetA.text = Math.round( angDegs ).toString();
             planetA.rotation = angDegs;
        }




        public function getAngle (x1:Number, y1:Number, x2:Number, y2:Number):Number
        {
            var dx:Number = x2 - x1;
            var dy:Number = y2 - y1;
            return Math.atan2(dy,dx);
        }

    }
}
import flash.text.TextFormatAlign;
import flash.text.TextField;
import flash.text.TextFormat;
import flash.display.Sprite;

class Planet extends Sprite
{
    public var radius:Number;
    private var _orbit:Number;
    private var _txtContainer:Sprite = new Sprite();
    private var _txt:TextField = new TextField();

    public function Planet( radius:Number )
    {
        this.orbit = 0;
        this.radius = radius;
        graphics.beginFill( 0x009900 );
        graphics.drawCircle( 0,0, radius );
        graphics.endFill();
        graphics.lineStyle( 2, 0x000000 );
        graphics.moveTo( 0,0);
        graphics.lineTo( radius, 0 );

        _txt = new TextField();
        _txt.defaultTextFormat = new TextFormat( "_sans", 8, 0xFFFFFF, false, false, false, null, null, TextFormatAlign.CENTER );
        _txt.width = radius<<1;
        _txt.height = radius<<1;
        _txt.x =-radius;
        _txt.y =-radius>>1;


        _txtContainer.addChild( _txt );

        addChild( _txtContainer );
    }

    public function get orbit():Number
    {
        return _orbit;
    }

    public function set orbit( value:Number ):void
    {
        _orbit = value;
        this.rotation = value;
    }


    public function set text( value:String ):void
    {
        _txt.text = value;
    }

    override public function set rotation( value:Number ):void
    {
        _txtContainer.rotation = -value;
        super.rotation = value;
    }



}
