forked from: How to give slide effect in guitar

by keim_at_Si forked from How to give slide effect in guitar (diff: 9)

Currently table envelop is one of the solution. But there are only indirect way to create envelop table without MML.
1. call SiONDriver.setEnvelopTable() to register envelop table
2. call SiMMLTable.getEnvelopTable() to get SiMMLEnvelopTable instance created internally.
3. call SiMMLTrack.setPitchEnvelop() to apply envelop curve to the track
Now the envelop control and pitch bending are stacked on my task of SiON new version. Sorry for inconvenience.

Or, if you can use MML, "&" is simple pitch bending command. http://mmltalks.appspot.com/document/siopm_mml_ref_05_e.html

♥0 | Line 39 | Modified 2011-04-18 01:08:58 | MIT License

[Download] [Fullscreen] [Reload]

ActionScript3 source code

/**
 * Copyright keim_at_Si ( http://wonderfl.net/user/keim_at_Si )
 * MIT License ( http://www.opensource.org/licenses/mit-license.php )
 * Downloaded from: http://wonderfl.net/c/dnn2
 */

// forked from UtilZone's How to give slide effect in guitar
package {
    import flash.display.Sprite;
    import flash.events.*;
    import com.bit101.components.*;
    import org.si.sion.*;
    import org.si.sion.sequencer.SiMMLTrack;
    import org.si.sion.utils.SiONPresetVoice;
    import org.si.sion.sequencer.SiMMLEnvelopTable;
    import org.si.sion.sequencer.SiMMLTable;

    public class FlashTest extends Sprite {
        private var track:SiMMLTrack;
        private var driver:SiONDriver;
        private var presetVoice:SiONPresetVoice;
        private var voice:SiONVoice;
        private var envelop:SiMMLEnvelopTable;
        public function FlashTest() {
           driver = new SiONDriver();
           presetVoice = new SiONPresetVoice();
           voice = new SiONVoice();
           voice = presetVoice["valsound.guitar"][1];
           driver.setEnvelopTable(0, Vector.<int>([0,-16,-32,-48,-64]));
           envelop = SiMMLTable.instance.getEnvelopTable(0);
           driver.play();

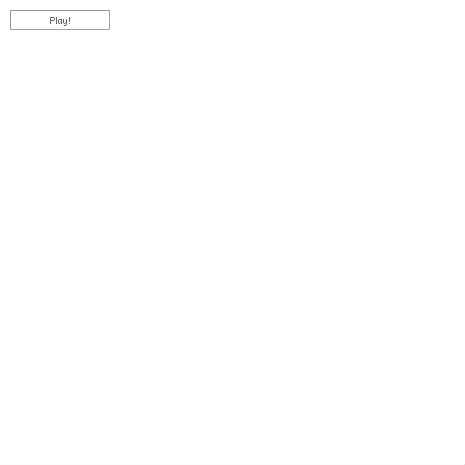

           var btn:PushButton = new PushButton(this);
            btn.label = "Play!";
            btn.x = 10;
            btn.y = 10
            btn.addEventListener(MouseEvent.CLICK, function(e:MouseEvent):void {
                track = driver.noteOn(60, voice, 16, 0, 0, 0, true);
                track.noteShift  = 5;
                track.pitchShift = 100;
                track.velocity = 500;
                track.expression = 10;
                track.channel.pan = 10;
                track.setPitchEnvelop(1, envelop, 4);
            });

        }
    }
}
