(unfinished) soccer
forked from autonomous agent study (diff: 198)
TODO - complete Ball (line 870)
ActionScript3 source code
/**
* Copyright wrotenodoc ( http://wonderfl.net/user/wrotenodoc )
* MIT License ( http://www.opensource.org/licenses/mit-license.php )
* Downloaded from: http://wonderfl.net/c/U5ZP
*/
// forked from wrotenodoc's autonomous agent study
package {
import flash.text.TextField;
import flash.display.Sprite;
import flash.geom.Point
// Programming Game AI by Example - Mat Buckland
// Ch 4. Simple Soccer
[SWF(width=420, height=420, frameRate=60)]
public class Ch4 extends Sprite {
private var world:SoccerPitch
private var A:Vehicle, B:Vehicle, C:Vehicle
public function Ch4() {
// write as3 code here..
debug = new TextField
debug.autoSize = "left"
debug.y = 410
addChild(debug)

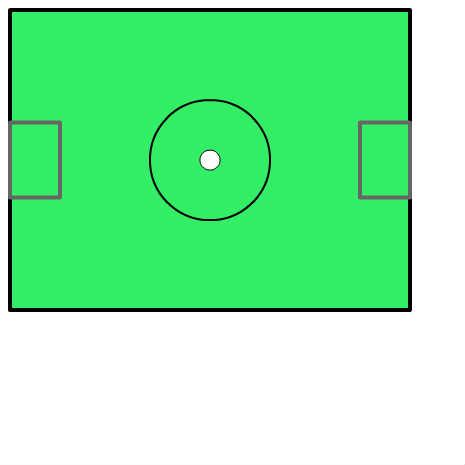

world = new SoccerPitch(400, 300)
world.x = world.y = 10
addChild(world)
/*A = new Vehicle
A.x = 50 ; A.y = 50
world.addVehicle(A)
B = new Vehicle
B.x = 350 ; B.y = 200
B.steering.obstacleAvoidanceOn = true
B.steering.pursuitOn = true
B.steering.target = A
world.addVehicle(B)
C = new Vehicle
C.x = 100 ; C.y = 300
world.addVehicle(C)
for(var i:int=0; i<200; i++){
var v:Vehicle = new Vehicle
v.x = Math.random() * world.width
v.y = Math.random() * world.height
v.steering.wanderOn = true
v.steering.obstacleAvoidanceOn = true
world.addVehicle(v)
}
world.addObstacle(new Obstacle(100, 100, 50))
world.addObstacle(new Obstacle(200, 300, 20))
world.addObstacle(new Obstacle(300, 50, 30))*/
addEventListener("enterFrame", loop)
}
private function loop(e:Object):void {
world.update(0.05)
}
}
}
import flash.text.TextField
var debug:TextField
//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
// Chapter 3. Autonomously Moving Agent
import flash.display.Sprite
import flash.geom.Point
class Entity extends Sprite {
protected var _radius:Number
public function Entity(radius:Number = 8) {
_radius = radius
render()
}
public function update(timeElapsed:Number):void {}
public function render():void {
graphics.clear()
graphics.lineStyle(0, 0x0)
graphics.drawCircle(0, 0, radius)
}
public function get position():Point { return new Point(x, y) }
public function get radius():Number { return _radius }
}
class MovingEntity extends Entity {
protected var _velocity:Point = new Point
protected var _heading:Point = new Point
protected var side:Point = new Point
protected var mass:Number = 1
protected var _maxSpeed:Number = 20
protected var _maxForce:Number = 200
protected var maxTurnRate:Number = Infinity
public function MovingEntity(radius:Number = 8) {
super(radius)
}
public override function render():void {
graphics.clear()
graphics.lineStyle(0, 0x0)
graphics.moveTo(radius, 0)
graphics.lineTo(-Math.sqrt(3)/2*radius, .5*radius)
graphics.lineTo(-Math.sqrt(3)/2*radius, -.5*radius)
graphics.lineTo(radius, 0)
}
public function get velocity():Point { return _velocity.clone() }
public function get speed():Number { return _velocity.length }
public function get heading():Point { return _heading.clone() }
public function get maxSpeed():Number { return _maxSpeed }
public function get maxForce():Number { return _maxForce }
}
class Obstacle extends Entity {
public function Obstacle(x0:Number, y0:Number, radius:Number=10) {
x = x0
y = y0
_radius = radius
render()
}
public override function render():void {
graphics.clear()
graphics.lineStyle(0, 0xff0000)
graphics.drawCircle(0, 0, radius)
}
}
class Vehicle extends MovingEntity {
public var world:GameWorld
public var enforceNonPenetration:Boolean = false
private var _steering:SteeringBehaviors
private var _smoothing:Boolean = false
private var _smoothingNumSamples:uint = 5
private var _smoothingAccum:Array = []
public function Vehicle() {
_steering = new SteeringBehaviors(this)
}
public override function update(timeElapsed:Number):void {
var accel:Point = steering.calculate()
accel.x /= mass ; accel.y /= mass
_velocity.x += accel.x * timeElapsed
_velocity.y += accel.y * timeElapsed
var speed:Number = _velocity.length
if(speed > maxSpeed) _velocity.normalize(maxSpeed)
x += _velocity.x * timeElapsed
y += _velocity.y * timeElapsed
var currHead:Point = _velocity.clone()
currHead.normalize(1)
//if(speed*speed > 0.000000001){
side.x = -currHead.y
side.y = currHead.x
//}
if(_smoothing){
_smoothingAccum.push(currHead)
if(_smoothingAccum.length == _smoothingNumSamples){
_smoothingAccum.shift()
}
var xAccum:Number = 0, yAccum:Number = 0
for each(var accum:Point in _smoothingAccum){
xAccum += accum.x ; yAccum += accum.y
}
xAccum /= _smoothingAccum.length
yAccum /= _smoothingAccum.length
currHead.x = xAccum
currHead.y = yAccum
}
if(x < 0) x = world.width
else if(x > world.width) x = 0
if(y < 0) y = world.height
else if(y > world.height) y = 0
rotation = Math.atan2(currHead.y, currHead.x) * 180/Math.PI
}
public function noPenetration(agents:Array):void {
for each(var v:Entity in agents){
if(v == this) continue
var toEntity:Point = v.position.subtract(position)
var dist:Number = toEntity.length
var overlap:Number = radius + v.radius - dist
if(overlap > 0){
v.x += toEntity.x * overlap/dist
v.y += toEntity.y * overlap/dist
}
}
}
public function get steering():SteeringBehaviors { return _steering }
public function set smoothing(value:Boolean):void {
_smoothing = value
if(value) _smoothingAccum.length = 0
}
}
class Wall extends Sprite {
private var _from:Point
private var _to:Point
private var _unit:Point
private var _normal:Point
public function Wall(x0:Number,y0:Number, x1:Number,y1:Number) {
_from = new Point(x0, y0)
_to = new Point(x1, y1)
_unit = _to.subtract(_from)
_unit.normalize(1)
_normal = new Point(-_unit.y, _unit.x)
x = x0 ; y = y0
graphics.lineStyle(2, 0x0)
graphics.lineTo(x1-x0, y1-y0)
}
public function lineIntersection(p0:Point, p1:Point):Point {
var from_p0:Point = p0.subtract(_from)
var from_p1:Point = p1.subtract(_from)
if(dotProduct(from_p0, _normal) * dotProduct(from_p1, _normal) > 0) return null
var IP:Point = _from.add(scalarMult(_unit, dotProduct(from_p0, _unit)))
if((_from.x <= IP.x && IP.x <= _to.x) || (_to.x <= IP.x && IP.x <= _from.x)){
return IP
}
return null
}
public function get normal():Point { return _normal.clone() }
}
class GameWorld extends Sprite {
//private var _entities:Array = []
private var _vehicles:Array = []
private var _walls:Array = []
private var _obstacles:Array = []
private var _partitions:Vector.<WorldPartition> // row-major
private var _width:Number, _height:Number
private var _partitionX:uint, _partitionY:uint
private var _partitionWidth:Number, _partitionHeight:Number
public function GameWorld(w:Number, h:Number, partitionX:uint=10, partitionY:uint=10) {
_width = w ; _height = h
_partitionX = partitionX ; _partitionY = partitionY
_partitionWidth = w/partitionX ; _partitionHeight = h/partitionY
_partitions = new Vector.<WorldPartition>(partitionX * partitionY, true)
for(var i:int=0; i<partitionX * partitionY; i++){
var px:Number = (i%partitionX) * _partitionWidth
var py:Number = uint(i/partitionY) * _partitionHeight
_partitions[i] = new WorldPartition(this, i, px, py, _partitionWidth, _partitionHeight)
}
for(i=0; i<_partitions.length; i++) _partitions[i].findNeighbors()
// draw world bound and partitions
/*graphics.lineStyle(0, 0x0)
var p:WorldPartition
for(i=0; i<_partitions.length; i++){
p = _partitions[i]
graphics.drawRect(p.x, p.y, p.width, p.height)
}
graphics.lineStyle(2, 0x0000ff)
graphics.drawRect(0, 0, w, h)*/
//addEventListener("enterFrame", debug)
}
/*private function debug(e:Object):void {
var tx:Number = mouseX, ty:Number = mouseY
var part:WorldPartition = getPartition(tx, ty)
for(var i:int=0; i<_vehicles.length; i++) _vehicles[i].alpha = 1
if(part != null){
for(var j:int=0; j<part.neighbors.length; j++)
for(i=0; i<part.neighbors[j].vehicles.length; i++) part.neighbors[j].vehicles[i].alpha = .5
}
graphics.clear()
for each(var p:WorldPartition in part.neighbors){
graphics.beginFill(0xff0000, .5)
graphics.drawRect(p.x, p.y, p.width, p.height)
graphics.endFill()
}
}*/
public function getPartition(x:Number, y:Number):WorldPartition {
if(x < 0 || x >= _width || y < 0 || y >= _height) return null
var unitX:uint = uint(x/_partitionWidth)
var unitY:uint = uint(y/_partitionHeight)
var idx:uint = unitY*_partitionY + unitX
//if(idx >= _partitions.length) return null
return _partitions[idx]
}
/*public function addEntity(entity:Entity):void {
_entities.push(entity)
addChild(entity)
}*/
public function addVehicle(v:Vehicle):void {
_vehicles.push(v)
addChild(v)
getPartition(v.x, v.y).add(v)
v.world = this
}
public function addWall(w:Wall):void {
_walls.push(w)
addChild(w)
}
public function addObstacle(o:Obstacle):void {
_obstacles.push(o)
addChild(o)
}
public function update(timeElapsed:Number):void {
var part:WorldPartition, part2:WorldPartition
var v:Vehicle
for(var i:int=0; i<_vehicles.length; i++){
v = _vehicles[i]
part = getPartition(v.x, v.y)
v.update(timeElapsed)
part2 = getPartition(v.x, v.y)
if(part != part2){
part.remove(v)
part2.add(v)
}
}
// ensure zero overlap
for(i=0; i<_vehicles.length; i++){
v = _vehicles[i]
v.enforceNonPenetration && v.noPenetration(_vehicles)
}
}
/*public function render():void {
for(var i:int=0; i<_vehicles.length; i++){
_vehicles[i].render()
}
}*/
public function getNeighbors(vehicle:Vehicle):Array {
var ary:Array = []
var part:WorldPartition = getPartition(vehicle.x, vehicle.y)
if(part == null) return ary
for each(var p:WorldPartition in part.neighbors){
for each(var v:Vehicle in part.vehicles){
if(v == vehicle) continue
if(v.position.subtract(vehicle.position).length <= vehicle.steering.neighborRadius){
ary.push(v)
}
}
}
return ary
}
public override function get width():Number { return _width }
public override function get height():Number { return _height }
public function get vehicles():Array { return _vehicles }
public function get obstacles():Array { return _obstacles }
public function get walls():Array { return _walls }
public function get partitions():Vector.<WorldPartition> { return _partitions }
}
class WorldPartition {
private var _x:Number, _y:Number, _width:Number, _height:Number
private var _world:GameWorld
private var _vehicles:Vector.<Vehicle>
private var _index:uint
private var _neighbors:Vector.<WorldPartition> // * includes this partition!! *
public function WorldPartition(world:GameWorld, idx:uint, x:Number,y:Number, w:Number,h:Number) {
_world = world
_x = x; _y = y; _width=w; _height=h
_vehicles = new Vector.<Vehicle>
_index = idx
}
public function add(v:Vehicle):void {
_vehicles.push(v)
}
public function remove(v:Vehicle):void {
var idx:int = _vehicles.indexOf(v)
if(idx != -1) _vehicles.splice(idx, 1)
}
public function findNeighbors():void {
_neighbors = new Vector.<WorldPartition>
var cx:Number = _x + _width/2, cy:Number = _y + _height/2
append(cx - _width, cy - _height)
append(cx, cy - _height)
append(cx + _width, cy - _height)
append(cx - _width, cy)
append(cx, cy)
append(cx + _width, cy)
append(cx - _width, cy + _height)
append(cx, cy + _height)
append(cx + _width, cy + _height)
function append(px:Number, py:Number):void {
var p:WorldPartition = _world.getPartition(px, py)
if(p != null) _neighbors.push(p)
}
}
public function get x():Number { return _x }
public function get y():Number { return _y }
public function get width():Number { return _width }
public function get height():Number { return _height }
public function get vehicles():Vector.<Vehicle> { return _vehicles }
public function get neighbors():Vector.<WorldPartition> { return _neighbors }
}
class SteeringBehaviorsSummingMethod {
public static const WEIGHTED_AVERAGE:String = "weightedAverage"
public static const PRIORITIZED:String = "prioritized"
public static const DITHERED:String = "dithered"
public static function checkValid(option:String):void {
if([WEIGHTED_AVERAGE, PRIORITIZED, DITHERED].indexOf(option) == -1){
throw new Error("Not a valid summing method: " + option)
}
}
}
class SteeringBehaviors {
private var _summingMethod:String = SteeringBehaviorsSummingMethod.PRIORITIZED
private var _target:Vehicle
private var _target2:Vehicle
private var _vehicle:Vehicle // owner
private var _path:Array
private var _pathIdx:int
private var _pathClosed:Boolean
private var _offset:Point // used in offsetPursuit()
// sole behaviors
public var seekOn:Boolean = false
public var fleeOn:Boolean = false
public var arriveOn:Boolean = false
public var pursuitOn:Boolean = false
public var evadeOn:Boolean = false
public var wanderOn:Boolean = false
public var obstacleAvoidanceOn:Boolean = false
public var wallAvoidanceOn:Boolean = false
public var interposeOn:Boolean = false
public var hideOn:Boolean = false
public var followPathOn:Boolean = false
public var offsetPursuitOn:Boolean = false
// group behaviors
public var neighborRadius:Number = 150
public var separationOn:Boolean = false
public var alignmentOn:Boolean = false
public var cohesionOn:Boolean = false
public function SteeringBehaviors(v:Vehicle) {
_vehicle = v
}
public function get target():Vehicle { return _target }
public function set target(v:Vehicle):void { _target = v }
public function get target2():Vehicle { return _target2 }
public function set target2(v:Vehicle):void { _target2 = v }
public function set offset(o:Point):void { _offset = o }
public function set summingMethod(sm:String):void {
SteeringBehaviorsSummingMethod.checkValid(sm)
_summingMethod = sm
}
public function setPath(path:Array, closed:Boolean=false):void {
_path = path
_pathClosed = closed
_pathIdx = 0
}
public function calculate():Point {
if(_summingMethod == SteeringBehaviorsSummingMethod.WEIGHTED_AVERAGE){
return calculateWeightedSum()
}else if(_summingMethod == SteeringBehaviorsSummingMethod.PRIORITIZED){
return calculatePrioritized()
}else if(_summingMethod == SteeringBehaviorsSummingMethod.DITHERED){
return calculateDithered()
}
return new Point
}
private function calculateWeightedSum():Point {
var vel:Point = new Point
if(separationOn || alignmentOn || cohesionOn){
var neighbors:Array = _vehicle.world.getNeighbors(_vehicle)
if(neighbors.length > 0){
if(separationOn) vel = vel.add(separation(neighbors))
if(alignmentOn) vel = vel.add(alignment(neighbors))
if(cohesionOn) vel = vel.add(cohesion(neighbors))
}
}
if(wanderOn) vel = vel.add(wander())
if(obstacleAvoidanceOn) vel = vel.add(obstacleAvoidance(_vehicle.world.obstacles))
if(wallAvoidanceOn) vel = vel.add(wallAvoidance(_vehicle.world.walls))
if(followPathOn) vel = vel.add(followPath())
if(!target) return vel
if(seekOn) vel = vel.add(seek(target.position))
if(fleeOn) vel = vel.add(flee(target.position))
if(arriveOn) vel = vel.add(arrive(target.position, 0.3))
if(pursuitOn) vel = vel.add(pursuit(target))
if(evadeOn) vel = vel.add(evade(target))
if(hideOn) vel = vel.add(hide(target, _vehicle.world.vehicles))
if(offsetPursuitOn && _offset) vel = vel.add(offsetPursuit(target, _offset))
if(!target2) return vel
if(interposeOn) vel = vel.add(interpose(target, target2))
if(vel.length > _vehicle.maxForce) vel.normalize(_vehicle.maxForce)
return vel
}
private function calculatePrioritized():Point {
var sum:Point = new Point
if(wallAvoidanceOn){
if(!accumulate(wallAvoidance(_vehicle.world.walls))) return sum
}
if(obstacleAvoidanceOn){
if(!accumulate(obstacleAvoidance(_vehicle.world.obstacles))) return sum
}
if(evadeOn){
if(!accumulate(evade(target))) return sum
}
if(fleeOn){
if(!accumulate(flee(target.position))) return sum
}
if(separationOn || alignmentOn || cohesionOn){
var neighbors:Array = _vehicle.world.getNeighbors(_vehicle)
if(neighbors.length > 0){
if(!accumulate(separation(neighbors))) return sum
if(!accumulate(alignment(neighbors))) return sum
if(!accumulate(cohesion(neighbors))) return sum
}
}
if(seekOn){
if(!accumulate(seek(target.position))) return sum
}
if(arriveOn){
if(!accumulate(arrive(target.position, 0.1))) return sum
}
if(wanderOn){
if(!accumulate(wander())) return sum
}
if(pursuitOn){
if(!accumulate(pursuit(target))) return sum
}
if(offsetPursuitOn){
if(!accumulate(offsetPursuit(target, _offset))) return sum
}
if(interposeOn){
if(!accumulate(interpose(target, target2))) return sum
}
if(hideOn){
if(!accumulate(hide(target, _vehicle.world.vehicles))) return sum
}
if(followPathOn){
if(!accumulate(followPath())) return sum
}
if(sum.length > _vehicle.maxForce) sum.normalize(_vehicle.maxForce)
return sum
function accumulate(force:Point, scale:Number=1):Boolean {
force.x *= scale
force.y *= scale
var currMag:Number = sum.length
var rest:Number = _vehicle.maxForce - currMag
if(rest <= 0) return false
var candMag:Number = force.length
if(candMag > rest) force.normalize(rest)
sum = sum.add(force)
return true
}
}
private function calculateDithered():Point {
return new Point
}
private function seek(target:Point):Point {
var desired:Point = target.subtract(_vehicle.position)
desired.normalize(_vehicle.maxSpeed)
return desired.subtract(_vehicle.velocity)
}
private function flee(target:Point):Point {
var panicDistance:Number = 100
var desired:Point = _vehicle.position.subtract(target)
if(desired.length > panicDistance) return new Point
desired.normalize(_vehicle.maxSpeed)
return desired.subtract(_vehicle.velocity)
}
private function arrive(target:Point, deceleration:Number):Point {
var toTarget:Point = target.subtract(_vehicle.position)
var dist:Number = toTarget.length
if(dist > 0){
var speed:Number = dist / deceleration
speed = Math.min(speed, _vehicle.maxSpeed)
var desired:Point = toTarget.clone()
desired.normalize(desired.length * speed/dist)
return desired.subtract(_vehicle.velocity)
}
return new Point
}
private function pursuit(evader:Vehicle):Point {
var toEvader:Point = evader.position.subtract(_vehicle.position)
var relativeHeading:Number = dotProduct(_vehicle.heading, evader.heading)
if(dotProduct(toEvader, _vehicle.heading) > 0 && relativeHeading < -0.95){
return seek(evader.position)
}
var lookAheadTime:Number = toEvader.length / (_vehicle.maxSpeed + evader.speed)
return seek(evader.position.add(scalarMult(evader.velocity, lookAheadTime)))
}
private function evade(pursuer:Vehicle):Point {
var toPursuer:Point = pursuer.position.subtract(_vehicle.position)
var lookAheadTime:Number = toPursuer.length / (_vehicle.maxSpeed + pursuer.speed)
return flee(pursuer.position.add(scalarMult(pursuer.velocity, lookAheadTime)))
}
private var _wanderTarget:Point = new Point
private var _wanderRadius:Number = 50
private var _wanderDistance:Number = 400
private var _wanderJitter:Number = 50
private function wander():Point {
var rand1:Number = (Math.random() - .5) * 2
var rand2:Number = (Math.random() - .5) * 2
_wanderTarget = _wanderTarget.add(new Point(rand1*_wanderJitter, rand2*_wanderJitter))
_wanderTarget.normalize(_wanderRadius)
var targetLocal:Point = _wanderTarget.add(new Point(_wanderDistance, 0))
var targetWorld:Point = _vehicle.localToGlobal(targetLocal)
return targetWorld.subtract(_vehicle.position)
}
private var minDetectionBoxLength:Number = 60
private function obstacleAvoidance(obstacles:Array):Point {
var boxLength:Number = minDetectionBoxLength * (1 + _vehicle.speed/_vehicle.maxSpeed)
var closest:Entity, closestDist:Number = Infinity, closestLocal:Point
var ob:Entity, obLocal:Point
for(var i:int=0; i<obstacles.length; i++){
ob = obstacles[i]
if(ob == _vehicle) continue
var to:Point = ob.position.subtract(_vehicle.position)
var r:Number = to.length + _vehicle.radius
if(r > boxLength) continue
obLocal = _vehicle.globalToLocal(ob.position)
if(obLocal.x < 0) continue
var exRadius:Number = ob.radius + _vehicle.radius
if(Math.abs(obLocal.y) >= exRadius) continue
var cx:Number = obLocal.x, cy:Number = obLocal.y
var sqrtPart:Number = Math.sqrt(exRadius * exRadius - cy * cy)
var ip:Number = cx - sqrtPart
if(ip <= 0) ip = cx + sqrtPart
if(ip < closestDist){
closestDist = ip
closest = ob
closestLocal = obLocal
}
}
if(!closest) return new Point
var steering:Point = new Point
var mult:Number = 1 + (boxLength - closestLocal.x) / boxLength
steering.y = (closest.radius - closestLocal.y) * mult
var brake:Number = .2
steering.x = (closest.radius - closestLocal.x) * brake
return _vehicle.localToGlobal(steering)
}
private function wallAvoidance(walls:Array):Point {
var closest:Point, closestWall:Wall
var closestDist:Number = Infinity
var dist:Number, ip:Point
var w:Wall
var vp:Point = _vehicle.position
var feeler:Point = scalarMult(_vehicle.velocity, 10), feelerHit:Point
var feelers:Array = [vp.add(feeler), vp.add(perpVector(feeler)), vp.add(invert(perpVector(feeler)))]
for(var j:int=0; j<feelers.length; j++){
feeler = feelers[j]
for(var i:int=0; i<walls.length; i++){
w = walls[i]
ip = w.lineIntersection(vp, feeler)
if(!ip) continue
dist = ip.subtract(vp).length
if(dist < closestDist){
closest = ip
closestDist = dist
closestWall = w
feelerHit = feeler
}
}
}
if(!closest) return new Point
var overshoot:Point = feelerHit.subtract(closest)
var steering:Point = closestWall.normal.clone()
steering.normalize(overshoot.length)
if(dotProduct(overshoot, closestWall.normal) > 0){
steering.x = -steering.x
steering.y = -steering.y
}
return steering
}
private function interpose(A:Vehicle, B:Vehicle):Point {
var mid:Point = A.position.add(B.position)
mid.x /= 2 ; mid.y /= 2
var dt:Number = _vehicle.position.subtract(mid).length / _vehicle.maxSpeed
var Apos:Point = A.position.add(scalarMult(A.velocity, dt))
var Bpos:Point = B.position.add(scalarMult(B.velocity, dt))
mid = Apos.add(Bpos)
mid.x /= 2 ; mid.y /= 2
return arrive(mid, 0.1)
}
private function hidingPosition(obstacle:Point, obstacleRadius:Number, target:Point):Point {
var distAway:Number = obstacleRadius + 30 // 30 = distance from boundary
var toOb:Point = obstacle.subtract(target)
toOb.normalize(1)
return scalarMult(toOb, distAway).add(obstacle)
}
private function hide(target:Vehicle, obstacles:Array):Point {
var dist:Number, bestDist:Number = Infinity
var spot:Point, bestSpot:Point
var ob:Entity, targetPos:Point = target.position
for(var i:int=0; i<obstacles.length; i++){
ob = obstacles[i]
if(ob == _vehicle || ob == target) continue
spot = hidingPosition(ob.position, ob.radius, targetPos)
dist = spot.subtract(targetPos).length
if(dist < bestDist){
bestDist = dist
bestSpot = spot
}
}
if(!bestSpot) return evade(target)
return arrive(bestSpot, 0.1)
}
private function followPath():Point {
if(!_path) return new Point
var dist:Number = _path[_pathIdx].subtract(_vehicle.position).length
if(dist < 0.1){
_pathIdx ++
if(_pathIdx == _path.length){
if(_pathClosed) _pathIdx = 0
else{
_path = null
return new Point
}
}
}
if(_pathIdx == _path.length - 1) return arrive(_path[_pathIdx], 0.5)
return seek(_path[_pathIdx])
}
private function offsetPursuit(leader:Vehicle, offset:Point):Point {
var worldOffset:Point = leader.localToGlobal(offset)
var toOffset:Point = worldOffset.subtract(_vehicle.position)
var lookAhead:Number = toOffset.length / (_vehicle.maxSpeed + leader.speed)
return arrive(worldOffset.add(scalarMult(leader.velocity, lookAhead)), 0.1)
}
private function separation(neighbors:Array):Point {
var steering:Point = new Point
var toAgent:Point
for each(var n:Vehicle in neighbors){
toAgent = _vehicle.position.subtract(n.position)
toAgent.normalize(1 / toAgent.length)
steering = steering.add(toAgent)
}
return steering
}
private function alignment(neighbors:Array):Point {
var avg:Point = new Point
for each(var n:Vehicle in neighbors){
avg = avg.add(n.heading)
}
avg.x /= neighbors.length
avg.y /= neighbors.length
return avg.subtract(_vehicle.heading)
}
private function cohesion(neighbors:Array):Point {
var center:Point = new Point
for each(var n:Vehicle in neighbors){
center = center.add(n.position)
}
center.x /= neighbors.length
center.y /= neighbors.length
return seek(center)
}
}
function dotProduct(a:Point, b:Point):Number {
return a.x*b.x + a.y*b.y
}
function scalarMult(v:Point, s:Number):Point {
return new Point(v.x*s, v.y*s)
}
function perpVector(v:Point):Point {
return new Point(-v.y, v.x)
}
function invert(v:Point):Point {
return new Point(-v.x, -v.y)
}
/////////////////////////////////////////////////////////////////////////////////
// Chapter 4. Simple Soccer
import flash.geom.Point
import flash.geom.Rectangle
class Ball extends MovingEntity {
private var _prevPos:Point
private var _owner:MovingEntity
public function Ball(radius:Number) {
super(radius)
}
public function testCollisionWithWalls(walls:Vector.<Wall>):void {
//
}
public override function update(dt:Number):void {
//
}
public function kick(direction:Point, force:Number):void {
//
}
public function timeToCover(from:Point, to:Point, force:Number):Number {
return 0
}
public function futurePosition(time:Number):Point {
return new Point
}
public function trap(owner:Vehicle):void {
_velocity.x = _velocity.y = 0
_owner = owner
}
public override function render():void {
graphics.clear()
graphics.lineStyle(1, 0x0)
graphics.beginFill(0xffffff)
graphics.drawCircle(0, 0, radius)
graphics.endFill()
graphics.lineStyle()
}
}
class Goal extends Sprite {
private var _scored:uint = 0
private var _shape:Rectangle
private var _dir:Point
public function Goal(shape:Rectangle, openDir:Point) {
_shape = shape
_dir = openDir.clone()
_dir.normalize(1)
graphics.lineStyle(4, 0x666666)
graphics.drawRect(shape.x, shape.y-shape.height/2, shape.width, shape.height)
graphics.lineStyle()
}
public function checkScored(ball:MovingEntity):Boolean {
return _shape.containsPoint(ball.position)
}
}
class PlayerBase {
//
}
class SoccerTeam {
private var _receivingPlayer:PlayerBase
private var _playerClosestToBall:PlayerBase
private var _controllingPlayer:PlayerBase
private var _supportingPlayer:PlayerBase
}
class SoccerPitch extends GameWorld {
private var _ball:MovingEntity
private var _redTeam:SoccerTeam, _blueTeam:SoccerTeam
private var _redGoal:Goal, _blueGoal:Goal
private var _walls:Vector.<Wall> = new Vector.<Wall>
private var _divisions:Vector.<Rectangle> = new Vector.<Rectangle>
private var _center:Point
private var _goalkeeperHasBall:Boolean = false
private var _gameRunning:Boolean = true
public function SoccerPitch(w:Number, h:Number) {
super(w, h, 1, 1)
_center = new Point(w/2, h/2)
drawBorders()
_walls.push(new Wall(0,0, w,0))
_walls.push(new Wall(0,0, 0,h))
_walls.push(new Wall(w,0, w,h))
_walls.push(new Wall(w,h, w,h))
var divWidth:Number = w/6, divHeight:Number = h/3
for(var i:int=0; i<6; i++){
for(var j:int=0; j<3; j++){
_divisions.push(new Rectangle(divWidth*i, divHeight*j, divWidth, divHeight))
}
}
_ball = new Ball(10)
_ball.x = _center.x
_ball.y = _center.y
addChild(_ball)
_redGoal = new Goal(new Rectangle(0, _center.y, w/8, h/4), new Point(1, 0))
_blueGoal = new Goal(new Rectangle(w*7/8, _center.y, w/8, h/4), new Point(-1, 0))
addChild(_redGoal)
addChild(_blueGoal)
}
private function drawBorders():void {
graphics.lineStyle(4, 0x0)
graphics.beginFill(0x33ee66)
graphics.drawRect(0, 0, width, height)
graphics.endFill()
graphics.lineStyle(2, 0x0)
graphics.drawCircle(_center.x, _center.y, height/5)
}
public override function update(dt:Number):void {
super.update(dt)
//
}
}
