forked from: Arc editing control

/**
 * Copyright hakerlab ( http://wonderfl.net/user/hakerlab )
 * MIT License ( http://www.opensource.org/licenses/mit-license.php )
 * Downloaded from: http://wonderfl.net/c/Qfeg
 */

// forked from flex_axis's Arc editing control
package
{
    import flash.display.*;
    import flash.display.Stage;
    import flash.display.StageScaleMode;
    import flash.events.*;
    import flash.filters.GlowFilter;
    import flash.geom.*;
    import flash.text.*;

    public class Main extends Sprite
    {
        private var frameBuffer:BitmapData = new BitmapData(stage.stageWidth, stage.stageHeight, false);
        private var bitmap:Bitmap;
        private var p0:ControlPoint;
        private var p1:ControlPoint;
        private var p2:ControlPoint;

        private var shape:Shape = new Shape();
        private var g:Graphics = shape.graphics;
        private var caption:TextField = new TextField();

        public function Main():void
        {
            stage.scaleMode = StageScaleMode.NO_SCALE;

            bitmap = new Bitmap(frameBuffer);
            addChild(bitmap);

            p0 = new ControlPoint(this, 200, 200, 0x888888);
            p1 = new ControlPoint(this, 100, 250, 0x99ff99);
            p2 = new ControlPoint(this, 130, 170, 0xff9999);

            caption.defaultTextFormat = new TextFormat("_sans", 10, 0x0044aa);
            caption.width = 0;
            caption.autoSize = TextFieldAutoSize.CENTER;
            caption.filters = [ new GlowFilter(0xffffff, 0.95, 8, 8, 20, 1) ];

            paint();
        }

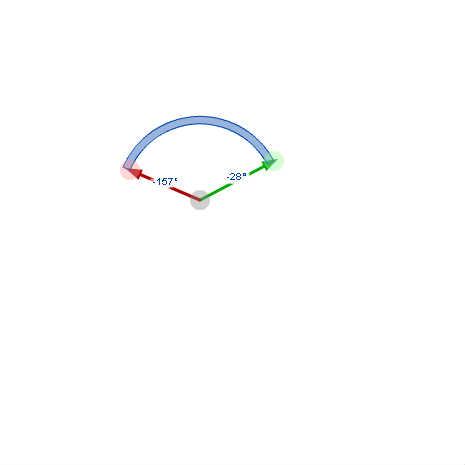

        public function paint():void
        {
            var v1:Point = sub(p1, p0);
            var v2:Point = sub(p2, p0);

            frameBuffer.fillRect(frameBuffer.rect, 0xffffff);

            g.clear();

            drawArrow(p0, p1, 0x00aa00);
            drawArrow(p0, p2, 0xaa0000);

            var startAngle:Number = getAngle(v1);
            var endAngle:Number = getAngle(v2);

            g.clear();
            g.beginFill(0x0044aa, 0.4);
            drawArc(p0, [distance(p0, p1), distance(p0, p2)], 0x0044aa, startAngle, endAngle);
            g.endFill();
            frameBuffer.draw(shape);

            drawCaption(format("{0}°", Math.round(toDegree(startAngle))),
                midpoint(p0, p1));

            drawCaption(format("{0}°", Math.round(toDegree(endAngle))),
                midpoint(p0, p2));

            /*
            drawCaption(format("{0}°\n[x:{1}, y:{2}]\n{3}",
                Math.round(toDegree(startAngle)), p1.x, p1.y, distance(p0, p1).toFixed(0)),
                midpoint(p0, p1));

            drawCaption(format("{0}°\n[x:{1}, y:{2}]\n{3}",
                Math.round(toDegree(endAngle)), p2.x, p2.y, distance(p0, p2).toFixed(0)),
                midpoint(p0, p2));
                */
        }

        private function moveTo(p:Point):void
        {
            g.moveTo(p.x, p.y);
        }

        private function lineTo(p:Point):void
        {
            g.lineTo(p.x, p.y);
        }

        private function drawArrow(start:Point, end:Point, color:uint):void
        {
            g.clear();
            g.lineStyle(3, color, 1, false, "normal", null, JointStyle.MITER);
            moveTo(start);
            lineTo(end);

            var len:Number = distance(start, end);
            var arrowLen:Number = Math.min(len, 30) / 3;
            var arrowWidth:Number = arrowLen / 3;

            if (arrowLen > 0) {
                var v:Point = sub(end, start);
                var c:Point = sub(end, cut(v, arrowLen));
                var l:Point = add(c, cut(normal(v), arrowWidth));
                var r:Point = add(c, cut(normal(v), -arrowWidth));

                g.beginFill(color);
                moveTo(end);
                lineTo(l);
                lineTo(r);
                lineTo(end);
                g.endFill();
            }
            frameBuffer.draw(shape);
        }

        private function drawCaption(text:String, pos:Point):void
        {
            caption.text = text + "";
            var m:Matrix = new Matrix();
            m.translate(pos.x, pos.y - 12);
            frameBuffer.draw(caption, m);
        }

        private function drawArc(center:Point, radius:Array, color:uint, start:Number, end:Number):void
        {
            const SEGMENT:int = 128;
            g.lineStyle(0.5, color);
            for (var i:int = 0; i <= SEGMENT; i++) {
                var angle:Number = start + (end - start) * (i / SEGMENT);
                var p:Point = pointOnCircle(center, angle, radius[0]);
                if (i == 0) {
                    moveTo(p);
                    var o:Point = p;
                } else {
                    lineTo(p);
                }
            }

            for (i=SEGMENT; i>=0; i--)  {
                angle = start +(end - start) * (i/SEGMENT);
                p = pointOnCircle(center, angle, radius[1]);
                lineTo(p);
            }
        }
    }
}

import flash.geom.Point;
import flash.display.*;
import flash.events.MouseEvent;

class ControlPoint extends Point
{
    private var main:Main;
    private var sprite:Sprite = new Sprite();
    private var g:Graphics = sprite.graphics;

    function ControlPoint(_main:Main, _x:Number, _y:Number, color:uint)
    {
        main = _main;
        x = _x;
        y = _y;

        g.beginFill(color, 0.4);
        g.drawCircle(0, 0, 10);
        g.endFill();

        sprite.x = x;
        sprite.y = y;
        sprite.buttonMode = true;

        sprite.addEventListener(MouseEvent.MOUSE_DOWN, mouseDownHandler);
        sprite.addEventListener(MouseEvent.MOUSE_UP, mouseUpHandler);

        main.addChild(sprite);
    }

    private function mouseDownHandler(e:MouseEvent):void
    {
        main.stage.addEventListener(MouseEvent.MOUSE_MOVE, mouseMoveHandler);
    }

    private function mouseUpHandler(e:MouseEvent):void
    {
        main.stage.removeEventListener(MouseEvent.MOUSE_MOVE, mouseMoveHandler);
    }

    private function mouseMoveHandler(e:MouseEvent):void
    {
        x = sprite.x = main.mouseX;
        y = sprite.y = main.mouseY;
        main.paint();
        e.updateAfterEvent();
    }

}

function toDegree(radian:Number):Number
{
    return radian * 180 / Math.PI;
}

function toRadian(degree:Number):Number
{
    return degree * Math.PI / 180;
}

function minus(v:Point):Point
{
    return new Point( -v.x, -v.y);
}

function normal(v:Point):Point
{
    return new Point(v.y, -v.x);
}

function norm(v:Point):Number
{
    return Math.sqrt(v.x * v.x + v.y * v.y);
}

function normalize(v:Point):Point
{
    return div(v, norm(v));
}

function add(n:Point, m:Point):Point
{
    return new Point(n.x + m.x, n.y + m.y);
}

function addto(n:Point, m:Point):void
{
    n.x += m.x;
    n.y += m.y;
}

function sub(n:Point, m:Point):Point
{
    return new Point(n.x - m.x, n.y - m.y);
}

function mul(v:Point, f:Number):Point
{
    return new Point(v.x * f, v.y * f);
}

function div(v:Point, f:Number):Point
{
    return new Point(v.x / f, v.y / f);
}

function dot(a:Point, b:Point):Number
{
    return a.x * b.x + a.y * b.y;
}

function cross(a:Point, b:Point):Number
{
    return a.x * b.y - a.y * b.x;
}

function distanceSquared(a:Point, b:Point):Number
{
    var dx:Number = b.x - a.x;
    var dy:Number = b.y - a.y;
    return dx * dx + dy * dy;
}

function hypot(p:Point):Number
{
    return Math.sqrt(p.x*p.x + p.y*p.y);
}

function distance(a:Point, b:Point):Number
{
    return Math.sqrt(distanceSquared(a, b));
}

function lerp(n:Point, m:Point, p:Number):Point
{
    return add(mul(n, 1 - p), mul(m, p));
}

function midpoint(n:Point, m:Point):Point
{
    return new Point((n.x + m.x) * 0.5, (n.y + m.y) * 0.5);
}

function cut(v:Point, len:Number):Point
{
    return mul(normalize(v), len);
}

function getAngle(v:Point):Number
{
    return Math.atan2(v.y, v.x);
}

function pointOnCircle(center:Point, angle:Number, radius:Number):Point
{
    return new Point (
        center.x + Math.cos(angle) * radius,
        center.y + Math.sin(angle) * radius
    );
}

function format(str:String, ... args):String
{
     for (var i:int = 0; i < args.length; i++)
         str = str.replace(new RegExp("\\{"+i+"\\}", "g"), args[i]);
     return str;
}
