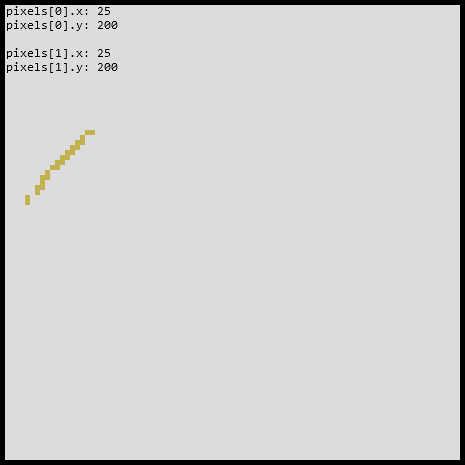

PixelCanvas example

/**
 * Copyright hemingway ( http://wonderfl.net/user/hemingway )
 * MIT License ( http://www.opensource.org/licenses/mit-license.php )
 * Downloaded from: http://wonderfl.net/c/Pd4D
 */

package //tracasseur.examples
{
    import flash.display.Sprite;
    import flash.events.MouseEvent;
    import flash.events.Event;
    import flash.geom.Point;
    //import tracasseur.display.PixelCanvas;
    //import tracasseur.text.DataField;

    [SWF(frameRate=60, width=465, height=465)]
    public class PixelExample extends Sprite
    {
        private var pixels :Vector.<Pixel>;
        private var pixelCanvas :PixelCanvas;
        private var dataField :DataField;

        private var evtMouse :Boolean;
        private var posMouse :Vector.<Point>;

        private var sandMatrix :Array;
        private var matrixSize :Point;

        private var framePos :int;

        public function PixelExample()
        {
            pixelCanvas = new PixelCanvas();
            dataField = new DataField("test");

            pixels = new Vector.<Pixel>;
            evtMouse = false;
            posMouse = new Vector.<Point>();
            framePos = 0;

            addEventListener(Event.ADDED_TO_STAGE, addedToStage);
        }

        private function addedToStage($e:*) :void
        {
            removeEventListener(Event.ADDED_TO_STAGE, addedToStage);

            addChild(pixelCanvas);
            addChild(dataField);

            initSimulation();

            pixelCanvas.addEventListener(MouseEvent.MOUSE_DOWN, pixelCanvas_mouseDown);
            pixelCanvas.addEventListener(MouseEvent.MOUSE_MOVE, pixelCanvas_mouseMove);
            pixelCanvas.addEventListener(MouseEvent.MOUSE_UP, pixelCanvas_mouseUp);
            pixelCanvas.addEventListener(Event.ENTER_FRAME, pixelCanvas_enterFrame);
        }

        private function initSimulation() :void
        {
            matrixSize = pixelCanvas.getSize();

            sandMatrix = [];

            for (var $x:int = 0; $x < matrixSize.x; $x++)
            {
                sandMatrix[$x] = [];

                for (var $y:int = 0; $y < matrixSize.y; $y++)
                {
                    sandMatrix[$x][$y] = 0;
                }
            }
        }

        private function pixelCanvas_enterFrame($e:*) :void
        {
            framePos ++;

            if (evtMouse)
            {
                pixels[0] = pixelCanvas.getPixel(posMouse[0].x, posMouse[0].y);
               // (posMouse.length > 1) ?
                pixels[1] = pixelCanvas.getPixel(posMouse[1].x, posMouse[1].y); //: null;

                dataField.text = "pixels[0].x: " + pixels[0].x + "\npixels[0].y: " + pixels[0].y + "\n\npixels[1].x: " + pixels[1].x + "\npixels[1].y: " + pixels[1].y;

                if (pixels[0].data == 0)
                {
                    var $m:int = (pixels[1].y - pixels[0].y) / (pixels[1].x - pixels[0].x);
                    var $b:int = (pixels[1].y - ($m * pixels[1].x));
                    var $u:int;
                    var $n:int;

                    sandMatrix[pixels[0].x][pixels[0].y] = 1;

                    pixels[0].data = 1;
                    pixels[0].color = 0xC2B250;

                    if (pixels[0].x > pixels[1].x)
                    {
                        for (var $c:int = pixels[1].x; $c < pixels[0].x; $c++)
                        {
                            $u = (($m * $c) + $b);

                            var $pixA:Pixel = pixelCanvas.getPixel($c, $u);

                            sandMatrix[$c][$u] = 1;

                            $pixA.data = 1;
                            $pixA.color = 0xC2B250;
                        }

                    }else{
                        for (var $v:int = pixels[0].x; $v < pixels[1].x; $v++)
                        {
                            $n = (($m * $v) + $b);

                            var $pixB:Pixel = pixelCanvas.getPixel($v, $n);

                            sandMatrix[$v][$n] = 1;

                            $pixB.data = 1;
                            $pixB.color = 0xC2B250;
                        }

                    }

                }
            }

            var $pixelA :Pixel;
            var $pixelB :Pixel;

            for (var $x:int = 0; $x < matrixSize.x; $x++)
            {
                for (var $y:int = 0; $y < matrixSize.y; $y++)
                {
                    if (sandMatrix[$x][$y] == 1 && sandMatrix[$x][$y+1] == 0 && ($y + 1) < (matrixSize.y - 1))
                    {
                        $pixelA = pixelCanvas.getPixel($x, $y);
                        $pixelB = pixelCanvas.getPixel($x, $y+1);

                        sandMatrix[$x][$y] = 0;
                        sandMatrix[$x][$y+1] = 1;

                        $pixelA.data = 0;
                        $pixelA.color = 0xDCDCDC;

                        $pixelB.data = 1;
                        $pixelB.color = 0xC2B250;
                    }
                }
            }
        }

        private function pixelCanvas_mouseDown($e:MouseEvent) :void
        { posMouse.unshift(pixelCanvas.getCanvasPos($e.stageX, $e.stageY)); evtMouse = true }
        private function pixelCanvas_mouseMove($e:MouseEvent) :void
        { posMouse.unshift(pixelCanvas.getCanvasPos($e.stageX, $e.stageY)); (posMouse.length > 2) ? posMouse.pop() : null; }
        private function pixelCanvas_mouseUp($e:*) :void
        { evtMouse = false }
    }
}

import flash.display.Sprite;
import flash.display.Bitmap;
import flash.display.BitmapData;
import flash.events.Event;
import flash.geom.Point;
import flash.geom.Rectangle;
import flash.text.Font;
import flash.text.TextField;
import flash.text.TextFormat;
import flash.events.Event;

/**
 * buffer for display & behavior of two-dimensional 'Pixel' matrix
 */
class PixelCanvas extends Sprite
{
    public var framePos :int;

    private var canvasWidth :int;
    private var canvasHeight :int;
    private var canvasColor :uint;
    private var canvasClipping :Boolean;
    private var canvas :BitmapData;

    private var pixelMatrix :Array;
    private var pixelWidth :int;
    private var pixelHeight :int;
    private var pixelVolume :Rectangle;
    private var pixelMatrixSize :Point;
    private var pixelMatrixDrawQueue :Array;

    public function PixelCanvas($width:int = 465,
                                $height:int = 465,
                                $color:uint = 0xDCDCDC,
                                $pixelWidth:int = 5,
                                //$pixelHeight:int = 5, //height unsupported
                                $clipping:Boolean = true)
    {
        canvasWidth = $width;
        canvasHeight = $height;
        canvasColor = $color;
        canvasClipping = $clipping;
        canvas = new BitmapData(canvasWidth, canvasHeight, false, canvasColor);

        pixelMatrix = [];
        pixelWidth = $pixelWidth;
        pixelHeight = pixelWidth;
        pixelVolume = new Rectangle();
        pixelMatrixSize = new Point(int(canvasWidth / pixelWidth), int(canvasHeight / pixelHeight));
        pixelMatrixDrawQueue = [];

        initMatrices();

        addEventListener(Event.ADDED_TO_STAGE, addedToStage);
    }

    private function initMatrices() :void
    {
        for (var $x:int = 0; $x < pixelMatrixSize.x; $x++)
        {
            pixelMatrixDrawQueue[$x] = [];
            pixelMatrix[$x] = [];


            for (var $y:int = 0; $y < pixelMatrixSize.y; $y++)
            {
                pixelMatrixDrawQueue[$x][$y] = [];
                pixelMatrix[$x][$y] = new Pixel(this,
                                                $x * pixelWidth,
                                                $y * pixelHeight,
                                                canvasColor,
                                                pixelWidth);

            }
        }

        (canvasClipping) ? initClipping() : null;
    }

    private function initClipping() :void
    {
        var $pixel :Pixel;

        for (var $x:int = 0; $x < pixelMatrixSize.x; $x++)
        {
            $pixel = getPixel($x, 0);
            $pixel.color = 0;
            $pixel.data = -1;

            $pixel = getPixel($x, (pixelMatrixSize.y - 1));
            $pixel.color = 0;
            $pixel.data = -1;

            for (var $y:int = 0; $y < pixelMatrixSize.y; $y++)
            {
                $pixel = getPixel(0, $y);
                $pixel.color = 0;
                $pixel.data = -1;

                $pixel = getPixel((pixelMatrixSize.x - 1), $y);
                $pixel.color = 0;
                $pixel.data = -1;
            }
        }
    }

    private function addedToStage($e:*) :void
    {
        removeEventListener(Event.ADDED_TO_STAGE, addedToStage);

        addChild(new Bitmap(canvas));

        initCanvas();

        addEventListener(Event.ENTER_FRAME, enterFrame);
    }

    private function initCanvas() :void
    {
        var $pixel :Pixel;

        canvas.lock();

        for (var $x:int = 0; $x < pixelMatrixSize.x; $x++)
        {
            for (var $y:int = 0; $y < pixelMatrixSize.y; $y++)
            {
                $pixel = getPixel($x, $y);

                pixelVolume = new Rectangle($pixel.x,
                                            $pixel.y,
                                            $pixel.width,
                                            $pixel.width);

                canvas.fillRect(pixelVolume, $pixel.color);

                $pixel.active = true;
            }
        }

        canvas.unlock();
    }

    /**
     * TODO: if the same pixel was updated within the same frame,
     *       then store it to be updated next frame.
     *
     * NOTES: called only by the pixel that needs changed,
     *        invoked by the pixel itself after a change has occurred.
     */
    internal function update($pixel:Pixel) :void
    {
        pixelVolume = new Rectangle($pixel.x,
                                    $pixel.y,
                                    $pixel.width,
                                    $pixel.width);

        canvas.lock();

        if ($pixel.framePos == framePos)
        {
            if ($pixel.frameCount == 0)
            {
                //$pixel.frameQueue.push($pixel.color);
                //$pixel.frameCount++;
            }else{
                canvas.fillRect(pixelVolume, $pixel.frameQueue[0]);

                //$pixel.frameQueue.splice(0, 1);
                //$pixel.frameCount--;
            }
        }else{
            canvas.fillRect(pixelVolume, $pixel.color);

            $pixel.framePos = framePos;
        }

        canvas.unlock();
    }

    private function enterFrame($e:*) :void
    { framePos++ }

    public function getCanvasPos($x:int, $y:int) :Point
    { return new Point(int($x/pixelWidth), int($y/pixelHeight)) }
    public function getPixel($x:int, $y:int) :Pixel
    { return pixelMatrix[$x][$y] }
    public function getSize() :Point
    { return pixelMatrixSize }
}

/**
 * chassis for definition & incubation of 'Pixel' data- requires 'PixelCanvas'
 *
 * NOTES:
 *   only a pixel's color can be modified,
 *   all other variables are either read-only or used to define a pixel's purpose
 */
class Pixel
{
    private var canvas :PixelCanvas;

    protected var _x :int;
    protected var _y :int;
    protected var _width :int;
    //protected var _height :int;
    protected var _color :uint;

    public var data :Number;
    public var active :Boolean;

    public var framePos :int;
    public var frameCount :int;
    public var frameQueue :Array;

    public function Pixel($par:PixelCanvas,
                          $x:int,
                          $y:int,
                          $color:uint,
                          $width:int,
                          //$height:int,
                          $data:int = 0) :void
    {
        canvas = $par;

        _x = $x;
        _y = $y;
        _width = $width;
        //_height = width; //height unsupported
        color = $color;

        data = $data;
        active = false;

        framePos = 0;
        frameCount = 0;
        frameQueue = [];
    }

    public function get x() :int
    { return _x }
    public function get y() :int
    { return _y }
    public function get width() :int
    { return _width }
    //public function get height() :int
    //{ return _height }
    public function get color() :uint
    { return _color }

    public function set color($:uint) :void
    { _color = $; (active) ? canvas.update(this) : null }
}

/**
 * extension of 'TextField' for display of dynamic data (read-only)
 */
class DataField extends TextField
{
    protected var _x :Number;
    protected var _y :Number;
    protected var _font :String;
    protected var _data :String;

    public function DataField($data:String = "", $x:Number = 4, $y:Number = 2, $font:String = "Consolas")
    {
        _x = $x;
        _y = $y;
        _font = $font;
        _data = $data;

        addEventListener(Event.ADDED_TO_STAGE, addedToStage);
    }

    private function addedToStage($e:*) :void
    {
        removeEventListener(Event.ADDED_TO_STAGE, addedToStage);

        multiline = true;
        autoSize = "left";
        selectable = false;
        mouseEnabled = false;

        init();
    }

    private function init() :void
    {
        x = _x;
        y = _y;
        text = _data;

        setTextFormat(new TextFormat(font, null, 0));
    }

    public function get font() :String
    { return _font }

    public function set font($:String) :void
    { _font = $; setTextFormat(new TextFormat(font, null, 0)) }
    public override function set text($:String) :void
    { super.text = $; setTextFormat(new TextFormat(font, null, 0)) }
}
