away3d example

/**
 * Copyright tjoen ( http://wonderfl.net/user/tjoen )
 * MIT License ( http://www.opensource.org/licenses/mit-license.php )
 * Downloaded from: http://wonderfl.net/c/A8oz
 */

<?xml version="1.0" encoding="utf-8"?>
<s:Application xmlns:fx="http://ns.adobe.com/mxml/2009"
    xmlns:s="library://ns.adobe.com/flex/spark"
    xmlns:mx="library://ns.adobe.com/flex/mx"
    width="550" height="550" applicationComplete="init();" backgroundColor="0x000000">

    <fx:Script>
        <![CDATA[
            import away3d.cameras.Camera3D;
            import away3d.containers.View3D;
            import away3d.materials.WireframeMaterial;
            import away3d.modifiers.HeightMapModifier;
            import away3d.primitives.Plane;

            private var _camera3D        : Camera3D;
            private var _view3D            : View3D;

            private var _tic            : Timer;
            private var _lastKey        : uint;
            private var _isMouseDown    : Boolean = false;

            private var _isUpKeyDown    : Boolean = false;
            private var _isDownKeyDown    : Boolean = false;
            private var _isRightKeyDown    : Boolean = false;
            private var _isLeftKeyDown    : Boolean = false;
            private var _isPgUpDown        : Boolean = false;
            private var _isPgDwDown        : Boolean = false;

            private function init():void {
                _camera3D     = new Camera3D();
                _camera3D.z = 0;
                _camera3D.y = -80;

                // app-width/height = 550. Center the view.
                _view3D = new View3D( { camera:_camera3D, x:550/2, y:550/2 } );
                surface.addChild( _view3D );

                // add the terrain
                makeTerrain();

                // set up timer
                _tic = new Timer( 33 );
                _tic.addEventListener( TimerEvent.TIMER, onTic );
                _tic.start();

                // Setup keyboard and mouse events
                this.stage.addEventListener( MouseEvent.MOUSE_DOWN,     onMouseDown );
                this.stage.addEventListener( MouseEvent.MOUSE_UP,         onMouseUp );
                this.stage.addEventListener( KeyboardEvent.KEY_DOWN,     onKeyDown );
                this.stage.addEventListener( KeyboardEvent.KEY_UP,         onKeyUp );
            }

            private function onTic( e:TimerEvent ):void {
                // Tilt the camera up/down based on mouse position.
                _camera3D.rotationX += -( mouseY - 275 ) * 0.005;

                // Keep the _camera3D.rotationX within a 15 to -30 range.
                if( _camera3D.rotationX > 5 ) {
                    _camera3D.rotationX = 5;
                } else if( _camera3D.rotationX < -30 ) {
                    _camera3D.rotationX = -30;
                }

                // spin the camera around based on mouse position.
                _camera3D.rotationY += ( mouseX - 275 ) * 0.005;

                // If the mouse is down then movie in space.
                if( _isMouseDown ) {
                    var xComponent:Number = Math.sin( _camera3D.rotationY * Math.PI / 180 ) * 10;
                    var zComponent:Number = Math.cos( _camera3D.rotationY * Math.PI / 180 ) * 10;
                    _camera3D.position = new Vector3D( _camera3D.x + xComponent, _camera3D.y, _camera3D.z + zComponent );
                }

                // Handle the keyboard events to walk around in space.
                walk();
                _camera3D.update();
                _view3D.render();
            }

            private function onMouseDown( e:MouseEvent ):void {
                _isMouseDown = true;
            }

            private function onMouseUp( e:MouseEvent ):void {
                _isMouseDown = false;
            }

            private function onKeyDown( e:KeyboardEvent ):void {
                switch ( e.keyCode ) {
                    case Keyboard.UP :
                        _isUpKeyDown     = true;
                        break;
                    case Keyboard.DOWN :
                        _isDownKeyDown     = true;
                        break;
                    case Keyboard.RIGHT :
                        _isRightKeyDown = true;
                        break;
                    case Keyboard.LEFT :
                        _isLeftKeyDown    = true;
                        break;
                    case Keyboard.PAGE_UP :
                        _isPgUpDown     = true;
                        break;
                    case Keyboard.PAGE_DOWN :
                        _isPgDwDown     = true;
                        break;
                }
            }

            private function onKeyUp( e:KeyboardEvent ):void {
                switch ( e.keyCode ) {
                    case Keyboard.UP :
                        _isUpKeyDown     = false;
                        break;
                    case Keyboard.DOWN :
                        _isDownKeyDown     = false;
                        break;
                    case Keyboard.RIGHT :
                        _isRightKeyDown = false;
                        break;
                    case Keyboard.LEFT :
                        _isLeftKeyDown    = false;
                        break;
                    case Keyboard.PAGE_UP :
                        _isPgUpDown     = false;
                        break;
                    case Keyboard.PAGE_DOWN :
                        _isPgDwDown     = false;
                        break;
                }
            }

            private function walk():void {
                // These variables help us move forward/backward or left/right based on the direction the _camera3D is pointed.
                // Multiplying by 10 is arbitrary and sets the speed which which we move. It would be simple enough to set
                // the multiplier as a variable to simulate acceleration.
                var xComponent : Number = Math.sin( _camera3D.rotationY * Math.PI / 180 ) * 10;
                var zComponent : Number = Math.cos( _camera3D.rotationY * Math.PI / 180 ) * 10;

                if( _isUpKeyDown ) {
                    _camera3D.position = new Vector3D(
                        _camera3D.x + xComponent,
                        _camera3D.y,
                        _camera3D.z + zComponent );

                }
                if( _isDownKeyDown ) {
                    _camera3D.position = new Vector3D(
                        _camera3D.x - xComponent,
                        _camera3D.y,
                        _camera3D.z - zComponent );
                }
                if( _isLeftKeyDown  ) {
                    _camera3D.position = new Vector3D(
                        _camera3D.x - zComponent,
                        _camera3D.y,
                        _camera3D.z + xComponent );
                }
                if( _isRightKeyDown ) {
                    _camera3D.position = new Vector3D(
                        _camera3D.x + zComponent,
                        _camera3D.y,
                        _camera3D.z - xComponent );
                }
                if( _isPgUpDown ) {
                        _camera3D.position = new Vector3D(
                        _camera3D.x, _camera3D.y + 10, _camera3D.z );
                }
                if( _isPgDwDown ) {
                    _camera3D.position = new Vector3D(
                    _camera3D.x, _camera3D.y - 10, _camera3D.z );
                }
            }

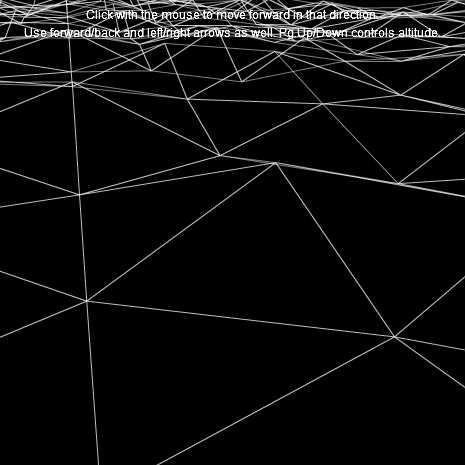

            private function makeTerrain():void {
                // Create a bitmap that is filled with Perlin Noise that will get translated into
                // the HeightMapModifier to add bumps to the plane.
                var bmp : BitmapData = new BitmapData( 4000, 4000, false );
                bmp.perlinNoise( 20, 20, 2, 0, true, true, 7, true );

                // Simple WireframeMaterial to give the plane that early 80s video game look.
                var material : WireframeMaterial = new WireframeMaterial( 0xFFFFFF );
                material.wireAlpha     = 0.5;

                // Plane
                var plane : Plane     = new Plane();
                plane.width         = 4000;
                plane.height         = 4000;
                plane.segmentsW     = 50;
                plane.segmentsH     = 50;
                plane.material         = material;

                // Modifier
                var modifier : HeightMapModifier = new HeightMapModifier( plane, bmp );
                modifier.scale         = 0.9;
                modifier.execute();

                _view3D.scene.addChild( plane );
            }

        ]]>
    </fx:Script>

    <s:SpriteVisualElement id="surface" />

    <s:VGroup horizontalAlign="center" top="10" width="100%">
        <s:Label text="Click with the mouse to move forward in that direction." color="0xFFFFFF" />
        <s:Label text="Use forward/back and left/right arrows as well. Pg.Up/Down controls altitude." color="0xFFFFFF" />
    </s:VGroup>

</s:Application>
