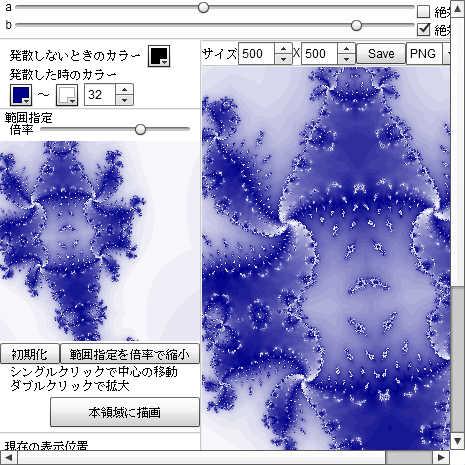

ジュリア集合の画像の作成プログラム

/**
 * Copyright hi.kurosawa ( http://wonderfl.net/user/hi.kurosawa )
 * MIT License ( http://www.opensource.org/licenses/mit-license.php )
 * Downloaded from: http://wonderfl.net/c/8Hdd
 */

<?xml version="1.0" encoding="utf-8"?>
<s:Application xmlns:fx="http://ns.adobe.com/mxml/2009"
               xmlns:s="library://ns.adobe.com/flex/spark"
               xmlns:mx="library://ns.adobe.com/flex/mx"
               applicationComplete="initDataSet()">

    <fx:Script>
    <![CDATA[
//------------------------------------------
//Julia集合の画像の作成プログラム
// URL:http://programmingatelier.net/
//------------------------------------------

import mx.controls.Alert;
import mx.core.UIComponent;
import mx.graphics.codec.PNGEncoder;
import mx.graphics.codec.JPEGEncoder;
import mx.managers.CursorManager;
import mx.events.CloseEvent;
import flash.display.Bitmap;
import flash.display.BitmapData;
import flash.geom.Rectangle;
import flash.utils.setTimeout;

//範囲指定ラインの描画用
private var spHani1:Sprite;
private var maskForSp1:Sprite;
//マンデルブロ集合の描画エリア
private var bdHani1:BitmapData;
private var bdMandelbrot:BitmapData;
//最大繰り返し数
private    var intKurikaesi:int;
//カラー
private var arrColor:Array;
private var uintHassan:uint;//発散しないときのカラー
//作画中に使用するパラメータ
private var    numX0:Number;
private var    numY0:Number;
private var    numDD:Number;

//ダブルクリック判定用
private var    bolDDclic:Boolean;

private var    intBMw:int;        //描画サイズ
private var    intBMh:int;
private    var numXMin:Number;    //描画範囲の座標
private    var numYMin:Number;
private    var numXStep:Number;    //1ドットのサイズ
private    var numYStep:Number;
private    var intLopp:int;
//状態（0:通常、1:本領域作成中）
private var intJyoutai:int = 0;
//ファイル保存
private var filRef:FileReference;

private var numA:Number;
private var numB:Number;
private var bolAAbs:Boolean;
private var bolBAbs:Boolean;


// 初期化処理======================================================================
private function initDataSet():void {
    //範囲指定の領域指定用
    spHani1 = new Sprite();
    uiHni1.addChild(spHani1);
    //範囲指定表示がはみ出さないようにマスクをかける
    maskForSp1= new Sprite();
    maskForSp1.graphics.lineStyle(0, 0, 0);
    maskForSp1.graphics.beginFill(0xFF);
    maskForSp1.graphics.drawRect(0,0,200,200);
    maskForSp1.graphics.endFill();
    uiHni1.addChild(maskForSp1);
    spHani1.mask = maskForSp1;
    sdNumA.value = -0.06;
    sdNumB.value = 0.73;
    fncHaniInit();
    onDisp();
}

private function fncHaniInit():void {
    //{x:-0.8831999999999999,y:1.1871999999999998,d:0.27999999999999997},
    numX0 = 0.0;
    numY0 = 0.0;
    numDD = 1.4;
    //numX0 = -0.883;
    //numY0 = 1.187;
    //numDD = 0.27;
    numA = sdNumA.value;
    numB = sdNumB.value;
    bolAAbs = chbAAbs.selected;
    bolBAbs = chbBAbs.selected;

    fncDispHani();
}
private function fncDispHani():void {
    fncSerColor();
    // 既存イメージの破棄...
    while (uiHni1.numChildren) uiHni1.removeChildAt(0);
    bdHani1 = new BitmapData(200, 200, false, 0xffffff);
    var bm:Bitmap = new Bitmap(bdHani1);
    uiHni1.addChild(bm);
    uiHni1.addChild(spHani1);
    uiHni1.addChild(maskForSp1);
    spHani1.mask = maskForSp1;
    var nXMin:Number = numX0 - numDD;
    var nYMin:Number = numY0 - numDD;
    var nXStep:Number = numDD/100.0;
    var nYStep:Number = numDD/100.0;

    for (var iy:int = 0; iy < 200;iy++) {
        var b:Number = nYMin + iy * nYStep;
        for (var ix:int = 0; ix < 200; ix++) {
            var a:Number = nXMin + ix * nXStep;
            bdHani1.setPixel(ix, iy, fncGetColor(a, -b));
        }
    }
    txaA.text = numA.toString();
    txaB.text = numB.toString();
    chbA.selected=bolAAbs;
    chbB.selected=bolBAbs;

    txaX0.text = numX0.toString();
    txaY0.text = numY0.toString();
    txaDD.text = numDD.toString();
}
//クリック、ダブルクリック処理
private function onHniClick():void {
    bolDDclic = false;
    setTimeout(fncHniClick, 300);
}
private function onHniDoClick():void {
    bolDDclic = true;
}
private function fncHniClick():void {
    var x0:Number = numDD*((uiHni1.mouseX-100)/100);
    var y0:Number = numDD*((uiHni1.mouseY-100)/100);
    numX0 += x0;
    numY0 += y0;
    //ダブルクリックの時は拡大
    if(bolDDclic == true) {numDD = numDD/sdScale.value;}
    fncDispHani();
}

private function onHniMuOut():void {
    var x0:Number = uiHni1.mouseX;
    var y0:Number = uiHni1.mouseY;
    if( x0<0 || x0>=200 || y0<0 || y0>=200) {
        spHani1.graphics.clear();
    }
}
private function onHniMuMv():void {
    var x0:Number = uiHni1.mouseX;
    var y0:Number = uiHni1.mouseY;
    var siz0:Number = 100.0/sdScale.value;
    spHani1.graphics.clear();
    spHani1.graphics.lineStyle(1, 0xff0000,1);
    spHani1.graphics.moveTo(x0, 0);
    spHani1.graphics.lineTo(x0, 200);
    spHani1.graphics.moveTo(0, y0);
    spHani1.graphics.lineTo(200, y0);
    spHani1.graphics.drawRect(x0 - siz0, y0 - siz0, siz0*2, siz0*2);
}
private function onHaniInit():void {
    fncHaniInit();
}

private function onHaniReduced():void {
    numDD = numDD * sdScale.value;
    if (numDD > 1.4) { numDD = 1.4; }
    fncDispHani();
}

private function onDisp():void {
    if (intJyoutai == 0) {    //実行中でない->実行中
        fncJyoutai(1);
        fncImgSet();
    } else if(intJyoutai == 1) {    //実行中->キャンセル
        this.removeEventListener(Event.ENTER_FRAME,fncMandelbroLine);
        Alert.show("処理を中止してよいですか?",
                "Mandelbrot", Alert.YES | Alert.NO, this, alertClickRun);
        return;
    }
}
private function alertClickRun(evt:CloseEvent):void {
    if (evt.detail == Alert.YES) {    //OK
        fncJyoutai(0);
    }
    else {                            //再開
        this.addEventListener(Event.ENTER_FRAME, fncMandelbroLine);
    }
}
private function fncImgSet():void {
    var bm:Bitmap;
    fncSerColor();
    intBMw = nsImgW.value;
    intBMh = nsImgH.value;
    var iXYmax:int = intBMw;
    if (intBMw < intBMh) { iXYmax = intBMh;}
    numXStep = (numDD/iXYmax)*2;
    numYStep = (numDD/iXYmax)*2;
    numXMin = numX0 - numXStep*intBMw/2;
    numYMin = numY0 - numYStep * intBMh / 2;
    intLopp = 0;
    while (uiGrf.numChildren) uiGrf.removeChildAt(0);
    bdMandelbrot = new BitmapData(intBMw, intBMh, false, 0xffffff);
    bm = new Bitmap(bdMandelbrot);
    uiGrf.addChild(bm);
    uiGrf.x = 0;
    uiGrf.y = 0;
    uiGrf.width = bdMandelbrot.width;
    uiGrf.height = bdMandelbrot.height;
    grpPreview.width = bdMandelbrot.width;
    grpPreview.height = bdMandelbrot.height;
    this.addEventListener(Event.ENTER_FRAME, fncMandelbroLine);
}
//グラデーションカラー取得
private function fncSerColor():void {
    arrColor = new Array();
    //最大繰返数
    intKurikaesi=256;
    uintHassan = cpHassan.selectedColor;
    //カラーのセット
    var icol0:uint = cpG0.selectedColor;
    var ir0:uint = icol0 / (256 * 256);    //カラーをRGBに分解
    var ig0:uint = (icol0 / (256))-ir0*256;
    var ib0:uint = icol0 % 256;
    var icol1:uint = cpG1.selectedColor;
    var ir1:uint = icol1 / (256 * 256);    //カラーをRGBに分解
    var ig1:uint = (icol1 / (256))-ir1*256;
    var ib1:uint = icol1 % 256;
    var icoln:int = nsColN.value;    //intKurikaesi;
    var i:int;
    var ir:uint;
    var ig:uint;
    var ib:uint;
    for(i = 0; i < icoln; i++) {    //グラデーションカラー作成
        ir = ir0 + (ir1 - ir0) * i / icoln;
        ig = ig0 + (ig1 - ig0) * i / icoln;
        ib = ib0 + (ib1 - ib0) * i / icoln;
        arrColor.push(ir * 256 * 256 + ig * 256 + ib);
    }
    for(i = 1; i < icoln-1; i++) {    //グラデーションカラー作成
        ir = ir0 + (ir1 - ir0) * (icoln-i) / icoln;
        ig = ig0 + (ig1 - ig0) * (icoln-i) / icoln;
        ib = ib0 + (ib1 - ib0) * (icoln-i) / icoln;
        arrColor.push(ir * 256 * 256 + ig * 256 + ib);
    }
}
//マンデルブロ集合1行描画処理
private function fncMandelbroLine(evt:Event):void {
    var nn:int = intBMh / 10;
    for (var iy:int = intLopp; iy < intBMh;iy+=nn) {
        var b:Number = numYMin + iy * numYStep;
        for (var ix:int = 0; ix < intBMw; ix++) {
            var a:Number = numXMin + ix * numXStep;
            bdMandelbrot.setPixel(ix, iy, fncGetColor(a, -b));
        }
    }
    intLopp++;
    //描画終了判定
    if (intLopp >= nn) {
        this.removeEventListener(Event.ENTER_FRAME,fncMandelbroLine);
        fncJyoutai(0);
    }
}
//マンデルブロ集合の1点でのカラー
private function fncGetColor(a:Number, b:Number):uint {
    var uiCol:uint = uintHassan;    //発散しないときのカラー
    var x:Number=a;
    var y:Number=b;
    var i:int = 0;
    for(i=0;i<=intKurikaesi;i++){    //最大繰り返し数繰り返し
        var x2:Number=x*x;
        var y2:Number=y*y;
        //var zx:Number = x2 - y2 +0.4;
        //var zy:Number = 2 * x * y +0.2;
        //var zx:Number = x2 - y2 +0.4;
        //var zy:Number = 2 * x * y +0.25;
        var zx:Number = x2 - y2 +numA;
        var zy:Number = 2 * x * y +numB;
        x=zx;
        y=zy;
        if(bolAAbs==true) {x=Math.abs(zx);}
        if(bolBAbs==true) {y=Math.abs(zy);}
        if (x2 + y2 >= 4) {
            var id:int = i % arrColor.length;
            uiCol= arrColor[id];
            break;
        }
    }
    return uiCol;
}
//状態に合わせた表示
public function fncJyoutai(iJyoutai:int):void {
    intJyoutai = iJyoutai;
    if (iJyoutai == 0) {        //通常
        btnDisp.label = "本領域に描画";
        vgJyouken.enabled = true;
        hgMkImg.enabled = true;
        vgData.enabled = true;
    } else {
        btnDisp.label = "描画中止";
        vgJyouken.enabled = false;
        hgMkImg.enabled = false;
        vgData.enabled = false;
    }
}

public function onHainSet():void {
    var A:Number = Number(txaA.text);
    var B:Number = Number(txaB.text);
    var x0:Number = Number(txaX0.text);
    var y0:Number = Number(txaY0.text);
    var dd:Number = Number(txaDD.text);
    if (isNaN(A) || isNaN(B) ||isNaN(x0) || isNaN(y0) || isNaN(dd)) {
        Alert.show("数値でないデータがあります。", "Mandelbrot");
        return;
    }
    if (dd<0) {
        Alert.show("DDは0以上の値を指定してください。", "Mandelbrot");
        return;
    }
    sdNumA.value=A;
    sdNumB.value=B;
    chbAAbs.selected = chbA.selected;
    chbBAbs.selected = chbB.selected;
    numA=A;
    numB=B;
    bolAAbs= chbA.selected;
    bolBAbs= chbB.selected;
    numX0 = x0;
    numY0 = y0;
    numDD = dd;
    fncDispHani();
}
public function onDataSet():void {
    txaData.text = "{a:" + numA.toString() + ",af:" + bolAAbs.toString() + ",b:" + numB.toString() + ",bf:" +
                    bolBAbs.toString()+",x:" + numX0.toString() + ",y:" + numY0.toString() +
                    ",d:"+numDD.toString()+"},\n"+txaData.text;
}

//ローカルファイルへの保存=======================================================
private function onImgSave():void {
    //描画データをセット
    var bmpData:BitmapData = new BitmapData(uiGrf.width, uiGrf.height);
    bmpData.draw(uiGrf);

    var byteArray:ByteArray;
    var strSaveName:String = "Mandelbrot";
    if (cmbImgFormat.selectedItem.label == "PNG") {
        byteArray = new PNGEncoder().encode(bmpData);
        strSaveName += ".png";
    }
    else {
        byteArray = new JPEGEncoder().encode(bmpData);
        strSaveName += ".jpg";
    }
    filRef = new FileReference();
    filRef.addEventListener(Event.COMPLETE, onFileSave);
    filRef.addEventListener(IOErrorEvent.IO_ERROR, onFileSaveErr);
    filRef.save(byteArray,strSaveName);
}
//保存完了
private function onFileSave(e:Event):void {
    Alert.show("ローカルファイルへ保存しました。", "Mandelbrot");
}
//保存エラー
private function onFileSaveErr(e:IOErrorEvent):void {
    Alert.show("ローカルファイルへの保存を失敗しました。\n"+e.toString(),
                "Mandelbrot");
}
    ]]>
    </fx:Script>

    <s:Group height="100%" width="100%">
    <s:Scroller width="100%" height="100%">
    <s:VGroup gap="0">
        <s:HGroup paddingLeft="5" paddingTop="2" gap="2">
            <s:Label text="a"/>
            <s:HSlider id="sdNumA" minimum="-1" maximum="1" stepSize="0.01" width="400"
                        top="10" left="0" change="fncHaniInit()"  />
            <s:CheckBox id="chbAAbs" label="絶対値で計算" change="fncHaniInit()"/>
        </s:HGroup>
        <s:HGroup  paddingLeft="5"  gap="2">
            <s:Label text="b"/>
            <s:HSlider id="sdNumB" minimum="-1" maximum="1" stepSize="0.01" width="400"
                        top="10" left="0"  change="fncHaniInit()" />
            <s:CheckBox id="chbBAbs" label="絶対値で計算" change="fncHaniInit()" selected="true" />
        </s:HGroup>
        <mx:HRule width="100%" />        <!-- 区切り線 -->
        <s:HGroup height="100%" width="100%" gap="0">
            <s:VGroup height="650" width="200" gap="5">
                <s:VGroup gap="2" paddingTop="5" paddingLeft="0" id="vgJyouken">
                    <s:HGroup verticalAlign="middle" paddingLeft="10">
                        <s:Label text="発散しないときのカラー"/>
                        <mx:ColorPicker id="cpHassan"  selectedColor="0x000000"/>
                    </s:HGroup>
                    <s:Label text="発散した時のカラー" paddingLeft="10"/>
                    <s:VGroup gap="0" paddingLeft="10">
                        <s:HGroup verticalAlign="middle">
                            <mx:ColorPicker id="cpG0"  selectedColor="0x000088"/>
                            <s:Label text="～"/>
                            <mx:ColorPicker id="cpG1"  selectedColor="0xffffff"/>
                            <s:NumericStepper id="nsColN" width="50"
                                     value="32" minimum="16" maximum="256"/>
                        </s:HGroup>
                    </s:VGroup>
                    <mx:HRule width="100%" />        <!-- 区切り線 -->
                    <s:VGroup gap="0" id="vgHani1">
                        <s:Label text="範囲指定" paddingLeft="5"/>
                        <s:HGroup  paddingLeft="10">
                            <s:Label text="倍率"/>
                            <s:HSlider id="sdScale" minimum="1" maximum="20" stepSize="0.1" width="150"
                                        top="10" left="0" value="5" />
                        </s:HGroup>
                        <s:Group >
                            <mx:UIComponent id="uiHni1" height="200" width="200" top="5" left="0"
                                click="onHniClick()"  mouseOut="onHniMuOut()" mouseMove="onHniMuMv()"
                                doubleClick="onHniDoClick()" doubleClickEnabled="true" />
                        </s:Group>
                    </s:VGroup>
                    <s:HGroup  gap="0"  paddingLeft="0">
                        <s:Button label="初期化" width="60" id="btnHaniInit" click="onHaniInit()" />
                        <s:Button label="範囲指定を倍率で縮小" width="140" id="btnHaniReduced"  click="onHaniReduced()"/>
                    </s:HGroup>
                    <s:Label text="シングルクリックで中心の移動" paddingLeft="10"/>
                    <s:Label text="ダブルクリックで拡大" paddingLeft="10"/>
                </s:VGroup>
                <s:HGroup  gap="0"  paddingLeft="50">
                    <s:Button label="本領域に描画" id="btnDisp" click="onDisp();" width="150" height="30" />
                </s:HGroup>
                <mx:HRule width="100%" />        <!-- 区切り線 -->
                <s:VGroup gap="0" paddingTop="2" paddingLeft="5" id="vgData">
                    <s:Label text="現在の表示位置"/>
                    <s:Button label="値を範囲指定に反映" click="onHainSet()" width="190" />
                    <s:HGroup  gap="0"   verticalAlign="middle">
                        <s:Label text="AB" width="25"/>
                        <s:TextArea id="txaA" height="20" width="55"/>
                        <s:CheckBox id="chbA"/>
                        <s:TextArea id="txaB" height="20" width="55"/>
                        <s:CheckBox id="chbB"/>
                    </s:HGroup>
                    <s:HGroup  gap="0"   verticalAlign="middle">
                        <s:Label text="XYD"  width="25"/>
                        <s:TextArea id="txaX0" height="20" width="55"/>
                        <s:TextArea id="txaY0" height="20" width="55"/>
                        <s:TextArea id="txaDD" height="20" width="55"/>
                    </s:HGroup>
                    <s:Button label="値をデータ領域にセット" click="onDataSet()" width="190"/>
                    <s:TextArea id="txaData" width="190" height="130" />
                </s:VGroup>
            </s:VGroup>

            <mx:VRule height="100%" />        <!-- 区切り線 -->
            <s:VGroup width="100%" height="100%" gap="0">
                <mx:HRule width="100%" />        <!-- 区切り線 -->
                <!-- 描画サイズ、ローカルに保存 -->
                <s:HGroup gap="0" paddingLeft="0" verticalAlign="middle"  id="hgMkImg">
                    <s:Label text="サイズ"/>
                    <s:NumericStepper id="nsImgW" width="55"
                                 value="500" minimum="100" maximum="3000"
                                 snapInterval="1" stepSize="10" toolTip="作成イメージのサイズ・幅"
                                  />
                    <s:Label text="X"/>
                    <s:NumericStepper id="nsImgH" width="55"
                             value="500" minimum="100" maximum="3000"
                             snapInterval="1" stepSize="10" toolTip="作成イメージのサイズ・高さ" />

                    <s:Button label="Save" click="onImgSave()"
                            toolTip="ローカルにイメージファイルを保存する" width="50"/>
                    <s:ComboBox id="cmbImgFormat" requireSelection="true"
                                width="55" toolTip="ファイル種類" >
                        <s:dataProvider>
                            <s:ArrayList>
                                <fx:Array>
                                    <fx:Object label="PNG" />
                                    <fx:Object label="JPG" />
                                </fx:Array>
                            </s:ArrayList>
                        </s:dataProvider>
                    </s:ComboBox>
                </s:HGroup>
                <!-- 描画領域 -->
                <mx:HRule width="100%" />        <!-- 区切り線 -->
                <!-- 描画領域が大きくなた時のためのスクロールバー -->
                <s:Scroller width="100%" height="100%" >
                    <s:Group width="100%" height="100%" >
                        <s:Rect width="100%" height="100%">
                            <s:fill>
                                <s:SolidColor color="0xbbbbbb"/>
                            </s:fill>
                        </s:Rect>
                        <!-- 描画領域 -->
                        <s:Group width="500" height="500" id="grpPreview">
                            <!-- 描画領域の初期背景色 -->
                            <s:Rect height="100%" width="100%">
                                <s:fill>
                                    <s:SolidColor color="0xffffff"/>
                                </s:fill>
                            </s:Rect>
                            <!-- 実際の描画領域 -->
                            <mx:UIComponent id="uiGrf" height="500" width="500"/>
                        </s:Group>
                    </s:Group>
                </s:Scroller>
            </s:VGroup>
        </s:HGroup>
    </s:VGroup>
    </s:Scroller>
    </s:Group>
</s:Application>
