package {
import flash.display.Sprite;
public class FlashTest extends Sprite {
public function FlashTest() {
var g:GraphicsHelper = new GraphicsHelper(graphics);
var g:GraphicsHelper = new GraphicsHelper(graphics);
// 問題なし
g.lineStyle(0.1,0x000000,1,true);
g.drawRoundRect(50, 50, 200, 200, 50, 25);

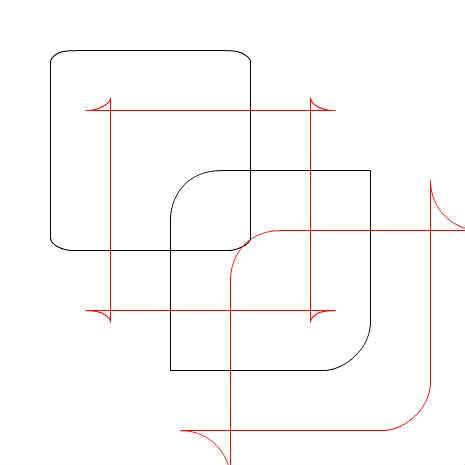

// drawRoundRectに負の値を入れる
g.lineStyle(0.1,0xff0000,1,true);
g.drawRoundRect(110, 110, 200, 200, -50, -25);
// 問題なし
g.lineStyle(0.1, 0x000000, 1, true);
g.drawRoundRectComplex(170, 170, 200, 200, 50, 0, 0, 50);
// drawRoundRectComplexに負の値を入れる
g.lineStyle(0.1, 0xff0000, 1, true);
g.drawRoundRectComplex(230, 230, 200, 200, 50, -50, -50, 50);
}
}
}
//package sketchbook.graphics
//{
import flash.display.Graphics;
import flash.geom.Point;
import flash.geom.Matrix;
import flash.display.Bitmap;
import flash.display.BitmapData;
/**
* Graphicsクラスを操作する為のヘルパーオブジェクトです。
* <p>基本的な多角形や、ポリライン描画などをサポートします</p>
*/
/*public*/ class GraphicsHelper
{
protected var _target:Graphics
public function GraphicsHelper(_target:Graphics)
{
this._target = _target
}
public function set target(val:Graphics):void
{
_target = val;
}
public function get target():Graphics
{
return _target;
}
/*
Draws a series of lines to target graphics instance.
points:Array array that contains Point instances
close:Boolean if true, close line from the last point to tha first point.
*/
public function drawLines(points:Array, close:Boolean=false):void
{
var g:Graphics = this._target
var imax:Number = points.length
g.moveTo(points[0].x, points[0].y);
for(var i:Number=1; i<imax; i++)
g.lineTo(points[i].x, points[i].y);
if(close)
g.lineTo(points[0].x, points[0].y);
}
/*
Draws four points quad
x0:Number
y0:Number
x1:Number
y1:Number
x2:Number
y2:Number
*/
public function drawQuad(x0:Number,y0:Number, x1:Number,y1:Number, x2:Number,y2:Number, x3:Number,y3:Number):void
{
var ar:Array = getQuadPoints(x0,y0,x1,y1,x2,y2,x3,y3);
drawLines(ar, true);
}
//４点を配列化して返す
public function getQuadPoints(x0:Number,y0:Number, x1:Number,y1:Number, x2:Number,y2:Number, x3:Number,y3:Number):Array
{
return [new Point(x0,y0), new Point(x1,y1), new Point(x2,y2), new Point(x3,y3)]
}
/*
Draws three point triangle
*/
public function drawPolygon(x0:Number,y0:Number,x1:Number,y1:Number,x2:Number,y2:Number):void
{
drawLines([new Point(x0,y0), new Point(x1,y1), new Point(x2,y2)], true);
}
//弧を描く
public function drawArc(x:Number, y:Number, radius:Number, degree:Number, fromDegree:Number=0, split:Number=36):void
{
var points:Array = getArcPoints(x, y, radius, degree, fromDegree, split);
drawLines(points, false);
}
public function drawRing(x:Number, y:Number, outerRadius:Number, innerRadius:Number, degree:Number=360, fromDegree:Number=0, split:Number=36):void
{
var points:Array = getRingPoints(x, y, outerRadius, innerRadius, degree, fromDegree, split);
drawLines(points, true);
}
public function getRingPoints(x:Number, y:Number, outerRadius:Number, innerRadius:Number, degree:Number=360, fromDegree:Number=0, split:Number=36):Array
{
var fromRad:Number = fromDegree * Math.PI / 180;
var dr:Number = (degree* Math.PI / 180) / split
var pt:Point
var imax:int = split +1
var rad:Number
var points:Array = new Array();
for(var i:int=0; i<imax; i++)
{
pt = new Point()
rad = fromRad + dr * i
pt.x = Math.cos(rad)*outerRadius+x
pt.y = Math.sin(rad)*outerRadius+y
points.push(pt)
}
var points2:Array = []
for(i=0; i<imax; i++){
pt = new Point()
rad = fromRad + dr * i
pt.x = Math.cos(rad)*innerRadius+x
pt.y = Math.sin(rad)*innerRadius+y
points2.push(pt)
}
points2.reverse()
points = points.concat(points2);
return points
}
public static function getArcPoints(x:Number, y:Number, radius:Number, degree:Number, fromDegree:Number=0, split:Number=36):Array
{
var points:Array = new Array();
var fromRad:Number = fromDegree * Math.PI / 180;
var dr:Number = (degree* Math.PI / 180) / split
var imax:int = split+1
for(var i:int=0; i<imax; i++)
{
var pt:Point = new Point()
var rad:Number = fromRad + dr * i
pt.x = Math.cos(rad)*radius+x
pt.y = Math.sin(rad)*radius+y
points.push(pt)
}
return points
}
//扇形、円弧と中心点を結んだ形状を描画する
public function drawPie(x:Number, y:Number, radius:Number, degree:Number, fromDegree:Number=0, split:Number=36):void
{
var points:Array = getPiePoints(x, y, radius, degree, fromDegree, split)
drawLines(points, true);
}
public static function getPiePoints(x:Number, y:Number, radius:Number, degree:Number, fromDegree:Number=0, split:Number=36):Array
{
var points:Array = getArcPoints(x, y, radius, degree, fromDegree, split)
var pt:Point
points.unshift( new Point(x, y) )
return points
}
//歯車を描画する
public function drawStar(x:Number, y:Number, outerRadius:Number, innerRadius:Number, num:Number, degreeOffset:Number=0):void
{
var ar:Array = getStarPoints(x,y,outerRadius,innerRadius,num,degreeOffset);
drawLines(ar,true);
}
//ギア状のポイント配列を取得する
public static function getStarPoints(x:Number, y:Number, outerRadius:Number, innerRadius:Number, num:Number, degreeOffset:Number=0):Array
{
var points:Array = new Array();
var drad:Number = Math.PI * 2 / num
var xOffset:Number = x
var yOffset:Number = y
var radOffset:Number = degreeOffset * Math.PI / 180
var imax:Number = num
for(var i:Number=0; i<imax; i++)
{
var rad:Number = Math.PI * 2 * i/ num + radOffset
var rad2:Number = Math.PI * 2 * (i+0.5)/ num + radOffset
var pt:Point
pt = new Point()
pt.x = Math.cos(rad)*outerRadius + xOffset
pt.y = Math.sin(rad)*outerRadius + yOffset
points.push(pt);
pt = new Point()
pt.x = Math.cos(rad2)*innerRadius + xOffset
pt.y = Math.sin(rad2)*innerRadius + yOffset
points.push(pt);
}
return points
}
/*
---------------------------------------------------------------------------------------------
Begin Fill等へのアクセス関数
本来のgraphicsにそのまま委譲します
---------------------------------------------------------------------------------------------
*/
public function beginFill(color:uint, alpha:Number=1.0):void
{
_target.beginFill(color,alpha)
}
public function clear():void
{
_target.clear()
}
public function curveTo(controlX:Number, controlY:Number, anchorX:Number, anchorY:Number):void
{
_target.curveTo(controlX, controlY, anchorX, anchorY)
}
public function drawRect(x:Number, y:Number, width:Number, height:Number):void{
_target.drawRect(x,y,width,height)
}
public function drawCircle(x:Number, y:Number, radius:Number):void
{
_target.drawCircle(x,y,radius)
}
public function drawEllipse(x:Number, y:Number, width:Number, height:Number):void
{
_target.drawEllipse(x,y,width,height)
}
public function drawRoundRect(x:Number,y:Number,width:Number,height:Number,ellipseWidth:Number,ellipseHeight:Number):void
{
_target.drawRoundRect(x,y,width,height,ellipseWidth,ellipseHeight)
}
public function drawRoundRectComplex(x:Number,y:Number,width:Number,height:Number, topLeftRadius:Number, topRightRadius:Number, bottomLeftRadius:Number, bottomRightRadius:Number):void
{
_target.drawRoundRectComplex(x,y,width,height,topLeftRadius,topRightRadius,bottomLeftRadius,bottomRightRadius)
}
public function endFill():void
{
_target.endFill()
}
public function moveTo(x:Number, y:Number):void
{
_target.moveTo(x,y)
}
public function lineTo(x:Number, y:Number):void
{
_target.lineTo(x,y)
}
public function lineStyle(thickness:Number=0,
color:uint=0,alpha:Number=1,
pixelHinting:Boolean=false,
scaleMode:String = "normal",
caps:String=null,
joints:String=null,
miterLimit:Number=3):void
{
_target.lineStyle(thickness, color, alpha, pixelHinting, scaleMode, caps, joints, miterLimit)
}
public function beginBitmapFill(bitmap:BitmapData,matrix:Matrix=null,repeat:Boolean=true,smooth:Boolean=false):void
{
_target.beginBitmapFill(bitmap,matrix,repeat,smooth)
}
public function beginGradientFill(type:String, color:Array, alphas:Array, ratios:Array, matrix:Matrix=null, spreadMethod:String="pad", interpolationMethod:String="rgb",focalPointRation:Number=0.0):void
{
_target.beginGradientFill(type, color, alphas, ratios, matrix, spreadMethod, interpolationMethod,focalPointRation)
}
public function lineGradientStyle( type:String,colors:Array,alphas:Array,ratios:Array,matrix:Matrix=null,spreadMethod:String="pad",interpolationMethod:String="rgb",focalPointRatio:Number = 0.0):void
{
_target.lineGradientStyle(type,colors,alphas,ratios,matrix,spreadMethod,interpolationMethod,focalPointRatio)
}
}
//}
