Fixed rotation in Away3D
♥0 |
Line 155 |
Modified 2013-12-30 22:19:30 |
MIT License
archived:2017-03-30 02:32:52
ActionScript3 source code
/**
* Copyright WLAD ( http://wonderfl.net/user/WLAD )
* MIT License ( http://www.opensource.org/licenses/mit-license.php )
* Downloaded from: http://wonderfl.net/c/6FrK
*/
package {
import flash.display.BitmapData;
import flash.display.Bitmap;
import flash.geom.Vector3D;
import flash.text.TextField;
import flash.events.Event;
import flash.system.System;
import flash.display.Sprite;
import away3d.containers.View3D;
import away3d.debug.AwayStats;
import away3d.Away3D;
public class FlashTest extends Sprite {
private var view:View3D;
private var cube:Cube3D;
private var stats:AwayStats;
//private var source:BitmapData = new BitmapData(465, 465, false, 0x000000);
public function FlashTest() {
// write as3 code here..
if(stage) init();
else addEventListener("addedToStage", init);
}
private function init(e:Event = null):void
{
stage.align = "topLeft";
stage.scaleMode = "noScale";
var w:Number = stage.stageWidth;
var h:Number = stage.stageHeight;
Wonderfl.disable_capture();
// addChild(new Bitmap(source));
System.pauseForGCIfCollectionImminent(1);
view = new View3D();
addChild(view);
view.backgroundColor = 0x000000;
view.antiAlias = 4;
view.camera.z = -60;
cube = new Cube3D(30, 0xFF8000);
view.scene.addChild(cube);
stats = new AwayStats(view, false, false, 0, false, true);
stage.addChild(stats);
stats.x = stage.stageWidth - stats.width;
addEventListener("enterFrame", loop);
OnScreenTrace.init(this);
addEventListener("click", onClick);
}
private var rotationModeIsNative:Boolean = true;
private function onClick(e:Event):void
{
rotationModeIsNative = !rotationModeIsNative;
}
private var xRot:Number = 0;
private var yRot:Number = 0;
private var zRot:Number = 0;
private function loop(e:Event):void
{
var my:int = int(-mouseY/4);
var mx:int = int(-mouseX/4);
if(rotationModeIsNative)
{
cube.rotationZ = my;
cube.rotationY = mx;
} else {
cube.rotate(Vector3D.Z_AXIS, my - zRot);
zRot = my;
cube.rotate(Vector3D.Y_AXIS, mx - yRot);
yRot = mx;
}

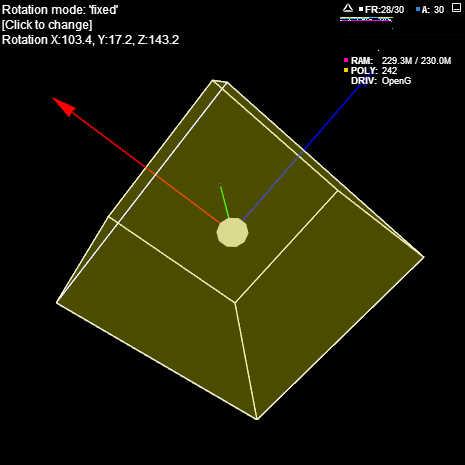

trace("Rotation mode: '" + (rotationModeIsNative ? "native" : "fixed") + "'\n"+
"[Click to change]\n" +
"Rotation "+
"X:" + cube.rotationX.toFixed(1) +
", Y:" + cube.rotationY.toFixed(1) +
", Z:" + cube.rotationZ.toFixed(1));
view.render();
//view.renderer.queueSnapshot(source);
}
}
}
import flash.display.Sprite;
import flash.text.TextField;
import flash.geom.Vector3D;
import away3d.entities.Mesh;
import away3d.debug.Trident;
import away3d.materials.ColorMaterial;
import away3d.primitives.CubeGeometry;
class OnScreenTrace {
private static var ost:TextField;
public static function init(parent:Sprite):void {
ost = new TextField();ost.autoSize = "left";ost.background =true;ost.visible = false;
ost.backgroundColor = 0x0;ost.textColor = 0xFFFFFF;parent.addChild(ost);}
public static function out(text:String):void{ost.visible = true;ost.text = text;}
}
function trace(...argumnets):void {
OnScreenTrace.out(String(argumnets));
}
class V3D extends Vector3D
{
private static const deg2rad:Number = Math.PI / 180;
private static const rad2deg:Number = 180 / Math.PI;
public function V3D(x:Number = 0, y:Number = 0, z:Number = 0, w:Number = 0)
{
super(x, y, z, w);
}
public function get rotationX():Number {
return rotationXRadians * rad2deg;
}
public function set rotationX(value:Number):void {
rotationXRadians = value * deg2rad;
}
public function get rotationXRadians():Number {
return Math.atan2(z, y);
}
public function set rotationXRadians(value:Number):void {
var length:Number = this.length;
y = Math.cos(value) * length;
z = Math.sin(value) * length;
}
public function get rotationY():Number {
return rotationYRadians * rad2deg;
}
public function set rotationY(value:Number):void {
rotationYRadians = value * deg2rad;
}
public function get rotationYRadians():Number {
return Math.atan2(z, x);
}
public function set rotationYRadians(value:Number):void {
var length:Number = this.length;
x = Math.sin(value) * y;
z = Math.cos(value) * y;
}
public function get rotationZ():Number {
return rotationZRadians * rad2deg;
}
public function set rotationZ(value:Number):void {
rotationZRadians = value * deg2rad;
}
public function get rotationZRadians():Number {
return Math.atan2(y, x);
}
public function set rotationZRadians(value:Number):void {
var length:Number = this.length;
x = Math.cos(value) * z;
y = Math.sin(value) * z;
}
}
class Cube3D extends Mesh
{
private var tridnet:Trident;
public function Cube3D(size:int, color:uint, tridnet:Boolean = true)
{
super(new CubeGeometry(size, size, size), new ColorMaterial(color, 0.3));
showBounds = true;
if (tridnet)
{
this.tridnet = new Trident(size , false);
addChild(this.tridnet);
}
}
}
