from: スケールフリーグラフ

/**
 * Copyright alexnotkin ( http://wonderfl.net/user/alexnotkin )
 * MIT License ( http://www.opensource.org/licenses/mit-license.php )
 * Downloaded from: http://wonderfl.net/c/5zMn
 */

// forked from naraba's スケールフリーグラフ

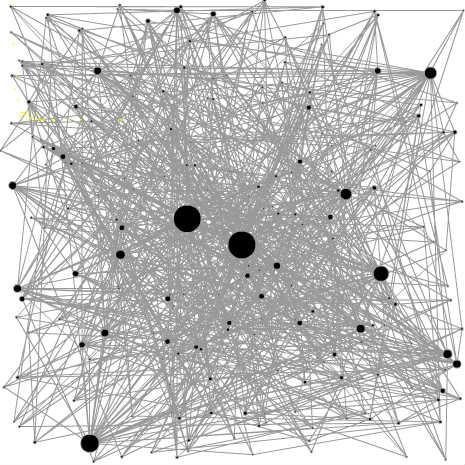

// グラフ生成はBarabasi-Albertモデル
// グラフ描画は完全にランダムレイアウト
// 左上は次数分布
package
{
    import flash.display.Sprite;
    import flash.events.Event;
    import flash.events.TimerEvent;
    import flash.utils.Timer;

    [SWF(width="465", height="465", frameRate="30")]
    public class BAModel extends Sprite
    {
        private const INIT_NODES:Number = 2;
        private const NUM_NODES:Number = 500;
        private const NUM_EDGES:Number = 4;
        private const WIDTH:Number = 465;
        private const HEIGHT:Number = 465;
        private const STAT_SCALE:Number = .25;
        private var maxfreq:Number;
        private var nodes:Array = [];
        private var edges:Array = [];
        private var degdist:Array = [];
        private var evolveTimer:Timer = new Timer(100);

        public function BAModel()
        {
            Wonderfl.capture_delay(30);

            for (var i:Number = 0; i < INIT_NODES; i++) {
                nodes.push(new Node(WIDTH/2+Math.random()*100-50,
                                    HEIGHT/2+Math.random()*100-50,
                                    INIT_NODES-1));
                degdist.push(0);
                for (var j:Number = i+1; j < INIT_NODES; j++) {
                    edges.push(new Edge(i, j));
                }
            }
            degdist[INIT_NODES-1] = INIT_NODES;
            maxfreq = INIT_NODES;
            stage.addEventListener(Event.ENTER_FRAME, function(e:Event):void {
                draw();
            });
            evolveTimer.addEventListener(TimerEvent.TIMER, evolve);
            evolveTimer.start();
        }

        private function evolve(e:TimerEvent):void
        {
            var adds:Array = [];
            var n:Number = nodes.length;
            var ends:Number = 2*edges.length;
            nodes.push(new Node(Math.random()*WIDTH, Math.random()*HEIGHT, NUM_EDGES));
            for (var i:Number = 0; i < NUM_EDGES; i++) {
                degdist.push(0);
                var addend:Number = int(Math.random()*ends)+1;
                for (var j:Number = 0; j < n; j++) {
                    addend -= nodes[j].deg;
                    if (addend <= 0) {
                        adds.push(j);
                        break;
                    }
                }
            }
            for each (var addn:Number in adds) {
                var d:Number = nodes[addn].deg;
                nodes[addn].deg += 1;
                edges.push(new Edge(n, addn));
                degdist[d] -= 1;
                degdist[d+1] += 1;
                maxfreq = Math.max(maxfreq, degdist[d+1]);
            }
            degdist[NUM_EDGES] += 1;
            maxfreq = Math.max(maxfreq, degdist[NUM_EDGES]);
            if (nodes.length >= NUM_NODES) { evolveTimer.stop(); }
        }

        private function draw():void
        {
            graphics.clear();
            drawGraph();
            drawDegdist();
        }

        private function drawGraph():void
        {
            graphics.lineStyle(0, 0x999999, 1);
            for each (var edge:Edge in edges) {
                graphics.moveTo(nodes[edge.u].x, nodes[edge.u].y);
                graphics.lineTo(nodes[edge.v].x, nodes[edge.v].y);
            }
            graphics.beginFill(0x000000);
            for each (var node:Node in nodes) {
                graphics.drawCircle(node.x, node.y, node.deg/5+.1);
            }
            graphics.endFill();
        }

        private function drawDegdist():void
        {
            graphics.lineStyle(0, 0x000000, 0);
            var areaW:Number = WIDTH*STAT_SCALE;
            var areaH:Number = HEIGHT*STAT_SCALE;
            graphics.beginFill(0x000000, 0);
            graphics.drawRect(0, 0, areaW+10, areaH+10);
            graphics.endFill();
            graphics.beginFill(0xFFFF00, .8);
            var maxdeg:Number = -1;
            for (var i:Number = degdist.length-1; i >= 0; i--) {
                if (degdist[i] != 0) {
                    if (maxdeg == -1) { maxdeg = i; }
                    graphics.drawCircle(5+i/maxdeg*areaW,
                                        5+(1.-degdist[i]/maxfreq)*areaH,
                                        1);
                }
            }
            graphics.endFill();
        }
    }
}

class Edge
{
    public var u:Number;
    public var v:Number;

    public function Edge(u:Number, v:Number)
    {
        this.u = u;
        this.v = v;
    }
}

class Node
{
    public var x:Number;
    public var y:Number;
    public var deg:Number;

    public function Node(x:Number, y:Number, deg:Number)
    {
        this.x = x;
        this.y = y;
        this.deg = deg;
    }
}
