* Copyright keno42 ( http://wonderfl.net/user/keno42 )
* MIT License ( http://www.opensource.org/licenses/mit-license.php )
* Downloaded from: http://wonderfl.net/c/3aRd
*/
// 私用プログラム 画像の明るさと彩度、色相を表示
package {
import flash.display.*;
import flash.text.*;
import flash.events.*;
import flash.ui.*;
import flash.net.*;
import flash.utils.*;
public class FlashTest extends Sprite {
private var label_url:TextField = new TextField();
private var input:TextField = new TextField();
private var guide:TextField = new TextField();
private var loader:Loader;
private var bmp:Bitmap = new Bitmap();
private var graph:Sprite = new Sprite();
public function FlashTest() {
// write as3 code here..
// place texts

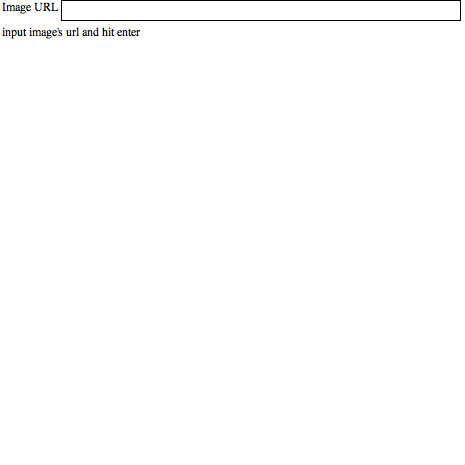

label_url.text = "Image URL";
label_url.autoSize = "left";
addChild(label_url);
input.border = true;
input.type = "input";
addChild(input);
input.height = 20;
input.x = label_url.textWidth + 5;
input.width = 465 - 5 - input.x;
input.addEventListener(KeyboardEvent.KEY_DOWN, onKeyDown);
guide.autoSize = "left";
guide.y = label_url.y + 25;
setGuideText(0);
addChild(guide);
addChild(bmp);
bmp.y = guide.y + 25;
addChild(graph);
graph.x = 5;
graph.y = bmp.y + 5;
}
private function setGuideText(type:int):void{
var str:String;
switch(type){
case 0: str = "input image's url and hit enter";
break;
case 1: str = "loading...";
break;
case 2: str = "load complete. analyzing...";
break;
case 3: str = "load failed. input correct url again.";
break;
case 4: str = "analysis finished. you can input another image url";
break;
}
guide.text = str;
}
private function onKeyDown(e:KeyboardEvent):void{
if(e.keyCode == Keyboard.ENTER){
if( loader == null){
loader = new Loader();
loader.load(new URLRequest(input.text));
loader.contentLoaderInfo.addEventListener(Event.COMPLETE, onComplete, false, 0, true);
loader.contentLoaderInfo.addEventListener(IOErrorEvent.IO_ERROR, onIoError, false, 0, true);
setGuideText(1);
}
}
}
private function onComplete(e:Event):void{
var temp:ByteArray = loader.contentLoaderInfo.bytes;
loader = new Loader();
loader.contentLoaderInfo.addEventListener(Event.COMPLETE, onComplete2, false, 0, true);
loader.contentLoaderInfo.addEventListener(IOErrorEvent.IO_ERROR, onIoError, false, 0, true);
loader.loadBytes(temp);
}
private function onComplete2(e:Event):void{
setGuideText(2);
var bmpData:BitmapData = new BitmapData(loader.width, loader.height, true, 0x0);
bmpData.draw(loader.content);
bmp.bitmapData = bmpData;
analyze(bmpData);
}
private function onIoError(e:Event):void{
setGuideText(3);
loader = null;
}
private function analyze(bmp:BitmapData):void{
var temp:ByteArray = bmp.getPixels(bmp.rect);
var v:Array = new Array(256); // it's different from v of hsv, but brightness of grayscale
var s:Array = new Array(256);
var h:Array = new Array(360);
var i:int;
var maxH:int;
for( i = 0; i < 256; i++){
v[i] = s[i] = h[i] = 0;
}
for( ; i < 360; i++ ){
h[i] = 0;
}
for( i = 0; i < temp.length; i+=4 ){
var tempV:int = (151 * temp[i+1] + 78 * temp[i+2] + 27 * temp[i+3]) >> 8;
v[tempV]++;
var max:int = (temp[i+1]>temp[i+2])?temp[i+1]:temp[i+2];
max = (max>temp[i+3])?max:temp[i+3];
var min:int = (temp[i+1]<temp[i+2])?temp[i+1]:temp[i+2];
min = (min<temp[i+3])?min:temp[i+3];
var tempS:int = max - min;
s[tempS]++;
var tempH:int;
if( tempS != 0 ){
if( max == temp[i+1] ){
tempH = 60 * (temp[i+2] - temp[i+3]) / tempS;
} else if ( max == temp[i+2] ){
tempH = 120 + 60 * (temp[i+3] - temp[i+1]) / tempS;
} else {
tempH = 240 + 60 * (temp[i+1] - temp[i+2]) / tempS;
}
if ( tempH < 0 ) tempH += 360;
h[tempH]++;
maxH = (maxH>h[tempH])?maxH:h[tempH];
}
}
var pixelNum:Number = temp.length / 4;
var a:Number = 256 / pixelNum;
var st:Number = 0;
graph.graphics.clear();
graph.graphics.beginFill(0xFFFFFF, 0.5);
graph.graphics.lineStyle(0, 0x0);
graph.graphics.drawRect(-1, -1, 258, 258);
graph.graphics.drawRect(-1, 263, 361, 101);
graph.graphics.endFill();
graph.graphics.lineStyle(0, 0x888888);
graph.graphics.moveTo(1, 128);
graph.graphics.lineTo(255, 128);
graph.graphics.moveTo(128, 1);
graph.graphics.lineTo(128, 255);
for( i = 60; i <= 300; i+= 60 ){
graph.graphics.moveTo(i, 264);
graph.graphics.lineTo(i, 363);
}
// brightness
graph.graphics.lineStyle(0, 0x0);
graph.graphics.moveTo(0, 256);
for( i = 0; i < 256; i++){
graph.graphics.lineStyle(0, i * 0x10101);
st += v[i];
graph.graphics.lineTo(i,256 - Math.floor(a * st));
}
// saturation
st = 0;
graph.graphics.lineStyle(0, 0x000000);
graph.graphics.moveTo(0, 256);
for( i = 0; i < 256; i++){
graph.graphics.lineStyle(0, i << 16);
st += s[i];
graph.graphics.lineTo(i,256 - Math.floor(a * st));
}
// hue
a = 100 / maxH;
graph.graphics.lineStyle(0,0,0);
for( i = 0; i < 60; i++ ){
graph.graphics.beginFill(0xFF0000 | (int(0xFF * i/60)<<8));
graph.graphics.drawRect(i, 364, 1, - a * h[i]);
}
for( ; i < 120; i++ ){
graph.graphics.beginFill(0x00FF00 | (int(0xFF * (120-i)/60)<<16));
graph.graphics.drawRect(i, 364, 1, - a * h[i]);
}
for( ; i < 180; i++ ){
graph.graphics.beginFill(0x00FF00 | (int(0xFF * (i-120)/60)<<0));
graph.graphics.drawRect(i, 364, 1, - a * h[i]);
}
for( ; i < 240; i++ ){
graph.graphics.beginFill(0x0000FF | (int(0xFF * (240-i)/60)<<8));
graph.graphics.drawRect(i, 364, 1, - a * h[i]);
}
for( ; i < 300; i++ ){
graph.graphics.beginFill(0x0000FF | (int(0xFF * (i-240)/60)<<16));
graph.graphics.drawRect(i, 364, 1, - a * h[i]);
}
for( ; i < 360; i++ ){
graph.graphics.beginFill(0xFF0000 | (int(0xFF * (360-i)/60)<<0));
graph.graphics.drawRect(i, 364, 1, - a * h[i]);
}
graph.graphics.endFill();
loader = null;
setGuideText(4);
}
}
}
