新新BaseBox ver1.2(1.1)
forked from 新新BaseBox ver1.0(0) (diff: 107)

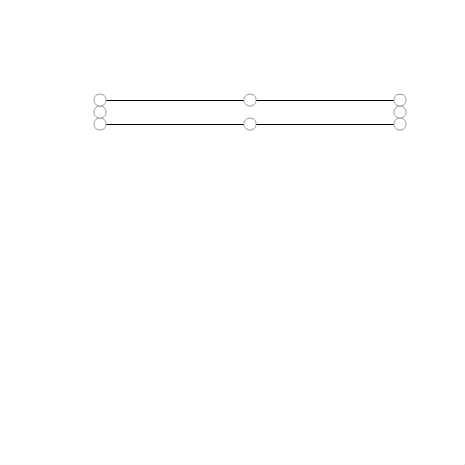

マーカー8個完成
ActionScript3 source code
/**
* Copyright Wataru.Miyazaki ( http://wonderfl.net/user/Wataru.Miyazaki )
* MIT License ( http://www.opensource.org/licenses/mit-license.php )
* Downloaded from: http://wonderfl.net/c/3XKP
*/
// forked from Wataru.Miyazaki's 新新BaseBox ver1.0(0)
// forked from Hiroki.Nigorinuma's forked from: forked from: Label機能
// forked from Wataru.Miyazaki's forked from: Label機能
// forked from Hiroki.Nigorinuma's Label機能
// forked from oshige's TextField_INPUT
package {
import flash.ui.Mouse;
import flash.geom.Rectangle;
import flash.geom.Matrix;
import flash.events.MouseEvent;
import flash.display.Sprite;
import flash.text.*;
import flash.events.KeyboardEvent;
import com.actionscriptbible.Example;
public class CreateBaseBox extends Example {
private var baseSprite:Sprite;
private var baseTextField:TextField;
private var baseMarker:Array;
private var mouseMove:Boolean;
private var sizing:Boolean;
private var baseRect:Rectangle;
public function CreateBaseBox(){
baseRect = new Rectangle(100,100,300,24);
// フラグ
mouseMove = false;
sizing = false;
// ベースのオブジェクト
baseSprite = new Sprite();
//rect.graphics.beginFill(0xCCCCCC);
baseSprite.graphics.drawRect(baseRect.x,baseRect.y,baseRect.width,baseRect.height);
baseSprite.buttonMode = true;
addChild(baseSprite);
// テキストの書式
var textFormat:TextFormat = new TextFormat();
textFormat.font = "_typewriter";
textFormat.size = 18;
//テキスト入力フィールドの作成
baseTextField = new TextField();
//baseTextField.type = TextFieldType.INPUT;
baseTextField.defaultTextFormat = textFormat;
baseTextField.x = baseRect.x;
baseTextField.y = baseRect.y;
baseTextField.width = baseRect.width;
baseTextField.height = baseRect.height;
baseTextField.border = true;
baseSprite.addChild(baseTextField);
// イベント実装
baseSprite.addEventListener(MouseEvent.MOUSE_DOWN,onMouseDown);
baseSprite.addEventListener(MouseEvent.MOUSE_OVER, onMouseOver);
baseSprite.addEventListener(MouseEvent.MOUSE_UP, onMouseUp);
baseSprite.addEventListener(MouseEvent.MOUSE_OUT, onMouseOut);
// 拡大縮小のボタン(BaseMarker)の作成
baseMarker= new Array();
for(var i:int=0;i<8;i++){
baseMarker[i] = new BaseMarker()
switch(i){
case 0:
baseMarker[i].markerType = "TOP_LEFT";
baseMarker[i].x = baseRect.x;
baseMarker[i].y = baseRect.y;
break;
case 1:
baseMarker[i].markerType = "TOP";
baseMarker[i].x = baseRect.x+baseRect.width/2;
baseMarker[i].y = baseRect.y;
break;
case 2:
baseMarker[i].markerType = "TOP_RIGHT";
baseMarker[i].x = baseRect.x+baseRect.width;
baseMarker[i].y = baseRect.y;
break;
case 3:
baseMarker[i].markerType = "LEFT";
baseMarker[i].x = baseRect.x;
baseMarker[i].y = baseRect.y+baseRect.height/2;
break;
case 4:
baseMarker[i].markerType = "RIGHT";
baseMarker[i].x = baseRect.x+baseRect.width;
baseMarker[i].y = baseRect.y+baseRect.height/2;
break;
case 5:
baseMarker[i].markerType = "BOTTOM_LEFT";
baseMarker[i].x = baseRect.x;
baseMarker[i].y = baseRect.y+baseRect.height;
break;
case 6:
baseMarker[i].markerType = "BOTTOM";
baseMarker[i].x = baseRect.x+baseRect.width/2;
baseMarker[i].y = baseRect.y+baseRect.height;
break;
case 7:
baseMarker[i].markerType = "BOTTOM_RIGHT";
baseMarker[i].x = baseRect.x+baseRect.width;
baseMarker[i].y = baseRect.y+baseRect.height;
break;
default:
break;
}
baseSprite.addChild(baseMarker[i]);
baseMarker[i].addEventListener(MouseEvent.MOUSE_DOWN, onMouseDownButton);
baseMarker[i].addEventListener(MouseEvent.MOUSE_UP, onMouseUpButton);
baseMarker[i].addEventListener(MouseEvent.MOUSE_MOVE, onMouseMove);
}
}
//=============================================================================
// ドラッグ移動 baseSpriteのマウスイベント
private function onMouseDown(e:MouseEvent):void{
trace("onMouseDown");
if (!sizing) {
e.currentTarget.startDrag();
}
}
private function onMouseUp(e:MouseEvent):void{
//trace("onMouseUp");
trace(e.currentTarget.x,e.currentTarget.y);
if (!sizing) {
e.currentTarget.stopDrag();
}
}
//=============================================================================
// 選択時に色づけ baseSpriteのマウスイベント
private function onMouseOver(e:MouseEvent):void{
//trace("onMouseOver");
baseTextField.borderColor = 0xFF0000;
}
private function onMouseOut(e:MouseEvent):void{
//trace("onMouseOut",baseSprite.x);
baseTextField.borderColor = 0x000000;
}
//=============================================================================
// 拡大縮小の種類を判別 baseMarkerのマウスイベント
private function onMouseDownButton(e:MouseEvent):void{
trace("onMouseDownButton");
mouseMove = true;
sizing = true;
stage.addEventListener(MouseEvent.MOUSE_MOVE, onMouseMove);
e.currentTarget.startDrag();
}
private function onMouseUpButton(e:MouseEvent):void{
trace("onMouseUpButton");
mouseMove = false;
sizing = false;
stage.removeEventListener(MouseEvent.MOUSE_MOVE, onMouseMove);
e.currentTarget.stopDrag();
}
private function onMouseMove(e:MouseEvent):void{
//trace("onMouseMove",e.stageX,e.currentTarget.x,fld.x);
if(mouseMove){
if(e.currentTarget.markerType.indexOf("RIGHT")!=-1){
stretchRight(e.stageX-baseTextField.x-baseSprite.x);
}
if(e.currentTarget.markerType.indexOf("BOTTOM")!=-1){
stretchDown(e.stageY-baseTextField.y-baseSprite.y);
}
if(e.currentTarget.markerType.indexOf("TOP")!=-1){
//trace("e.stageY",e.stageY,"baseFiedlY",baseTextField.y,"baseTextField.height",baseTextField.height,"baserect",baseRect.y);
stretchUp(e.stageY);
}
if(e.currentTarget.markerType.indexOf("LEFT")!=-1){
stretchLeft(e.stageX);
}
}
}
//=============================================================================
// 拡大縮小 baseMarkerのマウスイベント
private function stretchRight(width:Number):void{
baseTextField.width = width;
baseMarker[1].x = baseTextField.x+width/2;
baseMarker[2].x = baseTextField.x+width;
baseMarker[4].x = baseTextField.x+width;
baseMarker[6].x = baseTextField.x+width/2;
baseMarker[7].x = baseTextField.x+width;
}
private function stretchLeft(x:Number):void{
trace("basetf",x);
baseTextField.x = x-baseSprite.x;
baseTextField.width = baseMarker[7].x-x+baseSprite.x;
baseMarker[0].x = x-baseSprite.x;
baseMarker[3].x = x-baseSprite.x;
baseMarker[5].x = x-baseSprite.x;
baseMarker[1].x = x+baseTextField.width/2-baseSprite.x;
baseMarker[6].x = x+baseTextField.width/2-baseSprite.x;
}
private function stretchDown(height:Number):void{
baseTextField.height = height;
baseMarker[3].y = baseTextField.y+height/2;
baseMarker[4].y = baseTextField.y+height/2;
baseMarker[5].y = baseTextField.y+height;
baseMarker[6].y = baseTextField.y+height;
baseMarker[7].y = baseTextField.y+height;
}
private function stretchUp(y:Number):void{
baseTextField.y = y-baseSprite.y;
baseTextField.height = baseMarker[7].y-y+baseSprite.y;
baseMarker[0].y = y-baseSprite.y;
baseMarker[1].y = y-baseSprite.y;
baseMarker[2].y = y-baseSprite.y;
baseMarker[3].y = y+baseTextField.height/2-baseSprite.y;
baseMarker[4].y = y+baseTextField.height/2-baseSprite.y;
}
}
}
//=============================================================================
// 拡大縮小ボタン
import flash.display.Sprite;
class BaseMarker extends Sprite{
public var markerType:String;
public function BaseMarker(){
graphics.lineStyle(1, 0x999999);
graphics.beginFill(0xFFFFFF);
graphics.drawCircle(0, 0, 6);
}
}
