forked from: PV3Dのカメラテストとピクセル等倍
forked from PV3Dのカメラテストとピクセル等倍 (diff: 288)
ActionScript3 source code
/**
* Copyright smallflowergame ( http://wonderfl.net/user/smallflowergame )
* MIT License ( http://www.opensource.org/licenses/mit-license.php )
* Downloaded from: http://wonderfl.net/c/2kW9
*/
<?xml version="1.0" encoding="utf-8"?>
<!-- forked from tkinjo's PV3Dのカメラテストとピクセル等倍 -->
<mx:Application xmlns:mx="http://www.adobe.com/2006/mxml" width="465" height="465" paddingLeft="0" paddingTop="0" paddingRight="0" paddingBottom="0" applicationComplete="applicationCompleteHandler( event )">
<mx:Script>
<![CDATA[
/**
* PV3Dのカメラテストとピクセル等倍
*
* - 参考 -
* note.x - [Papervision3D2.0] ピクセル等倍表示にトライ
* http://blog.r3c7.net/?p=166
*/
import flash.display.Bitmap;
import flash.display.BitmapData;
import flash.events.Event;
import mx.events.FlexEvent;
import org.papervision3d.core.proto.CameraObject3D;
import org.papervision3d.materials.BitmapMaterial;
import org.papervision3d.materials.ColorMaterial;
import org.papervision3d.materials.utils.MaterialsList;
import org.papervision3d.objects.primitives.Cube;
import org.papervision3d.objects.primitives.Plane;
import org.papervision3d.scenes.Scene3D;
import org.papervision3d.view.AbstractView;
import org.papervision3d.view.BasicView;
private var camera:CameraObject3D;
private var initZ:Number;
private var initFocus:Number;
private var initZoom:Number;
private var initFov:Number;
/** --------------------------------------------------
* 初期設定
*/
/**
* 初期設定をします。
*
* @param event
*/
private function applicationCompleteHandler( event:Event ):void {
var noiseBitmapData:BitmapData = createNoiseBitmapData( 100, 100 );
setupPV3D( noiseBitmapData );
setCameraInitProperty();
resetProperty();
setupNoiseBitmap( noiseBitmapData );
}
/**
* ノイズビットマップデータを生成します。
*/
private function createNoiseBitmapData( width:int, height:int ):BitmapData {
var noiseBitmapData:BitmapData = new BitmapData( width, height );
noiseBitmapData.noise( 0 );
return noiseBitmapData;
}
/**
* ノイズビットマップを配置します。
*/
private function setupNoiseBitmap( noiseBitmapData:BitmapData ):void {
var noiseBitmap:Bitmap = new Bitmap( noiseBitmapData );
noiseBitmap.x = stage.stageWidth - noiseBitmap.width;
noiseBitmap.y = stage.stageHeight - noiseBitmap.height;
imageContentHolder.addChild( noiseBitmap );
}
/**
* PV3D の設定
*/
private function setupPV3D( noiseBitmapData:BitmapData ):void {
var view:AbstractView = new BasicView( stage.stageWidth, stage.stageHeight / 2 );
imageContentHolder.addChild( view );
var scene:Scene3D = view.scene;
camera = view.camera;
var cube:Cube = createCube( noiseBitmapData );
cube.z = -50;
scene.addChild( cube );
view.startRendering();
}
/**
* キューブの作成
*
* @param noiseBitmapData
*/
private function createCube( noiseBitmapData:BitmapData ):Cube {
var cubeMaterialParams:Array = [
{ name:"right", color:0x00ff00 },
{ name:"left", color:0x00ffff },
{ name:"top", color:0x0000ff },
{ name:"bottom", color:0xff00ff }
];
var cubeMaterialsList:MaterialsList = new MaterialsList();
var frontMaterial:BitmapMaterial = new BitmapMaterial( noiseBitmapData );
frontMaterial.doubleSided = true;
cubeMaterialsList.addMaterial( frontMaterial, "front" );
for ( var i:uint = 0; i < cubeMaterialParams.length; i++ ) {
var colorMaterial:ColorMaterial = new ColorMaterial( cubeMaterialParams[ i ].color );
colorMaterial.doubleSided = true;
cubeMaterialsList.addMaterial( colorMaterial, cubeMaterialParams[ i ].name );
}
var cube:Cube = new Cube( cubeMaterialsList, 100, 100, 100 );
return cube;
}
/**
* カメラの初期プロパティを保存します。
*/
private function setCameraInitProperty():void {
initZ = camera.z;
initFocus = camera.focus;
initZoom = camera.zoom;
initFov = camera.fov;
}
/** --------------------------------------------------
* cameraProperty
*/
/**
* リセットボタンが押されたときに各値を初期値に戻します。
*
* @param event
*/
private function propertyResetButtonDownHandler( event:FlexEvent ):void {
resetProperty();
}
/**
* プロパティボックス内のコンポーネントの値を初期化します。
*/
private function resetProperty():void {
camera.z = initZ;
camera.focus = initFocus;
camera.zoom = initZoom;
camera.fov = initFov;
setPropertyBox();
}
private function setPropertyBox():void {
zNumericStepper.value = camera.z;
focusNumericStepper.value = camera.focus;
zoomNumericStepper.value = camera.zoom;
fovNumericStepper.value = camera.fov;
}
/**
*
* @param event
*/
private function propertyChangeHandler( event:Event ):void {
camera.z = zNumericStepper.value;
switch( event.currentTarget ) {
case focusNumericStepper:
camera.focus = focusNumericStepper.value;
break;
case zoomNumericStepper:
camera.zoom = zoomNumericStepper.value;
break;
case fovNumericStepper:
camera.fov = fovNumericStepper.value;
break;
}
setPropertyBox();
}
/** --------------------------------------------------
* ピクセル等倍
*/
/**
* @param event
*/
private function zDisplayMagnificationButtonDownHandler( event:FlexEvent ):void {
camera.z = -( camera.focus * camera.zoom );
setPropertyBox();
}
/**
* @param event
*/
private function focusDisplayMagnificationButtonDownHandler( event:FlexEvent ):void {
camera.focus = -camera.z / camera.zoom;
setPropertyBox();
}
/**
* @param event
*/
private function zoomDisplayMagnificationButtonDownHandler( event:FlexEvent ):void {
camera.zoom = -camera.z / camera.focus;
setPropertyBox();
}
/** --------------------------------------------------
* propertyBox
*/
/**
* プロパティボックスが表示されているかのフラグです。
*/
private var propertyBoxVisible:Boolean = true;
/**
* プロパティボックスを隠すボタンが押されたときに呼ばれます。
*
* @param event
*/
private function propertyBoxVisibleButtonDownHandler( event:FlexEvent ):void {
propertyBoxMove.end();
if ( propertyBoxVisible ) {
propertyBoxMove.xTo = -propertyBox.width;
propertyBoxVisibleButton.label = "プロパティボックスを表示";
} else {
propertyBoxMove.xTo = 0;
propertyBoxVisibleButton.label = "プロパティボックスを隠す";
}
propertyBoxMove.play();
propertyBoxVisible = !propertyBoxVisible;
}
]]>
</mx:Script>

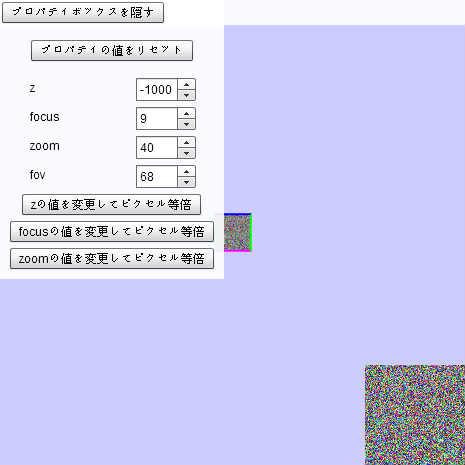

<mx:Move id="propertyBoxMove" target="{ propertyBox }" />
<mx:Canvas id="canvas" width="100%" height="100%" backgroundColor="0xccccff">
<mx:UIComponent id="imageContentHolder" />
<mx:Box id="propertyBox" verticalAlign="middle" alpha="0.9" backgroundColor="0xffffff" paddingLeft="10" paddingBottom="10" paddingTop="40" paddingRight="10">
<mx:Box id="cameraProperty" horizontalAlign="center" alpha="1.1">
<mx:Button id="propertyResetButton" label="プロパティの値をリセット" buttonDown="propertyResetButtonDownHandler( event )" />
<mx:Spacer height="5" />
<mx:HBox>
<mx:Label width="100" text="z" />
<mx:NumericStepper id="zNumericStepper" width="60" minimum="-9999" maximum="0" stepSize="1" change="propertyChangeHandler( event )" />
</mx:HBox>
<mx:HBox>
<mx:Label width="100" text="focus" />
<mx:NumericStepper id="focusNumericStepper" width="60" minimum="0" maximum="255" stepSize="1" change="propertyChangeHandler( event )" />
</mx:HBox>
<mx:HBox>
<mx:Label width="100" text="zoom" />
<mx:NumericStepper id="zoomNumericStepper" width="60" minimum="0" maximum="255" stepSize="1" change="propertyChangeHandler( event )" />
</mx:HBox>
<mx:HBox>
<mx:Label width="100" text="fov" />
<mx:NumericStepper id="fovNumericStepper" width="60" minimum="0" maximum="180" stepSize="1" change="propertyChangeHandler( event )" />
</mx:HBox>
<mx:Button id="zDisplayMagnificationButton" label="zの値を変更してピクセル等倍" buttonDown="zDisplayMagnificationButtonDownHandler( event )" />
<mx:Button id="focusDisplayMagnificationButton" label="focusの値を変更してピクセル等倍" buttonDown="focusDisplayMagnificationButtonDownHandler( event )" />
<mx:Button id="zoomDisplayMagnificationButton" label="zoomの値を変更してピクセル等倍" buttonDown="zoomDisplayMagnificationButtonDownHandler( event )" />
</mx:Box>
</mx:Box>
<mx:Box width="100%" alpha="0.9" backgroundColor="0xffffff" paddingLeft="2" paddingTop="2" paddingBottom="2">
<mx:HBox alpha="1.1">
<mx:Button id="propertyBoxVisibleButton" label="プロパティボックスを隠す" buttonDown="propertyBoxVisibleButtonDownHandler( event )" />
</mx:HBox>
</mx:Box>
</mx:Canvas>
</mx:Application>
