Sphere made from planes, 3

/**
 * Copyright makc3d ( http://wonderfl.net/user/makc3d )
 * MIT License ( http://www.opensource.org/licenses/mit-license.php )
 * Downloaded from: http://wonderfl.net/c/2drp
 */

/**

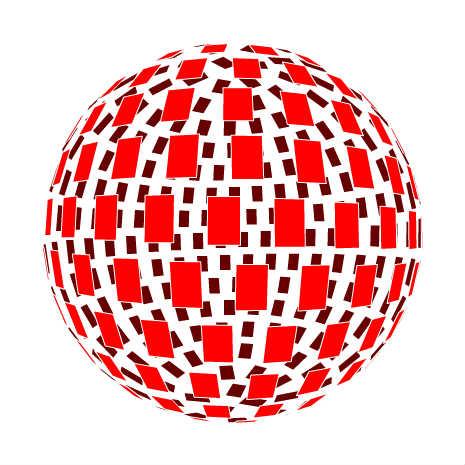

 * Sphere made from planes, yet another combination.
 * @see http://forum.alternativaplatform.com/posts/list/2969.page#50884
 */
package {
    import alternativ5.engine3d.controllers.WalkController;
    import alternativ5.engine3d.core.Camera3D;
    import alternativ5.engine3d.core.Object3D;
    import alternativ5.engine3d.core.Scene3D;
    import alternativ5.engine3d.display.View;

    import alternativ5.engine3d.materials.FillMaterial;
    import alternativ5.engine3d.primitives.Plane;
    import alternativ5.types.Point3D;

    import flash.display.Sprite;
    import flash.events.Event;

    [SWF (backgroundColor="0", width="465", height="465", frameRate="30")]
    public class Main extends Sprite {

        private var view:View;
        private var scene:Scene3D;
        private var camera:Camera3D;
        private var controller:WalkController;

        public function Main() {
            scene = new Scene3D();
            scene.root = new Object3D();
            var cameraContainer:Object3D = new Object3D();
            scene.root.addChild(cameraContainer);
            camera = new Camera3D();
            cameraContainer.addChild(camera);
            camera.y = -200;
            camera.rotationX = -Math.PI/2;
            view = new View(camera, 465, 465);
            addChild(view);
            controller = new WalkController(stage, cameraContainer);

            createGeometry();

            stage.addEventListener(Event.ENTER_FRAME, onEnterFrame);
        }

        private function createGeometry():void {
            var planeWidth:Number = 10;
            var planeHength:Number = 15;
            var radius:Number = 100;
            // uniformly distributed directions:
            // Bauer, Robert, "Distribution of Points on a Sphere with Application to Star Catalogs",
            // Journal of Guidance, Control, and Dynamics, January-February 2000, vol.23 no.1 (130-137).
			var N:Number = 300;
            for (var i:int = 1; i <= N; i++) {
                var phi:Number = Math.acos ( -1 + (2 * i -1) / N);
                var theta:Number = Math.sqrt (N * Math.PI) * phi;

                var alpha:Number = phi;
                var z:Number = radius*Math.cos(alpha);
                var xy:Number = radius*Math.sin(alpha);
                    var beta:Number = theta;
                    var x:Number = -xy*Math.sin(beta);
                    var y:Number = xy*Math.cos(beta);
                    var plane:Plane = new Plane(planeWidth, planeHength);
                    plane.setMaterialToSurface(new FillMaterial(0xFF0000, 1, "normal", 0, 0xFFFFFF), "front");
                    plane.setMaterialToSurface(new FillMaterial(0x660000, 1, "normal", 0, 0xFFFFFF), "back");
                    plane.coords = new Point3D(x, y, z);
                    plane.rotationX = -alpha;
                    plane.rotationZ = beta;
                    scene.root.addChild(plane);
            }
        }

        private function onEnterFrame(e:Event):void {
            controller.processInput();
            scene.calculate();
        }
    }
}
