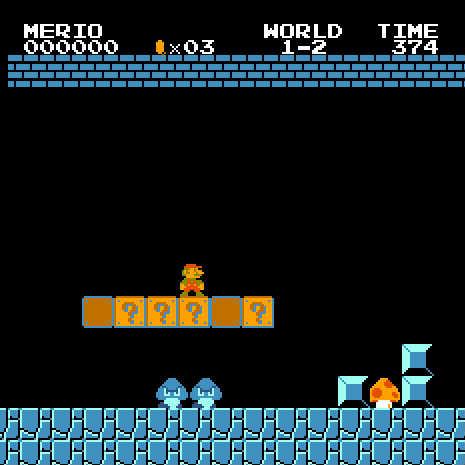

おなじみ スーパー○リオ WORLD：1-2 のブルブルきのこ ただ、それだけですｗ http://blog.quq.jp/ http://twitter.com/quqjp あとで 上のコイン、？ボック をキラキラアニメするようにする 音が付いたら最高なんだけどなぁ。。。 dizgid: ひとまず。もとのをあんまりいじらないで3D化 音あるとほんとに最高 キノコクリックで..
ActionScript3 source code
/**
* Copyright smallflowergame ( http://wonderfl.net/user/smallflowergame )
* MIT License ( http://www.opensource.org/licenses/mit-license.php )
* Downloaded from: http://wonderfl.net/c/2Gtb
*/
// forked from dizgid's forked from: WORLD 1-2 / KINOKO_CLICK
// forked from quqjp's WORLD 1-2
package
{
/*
* おなじみ
*
* スーパー○リオ WORLD：1-2 のブルブルきのこ
*
* ただ、それだけですｗ
*
* http://blog.quq.jp/
* http://twitter.com/quqjp
*
* あとで 上のコイン、？ボック をキラキラアニメするようにする
* 音が付いたら最高なんだけどなぁ。。。
*/
/*
dizgid: ひとまず。もとのをあんまりいじらないで3D化
音あるとほんとに最高
キノコクリックで..
*/
import flash.display.Sprite;
import flash.display.Bitmap;
import flash.display.BitmapData;
import flash.display.StageQuality;
import flash.events.Event;
import flash.geom.Matrix;
import caurina.transitions.Tweener;
import flash.display.StageScaleMode;
[SWF(width = "512", height = "448", backgroundColor = "0x000000", frameRate = "30")]
public class FlashTest extends Sprite
{
private var canvasBitmapData:BitmapData;
private var canvasBitmap:Bitmap;
private var layerlist:Array = [];
private var view3D:View3D;
public function FlashTest() {
this.stage.scaleMode = StageScaleMode.NO_SCALE;
this.stage.quality = StageQuality.LOW;
build();
}
public function build():void {
canvasBitmapData = new BitmapData(256, 224, false, 0x000000);
canvasBitmap = new Bitmap(canvasBitmapData);
canvasBitmap.scaleX = canvasBitmap.scaleY = 2;
this.addChild(canvasBitmap);
var YUKA:MyTilingBitmap = new MyTilingBitmap(XX.yuka.w, XX.yuka.h, XX.yuka.cl, XX.yuka.map, new Matrix(1, 0, 0, 1, 0, 200), 16, 2);
var ASSET0:MyBitmap = new MyBitmap(XX.asset0.w, XX.asset0.h, XX.asset0.cl, XX.asset0.map, new Matrix(1, 0, 0, 1, 24, 8));
ASSET0.type = "board";
var COIN:MyBitmap = new MyBitmap(XX.coin_f0.w, XX.coin_f0.h, XX.coin_f0.cl, XX.coin_f0.map, new Matrix(1, 0, 0, 1, 90, 16));
COIN.type = "board";
var QRYBO:MyBitmap = new MyBitmap(XX.tn_f0.w, XX.tn_f0.h, XX.tn_f0.cl, XX.tn_f0.map, new Matrix(1, 0, 0, 1, 90, 185));
var BLOCKA:MyBitmap = new MyBitmap(XX.block.w, XX.block.h, XX.block.cl, XX.block.map, new Matrix(1, 0, 0, 1, 181, 184));
BLOCKA.type = "cube";
var BLOCKB:MyTilingBitmap = new MyTilingBitmap(XX.block.w, XX.block.h, XX.block.cl, XX.block.map, new Matrix(1, 0, 0, 1, 213, 168), 1, 2);
var BLOCKC:MyTilingBitmap = new MyTilingBitmap(XX.block.w, XX.block.h, XX.block.cl, XX.block.map, new Matrix(1, 0, 0, 1, 245, 152), 1, 3);
var BLOCK2:MyTilingBitmap = new MyTilingBitmap(XX.block2.w, XX.block2.h, XX.block2.cl, XX.block2.map, new Matrix(1, 0, 0, 1, 16, 24), 15, 1);
var BLOCK3:MyTilingBitmap = new MyTilingBitmap(XX.hb_f0.w, XX.hb_f0.h, XX.hb_f0.cl, XX.hb_f0.map, new Matrix(1, 0, 0, 1, 69, 144), 3, 1);
var BLOCK4:MyBitmap = new MyBitmap(XX.empblock.w, XX.empblock.h, XX.empblock.cl, XX.empblock.map, new Matrix(1, 0, 0, 1, 53, 144));
BLOCK4.type = "cube";
var BLOCK5:MyBitmap = new MyBitmap(XX.empblock.w, XX.empblock.h, XX.empblock.cl, XX.empblock.map, new Matrix(1, 0, 0, 1, 117, 144));
BLOCK5.type = "cube";
var BLOCK6:MyBitmap = new MyBitmap(XX.hb_f0.w, XX.hb_f0.h, XX.hb_f0.cl, XX.hb_f0.map, new Matrix(1, 0, 0, 1, 133, 144));
BLOCK6.type = "cube";
var KINOKO:MyBuru2Bitmap = new MyBuru2Bitmap(XX.kinoko.w, XX.kinoko.h, XX.kinoko.cl, XX.kinoko.map, new Matrix(1, 0, 0, 1, 196, 185));
var MERIO:MyBitmap = new MyBitmap(XX.merio.w, XX.merio.h, XX.merio.cl, XX.merio.map, new Matrix(1, 0, 0, 1, 101, 128));
KINOKO.name = "kinoko";
MERIO.name = "merio";
layerlist = [];
layerlist.push(YUKA);
layerlist.push(ASSET0);
layerlist.push(COIN);
layerlist.push(QRYBO);
layerlist.push(BLOCKA);
layerlist.push(BLOCKB);//
layerlist.push(BLOCKC);
layerlist.push(BLOCK2);
layerlist.push(BLOCK3);
layerlist.push(BLOCK4);
layerlist.push(BLOCK5);
layerlist.push(BLOCK6);
layerlist.push(KINOKO);
layerlist.push(MERIO);
startRender()
view3D = new View3D(canvasBitmapData);
view3D.setupPv3d(layerlist);
this.addChild(view3D);
}
public function startRender():void {
this.addEventListener(Event.ENTER_FRAME, render);
}
public function stopRender():void {
}
public function render(e:Event):void {
/*
canvasBitmapData.fillRect(canvasBitmapData.rect, 0x000000);
var li:Array = layerlist;
var l:uint = li.length;
for (var i:uint = 0; i < l; i++) {
li[i].render();
canvasBitmapData.draw(li[i],li[i].matrix)
}
*/
view3D.render();
}
}
}
//________________________________________________________
// pv3d
import flash.display.Stage;
import flash.events.Event;
import flash.events.MouseEvent;
import org.papervision3d.core.proto.CameraObject3D;
import org.papervision3d.materials.BitmapMaterial;
import org.papervision3d.materials.utils.MaterialsList;
import org.papervision3d.objects.special.ParticleField;
import org.papervision3d.objects.primitives.*;
import org.papervision3d.objects.DisplayObject3D;
import org.papervision3d.view.BasicView;
//import org.papervision3d.core.effects.view.ReflectionView;
import org.papervision3d.core.math.Matrix3D;
import org.papervision3d.events.InteractiveScene3DEvent;
class View3D extends BasicView{
private var field:DisplayObject3D;
private var _canvasBitmapData:BitmapData;
public function View3D(canvasBitmapData:BitmapData){
_canvasBitmapData = canvasBitmapData;
}
public function setupPv3d(layerlist:Array):void
{
camera.ortho = true;
field = new DisplayObject3D();
//field.scale = 5.5;
field.scale = 2.0;
for(var i:int = 0; i < layerlist.length; i++){
var li:MyBitmap = layerlist[i];
var obj:DisplayObject3D = buildByType(li);
obj.transform = toMatrix3D(li);
field.addChild(obj);
}
scene.addChild(field);
viewport.interactive = true;
var keyObj:DisplayObject3D = field.getChildByName("kinoko");
keyObj.material.interactive = true;
keyObj.addEventListener(InteractiveScene3DEvent.OBJECT_CLICK, onChange);
this.addEventListener(Event.ADDED_TO_STAGE, onAddAct);
}
private function onAddAct(e:Event):void
{
var cameraOrbit:CameraOrbit = new CameraOrbit(stage, camera, field);
cameraOrbit.start();
}
public function buildByType(li:MyBitmap):DisplayObject3D
{
var srcBmp:BitmapData = li.bitmapData;
var type:String = li.type;
var mat:BitmapMaterial= new BitmapMaterial(srcBmp);
var obj3D:DisplayObject3D;
if(type == "cube"){
obj3D = new Cube(new MaterialsList({all : mat}), srcBmp.width, srcBmp.height, srcBmp.width);
}else if(type == "tilingCube"){
var tempObj:Cube = new Cube(new MaterialsList({all : mat}), srcBmp.width, srcBmp.height, srcBmp.width);
obj3D = buildTilingCube(MyTilingBitmap(li), tempObj);
}else{
mat.doubleSided = true;
obj3D = new Plane(mat, srcBmp.width, srcBmp.height);
}
obj3D.name = li.name;
return obj3D;
}
private function buildTilingCube(li:MyTilingBitmap, tempObj:Cube):DisplayObject3D
{
var obj:DisplayObject3D = new DisplayObject3D();
for(var i:int = 0; i < li.tileW; i++){
for(var j:int = 0; j < li.tileH; j++){
var block:DisplayObject3D = tempObj.clone();
block.x = i * li.bitmapData.width;
block.y = -j * li.bitmapData.height;
obj.addChild(block);
}
}
return obj;
}
private function toMatrix3D(li:MyBitmap):Matrix3D
{
var matrix:Matrix = li.matrix;
var matrix3D:Matrix3D = new Matrix3D();
matrix3D.n14 = matrix.tx + li.bitmapData.width/2 - _canvasBitmapData.width/2;
matrix3D.n24 = -(matrix.ty + li.bitmapData.height/2 - _canvasBitmapData.height/2);
return matrix3D;
}
public function render():void
{
//field.yaw(0.5);
singleRender();
}
private function onChange(e:Event):void
{
camera.ortho = !camera.ortho;
field.scale = camera.ortho ? 2.0 : 5.5;
}
}
class CameraOrbit
{
private var _camera:CameraObject3D;
private var _target:DisplayObject3D;
private var _stage:Stage;
private var isOribiting:Boolean;
private var cameraPitch:Number = 90;
private var cameraYaw:Number = 270;
private var previousMouseX:Number;
private var previousMouseY:Number;
private var mouseDown:Boolean;
public function CameraOrbit(stage:Stage, camera:CameraObject3D, target:DisplayObject3D)
{
_camera = camera;
_target = target;
_stage = stage;
}
public function start():void
{
_stage.addEventListener(MouseEvent.MOUSE_DOWN, onMouseDown);
_stage.addEventListener(MouseEvent.MOUSE_UP, onMouseUp);
_stage.addEventListener(MouseEvent.MOUSE_MOVE, onMouseMove);
}
private function onMouseDown(event:MouseEvent):void
{
isOribiting = true;
previousMouseX = event.stageX;
previousMouseY = event.stageY;
}
private function onMouseUp(event:MouseEvent):void
{
isOribiting = false;
}
private function onMouseMove(event:MouseEvent):void
{
var differenceX:Number = event.stageX - previousMouseX;
var differenceY:Number = event.stageY - previousMouseY;
if(isOribiting)
{
//cameraPitch += differenceY;
cameraPitch = 90;
cameraYaw += differenceX;
cameraPitch %= 360;
cameraYaw %= 360;
cameraPitch = cameraPitch > 0 ? cameraPitch : 0.0001;
cameraPitch = cameraPitch < 90 ? cameraPitch : 89.9999;
previousMouseX = event.stageX;
previousMouseY = event.stageY;
_camera.orbit(cameraPitch, cameraYaw, true, _target);
}
}
}
//________________________________________________________
//
import flash.display.Bitmap;
import flash.display.BitmapData;
import adobe.utils.CustomActions;
import flash.display.Graphics;
import flash.display.Sprite;
import flash.events.Event;
import flash.geom.Matrix;
//基本Bitmap
class MyBitmap extends Bitmap
{
public var sizew:uint;
public var sizeh:uint;
public var colorlist:Array;
public var map:Array;
public var matrix:Matrix;
public var type:String = "Plane";
public function MyBitmap(sizew:uint, sizeh:uint, colorlist:Array, map:Array, matrix:Matrix) {
this.sizew = sizew;
this.sizeh = sizeh;
this.colorlist = colorlist;
this.map = map;
this.matrix = matrix;
makeBitmapData();
this.build();
}
public function makeBitmapData():void {
this.bitmapData = new BitmapData(this.sizew, this.sizeh, true, 0x00000000);
}
public function build():void {
this.bitmapData.unlock();
var cli:Array = this.colorlist;
var li:Array = this.map;
var l:uint = li.length;
for (var i:uint = 0; i < l; i++) {
var x:uint = i - (Math.floor(i / sizew) * sizew);
var y:uint = Math.floor(i / sizew);
if (li[i] != 0) this.bitmapData.setPixel32(x, y, cli[li[i]]);
}
this.bitmapData.lock();
}
public function render():void {
}
}
//ぶるるBitmap
class MyBuru2Bitmap extends MyBitmap
{
public function MyBuru2Bitmap(sizew:uint, sizeh:uint, colorlist:Array, map:Array , matrix:Matrix) {
super(sizew, sizeh, colorlist, map, matrix);
}
private var flg:Boolean = false;
public override function render():void {
flg ? this.matrix.tx -= 2 : this.matrix.tx += 2;
flg = !flg;
}
}
//タイリングBitmap
class MyTilingBitmap extends MyBitmap
{
private var tilewc:uint;
private var tilehc:uint;
public function MyTilingBitmap(sizew:uint, sizeh:uint, colorlist:Array, map:Array , matrix:Matrix, tilewc:uint = 1, tilehc:uint = 1) {
this.tilewc = tilewc;
this.tilehc = tilehc;
super(sizew, sizeh, colorlist, map, matrix);
super.type = "tilingCube";
}
public function get tileW():uint{ return tilewc };
public function get tileH():uint{ return tilehc };
/*
public override function makeBitmapData():void {
this.bitmapData = new BitmapData(this.sizew * tilewc, this.sizeh * tilehc, true, 0x00000000);
}
public override function build():void{
super.build();
if(tilewc>1){
var ma:Matrix = new Matrix();
ma.translate(this.sizew,0)
this.bitmapData.draw(this, ma) //?
}
if(tilehc>1){
ma = new Matrix();
ma.translate(0,this.sizeh)
this.bitmapData.draw(this, ma) //?
}
}
*/
}
//アニメBitmap
//未完成
/*class MyAnimBitmap extends Bitmap
{
public var sizew:uint;
public var sizeh:uint;
public var matrix:Matrix;
private var framlist:Array;
private var frmcnt:uint = 0;
private var frmcntmax:uint = 0;
public var name:String;
public function MyAnimBitmap(sizew:uint, sizeh:uint, matrix:Matrix) {
this.sizew = sizew;
this.sizeh = sizeh;
this.matrix = matrix;
framlist = [];
makeBitmapData();
this.build();
}
public function makeBitmapData() {
this.bitmapData = new BitmapData(this.sizew, this.sizeh, true, 0x00000000);
}
public function addFrame(param:MyBitmap) {
framlist.push(param);
frmcntmax = framlist.length;
}
public function build() {
this.bitmapData.unlock();
this.bitmapData.lock();
}
public function render() {
}
}*/
//data
class XX
{
static public var kinoko:Object = {
w:16,
h:16,
map:[0,0,0,0,0,0,1,1,1,1,0,0,0,0,0,0,0,0,0,0,0,1,1,1,1,2,2,0,0,0,0,0,0,0,0,0,1,1,1,1,2,2,2,2,0,0,0,0,0,0,0,1,1,1,1,1,2,2,2,2,2,0,0,0,0,0,1,1,1,1,1,1,1,2,2,2,1,1,0,0,0,1,1,2,2,2,1,1,1,1,1,1,1,1,1,0,0,1,2,2,2,2,2,1,1,1,1,1,1,1,1,0,1,1,2,2,2,2,2,1,1,1,1,1,2,2,1,1,1,1,2,2,2,2,2,1,1,1,1,1,2,2,2,1,1,1,1,2,2,2,1,1,1,1,1,1,1,2,2,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,0,1,2,2,2,3,3,3,3,3,3,2,2,2,1,0,0,0,0,0,3,3,3,3,3,3,3,3,0,0,0,0,0,0,0,0,3,3,3,3,3,3,1,3,0,0,0,0,0,0,0,0,3,3,3,3,3,3,1,3,0,0,0,0,0,0,0,0,0,3,3,3,3,1,3,0,0,0,0,0],
cl:[0xFFff0000, 0xFFffa000, 0xFFe05000, 0xFFffffff]
};
static public var merio:Object = {
w:16,
h:16,
map:[0,0,0,0,1,1,1,1,1,0,0,0,0,0,0,0,0,0,0,1,1,1,1,1,1,1,1,1,0,0,0,0,0,0,0,2,2,2,3,3,2,3,0,0,0,0,0,0,0,0,2,3,2,3,3,3,2,3,3,3,0,0,0,0,0,0,2,3,2,2,3,3,3,2,3,3,3,0,0,0,0,0,2,2,3,3,3,3,2,2,2,2,0,0,0,0,0,0,0,0,3,3,3,3,3,3,3,0,0,0,0,0,0,0,0,2,2,1,2,2,2,0,0,0,0,0,0,0,0,0,2,2,2,1,2,2,1,2,2,2,0,0,0,0,0,2,2,2,2,1,1,1,1,2,2,2,2,0,0,0,0,3,3,2,1,3,1,1,3,1,2,3,3,0,0,0,0,3,3,3,1,1,1,1,1,1,3,3,3,0,0,0,0,3,3,1,1,1,1,1,1,1,1,3,3,0,0,0,0,0,0,1,1,1,0,0,1,1,1,0,0,0,0,0,0,0,2,2,2,0,0,0,0,2,2,2,0,0,0,0,0,2,2,2,2,0,0,0,0,2,2,2,2,0,0,0],
cl:[0xFFff0000, 0xFFe05000, 0xFF888800, 0xFFffa000]
};
static public var coin_f0:Object = {
w:5,
h:8,
map:[0,1,1,2,0,1,1,1,1,2,1,1,1,1,2,1,1,1,1,2,1,1,1,1,2,1,1,1,1,2,2,1,1,2,3,0,2,2,3,0],
cl:[0xFFff0000, 0xFFffa000, 0xFF0, 0xFFc07000]
};
static public var coin_f1:Object = {
w:5,
h:8,
map:[0,1,1,2,0,1,1,1,1,2,1,1,1,1,2,1,1,1,1,2,1,1,1,1,2,1,1,1,1,2,2,1,1,2,1,0,2,2,1,0],
cl:[0xFFff0000, 0xFFc07000, 0xFF0]
};
static public var coin_f2:Object = {
w:5,
h:8,
map:[0,1,1,2,0,1,1,1,1,2,1,1,1,1,2,1,1,1,1,2,1,1,1,1,2,1,1,1,1,2,2,1,1,2,3,0,2,2,3,0],
cl:[0xFFff0000,0xFF784000,0xFF0,0xFFc07000]
};
static public var block:Object = {
w:16,
h:16,
map:[1,2,2,2,2,2,2,2,2,2,2,2,2,2,2,3,2,1,2,2,2,2,2,2,2,2,2,2,2,2,3,3,2,2,1,2,2,2,2,2,2,2,2,2,2,3,3,3,2,2,2,1,2,2,2,2,2,2,2,2,3,3,3,3,2,2,2,2,1,1,1,1,1,1,1,1,3,3,3,3,2,2,2,2,1,1,1,1,1,1,1,1,3,3,3,3,2,2,2,2,1,1,1,1,1,1,1,1,3,3,3,3,2,2,2,2,1,1,1,1,1,1,1,1,3,3,3,3,2,2,2,2,1,1,1,1,1,1,1,1,3,3,3,3,2,2,2,2,1,1,1,1,1,1,1,1,3,3,3,3,2,2,2,2,1,1,1,1,1,1,1,1,3,3,3,3,2,2,2,2,1,1,1,1,1,1,1,1,3,3,3,3,2,2,2,3,3,3,3,3,3,3,3,3,1,3,3,3,2,2,3,3,3,3,3,3,3,3,3,3,3,1,3,3,2,3,3,3,3,3,3,3,3,3,3,3,3,3,1,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,1],
cl:[0xFFff0000, 0xFF4090c0, 0xFFa0fff0, 0xFF000000]
};
static public var block2:Object = {
w:16,
h:15,
map:[1,1,1,1,1,1,1,2,1,1,1,1,1,1,1,2,1,1,1,1,1,1,1,2,1,1,1,1,1,1,1,2,1,1,1,1,1,1,1,2,1,1,1,1,1,1,1,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,1,1,1,2,1,1,1,1,1,1,1,2,1,1,1,1,1,1,1,2,1,1,1,1,1,1,1,2,1,1,1,1,1,1,1,2,1,1,1,1,1,1,1,2,1,1,1,1,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,1,1,1,1,1,1,1,2,1,1,1,1,1,1,1,2,1,1,1,1,1,1,1,2,1,1,1,1,1,1,1,2,1,1,1,1,1,1,1,2,1,1,1,1,1,1,1,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,1,1,1,2,1,1,1,1,1,1,1,2,1,1,1,1,1,1,1,2,1,1,1,1,1,1,1,2,1,1,1,1,1,1,1,2,1,1,1,1,1,1,1,2,1,1,1,1],
cl:[0xFFff0000,0xFF4090c0,0xFF000000]
};
static public var empblock:Object = {
w:16,
h:16,
map:[0,1,1,1,1,1,1,1,1,1,1,1,1,1,1,0,1,2,2,2,2,2,2,2,2,2,2,2,2,2,2,1,1,2,1,2,2,2,2,2,2,2,2,2,2,1,2,1,1,2,2,2,2,2,2,2,2,2,2,2,2,2,2,1,1,2,2,2,2,2,2,2,2,2,2,2,2,2,2,1,1,2,2,2,2,2,2,2,2,2,2,2,2,2,2,1,1,2,2,2,2,2,2,2,2,2,2,2,2,2,2,1,1,2,2,2,2,2,2,2,2,2,2,2,2,2,2,1,1,2,2,2,2,2,2,2,2,2,2,2,2,2,2,1,1,2,2,2,2,2,2,2,2,2,2,2,2,2,2,1,1,2,2,2,2,2,2,2,2,2,2,2,2,2,2,1,1,2,2,2,2,2,2,2,2,2,2,2,2,2,2,1,1,2,2,2,2,2,2,2,2,2,2,2,2,2,2,1,1,2,1,2,2,2,2,2,2,2,2,2,2,1,2,1,1,2,2,2,2,2,2,2,2,2,2,2,2,2,2,1,0,1,1,1,1,1,1,1,1,1,1,1,1,1,1,0],
cl:[0xFFff0000, 0xFF4090c0, 0xFFc07000]
};
static public var yuka:Object = {
w:16,
h:16,
map:[1,2,2,2,2,1,1,2,2,2,2,2,2,2,2,3,2,1,1,1,1,3,2,1,1,1,1,1,1,1,1,3,2,1,1,1,1,3,2,1,1,1,1,1,1,1,1,3,2,1,1,1,1,3,2,1,1,1,1,1,1,1,1,3,2,3,1,1,1,3,2,1,1,1,1,1,1,1,1,3,1,3,3,3,3,1,2,1,1,1,1,1,1,1,1,3,2,2,2,2,2,3,2,1,1,1,1,1,1,1,1,3,2,1,1,1,1,3,2,1,1,1,1,1,1,1,1,3,2,1,1,1,1,3,2,1,1,1,1,1,1,1,1,3,2,1,1,1,1,3,2,1,1,1,1,1,1,1,1,3,1,1,1,1,1,3,3,3,1,1,1,1,1,1,3,2,1,1,1,1,1,3,2,2,3,3,1,1,1,1,3,2,1,1,1,1,1,3,2,1,2,2,3,3,3,3,2,1,1,1,1,1,1,3,2,1,1,1,2,2,2,3,2,1,1,1,1,1,3,3,2,1,1,1,1,1,1,3,2,1,3,3,3,3,3,1,1,3,3,3,3,3,3,1,2,3],
cl:[0xFFff0000, 0xFF4090c0, 0xFFa0fff0, 0xFF000000]
};
static public var asset0:Object = {
w:207,
h:15,
map:[1,1,0,0,0,1,1,0,1,1,1,1,1,1,1,0,1,1,1,1,1,1,0,0,0,1,1,1,1,1,1,0,0,1,1,1,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,0,0,0,1,1,0,0,1,1,1,1,1,0,0,1,1,1,1,1,1,0,0,0,1,1,0,0,0,0,0,1,1,1,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,1,1,1,1,0,0,1,1,1,1,1,1,0,1,1,0,0,0,1,1,0,1,1,1,1,1,1,1,1,1,1,0,1,1,1,0,1,1,0,0,0,0,0,0,1,1,0,0,0,1,1,0,0,0,0,1,1,0,0,0,1,1,0,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,0,0,0,1,1,0,1,1,0,0,0,1,1,0,1,1,0,0,0,1,1,0,0,1,1,0,0,0,0,0,1,1,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,0,0,0,0,0,0,1,1,0,0,0,1,1,1,0,1,1,1,0,1,1,0,0,0,0,0,1,1,1,1,1,1,1,0,1,1,0,0,0,0,0,0,1,1,0,0,0,1,1,0,0,0,0,1,1,0,0,0,1,1,0,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,0,1,0,1,1,0,1,1,0,0,0,1,1,0,1,1,0,0,0,1,1,0,0,1,1,0,0,0,0,0,1,1,0,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,0,0,0,0,0,0,1,1,0,0,0,1,1,1,1,1,1,1,0,1,1,0,0,0,0,0,1,1,1,1,1,1,1,0,1,1,1,1,1,1,1,0,1,1,0,0,1,1,1,0,0,0,0,1,1,0,0,0,1,1,0,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,1,1,1,1,1,0,1,1,0,0,0,1,1,0,1,1,0,0,1,1,1,0,0,1,1,0,0,0,0,0,1,1,0,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,0,0,0,0,0,0,1,1,0,0,0,1,1,1,1,1,1,1,0,1,1,1,1,1,1,0,1,1,0,1,0,1,1,0,1,1,0,0,0,0,0,0,1,1,1,1,1,0,0,0,0,0,0,1,1,0,0,0,1,1,0,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,1,1,1,1,1,0,1,1,0,0,0,1,1,0,1,1,1,1,1,0,0,0,0,1,1,0,0,0,0,0,1,1,0,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,0,0,0,0,0,0,1,1,0,0,0,1,1,0,1,0,1,1,0,1,1,0,0,0,0,0,1,1,0,0,0,1,1,0,1,1,0,0,0,0,0,0,1,1,0,1,1,1,0,0,0,0,0,1,1,0,0,0,1,1,0,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,1,0,1,1,1,0,1,1,0,0,0,1,1,0,1,1,0,1,1,1,0,0,0,1,1,0,0,0,0,0,1,1,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,0,0,0,0,0,0,1,1,0,0,0,1,1,0,0,0,1,1,0,1,1,0,0,0,0,0,1,1,0,0,0,1,1,0,1,1,1,1,1,1,1,0,0,0,0,0,1,1,1,0,0,1,1,1,1,1,1,0,0,1,1,1,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,0,0,0,1,1,0,0,1,1,1,1,1,0,0,1,1,0,0,1,1,1,0,0,1,1,1,1,1,1,0,1,1,1,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,0,0,0,0,1,1,1,1,1,1,0,1,1,0,0,0,1,1,0,1,1,1,1,1,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,1,0,0,0,0,0,1,1,1,0,0,0,0,0,1,1,1,0,0,0,0,0,1,1,1,0,0,0,0,0,1,1,1,0,0,0,0,0,1,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,1,0,0,0,0,1,1,1,1,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0,1,1,1,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,1,1,1,1,0,1,1,1,1,1,1,1,0,0,0,0,1,1,1,0,0,1,0,0,1,1,0,0,0,1,0,0,1,1,0,0,0,1,0,0,1,1,0,0,0,1,0,0,1,1,0,0,0,1,0,0,1,1,0,0,0,1,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,0,0,1,1,0,0,0,0,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,1,0,0,0,0,0,0,0,0,0,0,0,1,1,0,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,0,0,1,1,0,0,0,1,1,0,0,0,1,1,1,1,0,1,1,0,0,0,1,1,0,1,1,0,0,0,1,1,0,1,1,0,0,0,1,1,0,1,1,0,0,0,1,1,0,1,1,0,0,0,1,1,0,1,1,0,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,0,0,0,1,0,0,1,1,0,0,0,1,1,0,0,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,0,0,0,0,0,0,0,1,1,0,0,0,1,1,0,1,1,0,1,1,0,0,0,1,1,0,1,1,0,0,0,1,1,0,1,1,0,0,0,1,1,0,1,1,0,0,0,1,1,0,1,1,0,0,0,1,1,0,1,1,0,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,0,1,0,0,0,1,1,0,0,0,1,1,0,0,0,1,1,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,0,0,0,0,1,1,1,1,1,1,0,0,0,1,1,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,1,1,0,0,0,0,0,1,1,0,0,0,1,1,0,0,1,1,0,1,1,0,0,0,1,1,0,1,1,0,0,0,1,1,0,1,1,0,0,0,1,1,0,1,1,0,0,0,1,1,0,1,1,0,0,0,1,1,0,1,1,0,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,0,0,0,0,1,1,0,0,0,1,1,0,0,0,0,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,0,0,0,0,1,1,1,1,1,1,0,0,1,1,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,0,0,0,1,1,0,0,0,0,1,1,1,1,1,1,1,0,1,1,0,0,1,0,0,0,1,1,0,0,1,0,0,0,1,1,0,0,1,0,0,0,1,1,0,0,1,0,0,0,1,1,0,0,1,0,0,0,1,1,0,0,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,0,1,0,0,0,0,1,1,0,0,1,0,0,1,1,0,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,0,0,0,0,0,0,0,0,0,0,0,1,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,0,0,0,1,1,0,0,0,1,1,0,0,0,0,0,0,0,0,1,1,0,0,0,1,1,1,0,0,0,0,0,1,1,1,0,0,0,0,0,1,1,1,0,0,0,0,0,1,1,1,0,0,0,0,0,1,1,1,0,0,0,0,0,1,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,0,0,0,1,0,0,0,0,1,1,1,0,0,0,0,1,1,1,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,1,1,1,1,0,0,0,0,0,0,0,0,0,1,1,1,1,1,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,1,1,1,0,0,0,0,1,1,0,0,0,0,0,0,0,0,1,1,0],
cl:[0xFFff0000, 0xFFffffff]
};
static public var tn_f0:Object = {
w:33,
h:16,
map:[0,0,0,0,0,0,1,1,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,1,1,1,1,0,0,0,0,0,0,0,0,0,0,0,1,1,1,1,1,1,0,0,0,0,0,0,0,0,0,0,0,1,1,1,1,1,1,0,0,0,0,0,0,0,0,0,1,1,1,1,1,1,1,1,0,0,0,0,0,0,0,0,0,1,1,1,1,1,1,1,1,0,0,0,0,0,0,0,1,1,1,1,1,1,1,1,1,1,0,0,0,0,0,0,0,1,1,1,1,1,1,1,1,1,1,0,0,0,0,0,1,2,2,1,1,1,1,1,1,2,2,1,0,0,0,0,0,1,2,2,1,1,1,1,1,1,2,2,1,0,0,0,1,1,1,3,2,1,1,1,1,2,3,1,1,1,0,0,0,1,1,1,3,2,1,1,1,1,2,3,1,1,1,0,0,1,1,1,3,2,2,2,2,2,2,3,1,1,1,0,0,0,1,1,1,3,2,2,2,2,2,2,3,1,1,1,0,1,1,1,1,3,2,3,1,1,3,2,3,1,1,1,1,0,1,1,1,1,3,2,3,1,1,3,2,3,1,1,1,1,1,1,1,1,3,3,3,1,1,3,3,3,1,1,1,1,0,1,1,1,1,3,3,3,1,1,3,3,3,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,0,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,0,1,1,1,1,3,3,3,3,3,3,1,1,1,1,0,0,0,1,1,1,1,3,3,3,3,3,3,1,1,1,1,0,0,0,0,0,3,3,3,3,3,3,3,3,0,0,0,0,0,0,0,0,0,3,3,3,3,3,3,3,3,0,0,0,0,0,0,2,2,3,3,3,3,3,3,3,3,0,0,0,0,0,0,0,2,2,3,3,3,3,3,3,3,3,0,0,0,0,0,2,2,2,2,2,3,3,3,3,3,2,2,0,0,0,0,0,2,2,2,2,2,3,3,3,3,3,2,2,0,0,0,0,2,2,2,2,2,2,3,3,3,2,2,2,0,0,0,0,0,2,2,2,2,2,2,3,3,3,2,2,2,0,0,0,0,0,2,2,2,2,2,1,3,2,2,2,0,0,0,0,0,0,0,2,2,2,2,2,3,3,2,2,2,0,0,0,0],
cl:[0xFFff0000, 0xFF4090c0, 0xFF305080, 0xFFa0fff0]
};
static public var tn_f1:Object = {
w:33,
h:16,
map:[0,0,0,0,0,0,1,1,1,1,0,0,0,0,0,0,0,0,0,0,0,0,1,1,1,1,0,0,0,0,0,0,0,0,0,0,0,0,1,1,1,1,1,1,0,0,0,0,0,0,0,0,0,0,1,1,1,1,1,1,0,0,0,0,0,0,0,0,0,0,1,1,1,1,1,1,1,1,0,0,0,0,0,0,0,0,1,1,1,1,1,1,1,1,0,0,0,0,0,0,0,0,1,1,1,1,1,1,1,1,1,1,0,0,0,0,0,0,1,1,1,1,1,1,1,1,1,1,0,0,0,0,0,0,1,2,2,1,1,1,1,1,1,2,2,1,0,0,0,0,1,2,2,1,1,1,1,1,1,2,2,1,0,0,0,0,1,1,1,3,2,1,1,1,1,2,3,1,1,1,0,0,1,1,1,3,2,1,1,1,1,2,3,1,1,1,0,0,0,1,1,1,3,2,2,2,2,2,2,3,1,1,1,0,0,1,1,1,3,2,2,2,2,2,2,3,1,1,1,0,0,1,1,1,1,3,2,3,1,1,3,2,3,1,1,1,1,1,1,1,1,3,2,3,1,1,3,2,3,1,1,1,1,0,1,1,1,1,3,3,3,1,1,3,3,3,1,1,1,1,1,1,1,1,3,3,3,1,1,3,3,3,1,1,1,1,0,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,0,0,1,1,1,1,3,3,3,3,3,3,1,1,1,1,0,0,1,1,1,1,3,3,3,3,3,3,1,1,1,1,0,0,0,0,0,0,3,3,3,3,3,3,3,3,0,0,0,0,0,0,0,0,3,3,3,3,3,3,3,3,0,0,0,0,0,0,0,0,0,3,3,3,3,3,3,3,3,2,2,0,0,0,0,0,0,3,3,3,3,3,3,3,3,2,2,0,0,0,0,0,0,2,2,3,3,3,3,3,2,2,2,2,2,0,0,0,0,2,2,3,3,3,3,3,2,2,2,2,2,0,0,0,0,0,2,2,2,3,3,3,2,2,2,2,2,2,0,0,0,0,2,2,2,3,3,3,2,2,2,2,2,2,0,0,0,0,0,0,2,2,2,3,3,2,2,2,2,2,0,0,0,0,0,0,2,2,2,3,3,2,2,2,2,2,0,0,0],
cl:[0xFFff0000,0xFF4090c0,0xFF305080,0xFFa0fff0]
};
static public var hb_f0:Object = {
w:16,
h:16,
map:[0,1,1,1,1,1,1,1,1,1,1,1,1,1,1,0,1,2,2,2,2,2,2,2,2,2,2,2,2,2,2,3,1,2,3,2,2,2,2,2,2,2,2,2,2,3,2,3,1,2,2,2,2,1,1,1,1,1,2,2,2,2,2,3,1,2,2,2,1,1,3,3,3,1,1,2,2,2,2,3,1,2,2,2,1,1,3,2,2,1,1,3,2,2,2,3,1,2,2,2,1,1,3,2,2,1,1,3,2,2,2,3,1,2,2,2,2,3,3,2,1,1,1,3,2,2,2,3,1,2,2,2,2,2,2,1,1,3,3,3,2,2,2,3,1,2,2,2,2,2,2,1,1,3,2,2,2,2,2,3,1,2,2,2,2,2,2,2,3,3,2,2,2,2,2,3,1,2,2,2,2,2,2,1,1,2,2,2,2,2,2,3,1,2,2,2,2,2,2,1,1,3,2,2,2,2,2,3,1,2,3,2,2,2,2,2,3,3,2,2,2,3,2,3,1,2,2,2,2,2,2,2,2,2,2,2,2,2,2,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3],
cl:[0xFFff0000, 0xFFc07000, 0xFFffa000, 0xFF4090c0]
};
static public var hb:Object = {
w:16,
h:16,
map:[0,1,1,1,1,1,1,1,1,1,1,1,1,1,1,0,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,2,1,1,2,1,1,1,1,1,1,1,1,1,1,2,1,2,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,2,1,1,1,1,1,1,2,2,2,1,1,1,1,1,1,2,1,1,1,1,1,1,2,1,1,1,1,2,1,1,1,2,1,1,1,1,1,1,2,1,1,1,1,2,1,1,1,2,1,1,1,1,1,2,2,1,1,1,1,2,1,1,1,2,1,1,1,1,1,1,1,1,1,2,2,2,1,1,1,2,1,1,1,1,1,1,1,1,1,2,1,1,1,1,1,2,1,1,1,1,1,1,1,1,2,2,1,1,1,1,1,2,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,2,1,1,1,1,1,1,1,1,1,2,1,1,1,1,1,2,1,1,2,1,1,1,1,1,2,2,1,1,1,2,1,2,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2,2],
cl:[0xFFff0000,0xFFc07000,0xFF4090c0]
};
static public var hb_f2:Object = {
w:16,
h:16,
map:[0,1,1,1,1,1,1,1,1,1,1,1,1,1,1,0,1,2,2,2,2,2,2,2,2,2,2,2,2,2,2,3,1,2,3,2,2,2,2,2,2,2,2,2,2,3,2,3,1,2,2,2,2,1,1,1,1,1,2,2,2,2,2,3,1,2,2,2,1,1,3,3,3,1,1,2,2,2,2,3,1,2,2,2,1,1,3,2,2,1,1,3,2,2,2,3,1,2,2,2,1,1,3,2,2,1,1,3,2,2,2,3,1,2,2,2,2,3,3,2,1,1,1,3,2,2,2,3,1,2,2,2,2,2,2,1,1,3,3,3,2,2,2,3,1,2,2,2,2,2,2,1,1,3,2,2,2,2,2,3,1,2,2,2,2,2,2,2,3,3,2,2,2,2,2,3,1,2,2,2,2,2,2,1,1,2,2,2,2,2,2,3,1,2,2,2,2,2,2,1,1,3,2,2,2,2,2,3,1,2,3,2,2,2,2,2,3,3,2,2,2,3,2,3,1,2,2,2,2,2,2,2,2,2,2,2,2,2,2,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3],
cl:[0xFFff0000, 0xFFc07000, 0xFF784000, 0xFF4090c0]
};
}
