forked from: Papervision3D's bumpmapping error?->EnvMapShader.renderLayer/renderTri error?

/**
 * Copyright smallflowergame ( http://wonderfl.net/user/smallflowergame )
 * MIT License ( http://www.opensource.org/licenses/mit-license.php )
 * Downloaded from: http://wonderfl.net/c/1aBD
 */

// forked from zendenmushi's Papervision3D's bumpmapping error?->EnvMapShader.renderLayer/renderTri error?
// 昨日上げたコードは大きすぎてquestionには不向きでした。
// 基本に立ち返り、ミニマムコードを。 (海面の奴は別の機会にあげます)
//

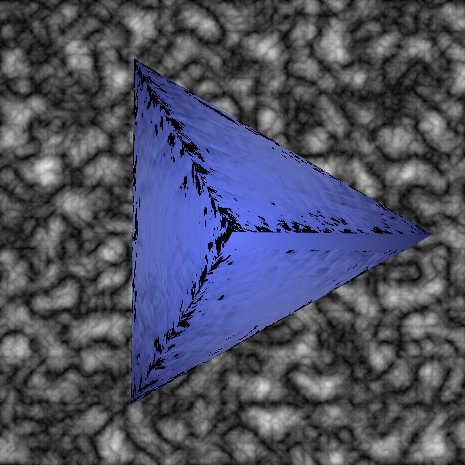

// オブジェクトにPhongShaderやEnvMapShaderを割り当てて
// bumpmapを適用すると、3角ポリゴンのエッジ周辺のbumpの一部にエラー(極端に暗くなる)が
// 表示されます。
// [Question]この原因がわからない(法線ベクトル関連だと思うのですが・・・)ので、
//  解決法をご存知の方、よろしくお願いします
//
// ※昨日のコードでは 3角ポリゴンのエッジ以外にもエラーが出ていましたが、とりあえず3角ポリゴンの
//   エッジに注目して考えてます。 個人的には法線ベクトル。おそらくスムージング角度の問題じゃない
//   かと思うのですが、スムージング角度の設定方法がわかりません
//
// ※なんかそもそもテクスチャがずれているような・・・このあたりを重点的に調べてみます
//
// ※bumpには関係なく、phongshaderを適用した時点でエッジが黒くなっていて、
//   その影響をbumpが受けている模様
// ※ShadedMaterialのCompositeModeをShaderCompositeModes.PER_TRIANGLE_IN_BITMAP
//   にするとエッジの線が消える。・・・・けどbumpmapが消える。 papervisionのソースを見る限り、
//   現在進行形で修正中のようす。ここまでかな
package
{
    import flash.display.Bitmap;
    import flash.display.BitmapData;
    import flash.display.Loader;
    import flash.display.MovieClip;
    import flash.display.Sprite;
    import flash.events.Event;
    import flash.events.MouseEvent;
    import flash.filters.BlurFilter;
    import flash.geom.Point;
    import flash.geom.Rectangle;
    import flash.net.URLRequest;
    import flash.system.LoaderContext;
    import flash.text.TextField;
    import org.papervision3d.cameras.Camera3D;
    import org.papervision3d.core.geom.renderables.Triangle3D;
    import org.papervision3d.core.geom.renderables.Vertex3D;
    import org.papervision3d.core.geom.TriangleMesh3D;
    import org.papervision3d.core.math.NumberUV;
    import org.papervision3d.core.proto.LightObject3D;
    import org.papervision3d.lights.PointLight3D;
    import org.papervision3d.materials.BitmapMaterial;
    import org.papervision3d.materials.ColorMaterial;
    import org.papervision3d.materials.MovieMaterial;
    import org.papervision3d.materials.shaders.EnvMapShader;
    import org.papervision3d.materials.shaders.FlatShader;
    import org.papervision3d.materials.shaders.PhongShader;
    import org.papervision3d.materials.shaders.ShadedMaterial;
    import org.papervision3d.materials.shaders.ShaderCompositeModes;
    import org.papervision3d.materials.WireframeMaterial;
    import org.papervision3d.objects.primitives.Sphere;
    import org.papervision3d.render.BasicRenderEngine;
    import org.papervision3d.scenes.Scene3D;
    import org.papervision3d.view.Viewport3D;
    /**
     * ...
     * @author TMaeda
     */
    [SWF(width = 465, height = 465, backgroundColor = 0xcccccc, frameRate = 60)]
    public class SeaWaveMinimum extends Sprite
    {
        private var smallwave : BitmapData;
        private var scrollwave : BitmapData;
        private var skyback : BitmapData;
        // pv3d
        private var scene : Scene3D;
        private var camera : Camera3D;
        private var renderer : BasicRenderEngine;
        private var viewport : Viewport3D;
        private var sphere : Sphere ;
        private var skyMaterial : BitmapMaterial;
        private var shadedMaterial : ShadedMaterial
        private var phongShader : PhongShader;
        private var light :  PointLight3D;
        private var uvarray : Array = new Array();

        private var scrollArea : Rectangle = new Rectangle();
        private var subArea : Rectangle = new Rectangle();
        private var tempRect : Rectangle = new Rectangle();
        private var zeroPoint : Point = new Point(0, 0);
        private var subPoint : Point = new Point(0, 0);

        private var loaders : Array;
           private const url:Array = [
            "http://assets.wonderfl.net/images/related_images/8/89/89a3/89a3940a2099d7fe24a51ddfd49fbb370e43e9ee"
            //"./skyback.png"
            ];

        public function SeaWaveMinimum()
        {
            if (stage) init();
            else addEventListener(Event.ADDED_TO_STAGE, init);
        }

        private function init(e : Event = null) : void
        {
            removeEventListener(Event.ADDED_TO_STAGE, init);

               loaders = new Array();
            for (var i : int = 0; i < url.length; i++) {
                loaders[i] = new Loader();
                loaders[i].contentLoaderInfo.addEventListener(Event.COMPLETE, loaded);
                loaders[i].load(new URLRequest(url[i]), new LoaderContext(true));
            }

        }

        private var loaded_count : int = 0;
        private function loaded(e : Event = null) : void
        {
            loaded_count++;
            if (loaded_count < url.length) return;

               addEventListener(Event.ENTER_FRAME, enterFrame);


            var mc : MovieClip = new MovieClip();
            addChild(mc);


            scrollwave = new BitmapData(stage.stageWidth*2, stage.stageHeight, true, 0xffcccccc);
            scrollwave.perlinNoise(32,32, 4, 0, true, false, 1, true);
            smallwave = new BitmapData(stage.stageWidth, stage.stageHeight, true, 0xffcccccc);
            scrollArea.left = 0;
            scrollArea.width = stage.stageWidth;
            scrollArea.top = 0;
            scrollArea.height = stage.stageHeight;
            smallwave.copyPixels(scrollwave, scrollArea, zeroPoint);

            skyback = Bitmap(loaders[0].content).bitmapData;
            mc.addChild(new Bitmap(smallwave));

            // pv3d
            scene = new Scene3D();
            camera = new Camera3D();
            camera.x = 0;
            camera.y = 100.0;
            camera.z = 0.0;
            camera.ortho = true;
            camera.orthoScale = 20;
            light = new PointLight3D(false, true);
            light.x = 0;
            light.y = 1;
            light.z = 0.0;
            light.pitch(90);

            renderer = new BasicRenderEngine();
            viewport = new Viewport3D(stage.stageWidth, stage.stageHeight, false);
            mc.addChild(viewport);

            skyMaterial = new BitmapMaterial(skyback);
            skyMaterial.doubleSided = true;
            phongShader = new PhongShader(light, 0xFFFFFF, 0x404060 , 1, smallwave, smallwave);
            shadedMaterial =  new ShadedMaterial(skyMaterial, phongShader);//,ShaderCompositeModes.PER_TRIANGLE_IN_BITMAP );

            sphere = new Sphere(shadedMaterial, 10, 2, 2);
            scene.addChild(sphere);

            camera.pitch(90);
            scene.addChild(light);
            //

        }

        private var waveShift : int = 0;
        private var rad : Number = 0;
        private function enterFrame(e : Event) : void
        {
            scrollArea.left = scrollArea.left + 1;
            if (scrollArea.left > scrollwave.width) scrollArea.left = 0;

            var w : int = scrollwave.width - scrollArea.left;
            if (w > smallwave.width) w = smallwave.width;

            // バンプのアニメーション
            scrollArea.width = w;
            scrollArea.top = 0;
            scrollArea.height = stage.stageHeight;
            smallwave.copyPixels(scrollwave, scrollArea, zeroPoint);
            if (w < smallwave.width) {
                subArea.left = 0;
                subArea.width = smallwave.width - w;
                subArea.top = 0;
                subArea.height = stage.stageHeight;
                subPoint.x = w;
                subPoint.y = 0;
                smallwave.copyPixels(scrollwave, subArea, subPoint);
            }

            sphere.rotationX += 0.2;
            sphere.rotationY += 0.5;
            sphere.rotationZ += 0.1;

            phongShader.bumpmap = smallwave;
            renderer.renderScene( scene, camera, viewport );

        }

    }

}
